SE3-043-015K Shihlin AC Drive 440V

Price 34600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SE3-043-015K Shihlin AC Drive 440V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Charcoal Black

Weight
5.7 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

SE3-043-015K Shihlin AC Drive 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About SE3-043-015K Shihlin AC Drive 440V

The Shihlin SE3-043-15K (often listed as SE3-043-015K) is a 440V class, high-performance AC drive with a power rating of 15 kW (20 HP). It is categorized under Frame D of the SE3 series, designed to provide robust control for high-power industrial machinery such as large pumps, compressors, and heavy automated lines.

Dimensions and Weight

As a Frame D unit, this drive is larger and heavier than the Frame C models to manage the thermal demands of a 15 kW output.

Dimension [1, 2, 3]	Metric (mm/kg)	Imperial (inches/lbs)
Height (H)	300.0 mm	11.81 inches
Width (W)	175.0 mm	6.89 inches
Length/Depth (D)	192.0 mm	7.56 inches
Weight	~5.7 kg	12.57 lbs
(Dimensions and weight sourced from Amazen and Alobitan)

Core Specifications

Rated Power: 15 kW (20 HP).
Input Voltage: 3-Phase 380480V AC (50/60 Hz).
Rated Output Current:
- Heavy Duty (HD): 32.0A (150% overload for 60s).
- Normal Duty (ND): 36.0A (120% overload for 60s).

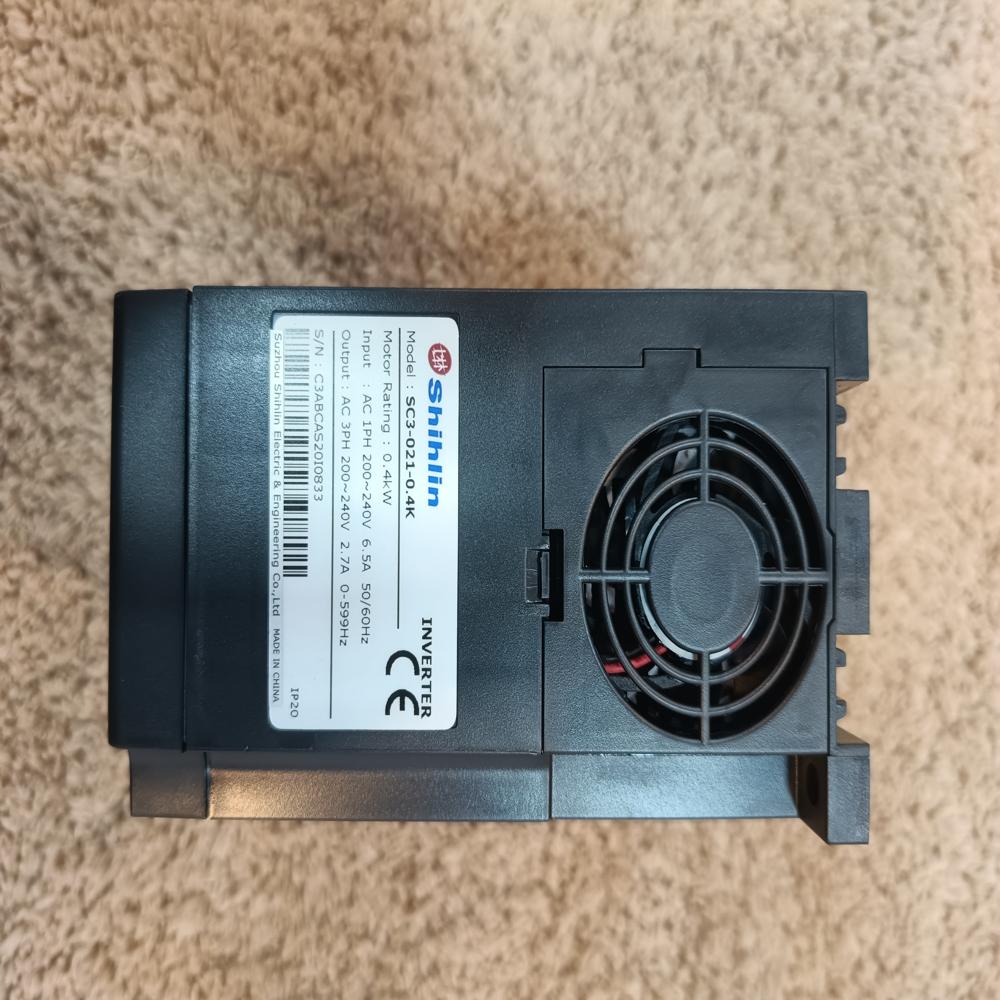

Cooling Method: Forced Air Cooling via an integrated high-efficiency cooling fan.
Efficiency: Rated at approximately 98% Tradeindia. [1, 2, 3, 4, 5]

Key Features

Advanced Control: Supports V/F, General Flux Vector, and Sensorless Vector Control (SVC). It is also compatible with both Induction Motors (IM) and Permanent Magnet Motors (PM) Shihlin Electric.
High Speed: Capable of output frequencies up to 1500 Hz for specialized high-speed applications.
Integrated Logic: Features a built-in PLC function, allowing users to perform basic logic control without an external PLC.
Reliability: Built-in RFI filter to reduce electromagnetic interference and comprehensive protection against overcurrent, overvoltage, and overheating.
Connectivity: RS-485 interface as standard, with one expansion slot available for protocols like EtherCAT, Profibus, or CANopen.
