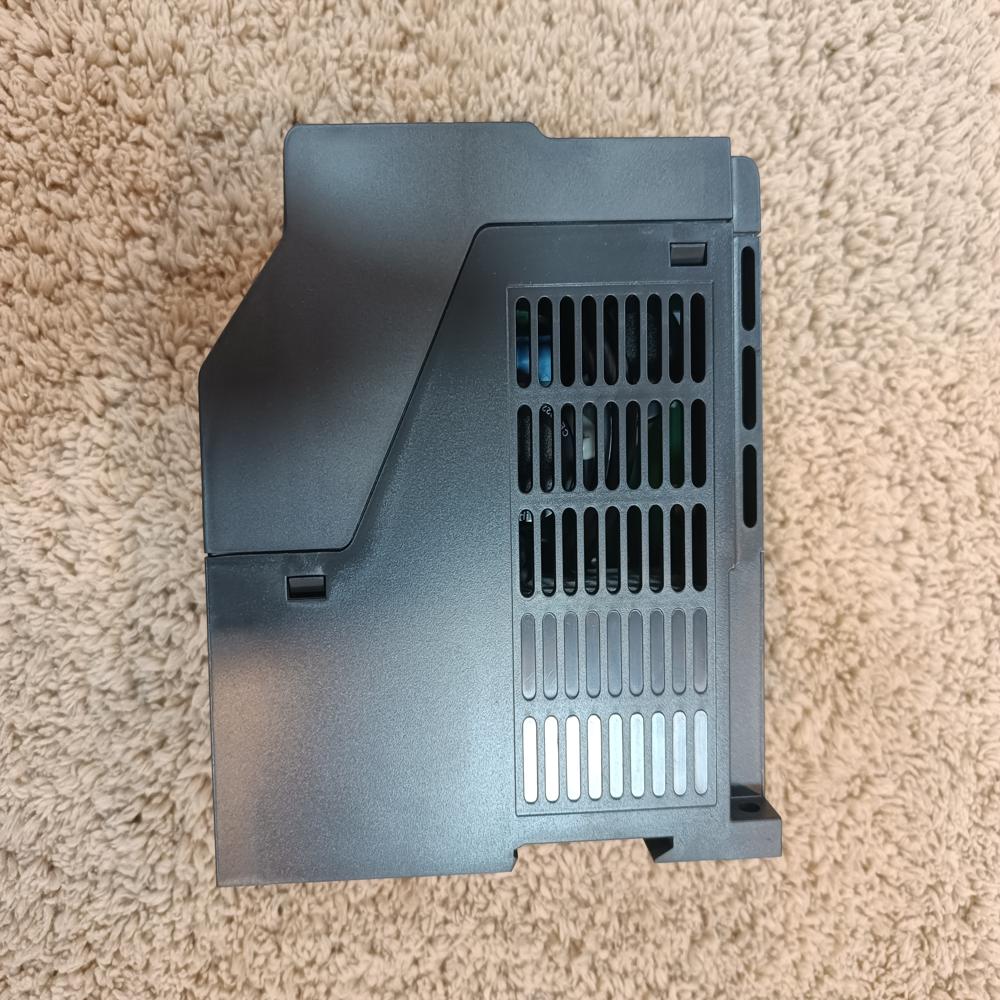

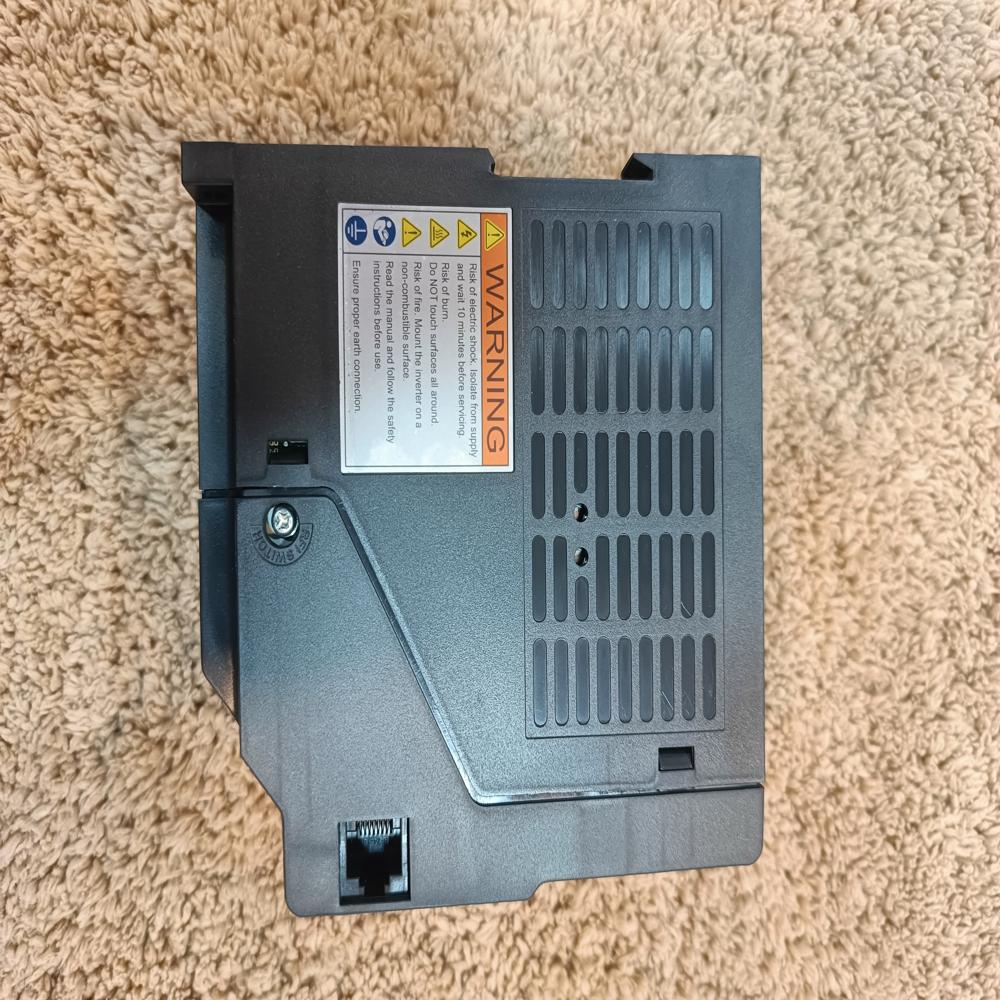

SE3-043-2.2K Shihlin AC Drive 440V

Name: SE3-043-2.2K Shihlin AC Drive 440V
Brand: Corbital Enterprise
Price: 18000.0 INR
Availability: InStock

Price 18000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SE3-043-2.2K Shihlin AC Drive 440V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Charcoal Black

Usage & Applications
Industrial Machinerry

Weight
2.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

SE3-043-2.2K Shihlin AC Drive 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About SE3-043-2.2K Shihlin AC Drive 440V

The Shihlin SE3-043-2.2K is a 440V class, high-performance AC drive with a power rating of 2.2 kW (3 HP). It is part of the Frame B design in the SE3 series, which is slightly larger than the Frame A models (like the 1.5K version) to accommodate the higher power handling and cooling requirements. [1, 2, 3]

Dimensions and Weight

This model transitions to a Frame B size to effectively manage heat for the 2.2 kW power output.

Dimension [1, 3]	Metric (mm/kg)	Imperial (inches/lbs)
Height (H)	180.0 mm	7.09 inches
Width (W)	130.0 mm	5.12 inches
Length/Depth (D)	175.0 mm	6.89 inches
Weight	2.5 kg	5.51 lbs

Core Specifications

Rated Power: 2.2 kW (3 HP).
Input Voltage: 3-Phase 380480V AC (50/60 Hz).
Output Current:
- Heavy Duty (HD): 6.0A (150% overload for 60s).
- Normal Duty (ND): 6.5A (120% overload for 60s).

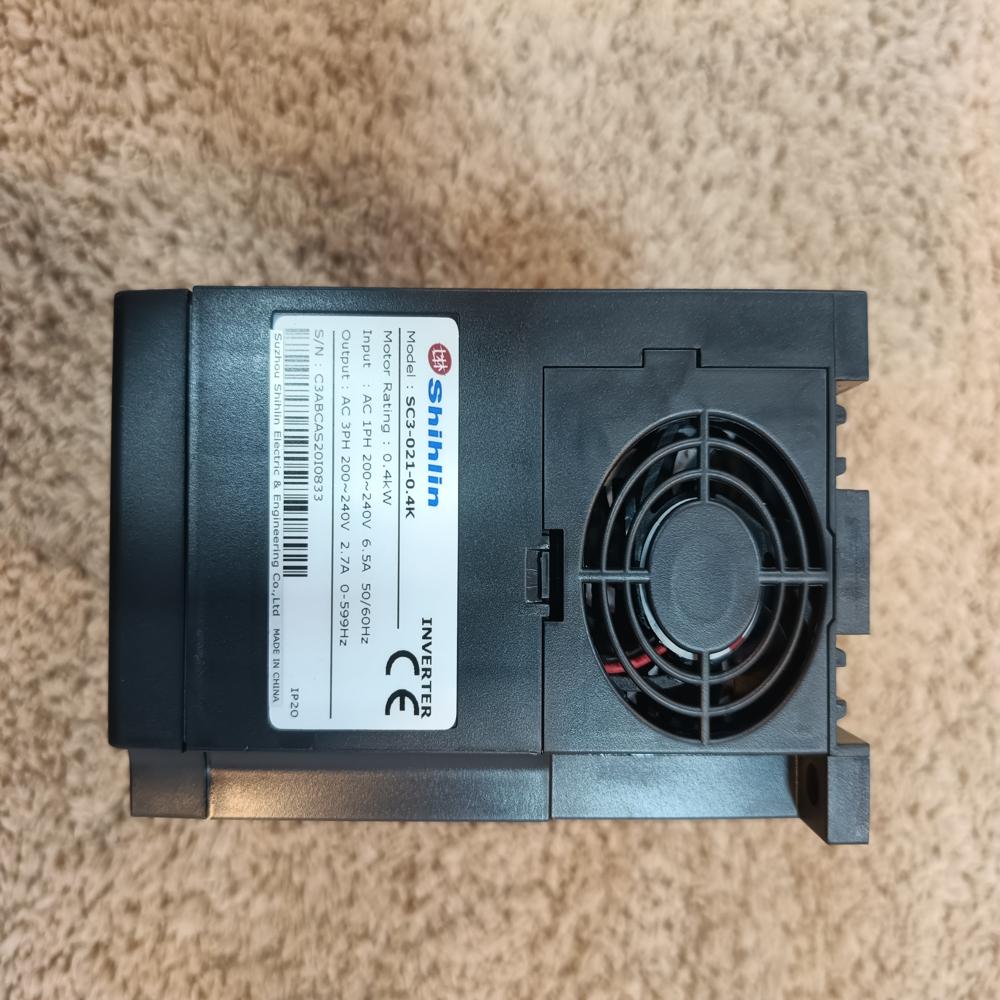

Cooling Method: Forced Air Cooling (includes a built-in cooling fan).
Efficiency: High efficiency rating of 96%. [1, 2, 3, 4, 5]

Key Features

Motor Support: Compatible with both Induction Motors (IM) and Permanent Magnet Motors (PM) like SPM and IPM.
Control Modes: Supports V/F control, General Flux Vector Control, and Sensorless Vector Control (SVC) for high-precision torque.
Integrated PLC: Features a built-in PLC function for automation without needing external controllers.
Communication: Built-in RS-485 interface supporting MODBUS RTU for seamless SCADA or HMI integration.
Safety: Comprehensive protection suite including overcurrent, short circuit, and overvoltage avoidance functions. [1, 2, 3, 4]
