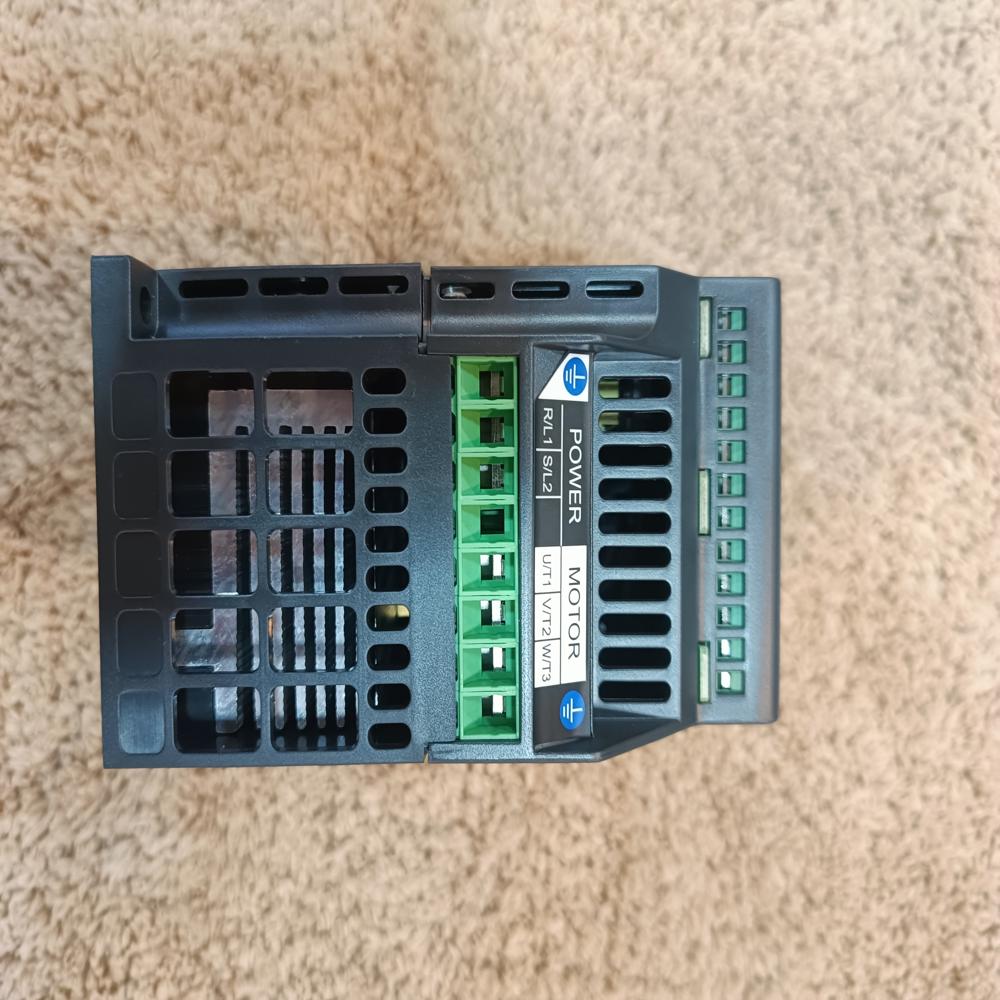

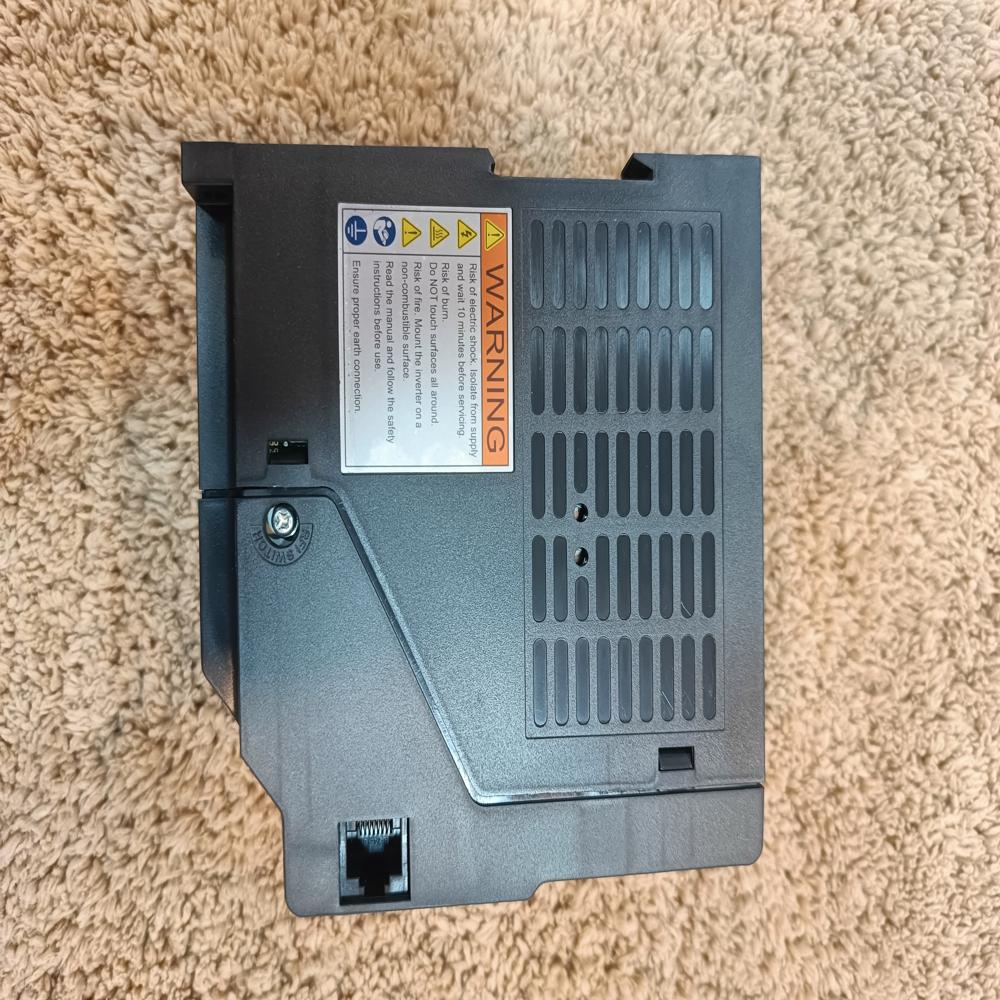

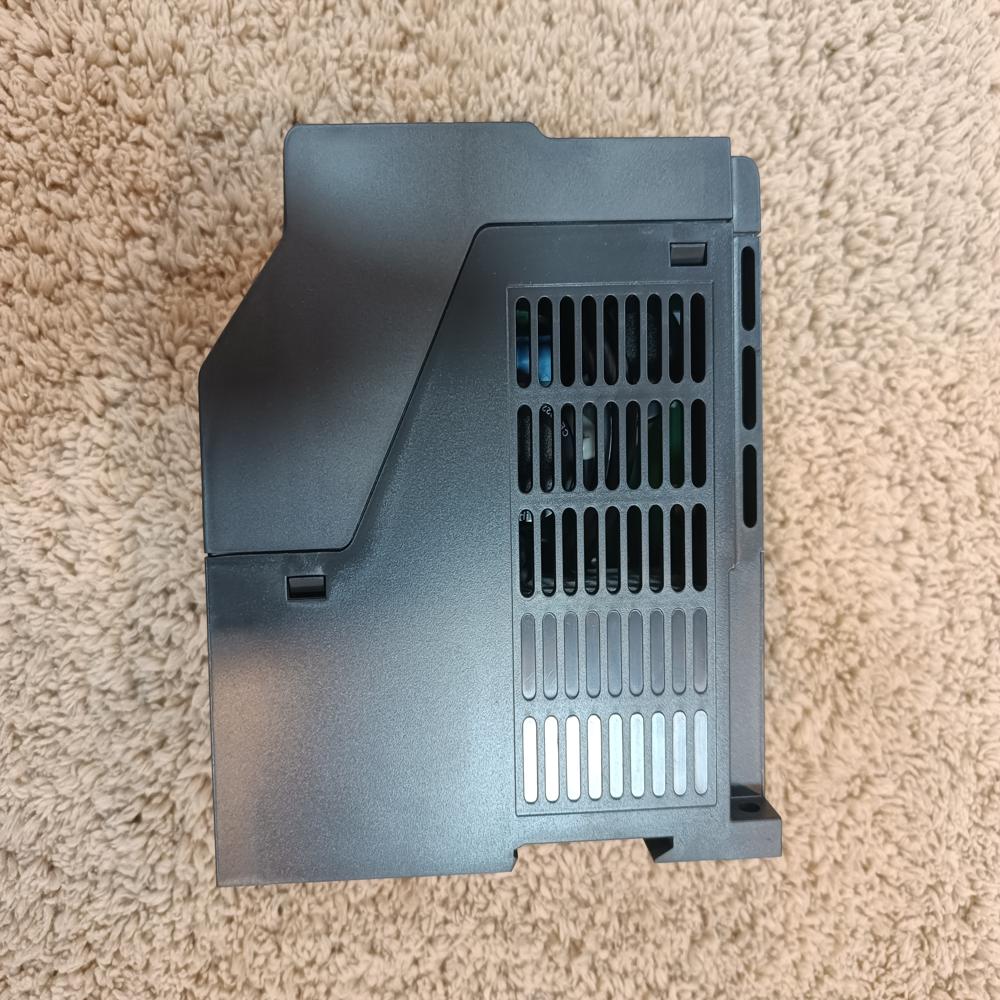

SE3-043-7.5K Shihlin AC Drive 440V

Name: SE3-043-7.5K Shihlin AC Drive 440V
Brand: Corbital Enterprise
Price: 22000.0 INR
Availability: InStock

Price 22000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SE3-043-7.5K Shihlin AC Drive 440V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Charcoal Black

Usage & Applications
Industrial Machinerry

Weight
4.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

SE3-043-7.5K Shihlin AC Drive 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About SE3-043-7.5K Shihlin AC Drive 440V

The Shihlin SE3-043-7.5K is a 440V class, high-performance AC drive with a power rating of 7.5 kW (10 HP). This model is categorized under Frame C of the SE3 series and is designed for heavy-duty industrial applications requiring high precision and robust motor control.

Dimensions and Weight

The 7.5 kW model shares the same Frame C enclosure as the 5.5 kW version. [1]

Dimension [1, 2, 3, 4, 5]	Metric (mm/kg)	Imperial (inches/lbs)
Height (H)	270.0 mm	10.63 inches
Width (W)	141.0 mm	5.55 inches
Length/Depth (D)	185.0 mm	7.28 inches
Weight	4.0 kg to 5.5 kg	8.8 lbs to 12.1 lbs
(Note: Weight varies slightly depending on integrated options like the RFI filter.)

Core Specifications

Rated Power: 7.5 kW (10 HP).
Input Voltage: 3-Phase 380480V AC (Permissible range: 323528V).
Rated Output Current:
- Heavy Duty (HD): 17.0A (150% overload for 60s).
- Normal Duty (ND): 20.5A (120% overload for 60s).
Cooling Method: Forced Air Cooling (integrated high-volume fan).
Safety Features: Built-in protection for overcurrent, overvoltage, motor overheating, and ground leakage. [1, 2, 3, 4, 5]

Key Features

Control Versatility: Supports V/F control, General Flux Vector Control, and Sensorless Vector Control (SVC). High-speed versions can reach up to 1500 Hz.
Built-in PLC: Allows for localized automated logic without an external controller.
Expandability: Features one expansion card slot for protocols such as EtherCAT, Profibus, or CANopen, as well as closed-loop feedback.
Braking: Includes a built-in braking unit suitable for dynamic braking applications. [1, 4, 5]
