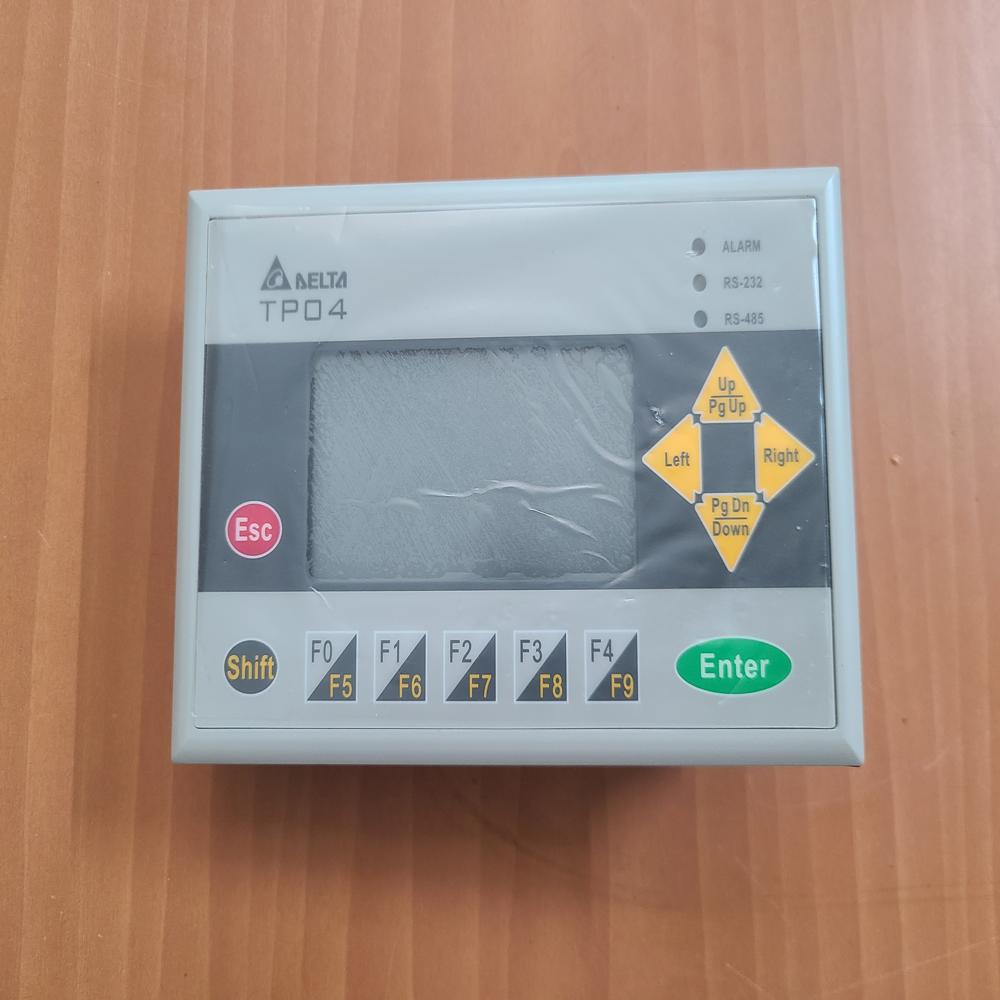

TP04P-22XA1R - Delta HMI

Name: TP04P-22XA1R - Delta HMI
Brand: Corbital Enterprise
Price: 15800.0 INR
Availability: InStock

Price 15800.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

TP04P-22XA1R - Delta HMI Specification

Mounting Type
Panel Mount

Output Voltage
24V DC Volt (V)

Humidity
20% to 90% RH

Rated Voltage
24V DC Volt (V)

Input Current
24V DC

Usage
Industrial Machinery

Processing Type
Standard

Height
108.6 Millimeter (mm)

Function
Integrated HMI + PLC; 8 Digital Inputs, 8 Relay Outputs, 4 Analog Inputs, and 2 Analog Outputs.

Application
Industrial Machinery

Weight
420 Grams (g)

Color
Black housing with a monochrome STN-LCD (Green backlight).

Power Mode
Other

Width
175.8 Millimeter (mm)

Length
175.8 Millimeter (mm)

Voltage
24V DC Volt (v)

Warranty
1 Year

TP04P-22XA1R - Delta HMI Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About TP04P-22XA1R - Delta HMI

The

Delta TP04P-22XA1R

is a 4.1-inch HMI with an integrated PLC, featuring a mix of digital and analog I/O for more complex automation tasks compared to the basic digital-only models.

Integrated HMI + PLC Solution

Delta's TP04P-22XA1R streamlines automation by combining HMI and PLC functions within a single device. It accommodates simultaneous processing and visualization for industrial machinery, reducing hardware complexity and improving system efficiency. With a suite of digital and analog I/Os, it provides flexible control for a variety of applications, making it ideal for process and machine automation setups.

Versatile Connectivity & Robust Design

Equipped with 8 digital inputs, 8 relay outputs, 4 analog inputs, and 2 analog outputs, the TP04P-22XA1R facilitates real-time data acquisition and machine control. Housed in a sturdy black case, the device withstands challenging industrial environments, supports panel mounting, and operates reliably within a wide humidity range, ensuring longevity and stable performance.

FAQ's of TP04P-22XA1R - Delta HMI:

Q: How can the TP04P-22XA1R be integrated into industrial machinery control systems?

A: The TP04P-22XA1R is designed for seamless panel mounting onto industrial machines. It integrates both HMI and PLC functionalities, enabling centralized monitoring and control through its variety of digital and analog I/Os, all managed via its intuitive monochrome STN-LCD interface.

Q: What are the main benefits of choosing the TP04P-22XA1R for automation?

A: Opting for the TP04P-22XA1R reduces hardware redundancy by combining HMI and PLC features, simplifies wiring and installation, and enhances machine control with its wide input/output options. Its rugged build and broad operating humidity range further add to its reliability in manufacturing environments.

Q: When should this HMI-PLC unit be serviced or maintained?

A: Routine maintenance checks should follow your facility's schedule, but due to its solid-state construction and industrial-grade components, the TP04P-22XA1R requires minimal servicing. Inspections should focus on ensuring connections are secure and the panel remains free from excessive dust or moisture.

Q: Where can I source the TP04P-22XA1R in India?

A: The TP04P-22XA1R is available through authorized Delta suppliers, traders, and wholesalers in India. For assured product authenticity and support, it's recommended to purchase from established industrial automation distributors.

Q: What processes and applications is this model suitable for?

A: This model is primarily intended for use in industrial machinery, including process control, monitoring, and automation applications where both human-machine interfacing and programmable logic control are needed. Its flexible I/O configuration supports various sensors and actuators.

Q: How does the monochrome STN-LCD benefit daily operations?

A: The monochrome STN-LCD with green backlight provides clear visibility even in low-light industrial settings. It helps operators monitor status and process data at a glance, supporting efficient on-site management and troubleshooting.
