UTD-IPT00-01024-N060-5TW 6mm Synchro - Posital Fraba Encoder

Name: UTD-IPT00-01024-N060-5TW 6mm Synchro - Posital Fraba Encoder
Brand: Corbital Enterprise
Price: 6800.0 INR
Availability: InStock

Price 6800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

UTD-IPT00-01024-N060-5TW 6mm Synchro - Posital Fraba Encoder Specification

Usage
Industrial Machinerry

IP Rating
65

Product Type
Encoder

Application
Industrial Machinerry

Function
Speed Determination

Color
Zinc-plated steel

Weight
465 Grams (g)

Warranty
1 Year

Usage & Applications
Industrial Machinerry

Material
Cathodic Corrosion Protected Steel

UTD-IPT00-01024-N060-5TW 6mm Synchro - Posital Fraba Encoder Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About UTD-IPT00-01024-N060-5TW 6mm Synchro - Posital Fraba Encoder

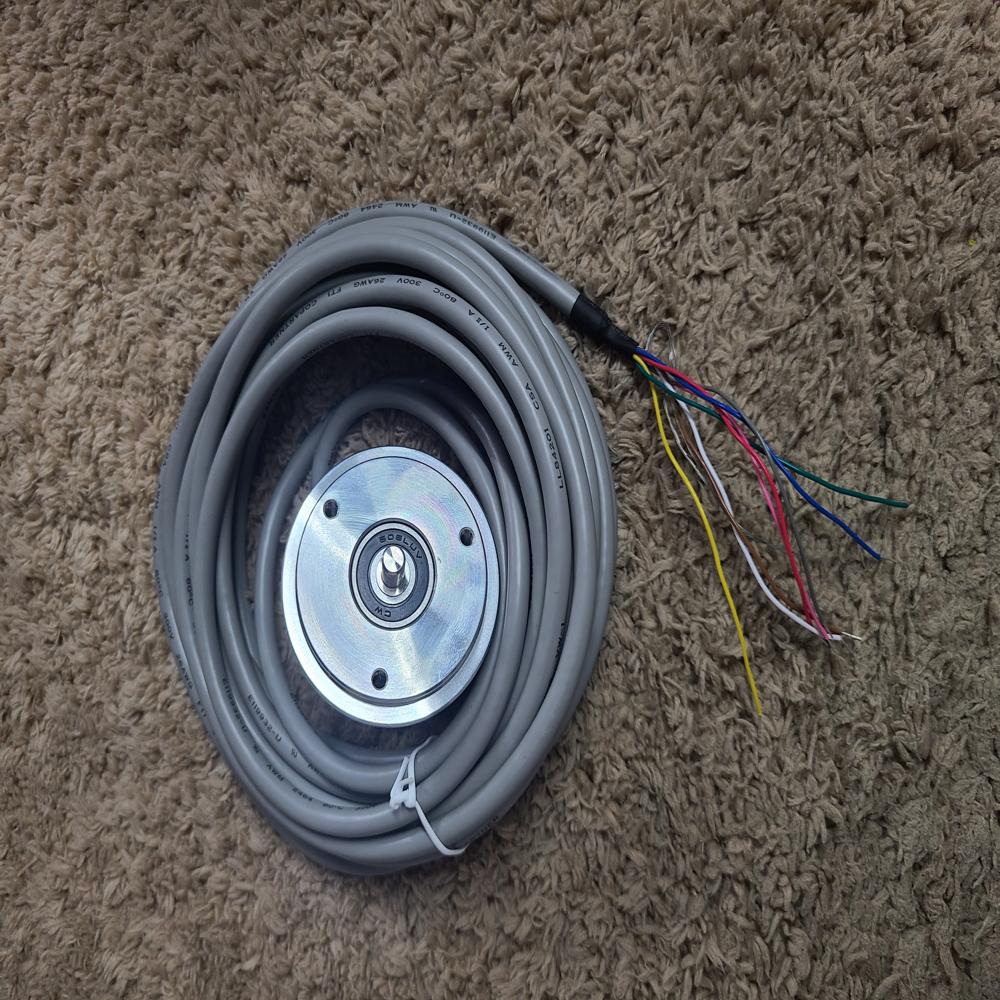

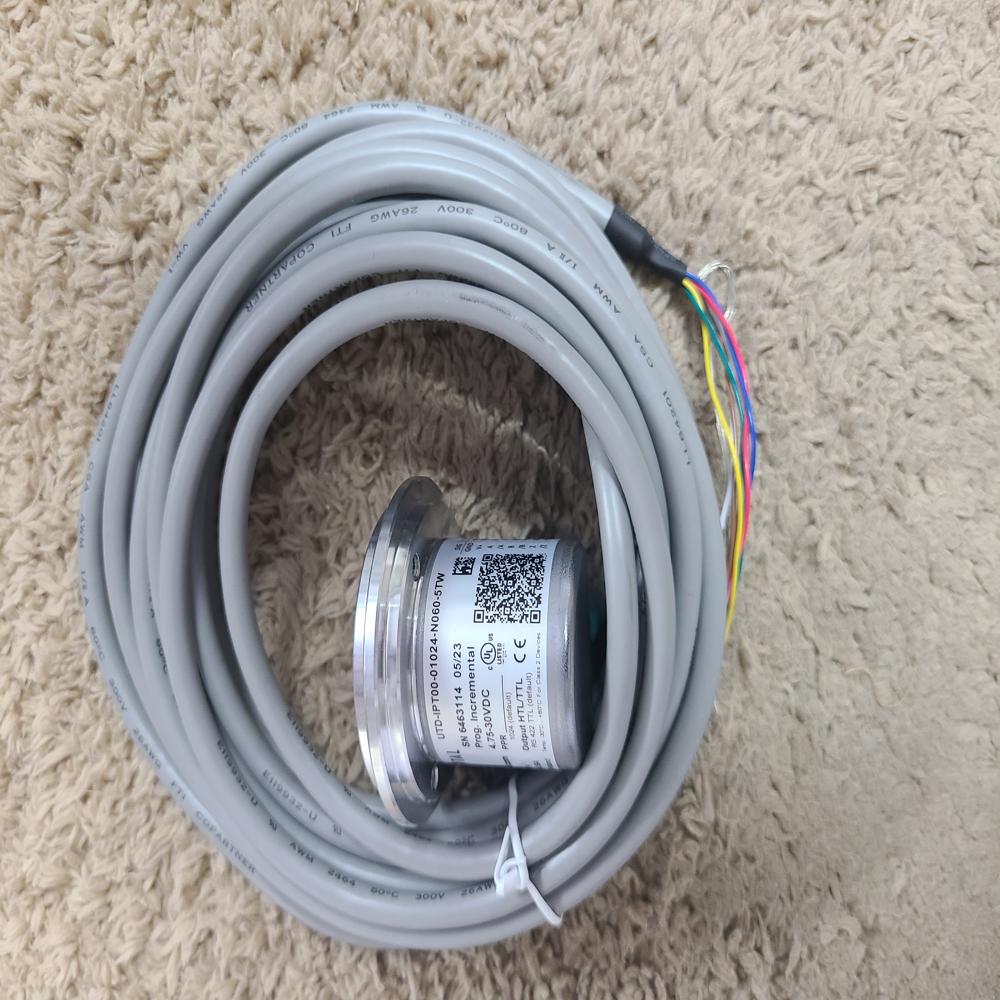

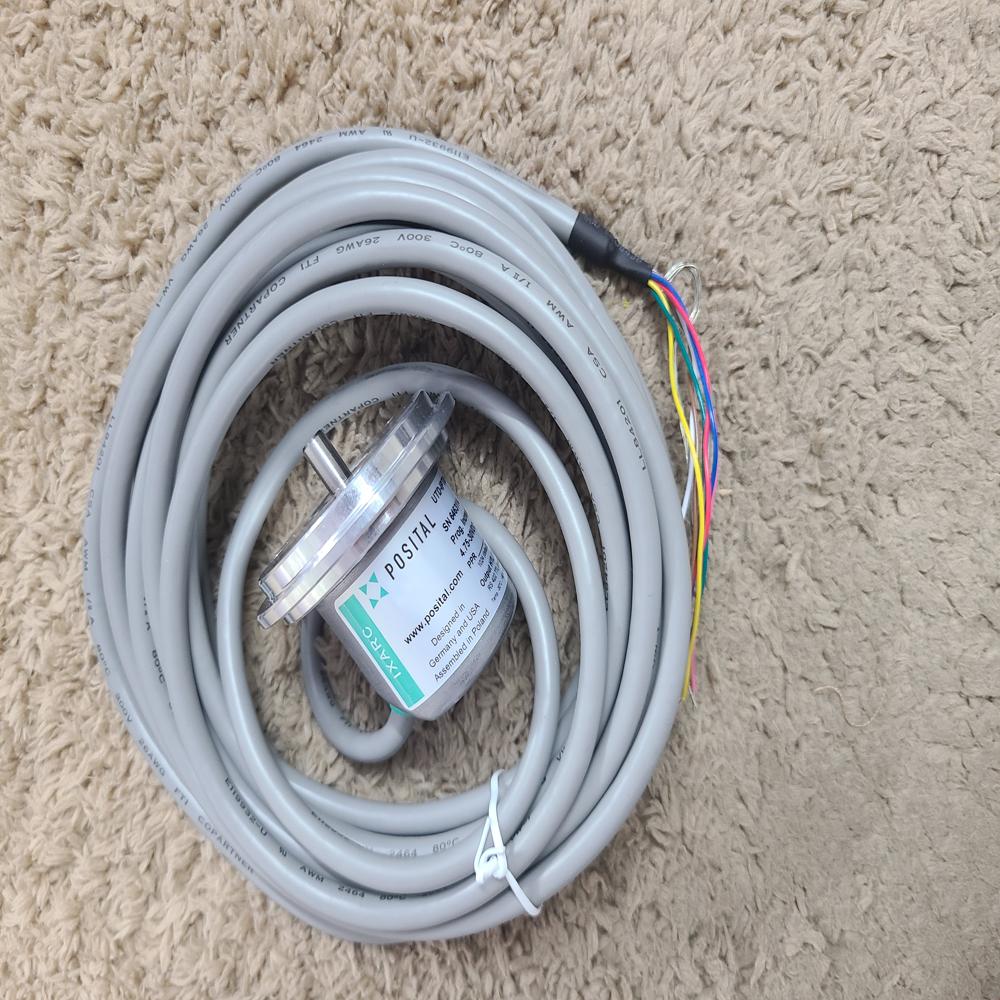

The Posital Fraba UTD-IPT00-01024-N060-5TW is a programmable incremental encoder with a 6mm solid shaft and a 58mm synchro flange. This specific flange type is designed for high-precision mounting where the encoder is held in place by synchro clamps. [1, 2]

Physical Specifications (Inches)

The synchro flange model is shorter but wider than the clamp flange models previously discussed.

Feature [1, 2]	Metric	Imperial (Inches)
Housing Length (Body)	35 mm	1.38"
Flange Diameter (W/H)	58 mm	2.28"
Shaft Diameter	6 mm	0.24"
Shaft Length	10 mm	0.39"
Total Weight	465 g	1.03 lbs

Function

Rotary Feedback: Converts shaft rotation into 1024 Pulses Per Revolution (PPR) for tracking position and speed.
Programmable: PPR (up to 16,384), counting direction, and output driver are adjustable via the UBIFAST Configuration Tool.
Precision Mounting: The synchro flange allows for fine-tuning the mechanical zero position by rotating the encoder in its mount before tightening the clamps.
Quadrature Signals: Provides A, B, and Z channels to determine direction and a "home" reference point. [1, 2, 3, 4, 5]

Material & IP Rating

IP Rating: IP66/IP67 on the housing side (extremely waterproof); IP65 on the shaft side.
Housing: Zinc-plated steel for corrosion resistance.
Flange: Aluminum.
Shaft: Stainless steel (V2A / 1.4305).

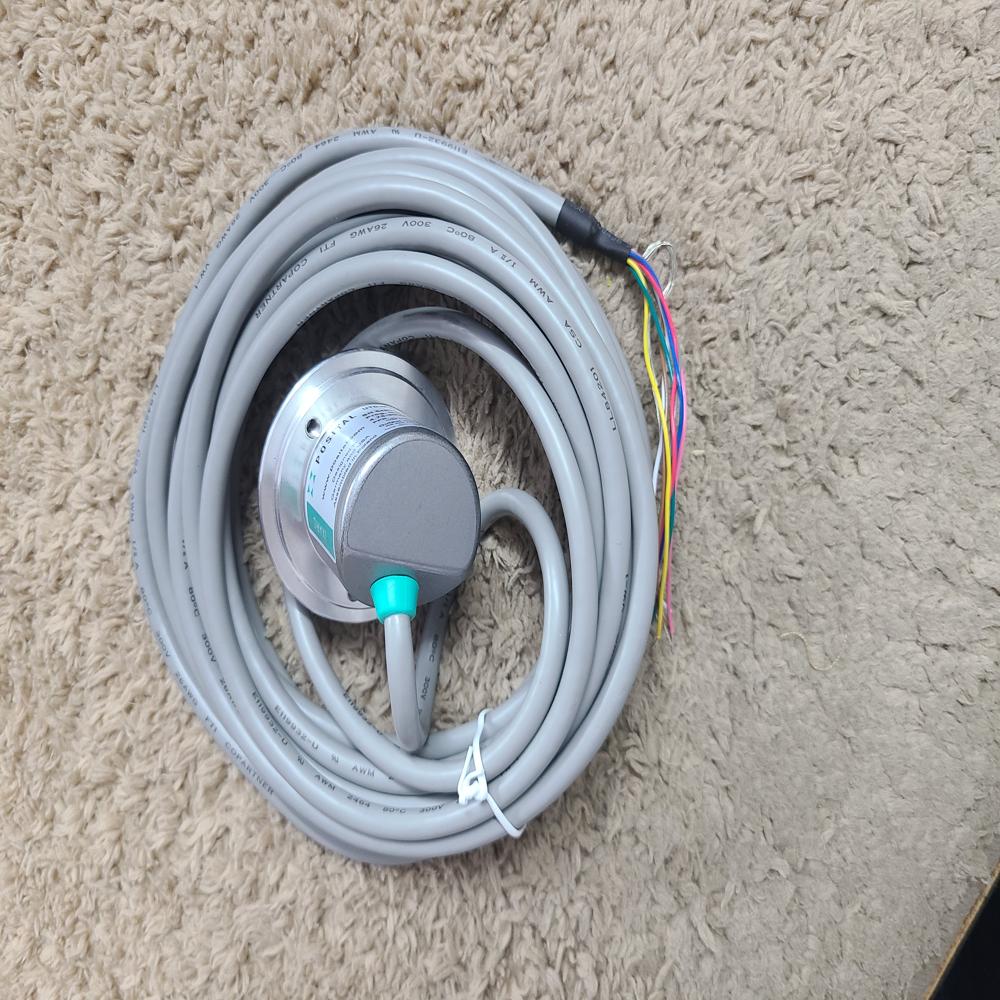

Connection: Includes a 5-meter radial cable.
