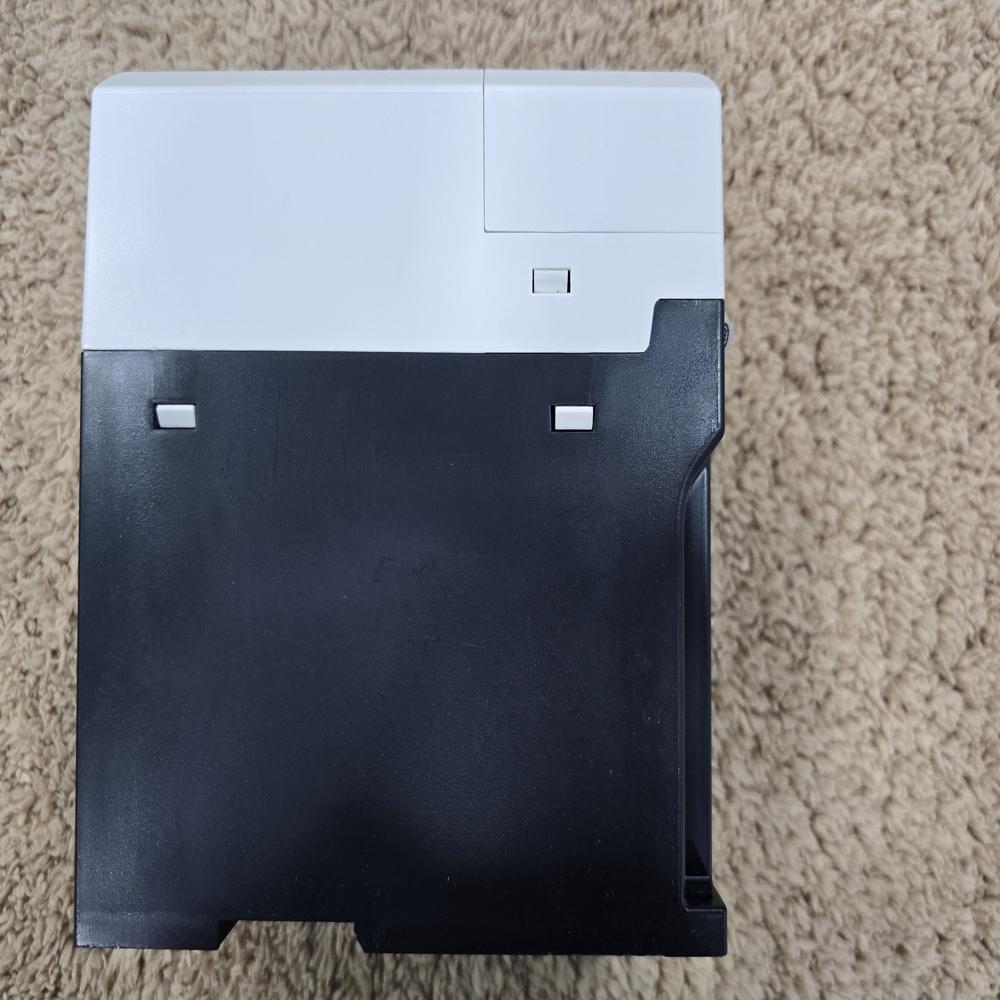

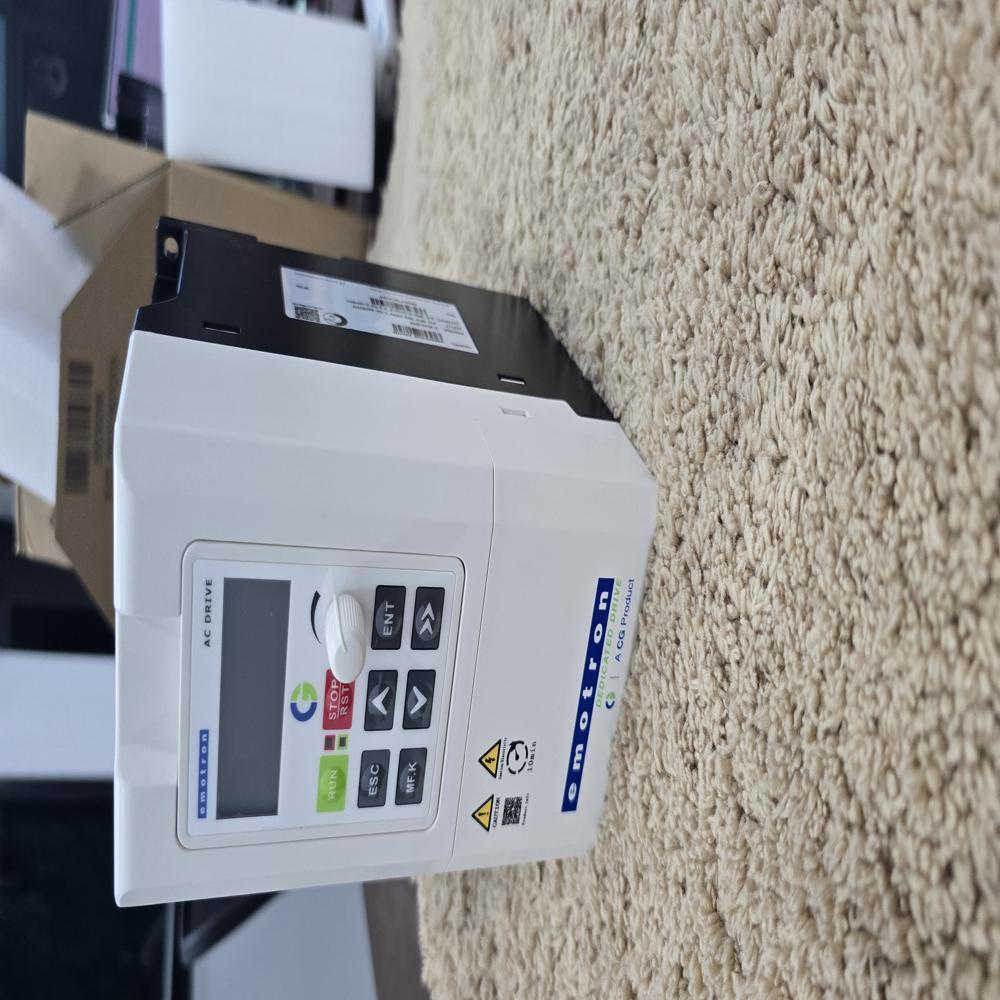

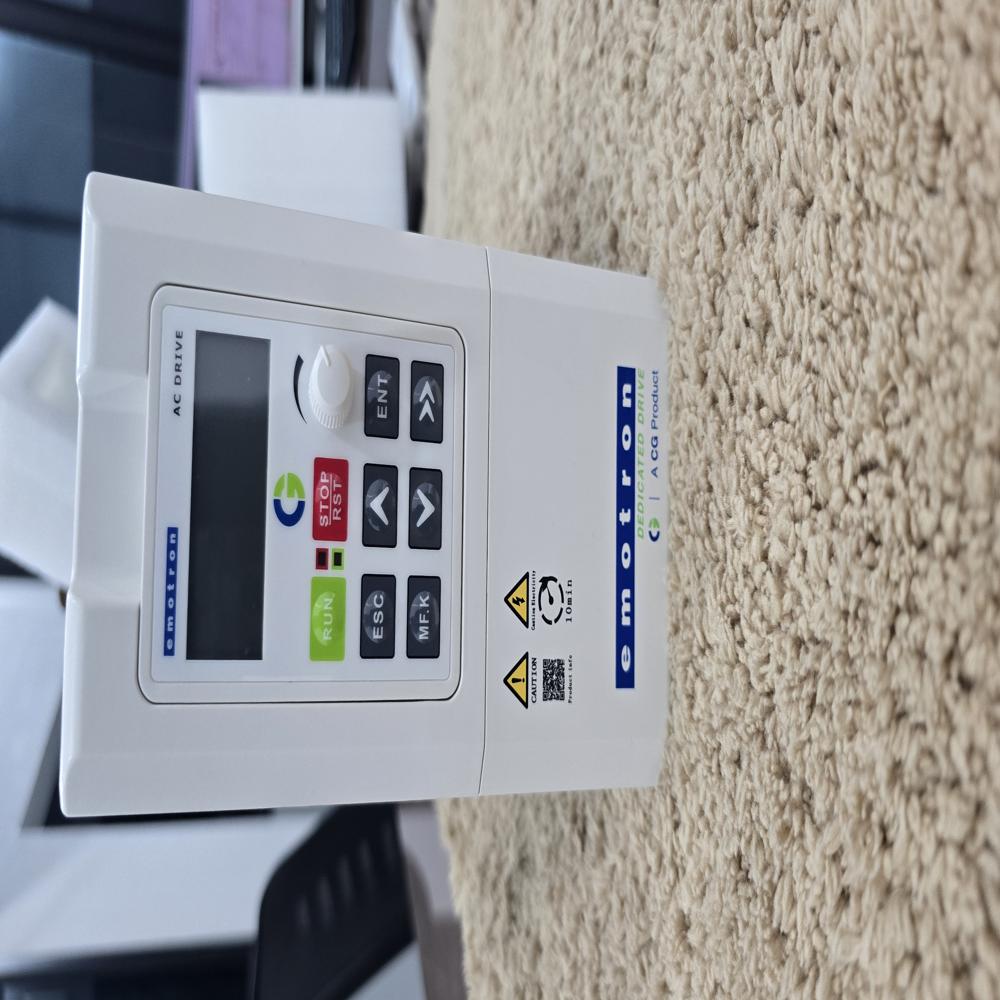

VSX48-004-20CEB - Crompton VFD - VSX48 - 1.5 kW / 2HP 3-Phase 380-480V

Price 14000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSX48-004-20CEB - Crompton VFD - VSX48 - 1.5 kW / 2HP 3-Phase 380-480V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
1.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSX48-004-20CEB - Crompton VFD - VSX48 - 1.5 kW / 2HP 3-Phase 380-480V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSX48-004-20CEB - Crompton VFD - VSX48 - 1.5 kW / 2HP 3-Phase 380-480V

The Crompton Greaves Emotron VSX48-003-20CEB is a premium, high-performance 1 HP (0.75 kW) general-purpose three-phase Variable Frequency Drive (VFD) from the advanced Emotron VSX series. [1, 2]

Unlike the simpler VSS or VSM lines, the VSX series features an integrated LCD graphical display with real-time oscilloscope functionality, built-in PLC logic, and advanced sensorless vector control. It operates on industrial 3-phase power grids (380V480V AC) to provide precise speed regulation for both AC induction motors and permanent magnet synchronous motors (PMSM). [1, 3, 4, 5]

Physical Dimensions (Inches & Pounds)

The space-saving structural housing parameters converted to imperial layout metrics are:

Weight: 3.31 lbs (1.5 kg)
Height: 7.87 inches (200 mm)
Width: 3.15 inches (80 mm)
Depth (Thickness): 6.69 inches (170 mm) [1, 3, 4]

Technical Specifications

The electrical boundaries and built-in programming features for this premium 1 HP model include:

Feature [, 2, 3, 4, 5]	Specification
Model Number	VSX48-003-20CEB
Motor Power Rating	0.75 kW / 1 HP
Input Supply Power	3-Phase 380V to 480V AC (\(\pm20\%\) continuity variance)
Rated Output Current	2.5 Amps continuous
Peak Load Overload	150% for 60s / 200% heavy-duty for 1 second
Enclosure Rating	IP20 (Requires a clean, moisture-controlled cabinet environment)
Noise Protection	Integrated C3 Class EMC Filter for EMI suppression
High-Speed Pulse I/O	Up to 100 kHz pulse input tracking
Internal Diagnostics	EmoWizard configuration software tool & onboard scope

Core Functionality & Applications

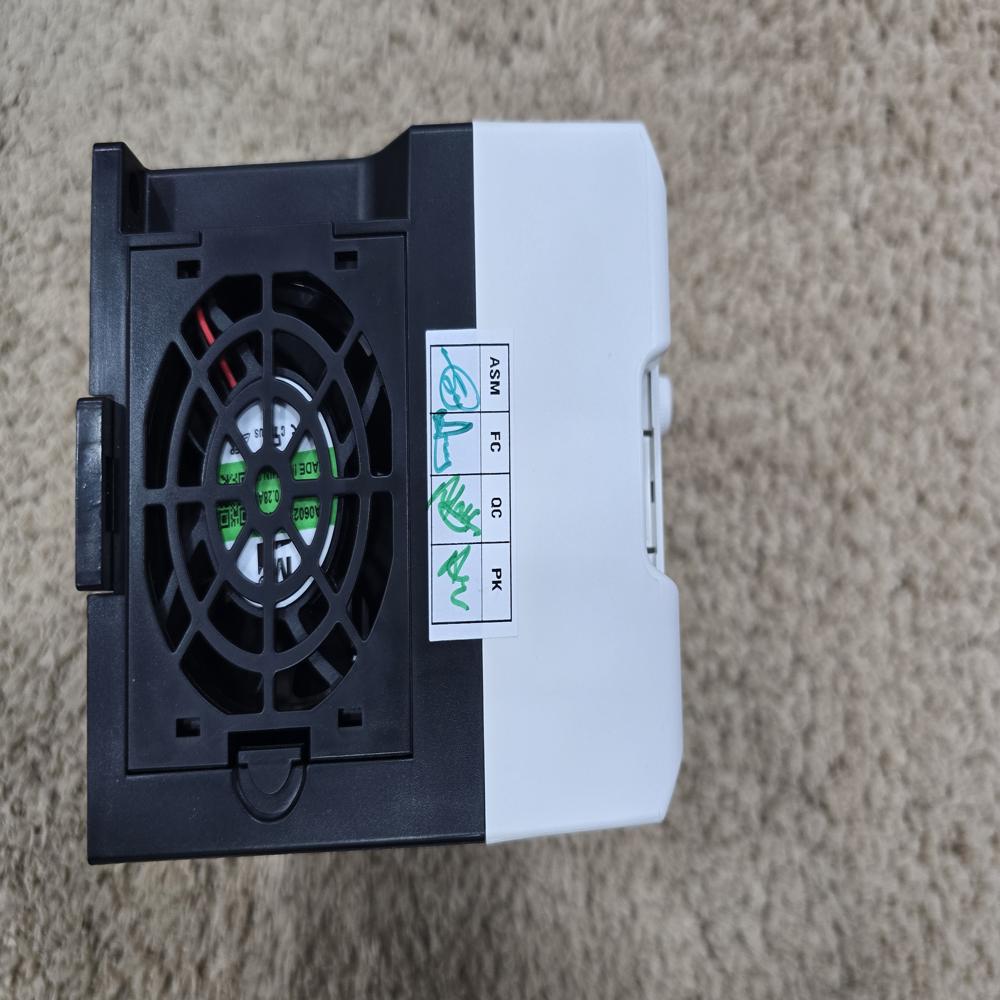

The VSX48 series uses tropicalized conformal-coated circuit boards and a fully separated internal air duct cooling path. This design helps protect the electronics from heat and moisture damage in challenging environments. It is widely used in applications such as: [1]

High-Torque Machinery: Small crushers, material extruders, crane hoists, and heavy product feeders.
Fluid & Air Control: Precision industrial multi-pump configurations, air handling systems, and utility blowers. [1, 2, 3]
