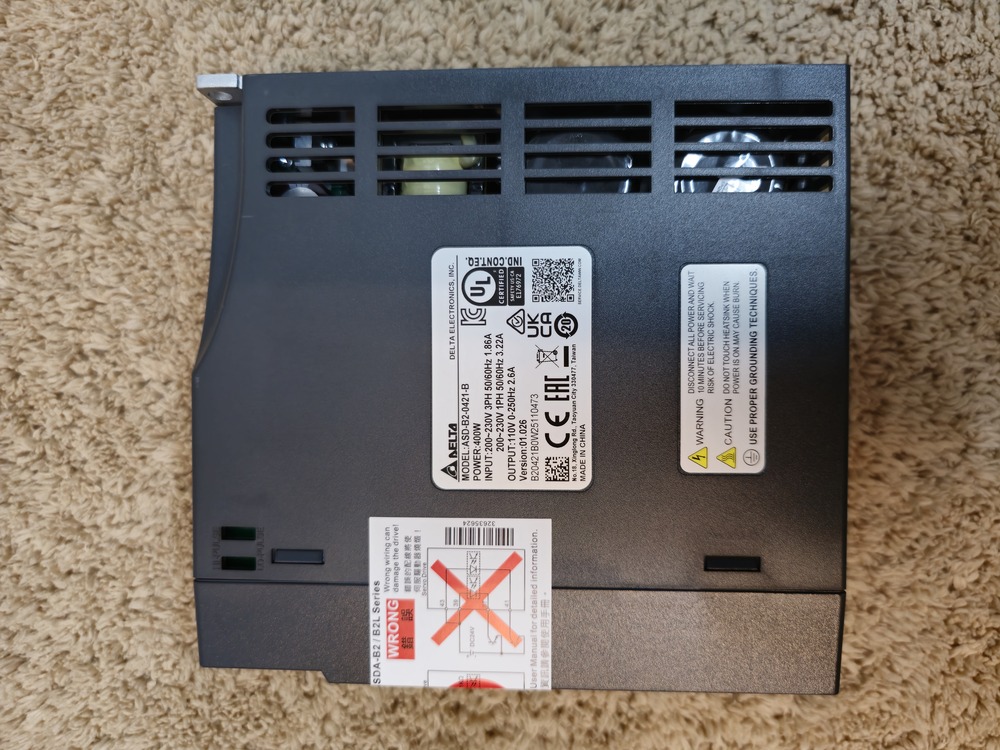

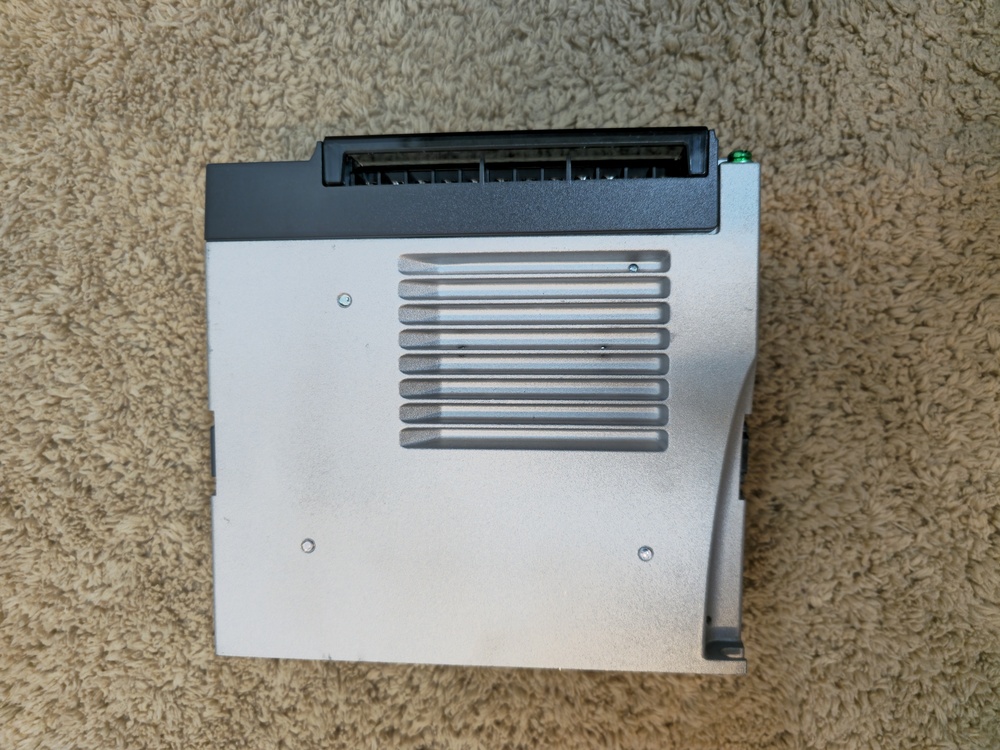

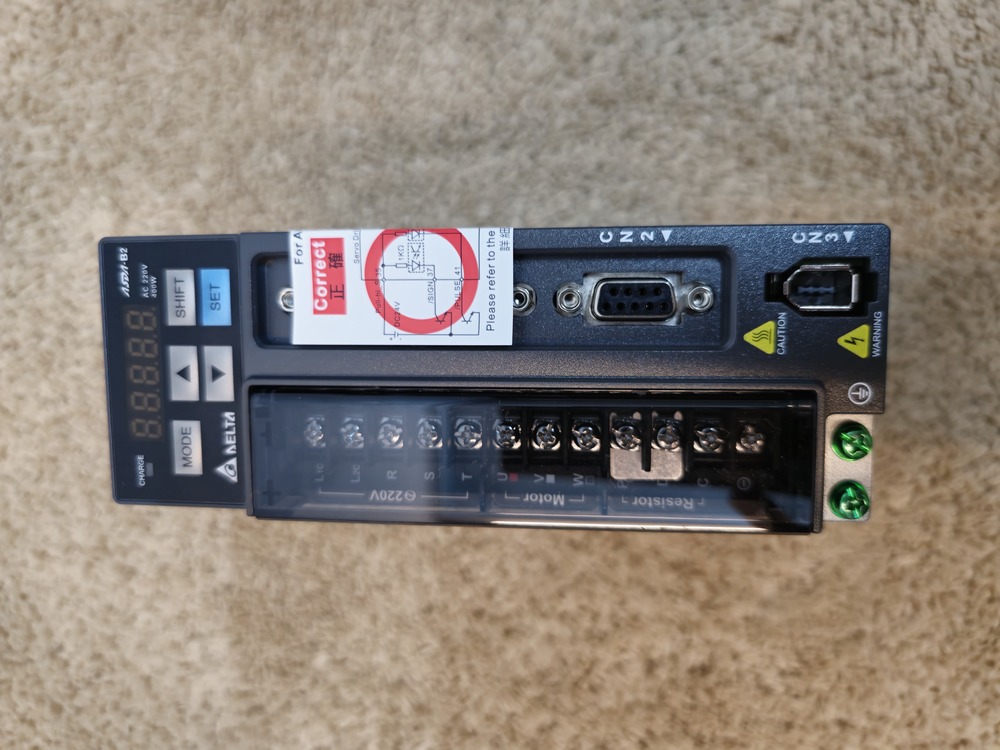

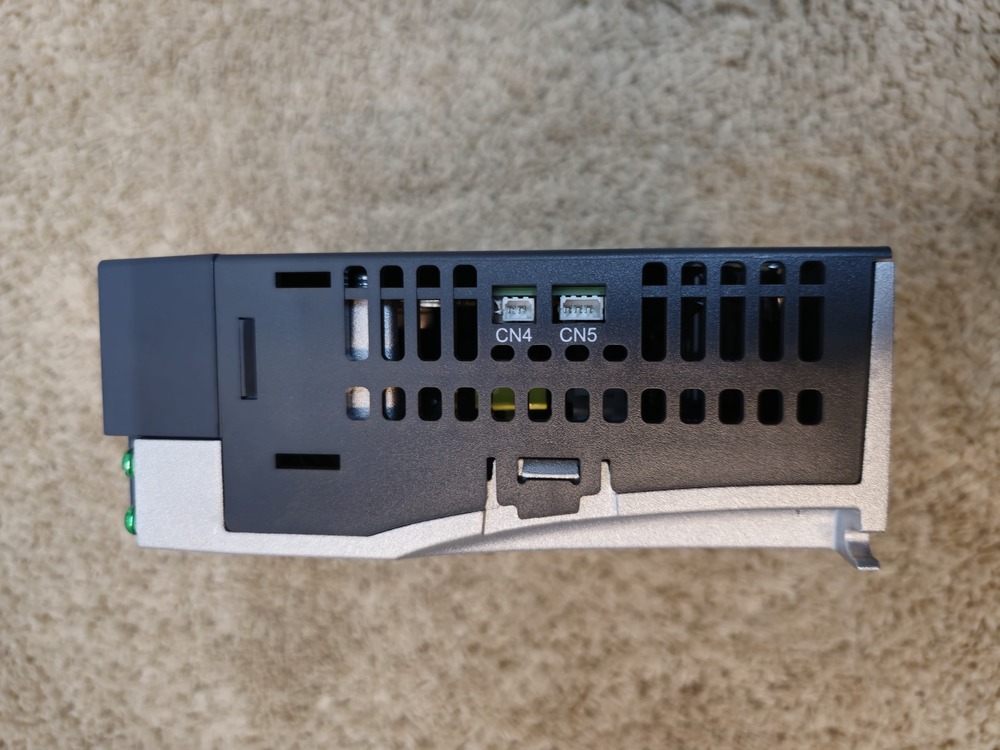

ASD-A2-1043-M Delta A2 Series Driver - 1000W

Name: ASD-A2-1043-M Delta A2 Series Driver - 1000W
Brand: Corbital Enterprise
Price: 38100.0 INR
Availability: InStock

Price 38100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-1043-M Delta A2 Series Driver - 1000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
2.89 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-A2-1043-M Delta A2 Series Driver - 1000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-1043-M Delta A2 Series Driver - 1000W

The Delta ASD-A2-1043-M is a high-performance 400V 1kW servo drive optimized for complex motion control and industrial fieldbus communication. [1]

Electrical & Performance Specifications

Power Output: 1.0 kW (1000 W).
Input Voltage: 3-Phase 380V to 480V AC, 10% (50/60 Hz).
Output Current: Continuous output of 3.52 Arms.
Feedback Support: 20-bit incremental encoders or 17-bit absolute encoders.
Control Modes: Position, Speed, and Torque control via Pulse+Direction or CANopen.
Response Frequency: Up to 1 kHz for high-speed responsiveness. [1, 2, 3, 4, 6, 7]

Physical & Environmental

Dimensions: 188mm (H) x 95mm (W) x 184mm (D).
Weight: 2.89 kg (Net) / 4 kg (Shipping).
Operating Temp: 0C to 55C (32F to 131F).
Protection Rating: IP20, designed for chassis/panel mounting. [1, 3, 4, 5]

Advanced Control Features

Communication: Dual CANopen ports, RS-485, RS-232, and USB port for commissioning.
Motion Functions: Built-in Electronic Cam (E-CAM) with up to 720 points for synchronized motion.
Suppression Filters: Automatic low-frequency vibration suppression and high-frequency resonance suppression filters.
Overload Protection: Activates at 150% load for 60 seconds or 200% for 3 seconds. [, 2, 5]

The Delta ASD-A2-1043-M is a high-performance 1000W (1kW) AC servo drive from the ASDA-A2 series, specifically designed for 400V 3-phase applications. [1, 2, 3]

Dimensions & Weight

Attribute [1, 2]	Measurement (Metric)	Measurement (Inches)
Height	188 mm	7.40 in
Width	95 mm	3.74 in
Depth	184 mm	7.24 in
Net Weight	2.89 kg	6.37 lbs

Core Specifications

Voltage Rating: 400V AC (3-Phase 380V 480V).
Output Power: 1000 W (1.0 kW).
Interface: Supports CANopen (DS301/DS402), RS-485, and RS-232 communication.
Feedback Support: Compatible with both 17-bit absolute and 20-bit incremental encoders.
Operating Temp: 0C to 55C (32F to 131F).
Protection: IP20 rating, suitable for panel-mount industrial enclosures. [1, 2, 3, 4, 5, 6]

Functionality

This driver acts as the "brain" for the ECMA-J11010RS motor (and other 400V 1kW motors), offering high-precision control over position, speed, and torque. It features an Electronic Cam (E-CAM) for complex motions like rotary cutting, and Vibration Suppression filters to smooth out mechanical resonance. [1, 2, 3]
