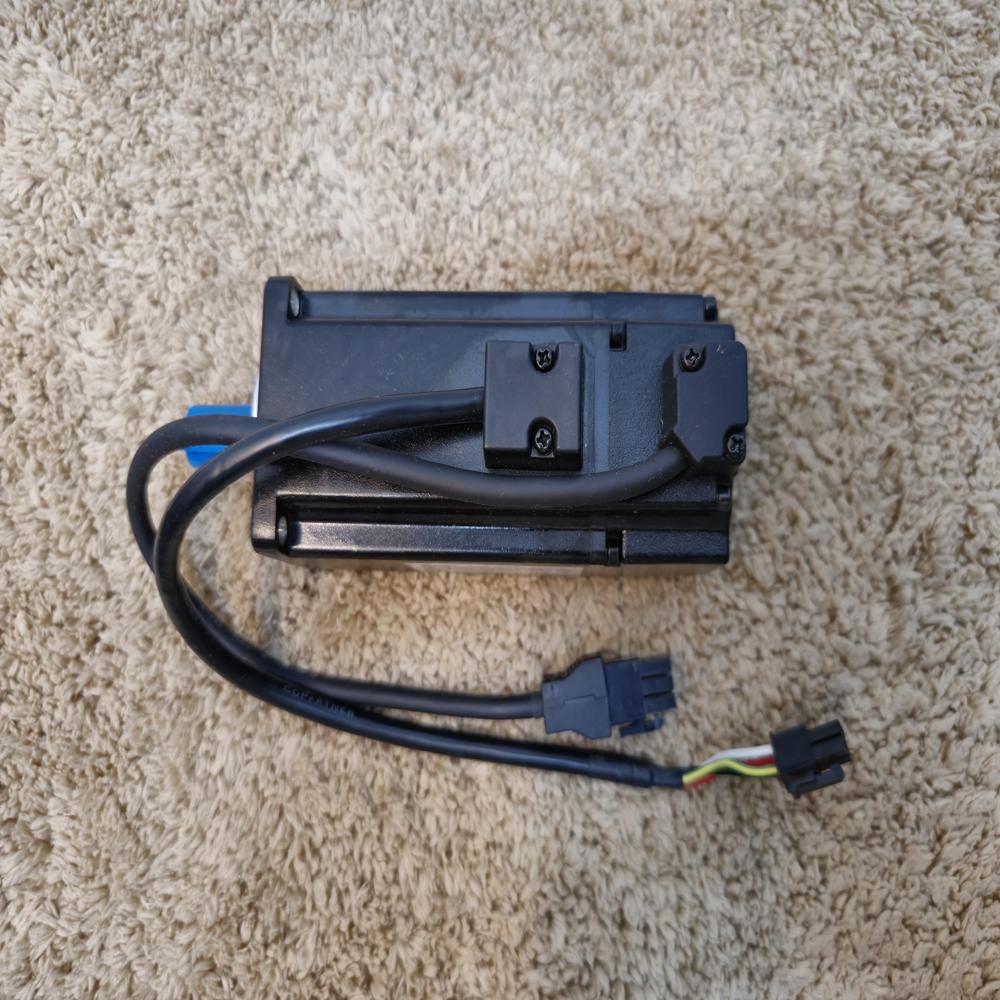

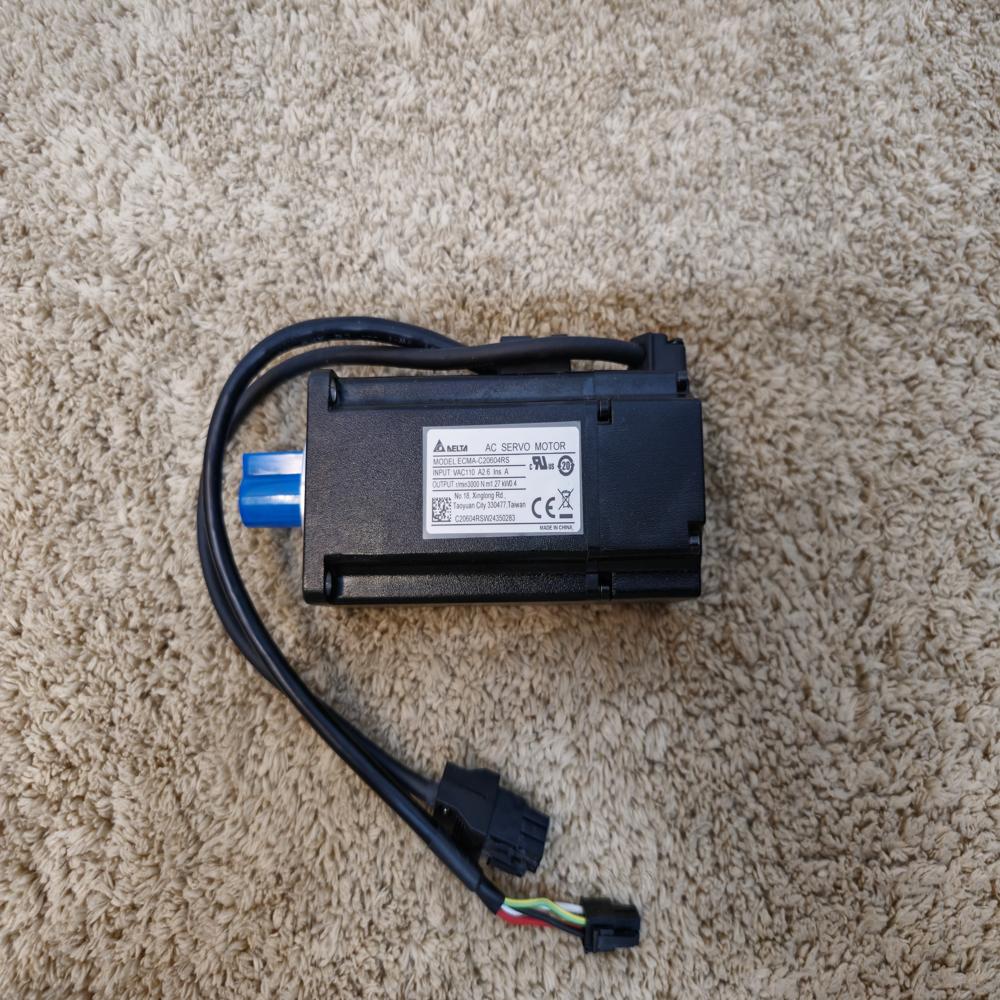

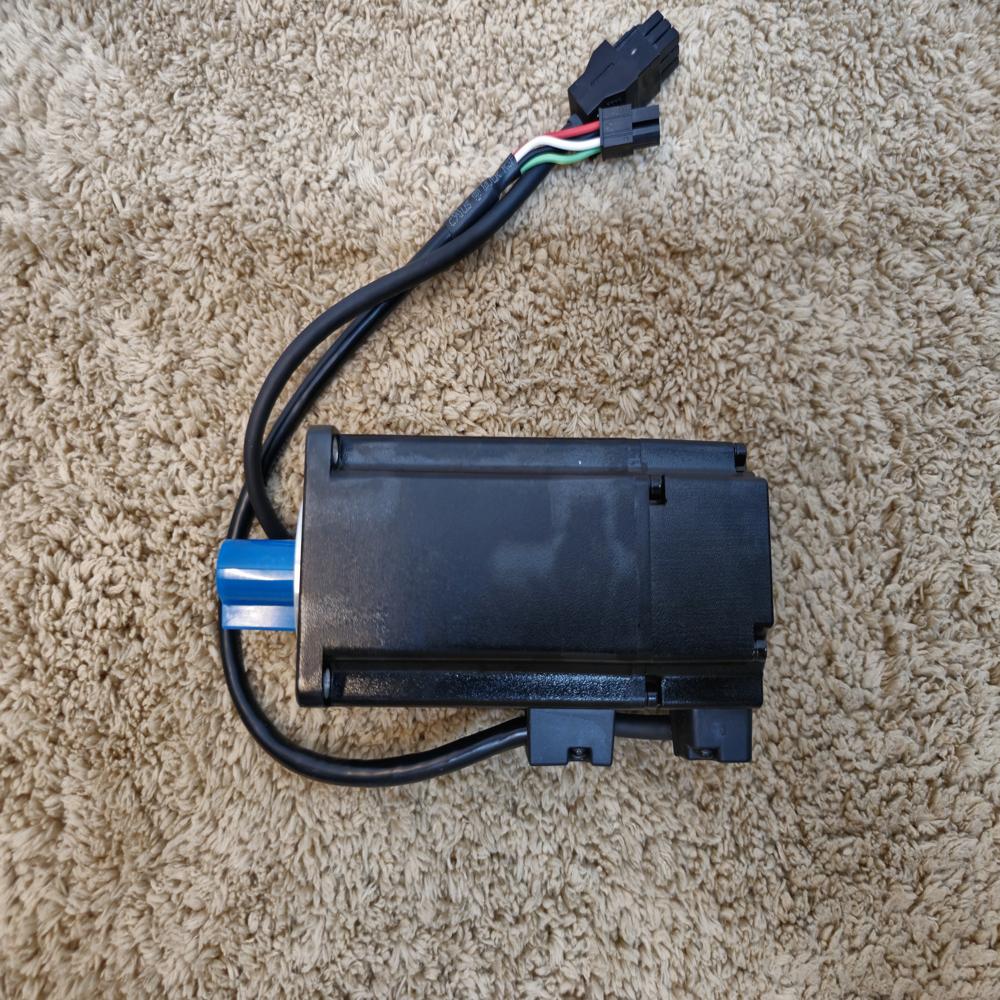

ECMA-CA1010SS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000

Price 54200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-CA1010SS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
5.5 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECMA-CA1010SS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-CA1010SS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000

The Delta ECMA-CA1010SS is a high-power 1000W AC servo motor used for precise motion control in demanding industrial environments. It converts electrical signals from a servo drive into highly accurate mechanical motion. [1, 2, 3, 4]

Primary Functions

Precision Execution: Utilizing a 17-bit absolute encoder, the motor can track its exact position within 131,072 pulses per revolution, ensuring extreme accuracy even after a power loss.
Fail-Safe Braking: The "SS" designation indicates an integrated electromagnetic brake. This function is critical for holding heavy loads in place (especially on vertical axes) when power is disconnected, preventing gravity from causing mechanical damage.
Dynamic Response: Designed with low inertia, it can accelerate from -3000 to 3000 RPM in as little as 7ms (unloaded), allowing for rapid start-stop cycles in high-speed packaging or assembly lines.
Vibration Management: When used with the ASDA-A2 drive, it supports built-in vibration suppression filters that automatically smooth out mechanical resonances at the machine's edges. [1, 2, 3, 4, 5]

Typical Use Cases

Electronic Cam (E-CAM): Ideal for complex motions like flying shears and rotary cut-offs.
CNC & Robotics: Provides the necessary torque (3.18 Nm) and precision for heavy-duty axis movements.
Automated Indexing: Used to rotate components to precise angular positions repeatedly. [1, 3, 4]

The physical dimensions and weight for the Delta ECMA-CA1010SS (1000W model with brake) are as follows:

Dimensions & Weight

Attribute [1, 2, 3, 4, 5]	Measurement (Inches)	Measurement (Metric)
Total Length	~7.98 in	202.8 mm
Height (Frame)	3.94 in	100 mm
Width (Frame)	3.94 in	100 mm
Shaft Diameter	0.866 in	22 mm
Shaft Length	1.772 in	45 mm
Net Weight	12.13 lbs	5.5 kg

Key Technical Notes

Frame Size: This motor features a 100 mm square frame, which is significantly larger and heavier than the 400W and 750W variants.
Brake Inclusion: The "SS" suffix indicates an integrated electromagnetic brake. This model weighs approximately 12.13 lbs (5.5 kg), whereas the non-brake (RS) version is lighter.
Mounting: The standard mounting hole spacing for this 100mm frame is 4.528 inches (115 mm).
Encoder: Equipped with a high-precision 17-bit absolute encoder.
