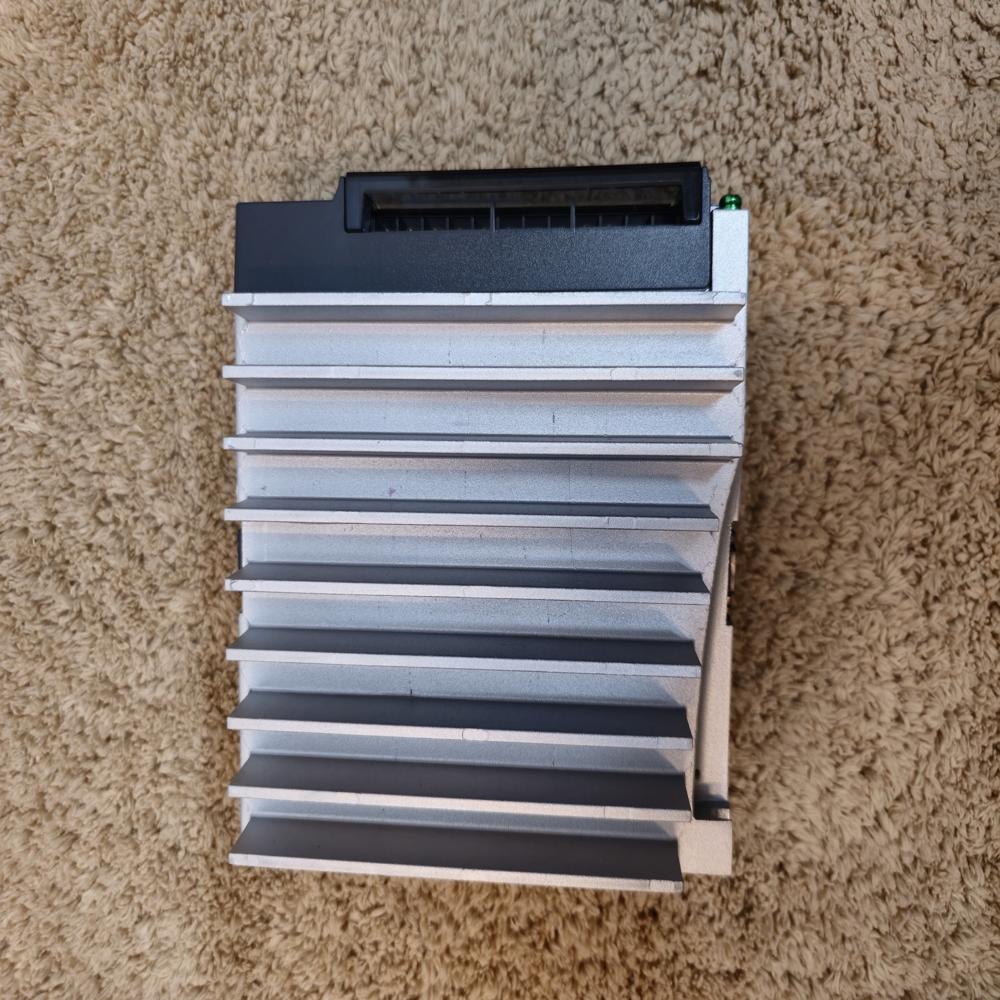

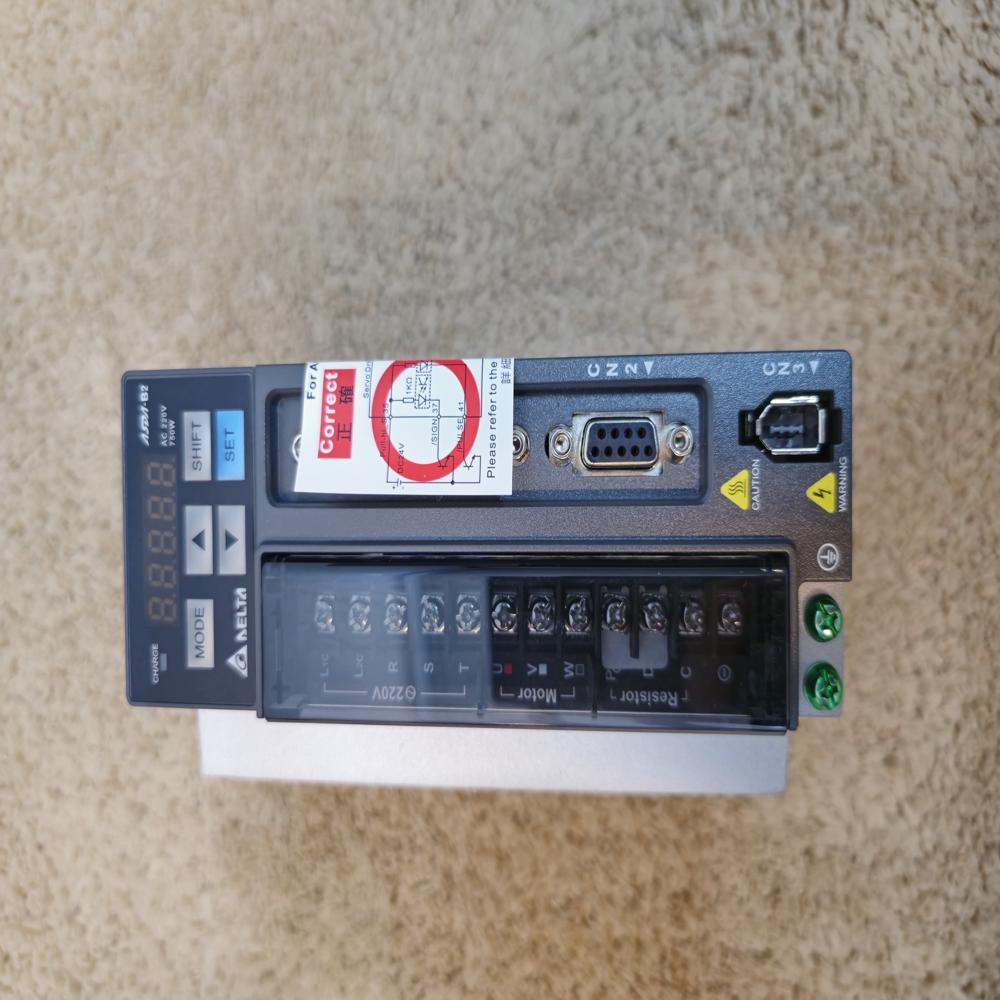

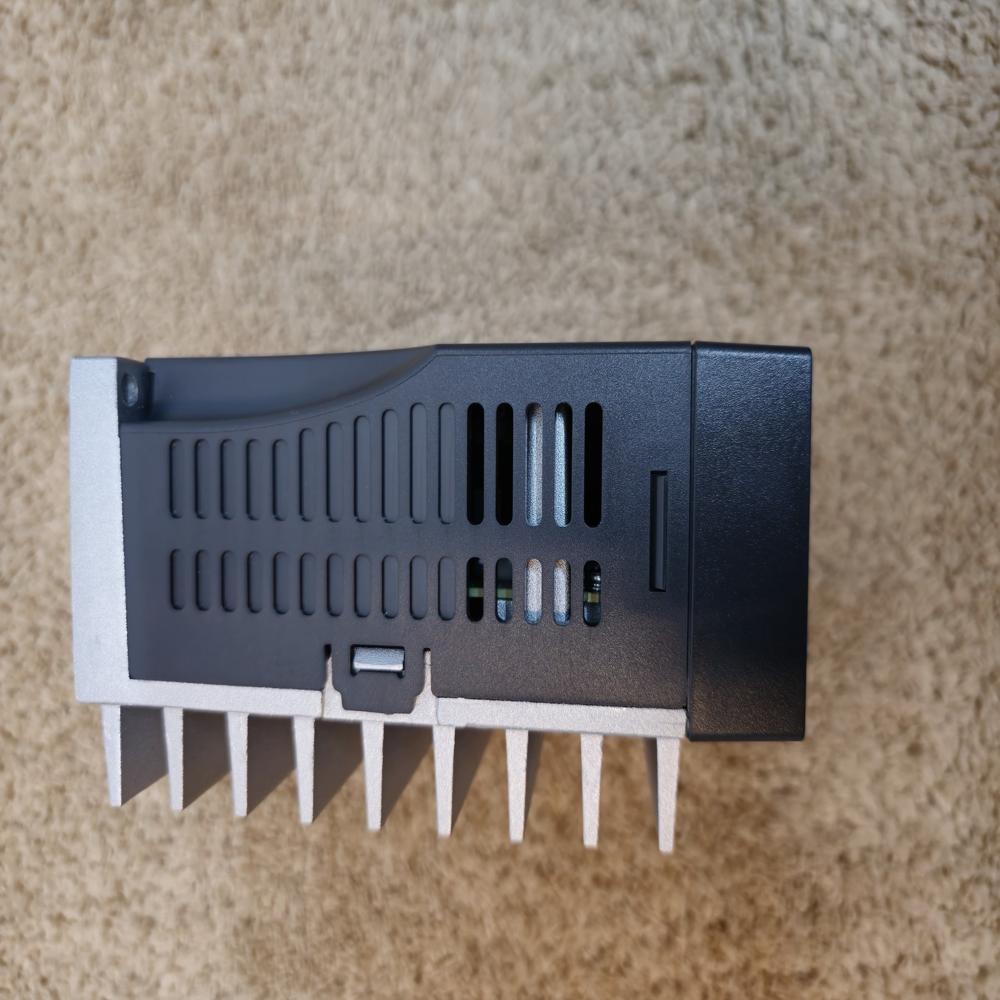

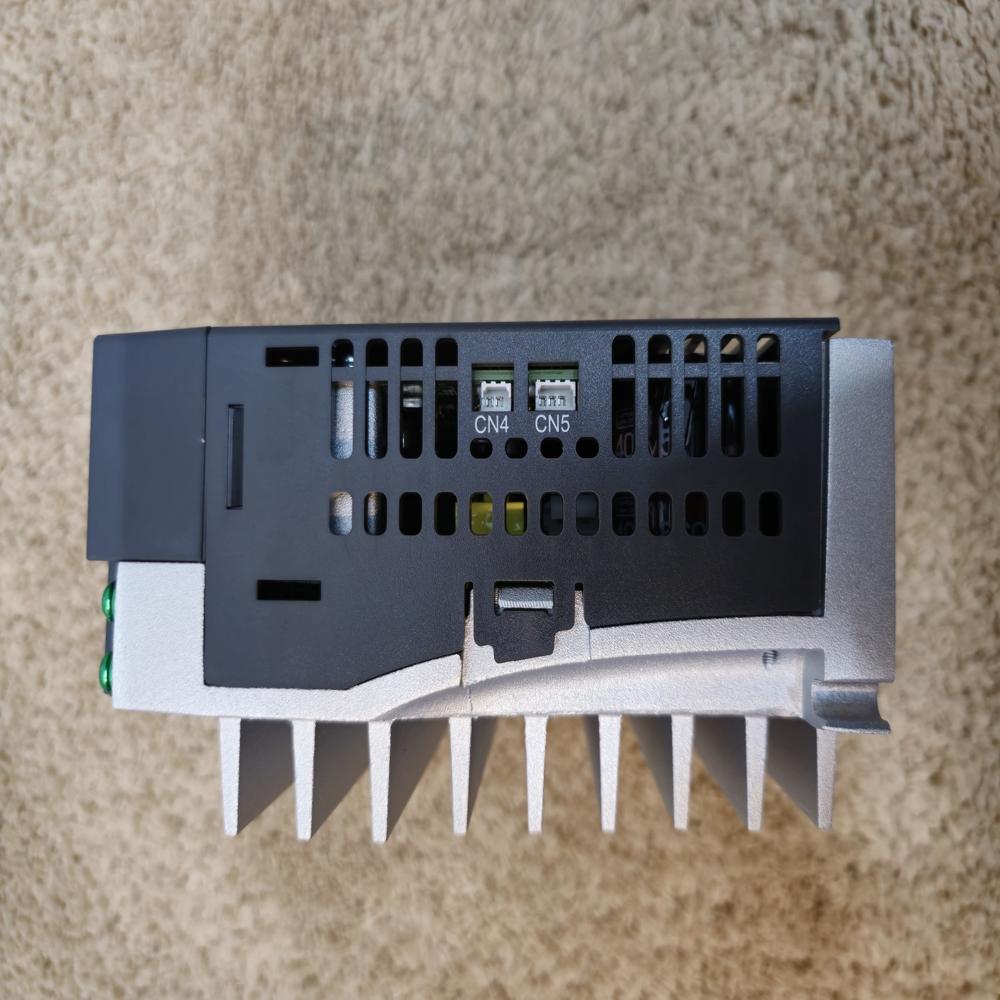

ASD-A2-1543-M Delta A2 Series Driver - 1500W

Name: ASD-A2-1543-M Delta A2 Series Driver - 1500W
Brand: Corbital Enterprise
Price: 44700.0 INR
Availability: InStock

Price 44700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-1543-M Delta A2 Series Driver - 1500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
2.89 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-A2-1543-M Delta A2 Series Driver - 1500W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-1543-M Delta A2 Series Driver - 1500W

The Delta ASD-A2-1543-M is a high-performance 1500W (1.5kW) digital servo drive from the ASDA-A2 series, specifically designed for 400V 3-phase industrial applications. [1, 2, 3]

Core Specifications

Power Output: 1.5 kW (1500 W).
Input Voltage: 3-Phase 380V 480V AC.
Continuous Output Current: 5.02 Arms.
Max Instantaneous Current: 10.04 Arms.
Communication Interfaces: Dual CANopen ports (DS301/DS402), RS-485, RS-232, and USB.
Net Weight: 4.6 lbs to 6.37 lbs (approx. 2.1 kg to 2.89 kg depending on housing). [1, 2, 3, 5, 6]

Key Functions

High-Precision Control: Features a high response frequency (up to 1 kHz) and supports both 20-bit incremental and 17-bit absolute encoders.
Motion Functions: Includes built-in Electronic Cam (E-CAM) with up to 720 points and a flexible Internal Position Mode (Pr Mode) for defining complex motion paths without a high-end PLC.
Vibration Suppression: Automatically minimizes low-frequency vibration at machine edges (for crane or gantry control) and uses auto-notch filters to suppress mechanical resonance.
Full Closed-Loop Control: Direct interface for external linear scales or encoders to eliminate mechanical backlash errors. [, 2, 4]

Dimensions & Weight

Attribute	Measurement (Inches)	Measurement (Metric)
Height	7.40 in	188 mm
Width	3.74 in	95 mm
Depth	7.24 in	184 mm
Net Weight	6.37 lbs	2.89 kg

Installation Notes

Mounting Type: This is a panel-mount (chassis) unit. When installing inside an electrical cabinet, ensure at least 2 inches (50 mm) of clearance above and below the drive for proper cooling fan airflow.
Frame Size: In the Delta A2 lineup, this 1.5kW 400V drive typically shares the same housing size as the 1kW and 2kW 400V models (Frame B/C).
Protection: The unit is rated IP20, meaning it must be installed inside an enclosure to protect it from dust and moisture.
