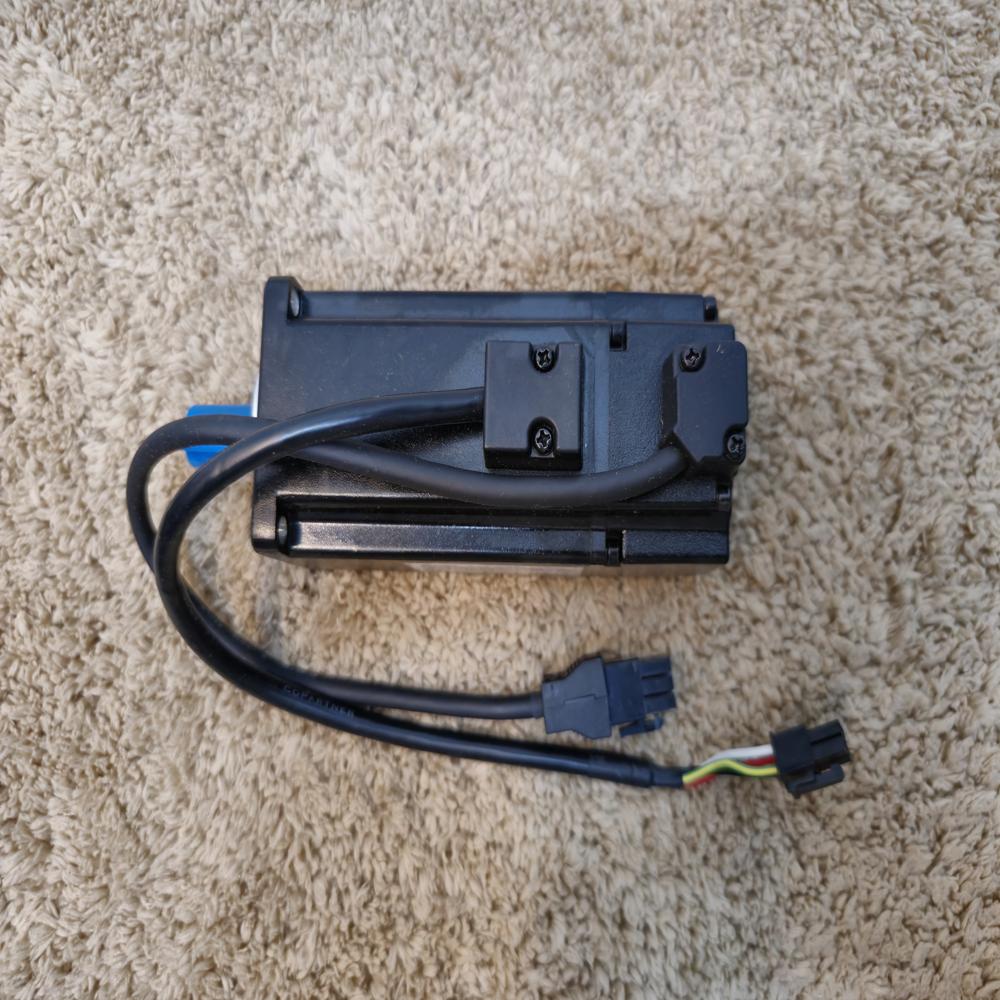

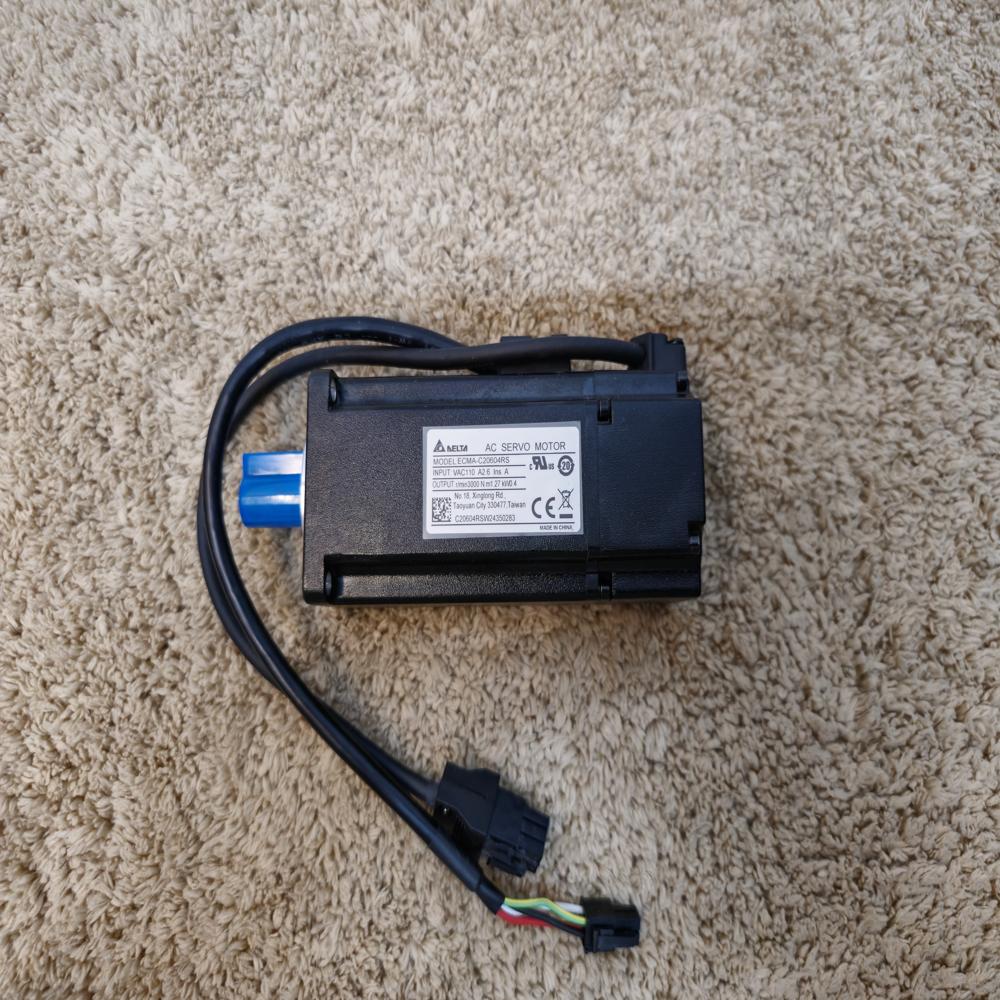

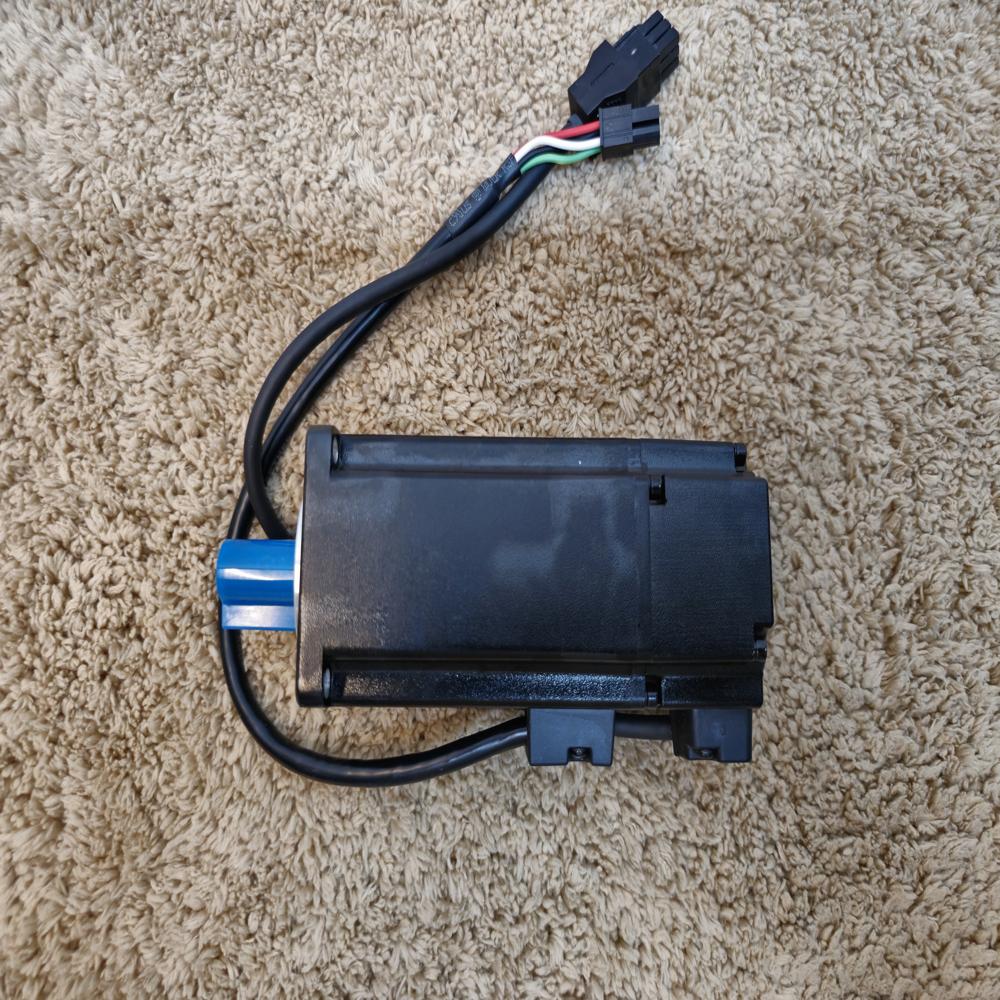

ECMA-EA1310SS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000

Price 65400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-EA1310SS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
8.4 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECMA-EA1310SS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-EA1310SS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000

The Delta ECMA-EA1310SS is a medium-inertia 1000W AC servo motor from the ASDA-A2 series, designed for high-stability motion control where load fluctuations are common.

Core Functions

High-Resolution Feedback: Features a 17-bit absolute encoder that provides 131,072 pulses per revolution, allowing for extremely precise positioning and eliminating the need for a homing sequence after power cycles.
Dynamic Load Handling: Its medium inertia design provides better control stability than low-inertia motors, making it ideal for machinery with fluctuating loads or large mechanical structures.
Fail-Safe Holding: The "SS" designation indicates an integrated electromagnetic brake. This function is used to hold the motor shaft in place when power is removed, preventing vertical axes or heavy loads from falling.
Advanced Control Capabilities: When used with an ASDA-A2 drive, it supports complex functions like:
- Electronic Cam (E-CAM): Up to 720 points for synchronized motions like flying shears and rotary cutting.
- Vibration Suppression: Built-in automatic filters minimize mechanical resonance at machine edges.
- Full Closed-Loop Control: Direct connection to external linear scales to compensate for mechanical backlash. [1, 2, 4, 5, 7, 8]

Typical Use Cases

The physical specifications for the Delta ECMA-EA1310SS (1000W model with brake) in inches and pounds are as follows:

Dimensions & Weight

Attribute [1, 2, 3, 4, 5]	Measurement (Inches)	Measurement (Metric)
Total Length	~7.26 in	184.5 mm
Height (Frame)	5.12 in	130 mm
Width (Frame)	5.12 in	130 mm
Shaft Diameter	0.866 in	22 mm
Shaft Length	1.772 in	45 mm
Net Weight	18.52 lbs	8.4 kg

Key Technical Notes

Medium Inertia: Unlike the previous models, the "EA" series features medium inertia, providing more stability for applications with higher load fluctuations.
Frame Size: This motor uses a 130 mm square frame, providing the necessary thermal mass for its 1000W output at a lower 2000 RPM speed.
Integrated Brake: The "SS" suffix indicates a built-in electromagnetic brake. This model's weight of 18.52 lbs (8.4 kg) is significantly higher than non-brake versions due to the heavy-duty braking mechanism.
Mounting: The mounting hole spacing for this 130mm frame is 5.709 inches (145 mm). [1, 2, 3, 4, 5]
