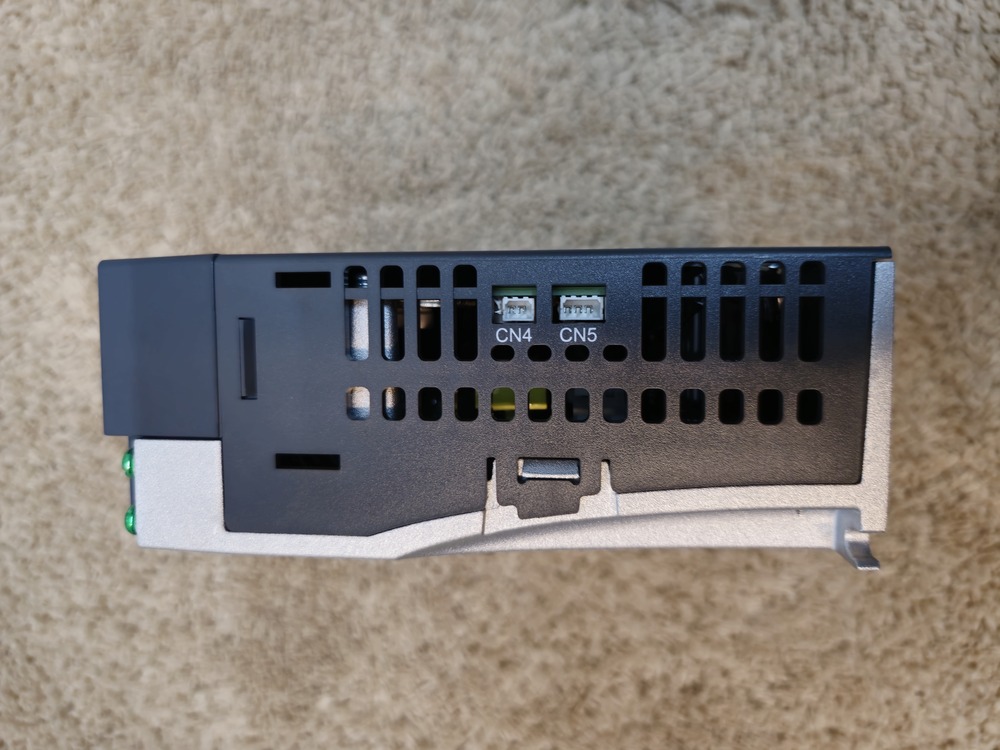

ASD-A2-2023-U* Delta A2 Series Driver - 2000W

Price 61500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-2023-U* Delta A2 Series Driver - 2000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
2.8 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A2-2023-U* Delta A2 Series Driver - 2000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-2023-U* Delta A2 Series Driver - 2000W

The ASD-A2-2023-U is the high-power 2000W (2.0 kW) AC servo drive from Deltas premium ASDA-A2 series. It is designed to handle high-torque industrial loads with advanced motion intelligence.

Core Power & Electrical

Rated Power: 2000 Watts (2.0 kW).
Input Phase/Voltage: 3-phase, 200V ~ 230V AC (Standard).
- Note: While it can technically run on single-phase, 3-phase is required to maintain full power and prevent undervoltage faults at high torque.
Continuous Output Current: 13.4 Arms.
Speed Control Range: 1:5000.
Frequency Response: 1 kHz.

Control & Motion Intelligence

Control Modes: Position, Speed, and Torque (switchable via I/O or communication).
Feedback Support: 20-bit incremental encoders (1,280,000 pulses/rev) and 17-bit absolute encoders.
Electronic Cam (E-CAM): Built-in with up to 720 points for master-slave synchronization.
Suppression Functions: Features dual low-frequency vibration filters and advanced auto-notch filters for high-frequency mechanical resonance.

Connectivity & Safety

Communication: RS-232, RS-485, and Mini-USB for direct PC configuration via ASDA-Soft.
Safe Torque Off (STO): Built-in hardware safety circuit (SIL2/PL d compliant).
Digital I/O: 8 programmable inputs and 5 programmable outputs.
Regenerative Braking: Built-in regenerative resistor; supports external resistors for heavy-inertia loads.

For the ASD-A2-2023-U Delta A2 Series Servo Drive (2000W), here are the details in inches:

Dimensions & Weight

To manage the high power and heat of a 2kW system, this drive uses a larger, more robust chassis than the lower-wattage models.

Dimension	Inches	Millimeters
Width	3.23"	82 mm
Height	7.40"	188 mm
Depth	7.48"	190 mm
Net Weight	~6.17 lbs	2.8 kg

Function

The ASD-A2-2023-U is a high-capacity controller designed for heavy-duty industrial tasks.

High-Power Driving: Specifically designed to run 2000W motors, requiring a 3-Phase 220V AC input for optimal performance (though it can run on single-phase with significant derating).
Precision Control: Utilizes the same 1 kHz frequency response found in the A2 series, ensuring that even high-torque movements remain smooth and vibration-free.
Advanced Networking: The "U" model supports advanced digital commands and high-speed communication (RS-485/Modbus), making it suitable for distributed control systems.
Built-in Motion Intelligence: Includes E-CAM and Vibration Suppression algorithms to prevent mechanical resonance in large, heavy machinery.
