ECMA-C11010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000

Name: ECMA-C11010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000
Brand: Corbital Enterprise
Price: 32100.0 INR
Availability: InStock

Price 32100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-C11010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
4.3 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECMA-C11010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-C11010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000

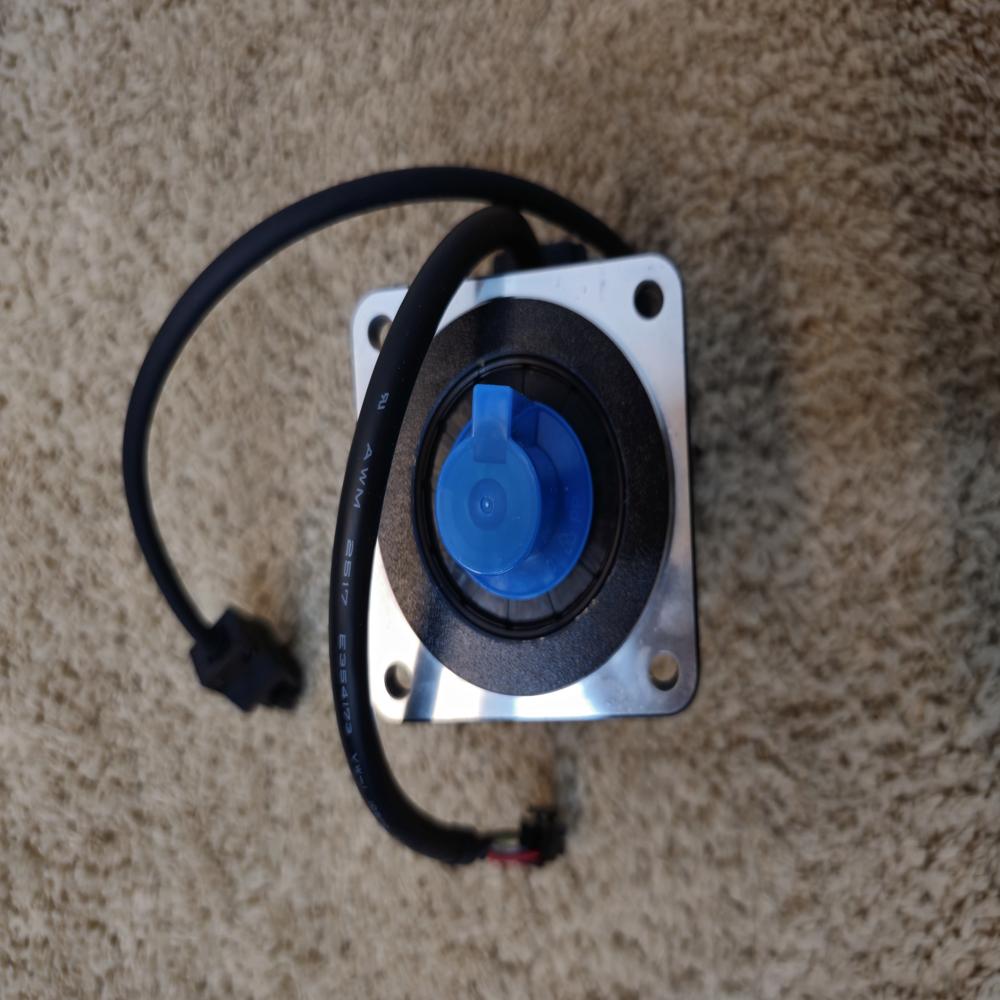

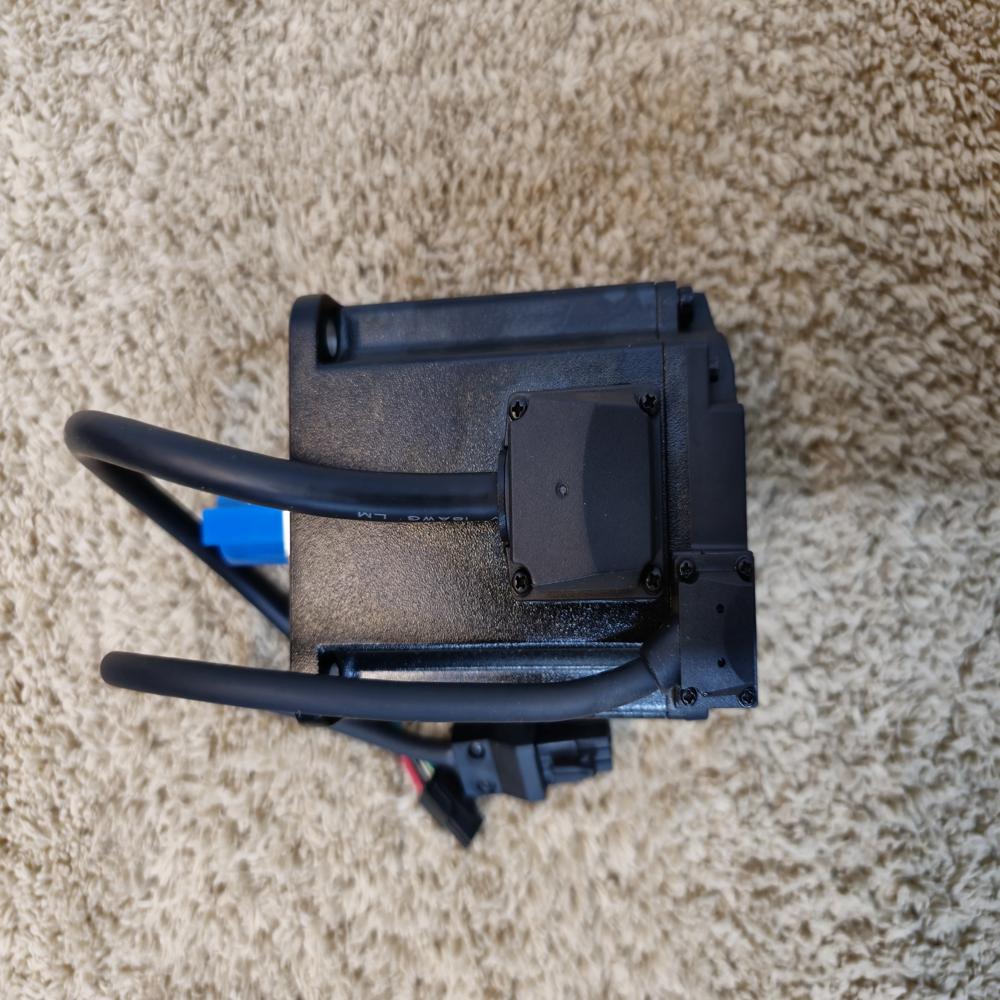

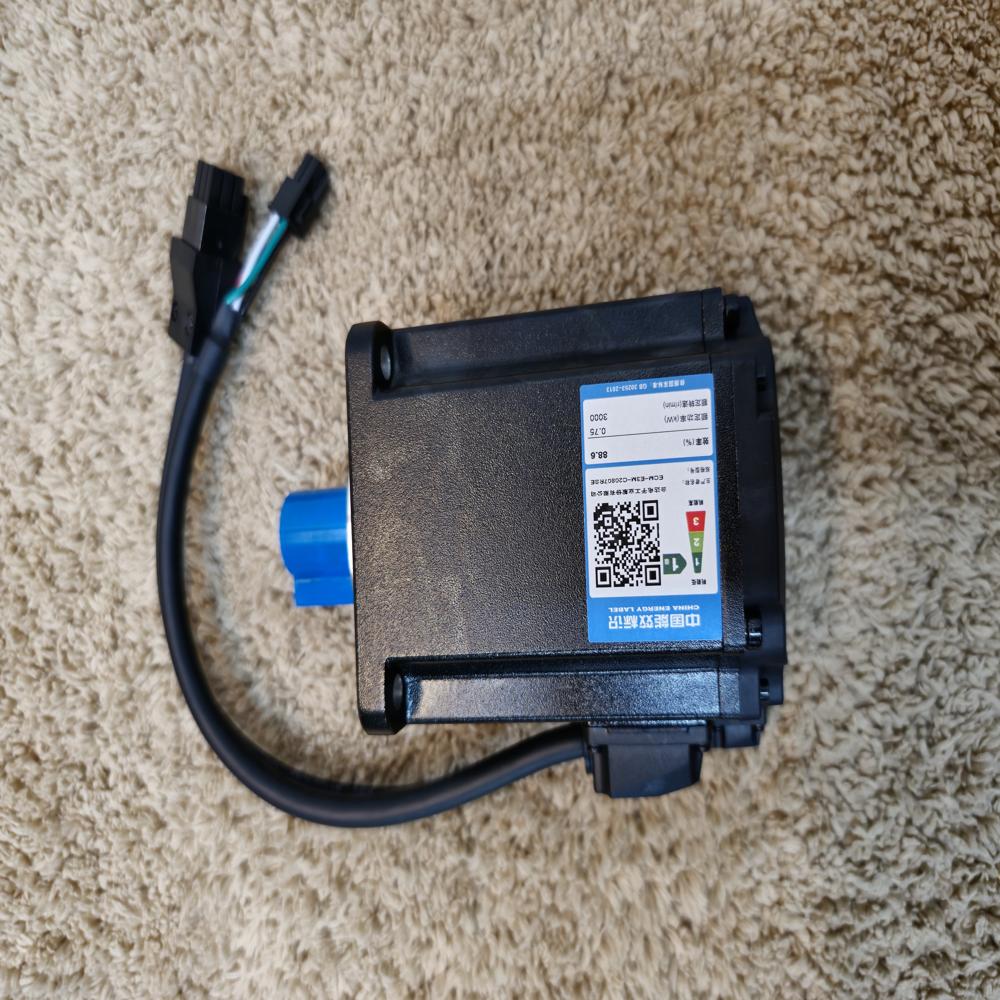

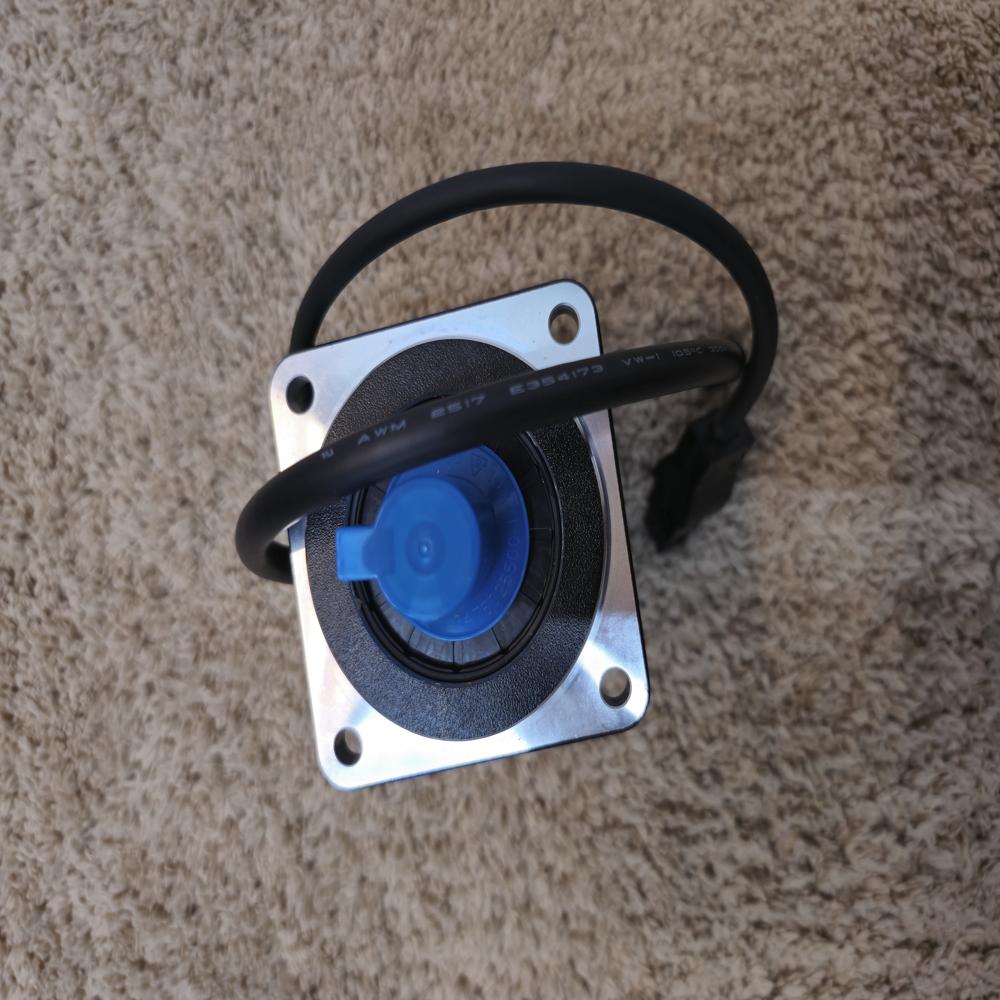

The ECMA-C11010RS is a 1000W (1.0 kW) AC Servo Motor from Delta's high-performance ASDA-A2 series. It is a low-inertia motor designed for precision tasks in robotics and automated machinery. [1, 2, 3, 4, 5]

Dimensions & Weight (Inches)

This motor features a larger 100 mm frame size to accommodate the 1.0 kW power output. [1, 2]

Dimension [1, 2, 3, 4, 5]	Inches	Millimeters
Width	3.94"	100 mm
Height	3.94"	100 mm
Length (Body Only)	5.83"	148 mm
Total Length (with Shaft)	7.56"	192 mm
Shaft Diameter	0.866"	22 mm
Net Weight	9.48 lbs	4.3 kg

Note: The RS model is without a brake, making it lighter and shorter than models like the ECMA-C11010FS. [1, 2]

Function & Performance

High Precision: Equipped with a 20-bit incremental encoder providing 1,280,000 pulses per revolution for smooth and accurate positioning.
Torque Capability: Delivers a rated torque of 3.18 Nm with a peak instantaneous torque of 9.54 Nm.
Dynamic Speed: Operates at a rated speed of 3,000 RPM, with a maximum capability of 5,000 RPM.
Industrial Protection: Rated IP65 for dust and water resistance, suitable for demanding factory environments. [1, 4]

Purchase Information (India)

Price: Typically ranges from 20,752 to 34,219 depending on the supplier.
Availability: You can find this model at major industrial marketplaces like IndiaMART, Tradeindia, and IndustryBuying.
Matching Drive: Pair this motor with the ASD-A2-1021-U for optimal performance. [1, 2, 3]
