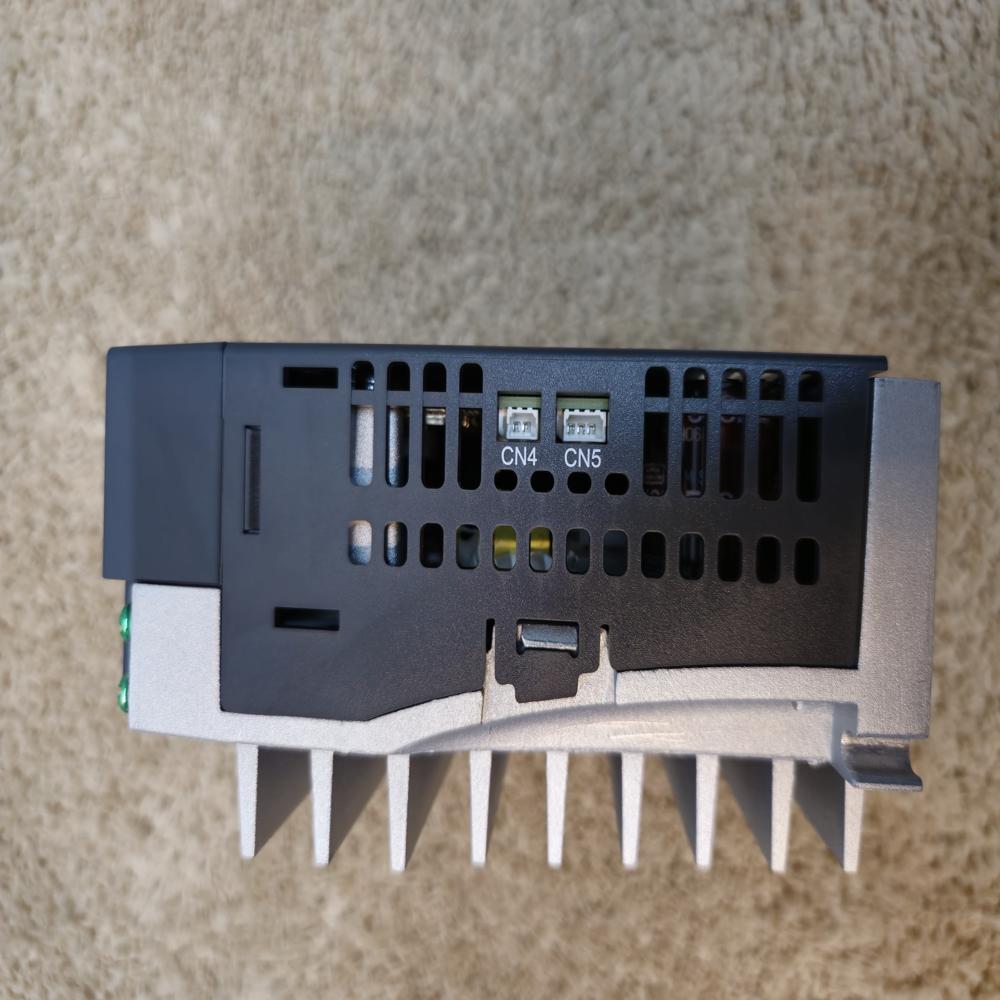

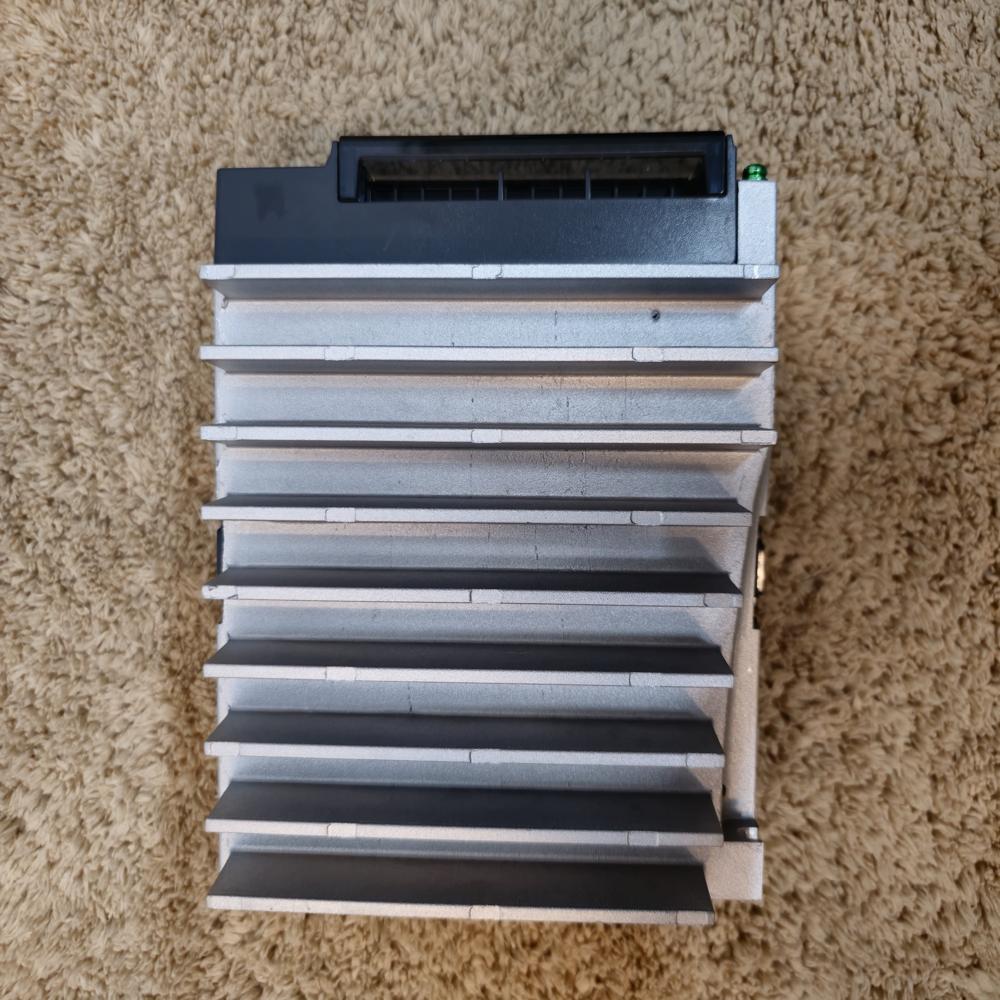

ASD-A2-4523-U* Delta A2 Series Driver - 4500W

Price 62500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-4523-U* Delta A2 Series Driver - 4500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
5.5 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A2-4523-U* Delta A2 Series Driver - 4500W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-4523-U* Delta A2 Series Driver - 4500W

For the ASD-A2-4523-U Delta A2 Series Servo Drive (4500W/4.5kW), here are the specific details in inches:

Dimensions & Weight

This is the largest and most powerful drive in the 220V ASDA-A2 series, requiring a wider chassis for the high-current power electronics.

Dimension	Inches	Millimeters
Width	4.13"	105 mm
Height	9.84"	250 mm
Depth	7.44"	189 mm
Net Weight	~12.13 lbs	5.5 kg

Note: The shipping weight is approximately 16.5 lbs (7.5 kg) with industrial packaging.

Function

The ASD-A2-4523-U is the command unit for 4.5 kW motors, specializing in:

Massive Power Delivery: Delivers a continuous output of 24.5 Arms, providing the current necessary to maintain the 28.65 Nm rated torque of high-inertia motors.
3-Phase Power Requirement: Specifically designed for 3-Phase 220V AC input; using single-phase at this power level will cause immediate undervoltage faults under load.
Heavy-Duty Motion (E-CAM): Built-in Electronic Cam logic and Capture/Compare functions allow for complex synchronization in heavy machinery without an external motion controller.
System Stability: Features advanced Vibration Suppression and Full-Closed Loop support to manage the mechanical resonance and backlash common in large-scale industrial equipment.

The ASD-A2-4523-U is the high-capacity 4500W (4.5 kW) AC servo drive in Deltas ASDA-A2 series. It is the most powerful unit in the 220V class, specifically designed to handle high-inertia industrial loads.

Core Power & Electrical

Rated Power: 4500 Watts (4.5 kW).
Input Phase/Voltage: 3-Phase, 200V ~ 230V AC (+10% / -15%), 50/60 Hz.
Continuous Output Current: 24.5 Arms.
Instantaneous Max Current: 65.5 Arms (Peak).
Frequency Response: 1 kHz.

Control & Motion Intelligence

Control Modes: Position, Speed, and Torque (switchable via I/O or communication).
Feedback Resolution: Supports 20-bit incremental encoders (1,280,000 pulses/rev).
Electronic Cam (E-CAM): Built-in logic with up to 720 points for master-slave synchronization.
Specialized "U" Features: Includes digital command support, high-speed position capture/compare, and an extension port for additional digital inputs.

Suppression & Safety

Vibration Suppression: Dual low-frequency vibration filters to eliminate mechanical shaking in large-scale machinery.
Resonance Suppression: Features advanced high-frequency auto-notch filters.
Safety Function: Built-in Safe Torque Off (STO) for hardware-level safety (SIL2/PL d).
