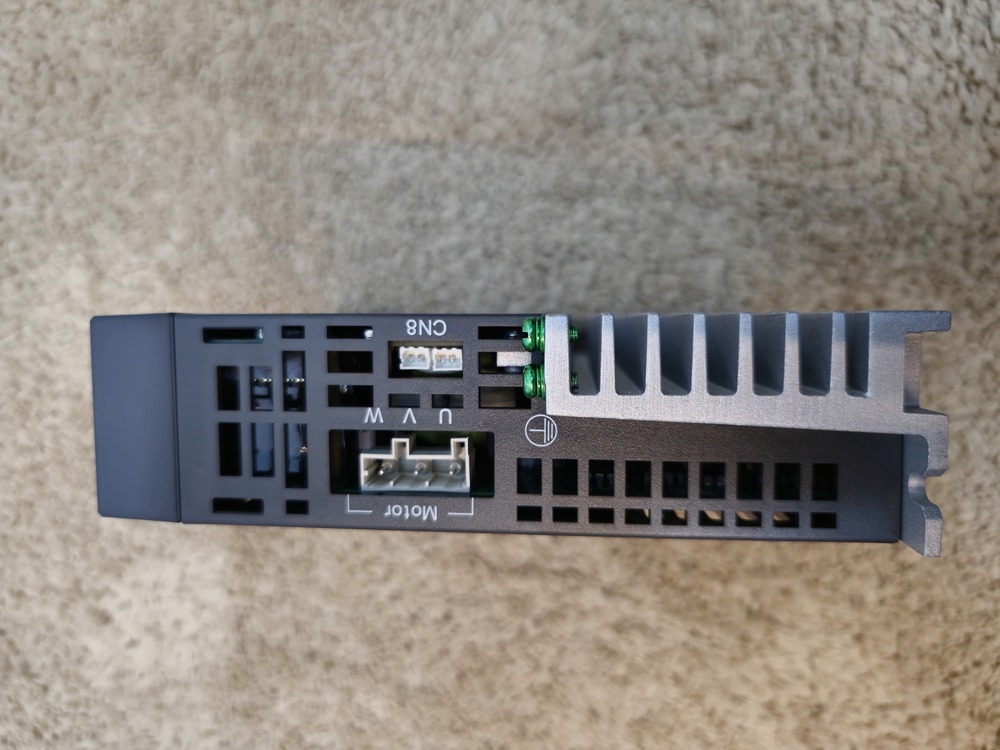

ASD-A3-4523-M Delta Servo Driver 4500W

Name: ASD-A3-4523-M Delta Servo Driver 4500W
Brand: Corbital Enterprise
Price: 75000.0 INR
Availability: InStock

Price 75000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ASD-A3-4523-M Delta Servo Driver 4500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
5.5 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A3-4523-M Delta Servo Driver 4500W Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About ASD-A3-4523-M Delta Servo Driver 4500W

The ASD-A3-4523-M is a high-capacity 4.5kW (4500W) servo drive from Deltas flagship ASDA-A3 series. This model represents the higher end of the power range for this series, designed to handle heavy industrial loads with the extreme precision and speed of a 3.1 kHz response bandwidth. [1]

Core Specifications

Feature [1, 2, 3]	Specification
Rated Power Output	4.5 kW (4500W)
Control Interface	CANopen (DS402 Profile)
Input Power Supply	3-Phase 200230 VAC
Continuous Current	31.9 Arms
Max Peak Current	89.26 Arms
Resolution	24-bit (16.7 million pulses/rev)

Physical Dimensions & Weight

As a high-power unit, this drive is larger than the 100W3000W models to accommodate significantly higher heat dissipation and power circuitry.

Width: 120 mm (4.72")
Height: 260 mm (10.24")
Depth: 210 mm (8.27")
Weight: Approximately 5.5 kg (12.13 lbs)

Key Functional Features

High Torque Performance: Capable of driving large-frame motors (typically 180mm frame) for heavy-duty CNC axes, metal forming, and large injection molding machines.
Full-Closed Loop Control: Includes the dedicated CN5 port for external encoder feedback to ensure the actual machine position is accurate, even if there is backlash in a large gearbox or lead screw.
Electronic Cam (E-Cam): Built-in support for complex master-slave synchronization, ideal for high-power packaging and printing lines.
Advanced Suppression: 5 sets of notch filters automatically manage the vibrations often found in heavy, large-scale mechanical structures.
PR Mode: Allows you to program up to 99 internal motion segments, which can be triggered via the CANopen bus or digital inputs. [1]

High Power, Industrial-Grade Reliability

The ASD-A3-4523-M Delta Servo Driver delivers 4500W of power, making it suitable for heavy-duty industrial machinery. Its three-phase operation provides stable and efficient performance. Designed with sealed packing, it offers enhanced protection against dust and contaminants for optimal longevity in challenging factory environments.

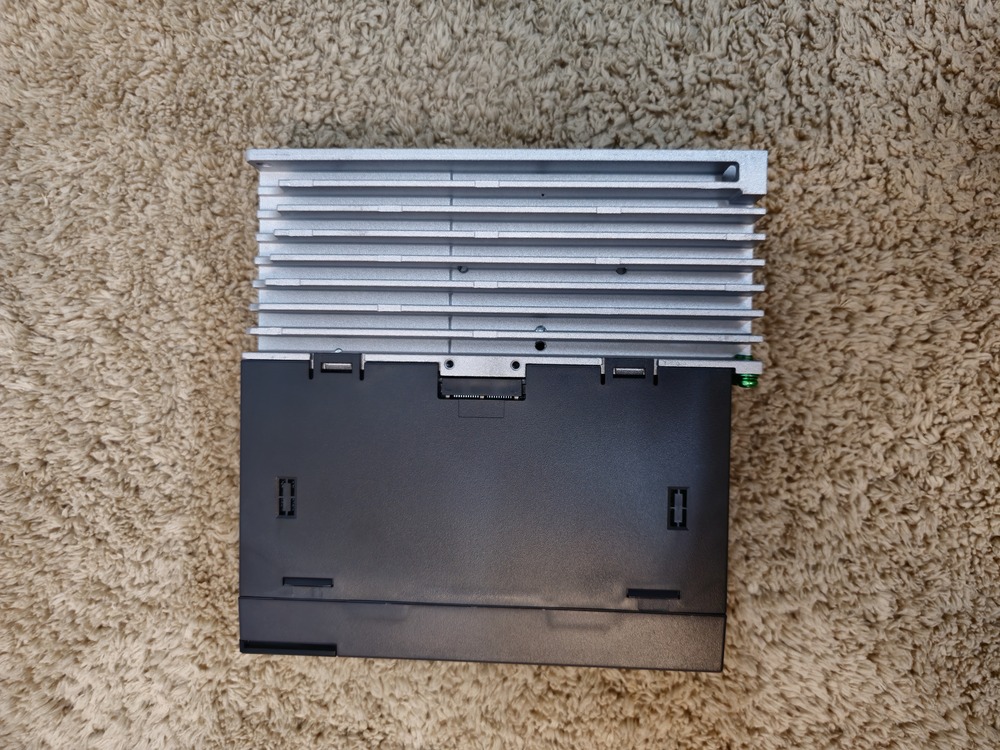

Durable Aluminum Construction

Engineered with an aluminum body, the ASD-A3-4523-M ensures excellent heat dissipation and mechanical strength. This reduces the risk of damage during rigorous industrial use, helping maintain reliable operation and prolonging equipment life.

Application Versatility and Warranty

Ideal for a broad range of machinery applications, this servo driver's compatibility with three-phase systems make it a go-to choice for various industrial setups. It is supported by a comprehensive 1-year warranty, providing additional peace of mind for buyers and operators.

FAQ's of ASD-A3-4523-M Delta Servo Driver 4500W:

Q: How is the ASD-A3-4523-M Delta Servo Driver typically used in industrial applications?

A: This servo driver is designed to provide accurate and reliable motor control in industrial machinery, enhancing automation and productivity in manufacturing and processing environments.

Q: What benefits does the sealed packing type provide?

A: The sealed packing ensures that internal components are protected from dust, moisture, and contaminants, promoting longer equipment life and reducing the frequency of maintenance.

Q: When should I consider using a 4500W, three-phase servo driver like the ASD-A3-4523-M?

A: You should opt for this model when your machinery requires high power output, consistent precision, and stable operation in demanding industrial settings.

Q: Where is this servo driver best installed?

A: It is best suited for use within industrial environments where three-phase electrical power is available and consistent, such as manufacturing plants, assembly lines, and automated systems.

Q: What is the process for installing the ASD-A3-4523-M Delta Servo Driver?

A: Installation involves securely mounting the unit, connecting the wiring to a compatible three-phase power source, and integrating it with your machine's control system, following Delta's technical guidelines closely to ensure correct setup.

Q: What warranty protection does this servo driver offer?

A: The ASD-A3-4523-M comes with a comprehensive 1-year warranty that covers manufacturing defects and ensures reliable performance for an extended period after purchase.

Q: How does the aluminum construction benefit long-term usage?

A: Aluminum provides superior heat dissipation, corrosion resistance, and lightweight durability, which decreases thermal-related failures and increases the overall lifespan of the servo driver.
