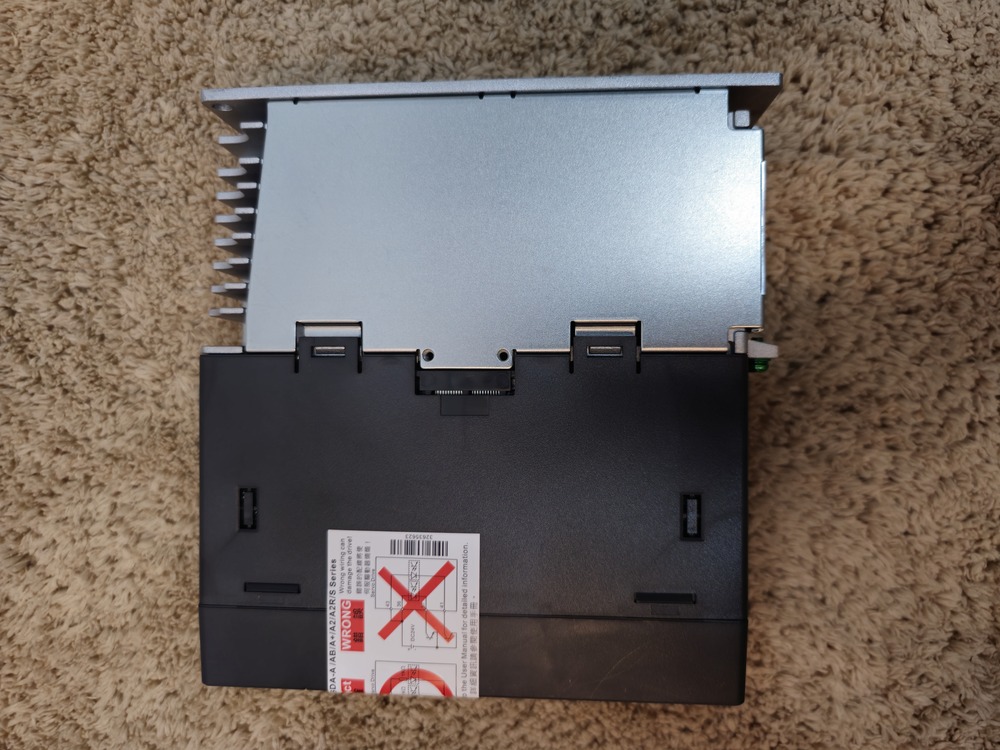

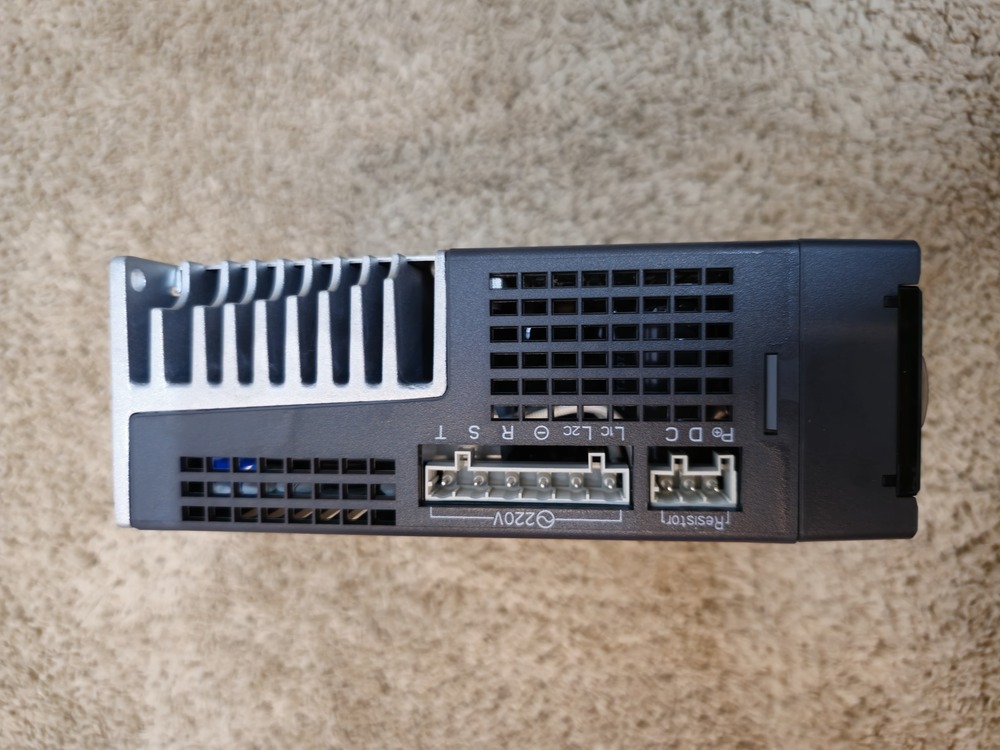

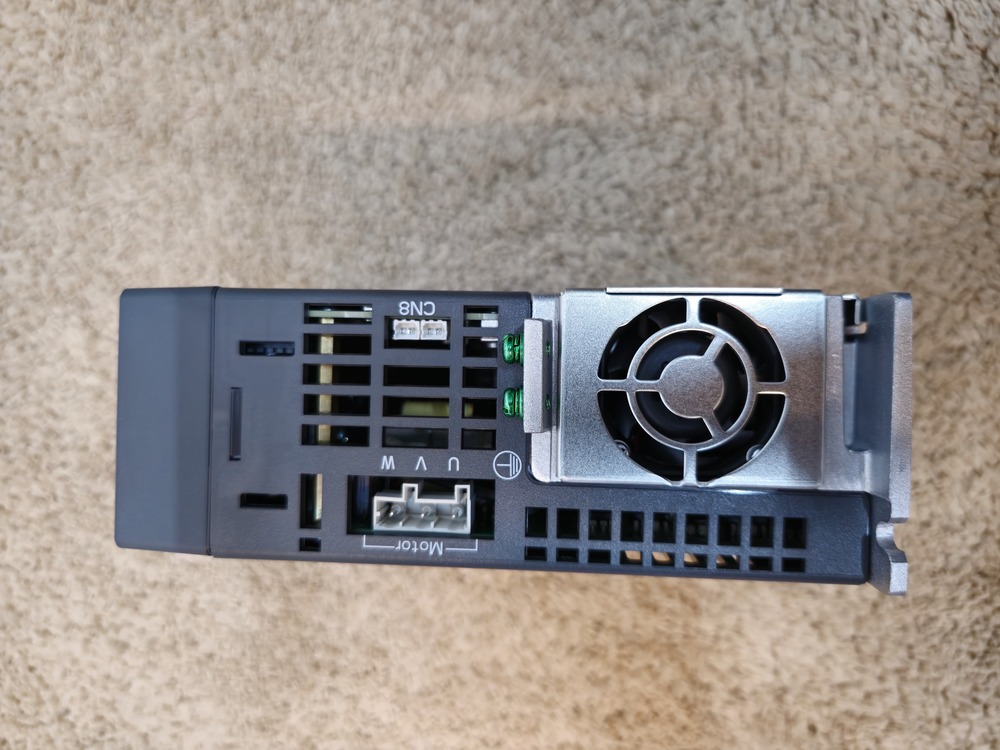

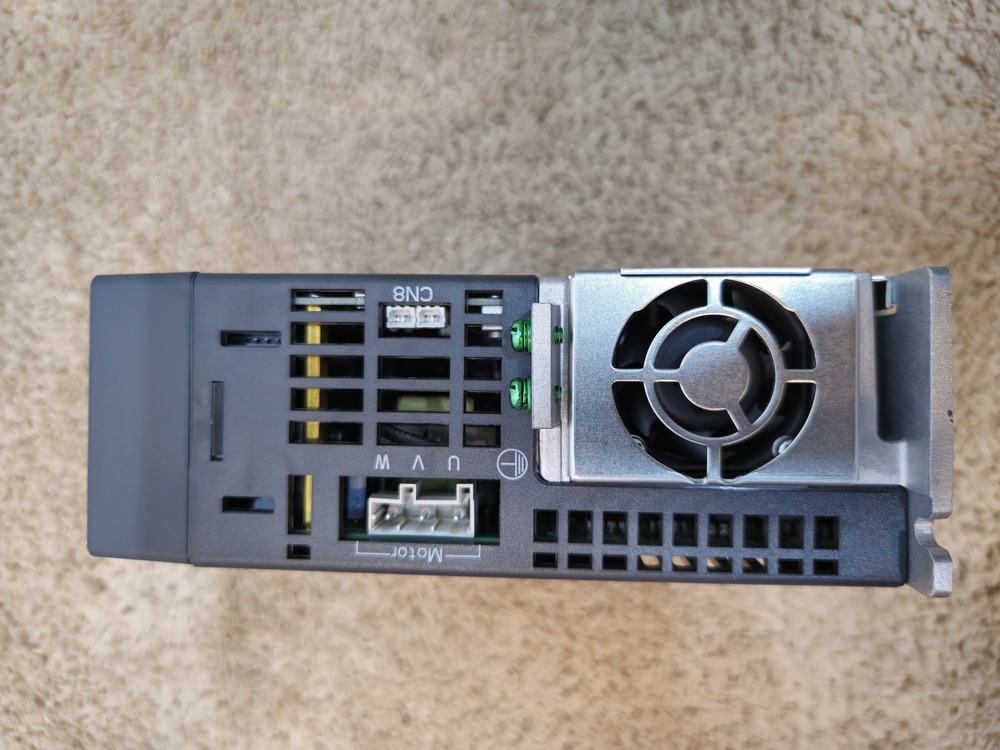

ASD-A3-4543-M Delta Servo Driver 4500W

Price 91000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A3-4543-M Delta Servo Driver 4500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
5.4 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A3-4543-M Delta Servo Driver 4500W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A3-4543-M Delta Servo Driver 4500W

The Delta ASD-A3-4543-M is a 4500W (4.5 kW) high-performance AC servo driver from the advanced ASDA-A3 series. It is designed to operate on a 400V 3-phase power supply and features built-in CANopen communication (indicated by the "-M" suffix).

Dimensions and Weight

This model is larger than the 3000W version to accommodate the higher power output. Its approximate physical specifications are:

Width: ~5.51 inches (140 mm)
Height: ~11.81 inches (300 mm)
Depth (Length): ~8.27 inches (210 mm)
Weight: Approximately 11.9 lbs (5.4 kg)

Key Technical Specifications

Based on documentation from Delta Electronics and industrial suppliers like MISUMI:

Rated Power Output: 4500 W (4.5 kW)
Input Power: 3-phase 380V ~ 480V AC
Encoder Support: 24-bit absolute encoder (16,777,216 pulses/rev) for ultra-high precision.
Communication: CANopen (built-in), with additional support for RS-232, RS-485, and USB for configuration.
Bandwidth: 3.1 kHz, offering extremely high responsiveness and reduced settling time compared to the previous ASDA-A2 series. [1, 2, 3, 4]

Advanced Functions

Electronic Cam (E-CAM): Includes built-in E-CAM and 99 PR (Internal Position) paths, which allows for complex motion planning without a separate motion controller.
Vibration Suppression: Features advanced automatic notch filters (up to 5 kHz) that identify and eliminate machine resonance to protect the equipment and improve stability.
Auto-Tuning: Uses an intelligent tuning wizard to automatically adjust PID gains, making it significantly easier to set up than traditional servo systems.
Safe Torque Off (STO): Integrated safety function to immediately cut motor torque while maintaining drive power, complying with international safety standards. [1, 2, 3]
