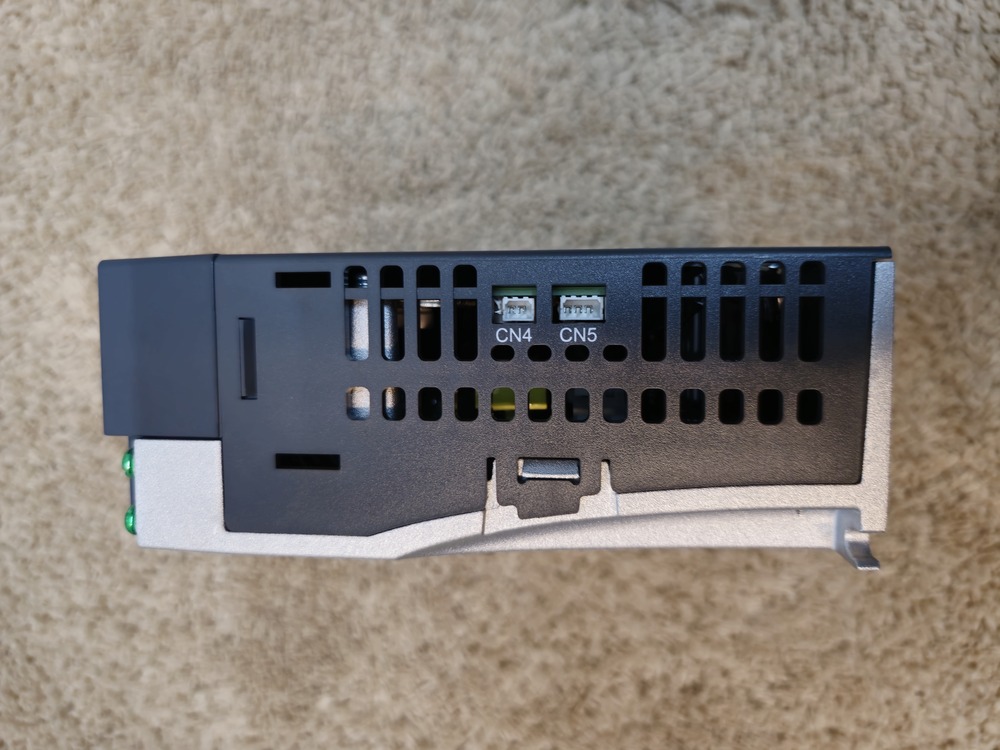

ASD-E3-2023-E Delta Servo Driver 2000W

Name: ASD-E3-2023-E Delta Servo Driver 2000W
Brand: Corbital Enterprise
Price: 48700.0 INR
Availability: InStock

Price 48700.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ASD-E3-2023-E Delta Servo Driver 2000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
2.4 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-E3-2023-E Delta Servo Driver 2000W Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About ASD-E3-2023-E Delta Servo Driver 2000W

The ASD-E3-2023-E is the 2.0kW (2000W) high-power EtherCAT drive in Deltas ASDA-E3 series. Unlike the lower-wattage models we discussed (which use 220V), this specific model is designed for three-phase 400V power input, making it suitable for heavier industrial machinery. [1, 2]

Core Specifications

Feature [1, 2, 3, 4]	Specification
Rated Power Output	2.0 kW (2000W)
Input Power Supply	Three-phase 380480 VAC
Control Interface	EtherCAT (CoE: CANopen over EtherCAT)
Continuous Current	6.5 Arms
Max Peak Current	19.5 Arms
Encoder Feedback	24-bit high-resolution

Physical Dimensions

As a higher-power drive, it has a larger footprint to accommodate the 400V power circuitry and heat dissipation.

Width: 80 mm (3.15")
Height: 190 mm (7.48")
Depth: 188 mm (7.40")
Weight: 2.4 kg (5.29 lbs)

Key Functions

400V Class Power: Designed for standard industrial 400V grids, providing higher torque and efficiency for large motors.
High-Sync Motion: Supports a 125s cycle time, enabling ultra-precise synchronization for large-scale gantry robots or high-speed packaging lines.
Regenerative Energy Management: Includes a built-in regenerative resistor to safely handle the energy generated when braking high-inertia loads.
Advanced Safety (STO): Features built-in Safe Torque Off (SIL2) for immediate torque disablement in emergency situations.
Vibration Suppression: Automatically filters out mechanical resonance up to 5,000 Hz, ensuring smooth operation of heavy mechanical arms or frames. [1, 2, 3, 4, 5]

Common Pairings

This drive is typically matched with the ECM-B3 Series 2.0kW motors, which usually feature a 130mm or 180mm frame size and a rated torque of roughly 9.55 Nm. [1]

Engineered for Industrial Demands

Purpose-built for industrial machinery, the ASD-E3-2023-E Delta Servo Driver delivers unparalleled precision and control. Its robust 2000W output and three-phase capability provide the stability and power needed in advanced factory environments, making it the preferred choice for automation professionals.

Durable Aluminum Construction

Encased in high-quality aluminum, this servo driver is designed for longevity and efficient heat dissipation. The sturdy build not only ensures operational reliability but also contributes to a sleek, professional appearance in both black and silver, matching modern industrial aesthetics.

FAQ's of ASD-E3-2023-E Delta Servo Driver 2000W:

Q: How do I install the ASD-E3-2023-E Delta Servo Driver in industrial machinery?

A: Installation should be carried out by qualified personnel following the manufacturer's guidelines. Ensure the unit is mounted securely, connected properly to the three-phase power supply, and all safety protocols are observed during setup.

Q: What are the key advantages of using this servo driver for industrial applications?

A: This servo driver offers high output power (2000W), robust aluminum construction for durability, precise control options, and a secure sealed packing for protection, making it ideal for high-performance industrial machinery.

Q: When should maintenance or inspection of the Delta servo driver be performed?

A: Routine inspections should follow the recommended intervals in your equipment's manual. It's also prudent to check the device periodically or whenever irregular operation occurs to ensure lasting performance under the warranty period.

Q: Where can I purchase the ASD-E3-2023-E Delta Servo Driver?

A: You can acquire this servo driver from authorized suppliers, traders, or wholesalers specializing in industrial automation components. Always verify authenticity and warranty coverage when purchasing.

Q: What warranty coverage does this servo driver provide?

A: The ASD-E3-2023-E Delta Servo Driver is covered by a one-year warranty, protecting buyers against manufacturing defects and ensuring reliable support during the first year of operation.

Q: How does the packing seal benefit the servo driver during shipment?

A: The sealed packing type safeguards the servo driver from moisture, dust, and transit-related damage, ensuring it arrives in optimal working condition for immediate installation and use.

Q: What is the primary usage and typical applications of this product?

A: Mainly designed for industrial machinery, this servo driver manages motion control, enhancing automation solutions for factories, automated production lines, and precision equipment.
