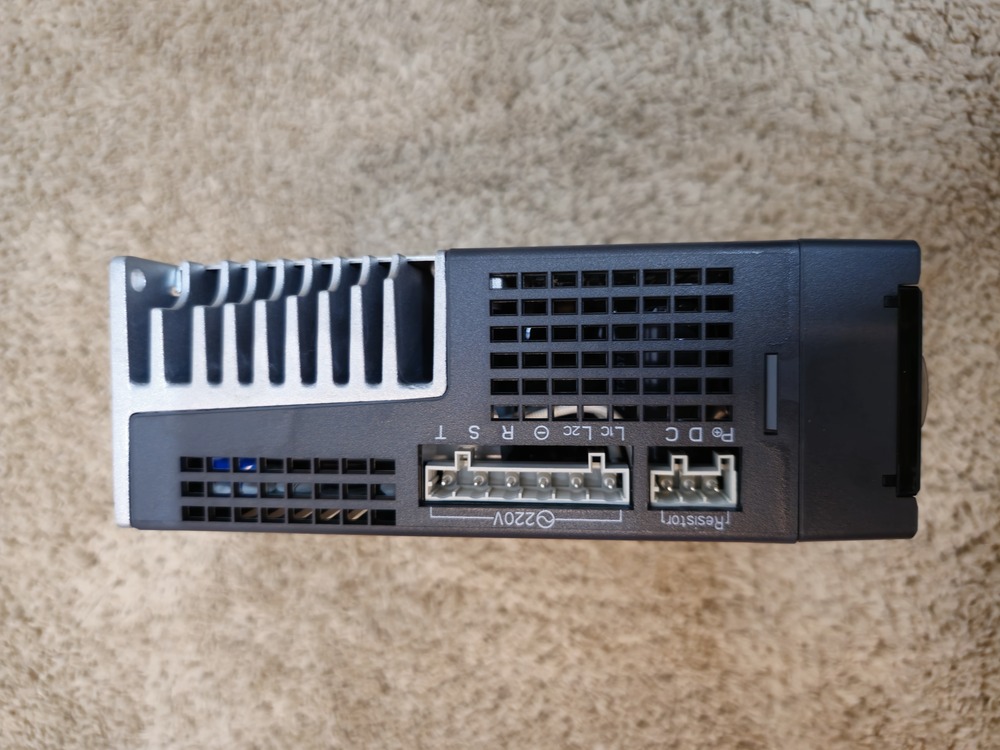

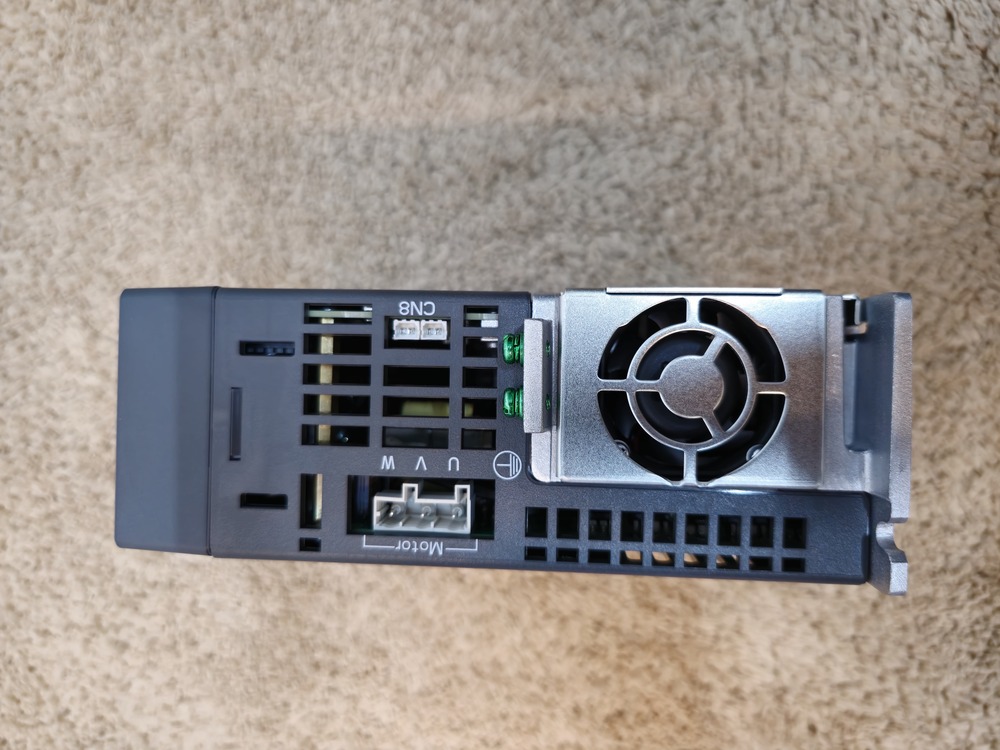

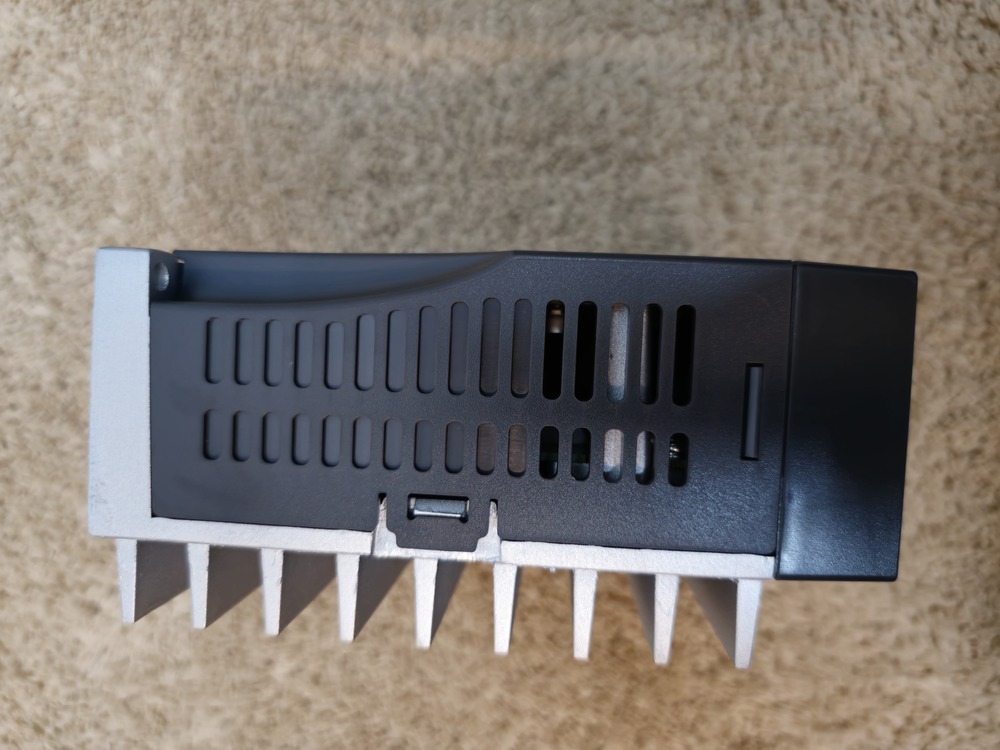

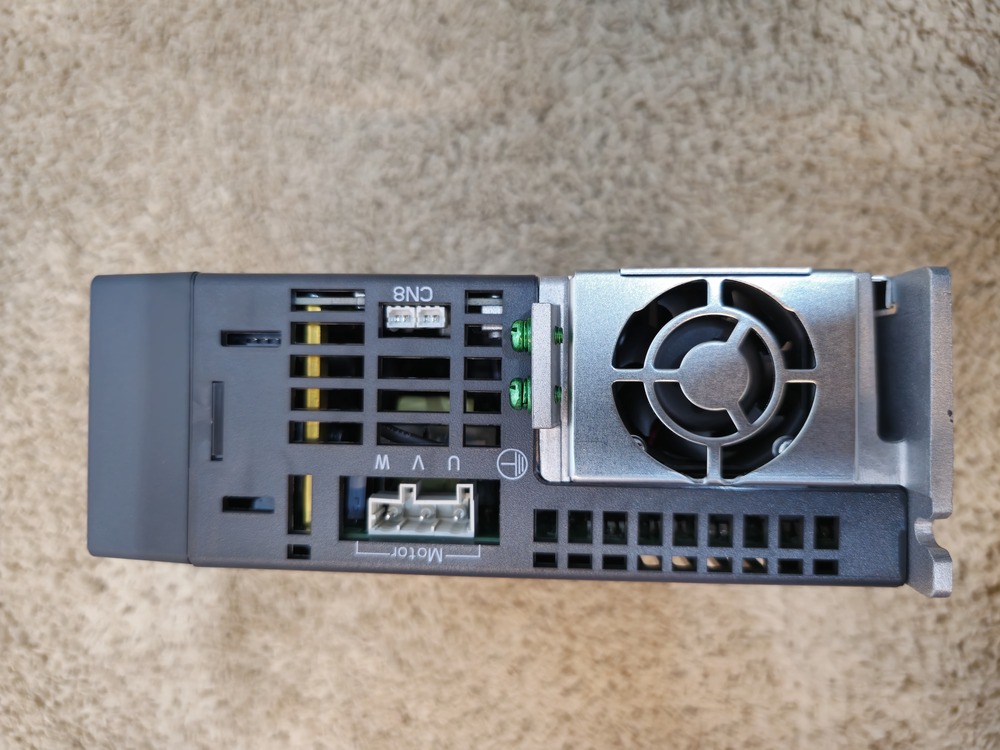

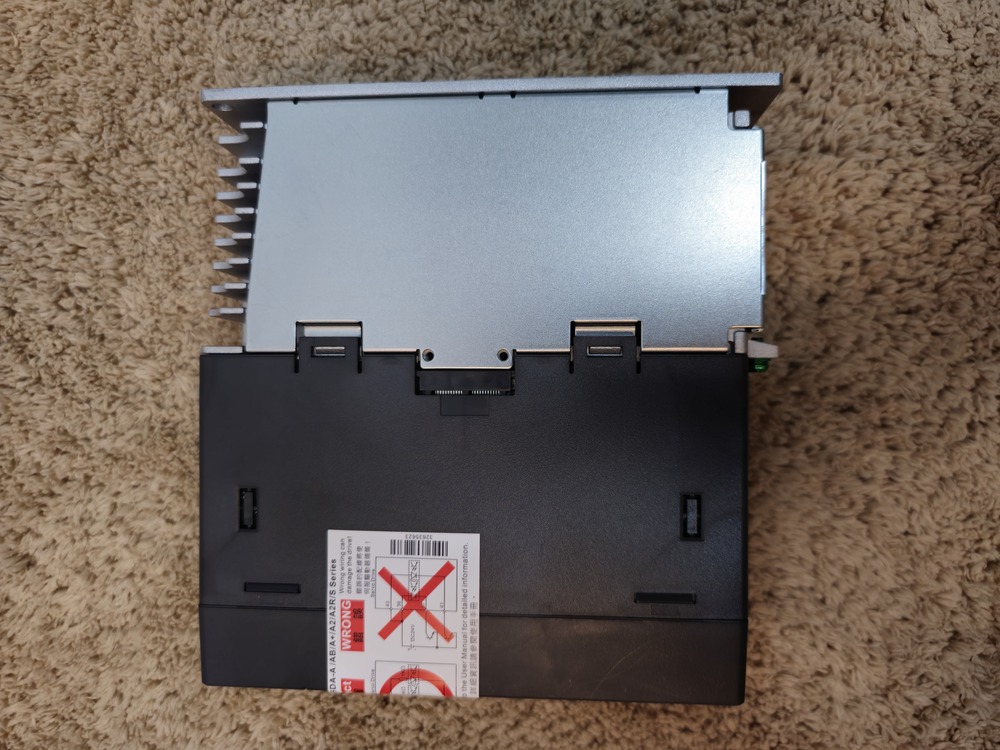

ASD-A3-5523-E Delta Servo Driver 5500W

Name: ASD-A3-5523-E Delta Servo Driver 5500W
Brand: Corbital Enterprise
Price: 92400.0 INR
Availability: InStock

Price 92400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ASD-A3-5523-E Delta Servo Driver 5500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
6.8 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A3-5523-E Delta Servo Driver 5500W Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About ASD-A3-5523-E Delta Servo Driver 5500W

The ASD-A3-5523-E is the 5.5kW (5500W) EtherCAT flagship drive in Deltas high-end ASDA-A3 series. This drive is engineered for heavy-duty industrial applications that require massive power combined with the extreme precision and ultra-fast network synchronization of EtherCAT. [1]

Core Specifications

Feature [1, 3, 4, 5]	Details
Rated Power Output	5.5 kW (5500W)
Control Interface	EtherCAT (CoE: CANopen over EtherCAT)
Input Power Supply	3-Phase 200230 VAC
Continuous Current	40 Arms
Max Peak Current	106 Arms
Response Bandwidth	3.1 kHz (Industry flagship)

Key Performance Functions

EtherCAT Synchronization: Supports an ultra-fast 125s cycle time, enabling perfect multi-axis synchronization for heavy-duty CNC systems or large-scale robotic cells.
Full-Closed Loop (CN5): Features a dedicated port for external linear scales to compensate for mechanical backlash or thermal expansion in large ball screws and gearboxes.
Electronic Cam (E-Cam): Built-in support for complex master-slave synchronization (like high-power rotary cutters or flying shears) directly within the drive hardware.
Advanced Suppression: Automatically manages mechanical resonance up to 5,000 Hz using 5 sets of high-frequency notch filters, essential for heavy, large-scale mechanical frames.
Massive Torque Management: Engineered to drive large 180mm to 220mm frame motors with extremely high inertia, maintaining precise control even under heavy industrial loads. [, 2]

Physical Dimensions & Weight

As a high-power unit, this drive is significantly larger than the lower-wattage A3 models to handle heat dissipation.

Width: 120 mm (4.72")
Height: 260 mm (10.24")
Depth: 210 mm (8.27")
Weight: Approximately 6.8 kg (15 lbs).

Exceptional Performance and Reliability

Engineered to deliver 5500W of reliable power, the ASD-A3-5523-E Delta Servo Driver is ideal for industrial machinery requiring precise control. Its aluminum build ensures durability, while the packing seal protects against contaminants, enhancing longevity.

Flexible Integration and Industrial Suitability

Built for three-phase power environments, this servo driver supports diverse industrial automation needs. Its compact and robust design enables easy integration into new or existing manufacturing setups, providing versatility for a range of machinery types.

FAQ's of ASD-A3-5523-E Delta Servo Driver 5500W:

Q: How does the ASD-A3-5523-E Delta Servo Driver improve industrial machinery performance?

A: This servo driver delivers precise motion control and stable power output, resulting in smoother operation, enhanced efficiency, and reduced downtime for industrial equipment.

Q: What is the process of installing the ASD-A3-5523-E Delta Servo Driver?

A: Installation typically involves connecting the servo driver to a compatible three-phase power supply, integrating it with machinery, and configuring it via standard Delta commissioning methods. Professional installation is recommended for optimal results.

Q: When should the servo driver be serviced or maintained?

A: Routine inspections are suggested during regular maintenance schedules, although the sealed design and durable aluminum construction minimize the need for frequent servicing. Refer to the manual for recommended intervals.

Q: Where can I purchase the ASD-A3-5523-E Delta Servo Driver?

A: The servo driver is available through authorized suppliers, traders, and wholesalers specializing in industrial automation components.

Q: What are the primary benefits of using this Delta Servo Driver in industrial settings?

A: Key benefits include high efficiency, precision control, robust construction, and a reliable 1-year warranty, making it suitable for various demanding industrial machinery applications.
