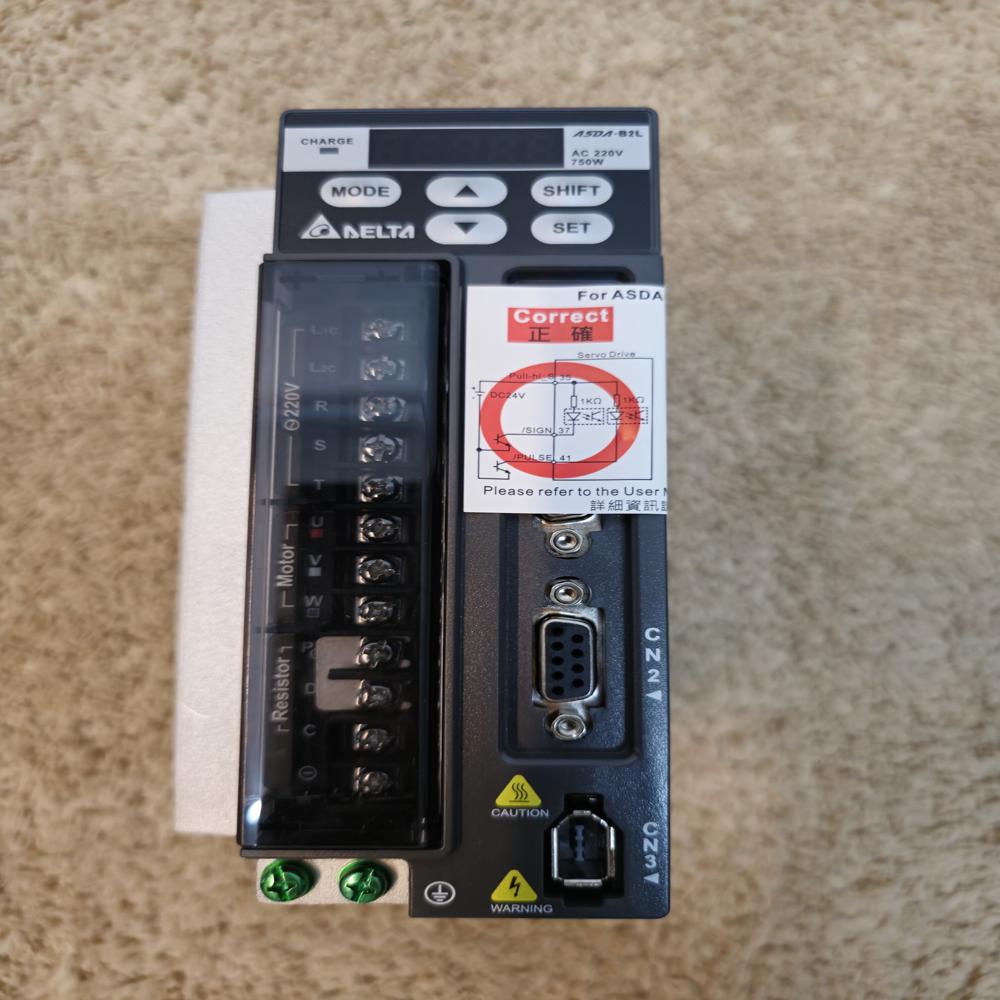

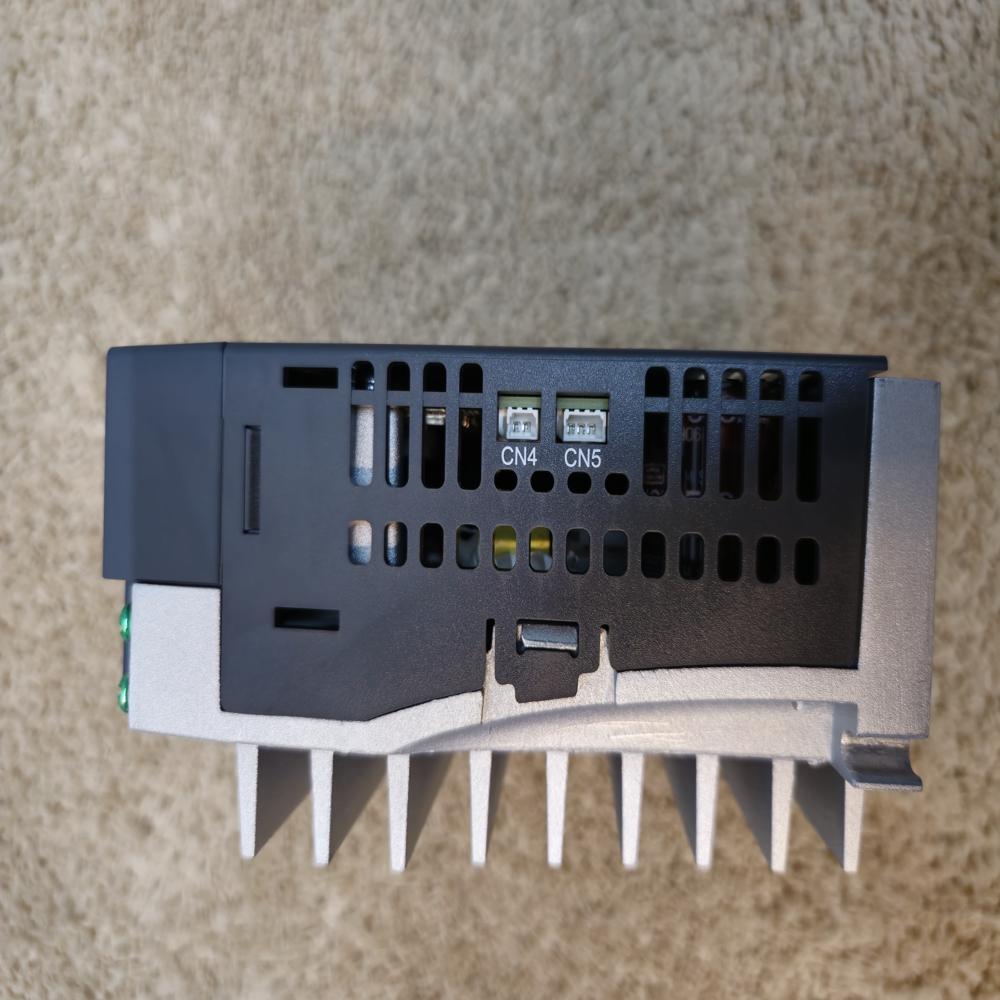

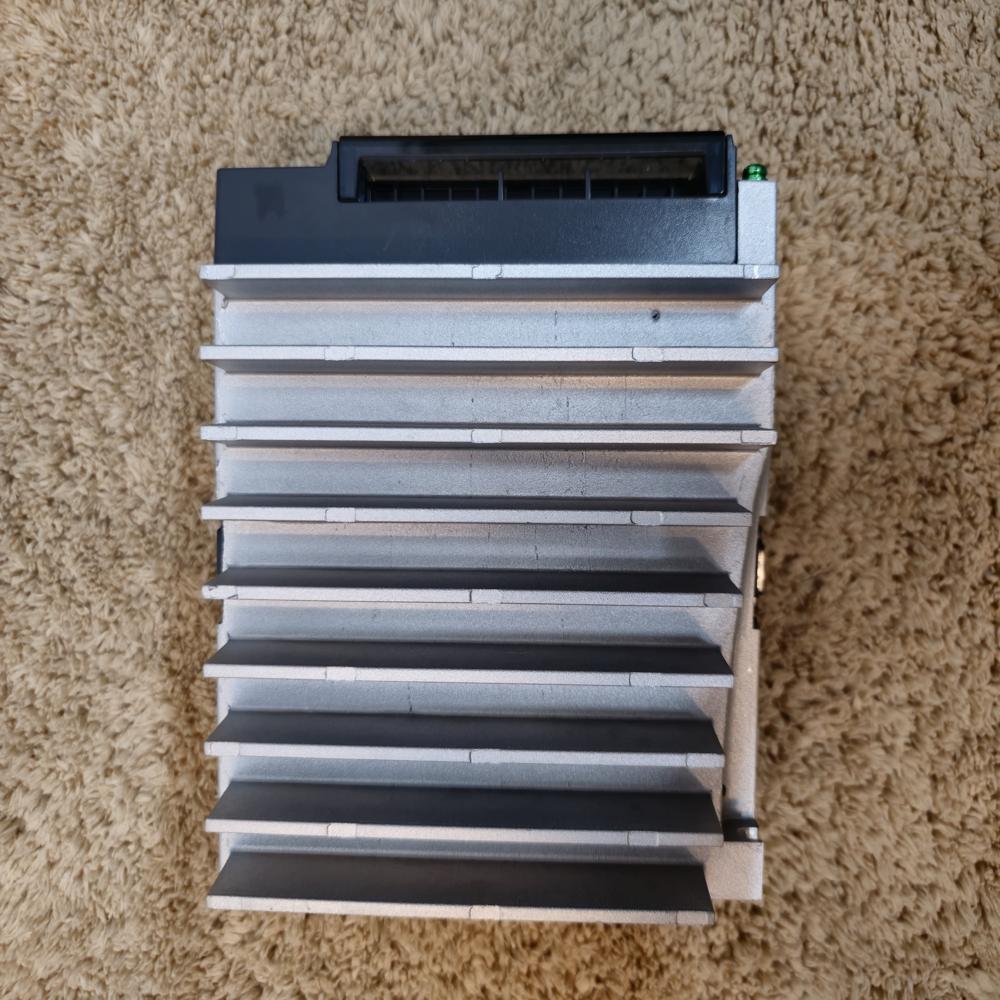

ASD-B2-1521-B Delta B2 Series Driver - 1500W

Name: ASD-B2-1521-B Delta B2 Series Driver - 1500W
Brand: Corbital Enterprise
Price: 39400.0 INR
Availability: InStock

Price 39400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-B2-1521-B Delta B2 Series Driver - 1500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
2.2 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-B2-1521-B Delta B2 Series Driver - 1500W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-B2-1521-B Delta B2 Series Driver - 1500W

The ASD-B2-1521-B is a high-performance 1500W (1.5 kW) AC servo drive designed for heavy-duty industrial automation. It provides the robust power and advanced feedback control necessary for large-scale applications like lathes, milling machines, and high-capacity conveyors. [1]

Key Specifications

Rated Power Output: 1500 Watts (1.5 kW).
Input Power: Supports both single-phase (200V255V AC) and three-phase (170V255V AC) at 50/60 Hz.
Output Current: Rated at 8.3 Arms continuous, ensuring stable performance for high-torque motors.
Frequency Response: Up to 550 Hz, providing rapid response to dynamic control signals.
Encoder Support: Optimized for 17-bit incremental encoders (160,000 pulses per revolution) for high-precision positioning. [1, 2, 3, 4, 5, 6, 7]

Primary Functions

Triple Control Modes: Includes built-in Position (external pulse), Speed (analog), and Torque (analog) modes.
Vibration Management: Features three notch filters to automatically suppress mechanical resonance, which is critical for larger, high-power systems.
Advanced Autotuning: A built-in function that automatically estimates load inertia and adjusts PID gains for optimal performance.
Communication: Integrated RS-232 and RS-485 ports supporting the MODBUS protocol for easy linkage with PLCs and HMIs.
Comprehensive Protection: Monitors for overcurrent, overvoltage, undervoltage, overheating, and short circuits to protect the equipment. [1, 2, 3, 4, 5, 6, 7, 8]

Physical Profile & Weight

Weight: Approximately 4.85 lbs (2.2 kg).
Installation: Designed for panel mounting in a shielded control cabinet to ensure safe operation in harsh environments. [1, 2]
