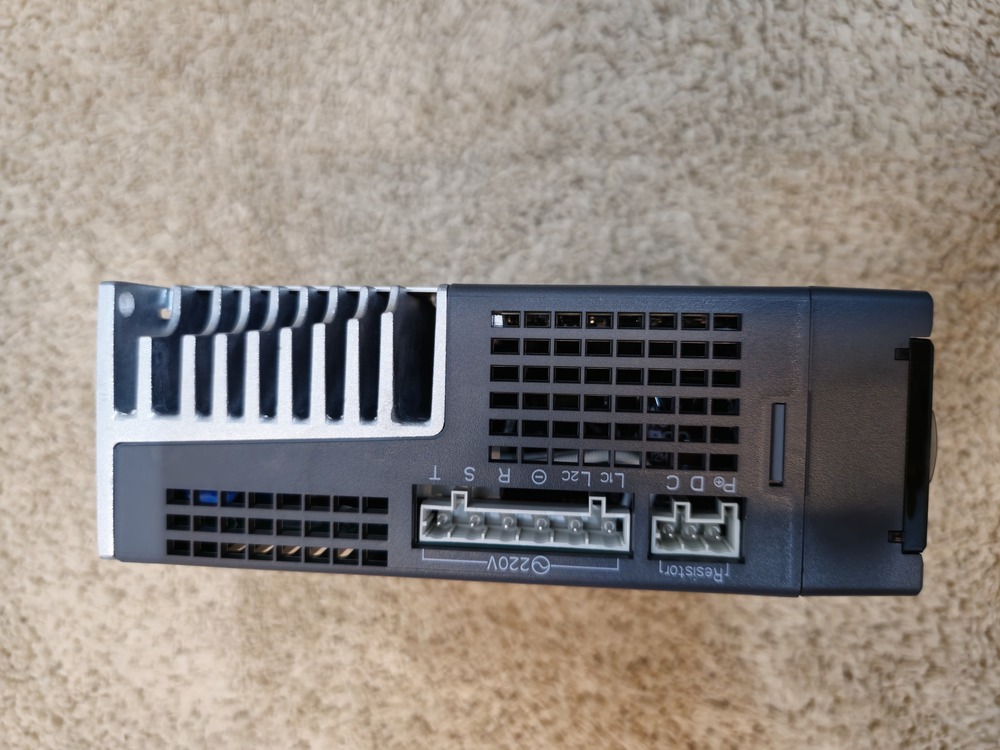

ASD-B2-0121-B Delta B2 Series Driver - 100W

Name: ASD-B2-0121-B Delta B2 Series Driver - 100W
Brand: Corbital Enterprise
Price: 22500.0 INR
Availability: InStock

Price 22500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-B2-0121-B Delta B2 Series Driver - 100W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
1.07 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-B2-0121-B Delta B2 Series Driver - 100W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-B2-0121-B Delta B2 Series Driver - 100W

The ASD-B2-0121-B is the matching 100W AC servo drive for your motor. It is part of the standard Delta ASDA-B2 Series, designed to provide high-precision control in a compact frame. [1, 2]

The ASD-B2-0121-B serves as the intelligence and power unit for the 100W ECMA motor. Its main function is to process high-speed digital signals to achieve precise movement while protecting the mechanical system from electrical faults. [1]

Key Specifications

According to technical datasheets from Digi-Key and Delta Electronics:

Power Rating: 100W (0.1 kW).
Voltage Input: 220V AC; supports single-phase (200V255V) or three-phase (170V255V).
Output Current: Continuous output of 0.9 Arms, with an instant maximum of 2.7 Arms for high-torque bursts.
Frequency Response: Up to 550Hz, enabling a settling time of less than 1ms for rapid stop-start operations.
I/O Interface: Features 18 digital inputs and 10 digital outputs for complex automation logic. [1, 2, 3, 4, 5]

Primary Functions

Triple Control Modes: The drive provides built-in Position (pulse), Speed, and Torque control modes. These can be adjusted via internal parameters or external analog voltage.
Resonance Suppression: Includes three notch filters that automatically suppress mechanical vibration and resonance, ensuring the system operates smoothly even at high speeds.
Advanced Feedback: Supports 17-bit and 20-bit incremental encoders, allowing it to monitor the motor's position with extremely high resolution (160,000 pulses per revolution).
Communication & Integration: Features built-in RS-232 and RS-485 ports using the MODBUS RTU protocol, making it easy to link with Delta DVP Series PLCs or a PC for configuration via ASDA-Soft software.
Safety & Protection: Monitors for over-current, over-voltage, under-voltage, and over-temperature to prevent damage to the motor or the drive itself.

Key Specifications

Rated Power Output: 100W (0.1 kW).
Input Voltage: Supports both single-phase 200V255V AC and three-phase 170V255V AC.
Output Current: Rated at 0.9 Arms continuous, with an instant max of 2.7 Arms.
Control Modes: Integrated position, speed, and torque control modes.
Communication: Built-in RS-232 and RS-485 interfaces supporting

Physical Dimensions

The drive is designed for panel mounting and is very lightweight. [, 2]

Weight: Approximately 2.36 lbs (1.07 kg).
Dimensions: Typical for this power class in the B2 series, it measures roughly 6.1" (H) x 1.6" (W) x 5.7" (D) (approximately 156mm x 40mm x 145mm). [1]
