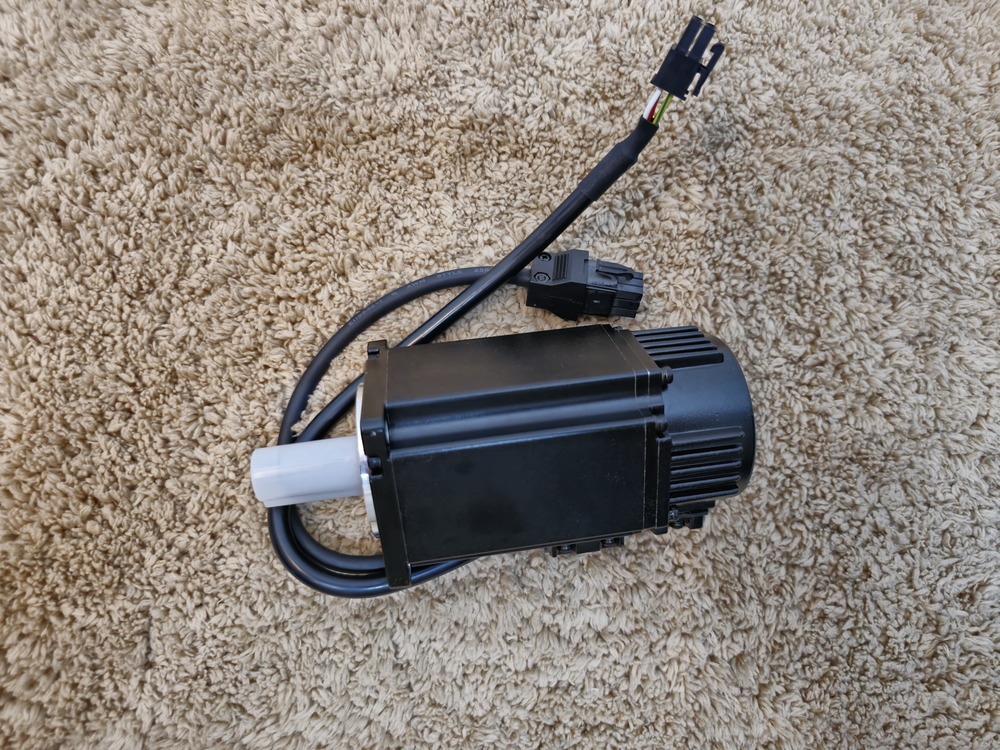

ECMA-LA1845SS Delta Servo Motor 4500W H , Torque Nm - 28.65 , RPM - 1500

Price 145000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-LA1845SS Delta Servo Motor 4500W H , Torque Nm - 28.65 , RPM - 1500 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
29 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECMA-LA1845SS Delta Servo Motor 4500W H , Torque Nm - 28.65 , RPM - 1500 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-LA1845SS Delta Servo Motor 4500W H , Torque Nm - 28.65 , RPM - 1500

The Delta ECMA-LA1845SS is a heavy-duty 4500W (4.5 kW) AC servo motor from the ASDA-A2 Series. As a High Inertia model (denoted by the "L"), it is designed to maintain high precision and stability when driving massive mechanical loads that would cause smaller motors to vibrate or overshoot. [1, 2, 3, 4, 5]

Dimensions & Weight

Weight: ~63.93 lbs (29.0 kg).
Length: ~12.28 inches (312 mm total including brake and shaft).
Width (Frame Size): ~7.09 inches (180 mm).
Height (Frame Size): ~7.09 inches (180 mm). [1, 2, 3, 5, 6]

Core Specifications

Rated Output Power: 4.5 kW (4500W).
Rated Torque: 28.65 Nm (Peak torque up to 71.62 Nm).
Rated Speed: 1500 RPM (Maximum speed up to 3000 RPM).
Voltage: 400V AC.
Encoder: 17-bit Absolute encoder.
Brake: Included (Indicated by the "SS" suffix). [1, 2, 3, 4]

Key Functions

Massive Load Stability: The high rotor inertia (80.65 x 10 kgm) allows it to control heavy machinery like large CNC gantries or industrial robotic joints without losing positional accuracy.
Zero-Point Memory: Its absolute encoder ensures the motor always knows its position, removing the need for time-consuming homing cycles after a power reset.
Integrated Safety: The electromagnetic brake is designed to hold the load securely in place during emergency stops or power failures, which is vital for vertical Z-axis safety
