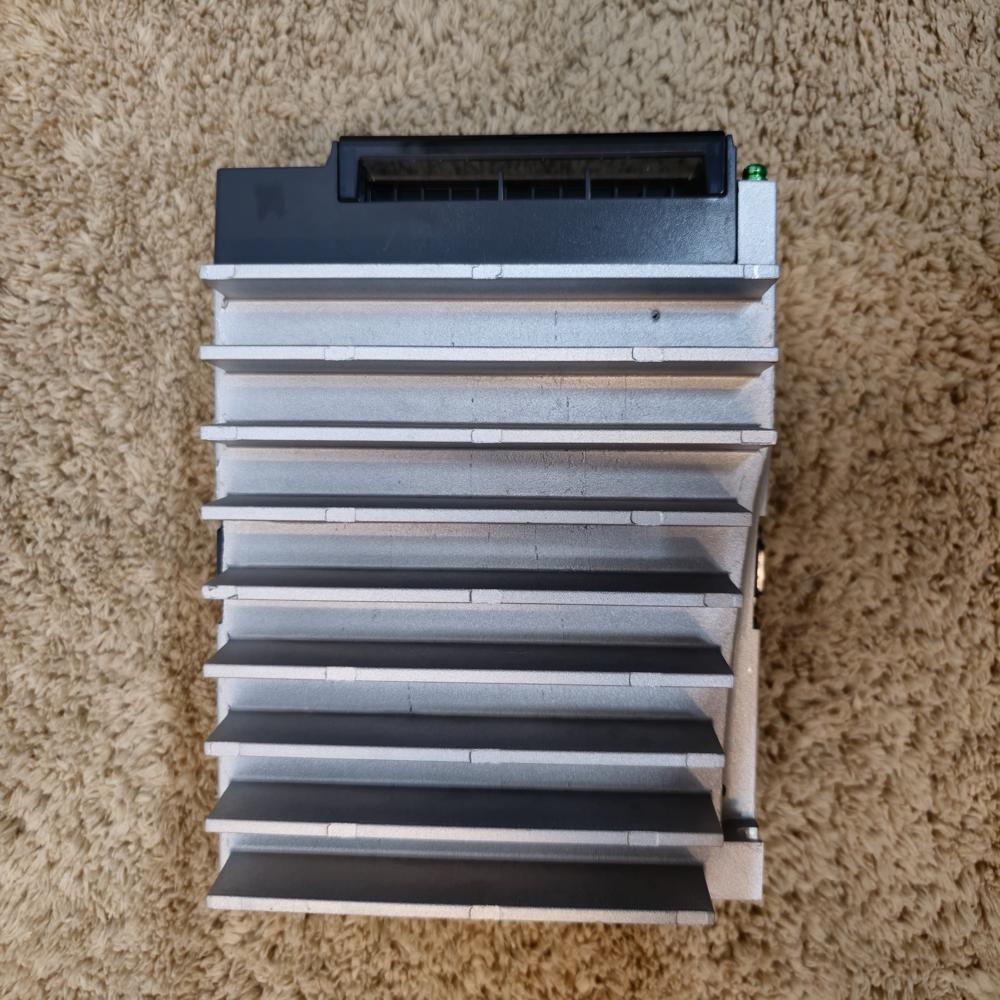

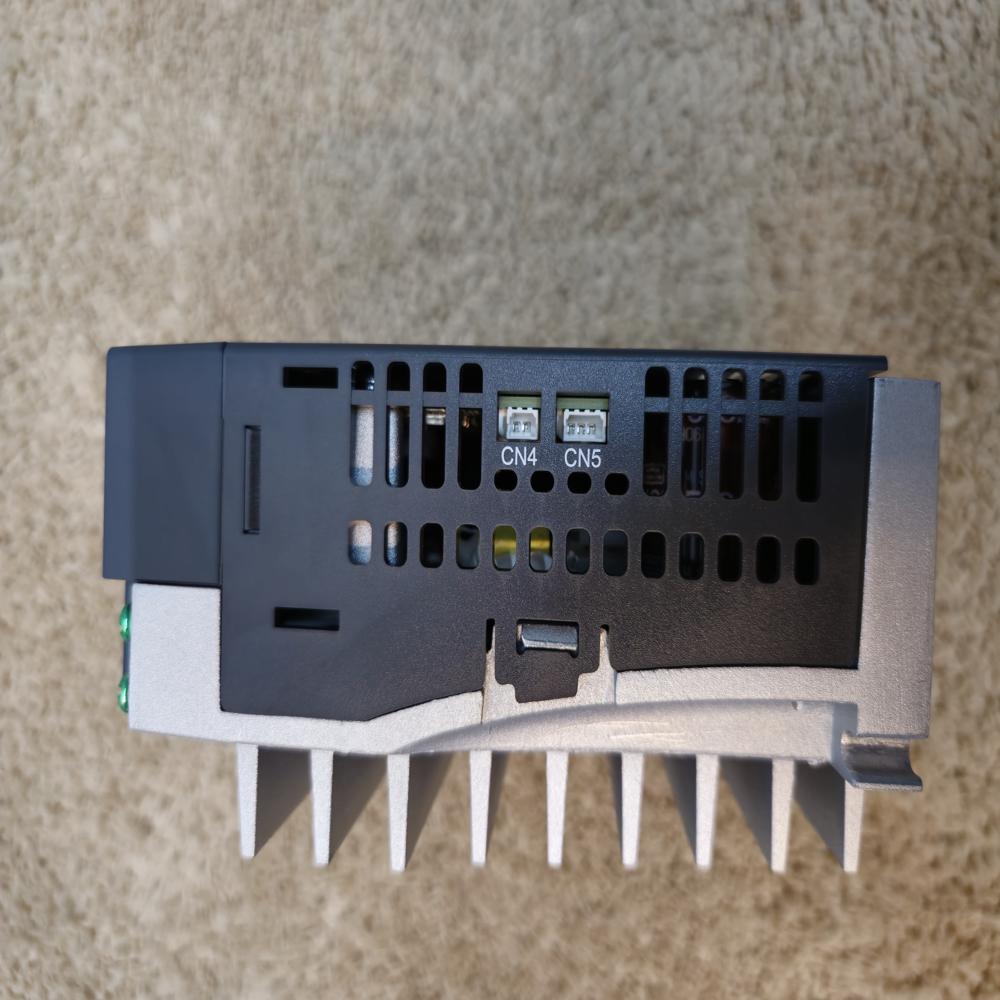

ASD-B2-2023-B Delta B2 Series Driver - 2000W

Price 37400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-B2-2023-B Delta B2 Series Driver - 2000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
1.72 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-B2-2023-B Delta B2 Series Driver - 2000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-B2-2023-B Delta B2 Series Driver - 2000W

The ASD-B2-1021-B is the 1000W (1.0 kW) AC servo drive from Deltas ASDA-B2 Series. It is engineered to provide high-precision motion control, delivering the necessary current and intelligence to drive 1kW servo motors in demanding industrial environments. [1, 2, 3, 4, 5]

Key Specifications

Rated Power Output: 1000W (1.0 kW).
Input Power: Supports both single-phase (200V230V AC) and three-phase (170V255V AC) at 50/60 Hz.
Output Capacity: Continuous current of 7.3 Arms, with an instant peak of 21.9 Arms for short bursts of high torque.
Response Performance: Frequency response bandwidth up to 550 Hz, allowing for extremely fast settling times (less than 1ms).
Encoder Support: Optimized for high-resolution 17-bit (160,000 p/rev) and 20-bit incremental feedback.

Primary Functions

Multi-Mode Control: Features integrated Position (Pulse/Direction), Speed (10V), and Torque (10V) modes, which can be switched dynamically via digital inputs.
Vibration Management: Includes three notch filters that automatically detect and suppress mechanical resonance, ensuring smooth motion even with high-inertia loads.
Electronic Gearing: Built-in functionality for scaling input pulse commands to match mechanical gear ratios or screw pitches.
Communication: Dual RS-232 and RS-485 ports using the MODBUS protocol for easy integration with PLCs and PCs.
Auto-Tuning: A built-in auto-tuning function simplifies the setup process by automatically calculating the optimal PID gains for the connected motor and load. [1, 3, 4]

Physical Profile & Installation

Mounting: Designed for panel/chassis mounting in a shielded control box.
Dimensions: Approximately 6.38" (H) x 2.36" (W) x 6.10" (D) (162mm x 60mm x 155mm).
Weight: Roughly 3.79 lbs (1.72 kg). [1, 2, 3, 4]
