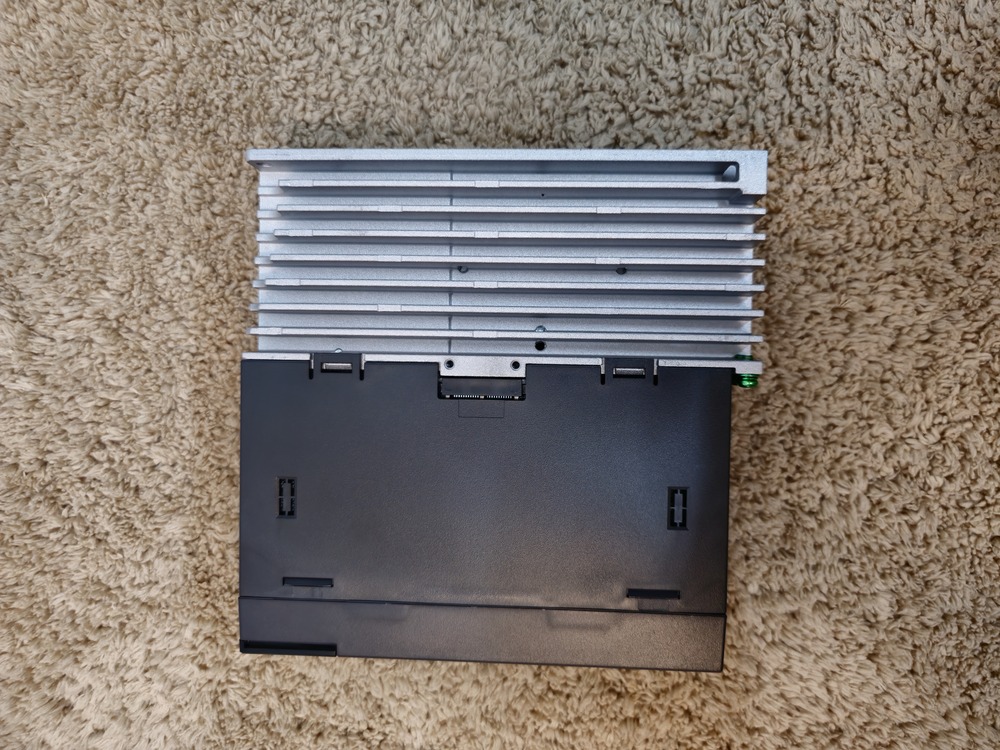

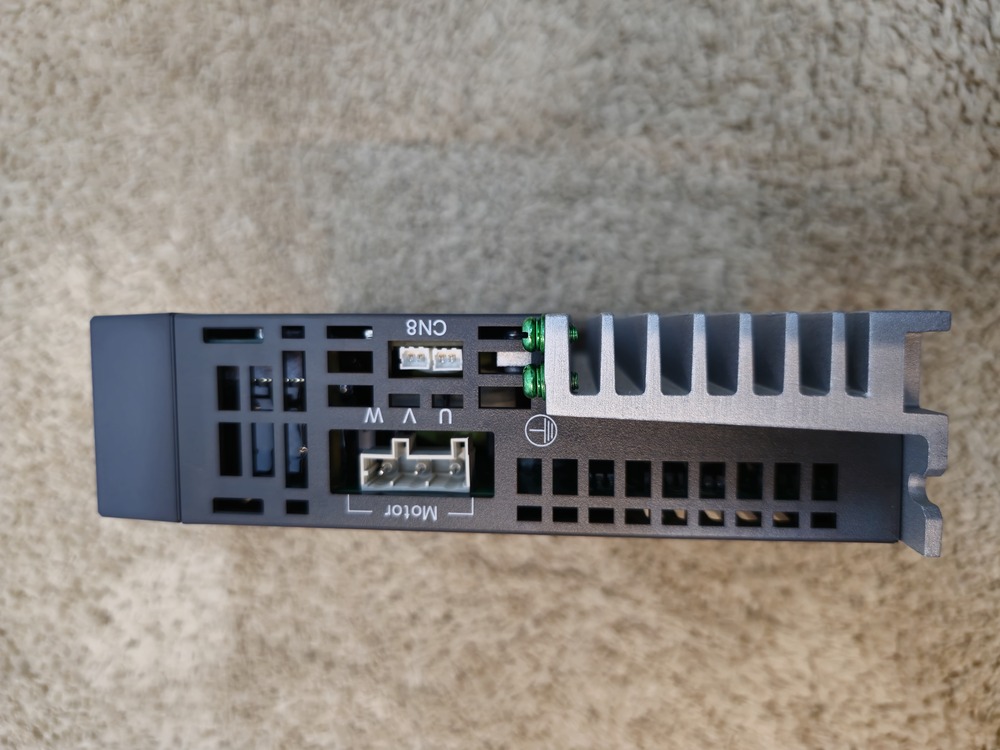

ASD-A3-5523-M Delta Servo Driver 5500W

Name: ASD-A3-5523-M Delta Servo Driver 5500W
Brand: Corbital Enterprise
Price: 78000.0 INR
Availability: InStock

Price 78000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ASD-A3-5523-M Delta Servo Driver 5500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
6.8 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-A3-5523-M Delta Servo Driver 5500W Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About ASD-A3-5523-M Delta Servo Driver 5500W

The ASD-A3-5523-M is a high-power 5.5kW (5500W) servo drive from Deltas flagship ASDA-A3 series. Designed for heavy-duty industrial automation, it combines massive torque handling with the advanced motion control features of the A3 family, including CANopen communication. [1, 2]

Core Specifications

Feature [1, 2, 3, 4, 5]	Specification
Rated Power Output	5.5 kW (5500W)
Control Interface	CANopen (DS402 Profile), Pulse/Analog, RS-485
Input Power Supply	3-Phase 200230 VAC
Continuous Current	40 Arms
Max Peak Current	106 Arms
Response Bandwidth	3.1 kHz (Industry-leading)

Physical Dimensions & Weight

As one of the highest power units in the 220V class, this drive requires a larger frame for heat management.

Width: 120 mm (4.72")
Height: 260 mm (10.24")
Depth: 210 mm (8.27")
Weight: Approximately 6.8 kg (15 lbs). [1, 2]

Key Performance Functions

Flagship Response: The 3.1 kHz bandwidth allows for ultra-fast settling times, which is critical when moving large, heavy mechanical loads at high speeds.
High-Resolution Feedback: Pairs with 24-bit absolute encoders (16.7 million pulses/rev) to ensure smooth motion and precise positioning even under high torque.
Advanced Motion (PR Mode): Includes an internal positioner supporting 99 motion segments and Electronic Cam (E-Cam) for complex synchronization.
Full-Closed Loop: Features a dedicated CN5 port to connect an external linear scale, bypassing mechanical backlash in large gearboxes or ball screws.
Vibration Suppression: Automatically detects and suppresses resonance up to 5,000 Hz using 5 sets of notch filters.
