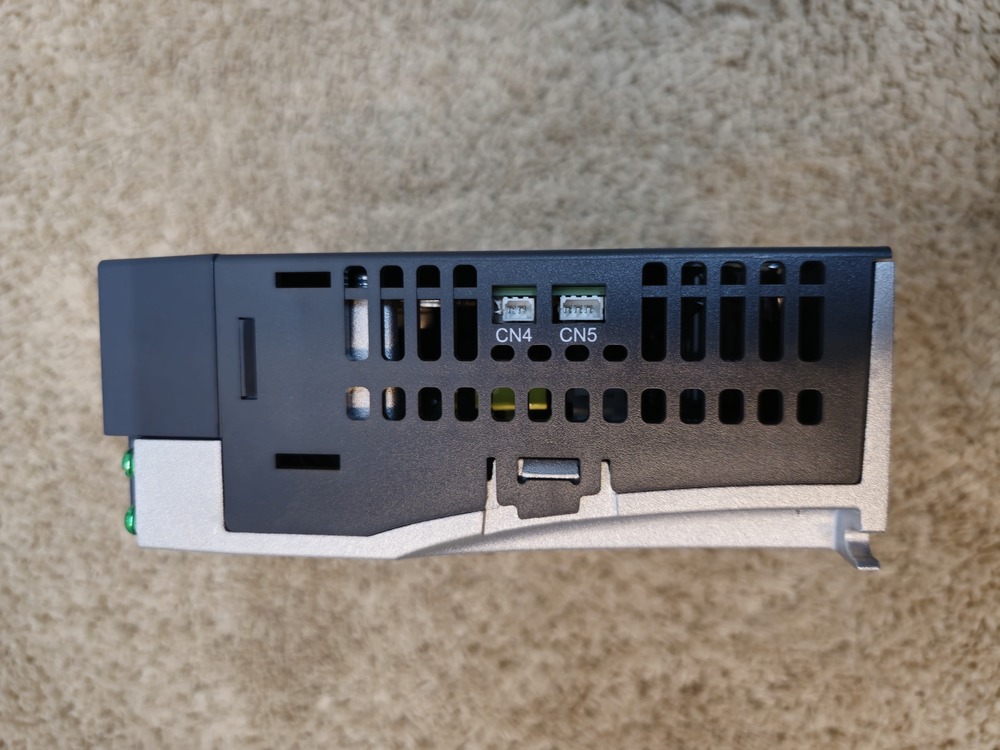

ASD-E3-0421-L Delta Servo Driver 400W

Name: ASD-E3-0421-L Delta Servo Driver 400W
Brand: Corbital Enterprise
Price: 21800.0 INR
Availability: InStock

Price 21800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ASD-E3-0421-L Delta Servo Driver 400W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
900 Grams (g)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-E3-0421-L Delta Servo Driver 400W Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About ASD-E3-0421-L Delta Servo Driver 400W

Since you previously asked about this specific 400W driver, here is the technical breakdown to help with your implementation:

The ASD-E3-0421-L is the core control unit for the 400W motor series. Its essentially the "brain" that receives your PLC commands and manages the motor's power.

Core Specifications

Rated Power: 400W
Input Voltage: 220V (Single-phase or Three-phase)
Continuous Current: 2.6 Arms
Max Instantaneous Current: 10.6 Arms
Control Mode: PT (Pulse Train) Mode, Speed Mode, and Torque Mode.

Physical Dimensions (for Cabinet Planning)

Width: 60 mm (2.36")
Height: 162 mm (6.38")
Depth: 155.85 mm (6.14")
Weight: 0.9 kg (1.98 lbs)

Key Features for This Model

Compact Build: It is significantly narrower than older models, allowing you to fit more drivers into a smaller electrical panel.
Built-in STO (Safe Torque Off): This is a critical safety feature that instantly cuts power to the motor without having to disconnect the main power source.
Advanced Tuning: It uses Deltas latest auto-tuning algorithm, which means you can get the motor running smoothly with minimal manual gain adjustment.
24-bit Communication: It is fully optimized to read the ultra-high resolution signals from the ECM-B3 motors we discussed.

Quick Setup Tip

The "L" at the end of the part number indicates it is the Pulse/Analog type. If you were using a network protocol like EtherCAT, the part number would end in "E" or "M".

Reliable Performance for Industrial Needs

Manufactured for industrial machinery, the ASD-E3-0421-L Delta Servo Driver provides robust and precise motion control. Its three-phase capability ensures smooth operation, while the packing seal construction protects internal components from contaminants. This servo driver is an excellent investment for those seeking reliability and efficiency in high-demand environments.

Durable, Compact Design

Weighing only 900 grams, the ASD-E3-0421-L boasts an aluminum build that's both lightweight and durable. The compact design allows for easy integration into existing machinery without sacrificing performance or durability, making it a valuable addition for applications where space and longevity are paramount.

FAQ's of ASD-E3-0421-L Delta Servo Driver 400W:

Q: How do I install the ASD-E3-0421-L Delta Servo Driver in my industrial machinery?

A: The ASD-E3-0421-L is designed for easy integration with industrial machinery. Installation involves securing the unit using the appropriate mounting hardware, connecting it to your three-phase power supply, and interfacing with your control system according to the provided user manual. Professional installation is recommended for optimal safety and performance.

Q: What kind of maintenance is required for this servo driver?

A: Routine maintenance includes ensuring the packing seal remains intact, keeping the exterior clean from dust, and checking all electrical connections periodically. Thanks to its sealed aluminum body, the servo driver requires minimal maintenance compared to less protected alternatives.

Q: When should I consider replacing or servicing the servo driver?

A: Servicing is typically necessary if you notice irregular operation, reduced efficiency, or error messages from your machinery's control panel. The product comes with a 1-year warranty, and support or replacement should be considered within this period if any faults arise.

Q: Where can this servo driver be used effectively?

A: The ASD-E3-0421-L is ideal for a wide range of industrial machinery, including automation systems, conveyor belts, CNC machines, and robotics. Its versatile three-phase capability and compact design ensure efficient performance in diverse industrial environments.

Q: What is the benefit of using an aluminum, packing-seal servo driver?

A: Aluminum construction offers light weight and durability, helping prevent overheating and corrosion. The packing seal further protects internal components against dust and moisture, extending the product's lifespan and reducing downtime.

Q: How does this servo driver enhance industrial automation efficiency?

A: With its precise control and robust performance, the ASD-E3-0421-L ensures steady, reliable operation of automated systems. This enhances production efficiency, improves product quality, and minimizes energy consumption compared to less advanced drivers.
