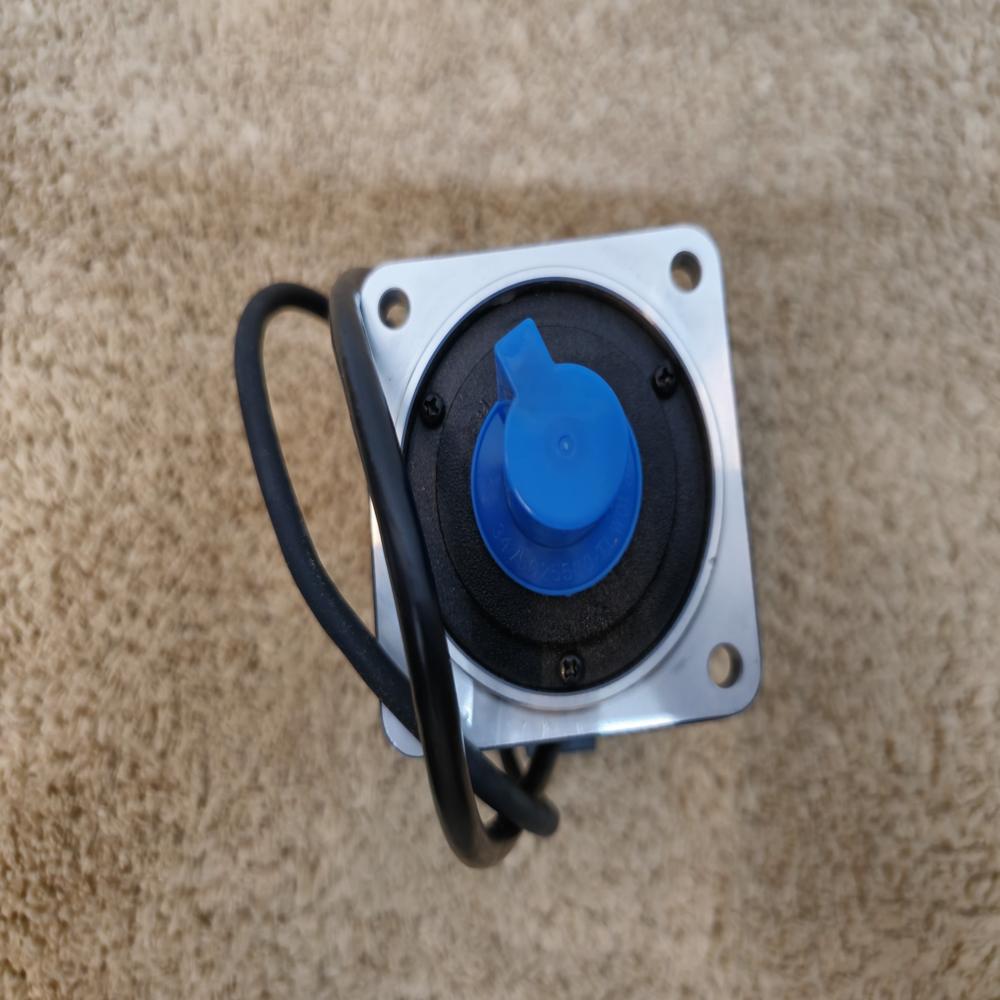

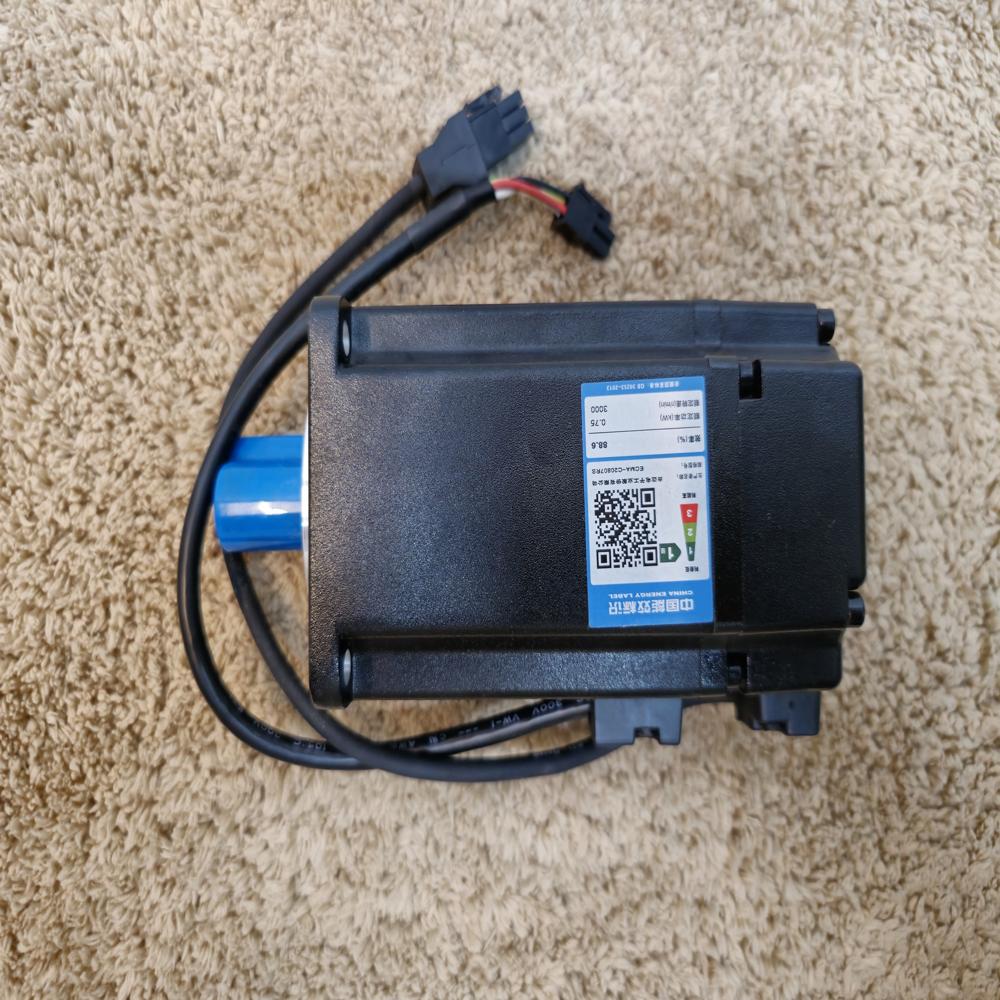

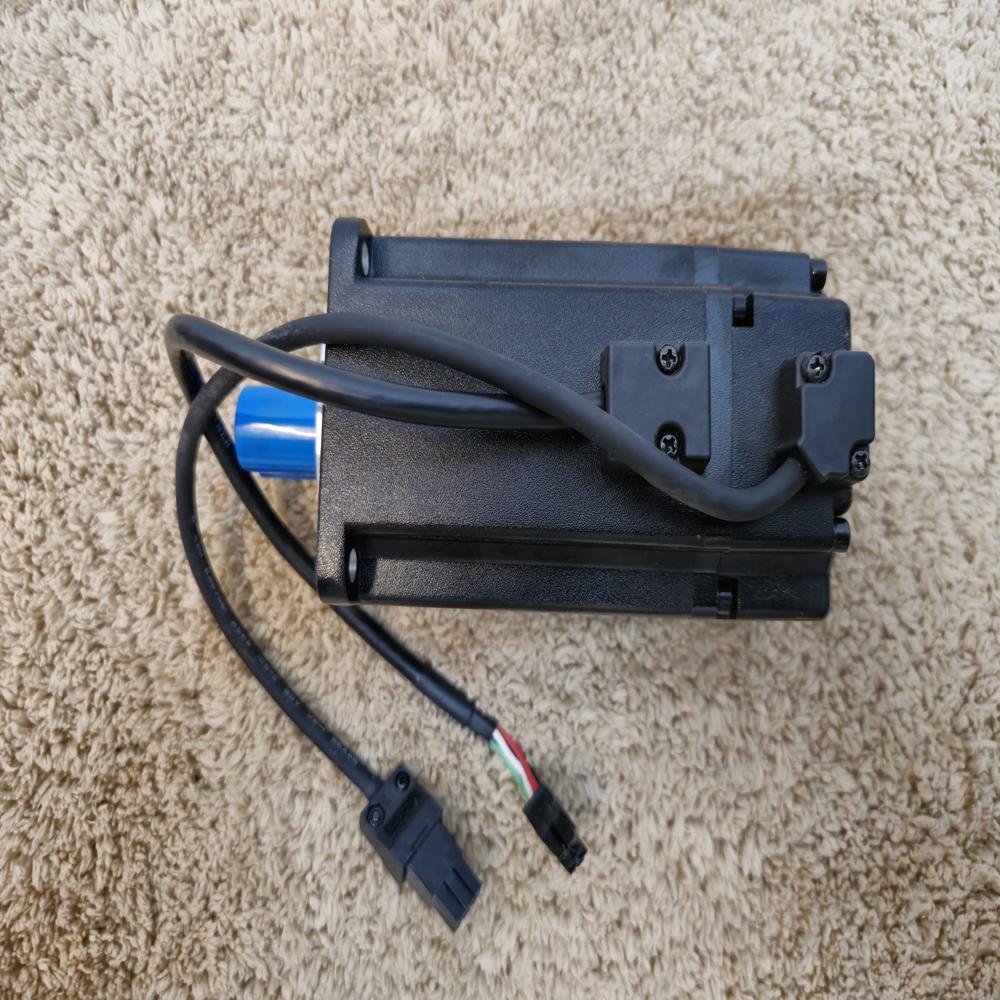

ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500

ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500

Price 145600.0 INR/ Number

MOQ : 1 Number

ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500 Specification

  • Sealed Type
  • Packing seal
  • Product Type
  • Servo Motor
  • Usage & Applications
  • Industrial Machinerry
  • Color
  • Black and Silver
  • Weight
  • 38 Kilograms (kg)
  • Warranty
  • 1 Year
  • Phase
  • Three Phase
  • Material
  • Aluminum


ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500 Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 24 Hours


About ECMA-FA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500


The Delta ECMA-FA1855S3 is a high-capacity 5.5kW AC servo motor engineered for high-torque and high-stability industrial automation, as highlighted on Delta AC Drives. [1, 2]
Electrical & Performance Specifications
  • Rated Power Output: 5.5 kW (5500 W)
  • Rated Torque: 35.01 Nm
  • Maximum Torque: 87.53 Nm (approx. 250% of rated), noted by Haina Automation
  • Rated Speed: 1500 RPM
  • Maximum Speed: 3000 RPM
  • Input Voltage: 220 VAC (Single or 3-Phase supported)
  • Rated Current: 40 Arms
  • Instant Max Current: 100 Arms
  • Response Frequency: Up to 1 kHz [1, 2, 3, 4, 5]
Mechanical & Environmental Specifications
  • Frame Size: 180 mm square
  • Shaft Diameter: 1.654 in (42 mm) with Keyway and Oil Seal
  • Shaft Length: ~4.449 in (113 mm), according to DigiKey
  • Rotor Inertia: 102.7 x 10 kgm (Medium-High Inertia)
  • Encoder: 17-bit Absolute encoder (131,072 pulses/rev)
  • Brake: Integrated electromagnetic holding brake included
  • Net Weight: ~85.98 lbs (39 kg)
  • IP Rating: IP65 (Dust-tight and resistant to water jets)
  • Operating Temp: 0C to 40C

The Delta ECMA-FA1855S3 is the top-tier "high-torque" powerhouse in the ASDA-A2 series, providing a massive 5.5kW of power. [1]
Dimensions & Weight
Attribute [1] Measurement (Inches) Measurement (Metric)
Total Length ~12.24 in 311 mm
Height (Frame) 7.09 in 180 mm
Width (Frame) 7.09 in 180 mm
Shaft Diameter 1.378 in 35 mm
Shaft Length 3.11 in 79 mm
Net Weight 83.78 lbs 38.0 kg
Key Technical Notes
  • Massive Torque: It delivers a rated torque of 35.01 Nm, with a peak torque capacity that can exceed 87 Nm for short bursts.
  • High Inertia (FA Series): This motor is designed with high rotor inertia to provide maximum stability. It is specifically intended for massive mechanical loads where low-inertia motors would suffer from uncontrollable vibration.
  • S3 Suffix (Brake + Keyway): The "S3" configuration typically denotes the inclusion of the electromagnetic holding brake and a shaft with a keyway and oil seal.
  • Mounting: Uses the standard 180mm square frame mounting with a hole spacing of 7.874 inches (200 mm). [1, 2]
Function
This motor acts as the primary driver for the heaviest industrial axes. Its 17-bit absolute encoder (131,072 pulses/rev) allows the machine to maintain its position without a battery, and the integrated brake ensures safety on vertical axes by holding the load firmly during power loss. [1]
Common Applications:
  • Large-scale CNC vertical boring mills.
  • Heavy-duty plastic injection molding machines.
  • Industrial metal forming presses and heavy material lifters.
