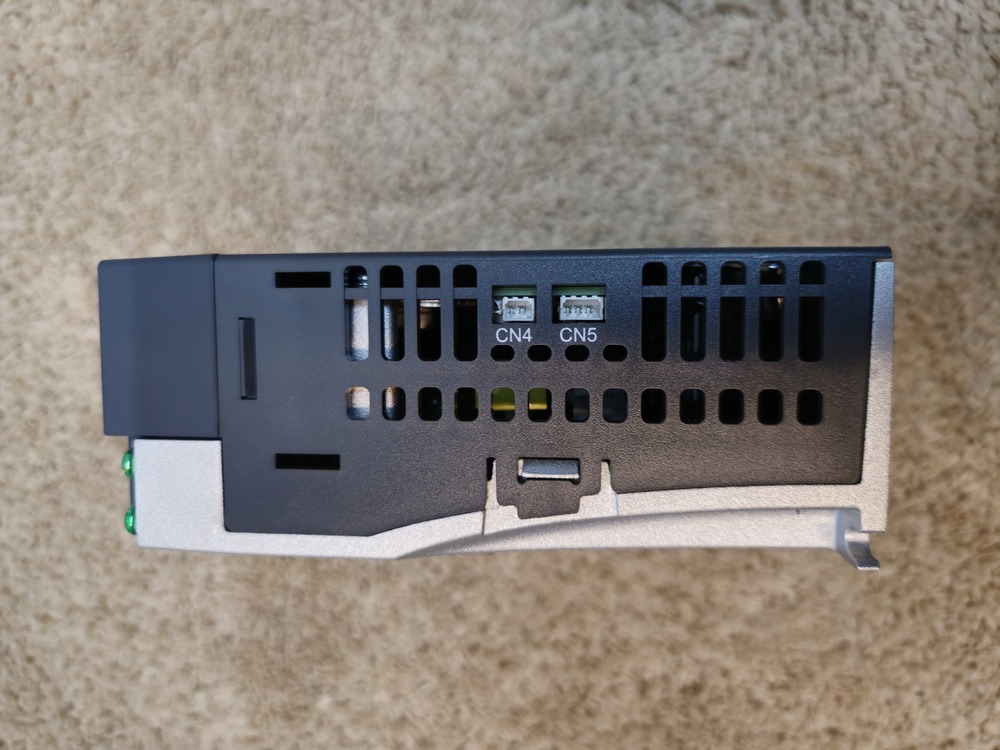

ASD-E3-3023-L Delta B2 Series Driver - 3000W

Name: ASD-E3-3023-L Delta B2 Series Driver - 3000W
Brand: Corbital Enterprise
Price: 57000.0 INR
Availability: InStock

Price 57000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-E3-3023-L Delta B2 Series Driver - 3000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
2.8 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-E3-3023-L Delta B2 Series Driver - 3000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-E3-3023-L Delta B2 Series Driver - 3000W

The ASD-E3-3023-L is a 3000W (3kW) high-performance servo drive from Deltas advanced ASDA-E3 series. While it succeeds the older B2 series, it is significantly more advanced, offering a 2.5 kHz response bandwidthup to five times faster than earlier modelsto ensure rapid and precise motor reaction. [1, 2, 3]

Core Function

The drive functions as the high-power control center for your 3kW system, managing the following: [1, 2]

Precision Driving: It converts command signals into high-current electrical output (up to 19.4 Arms) to drive motors like the ECM-E3M-F21830SSE.
Feedback Processing: It supports high-resolution 24-bit encoders, ensuring sub-micron positioning accuracy.
Vibration Suppression: It automatically scans for mechanical resonances up to 5,000 Hz and applies notch filters to eliminate "shaking," which is critical for the high-momentum loads of a 3kW system.
Control Modes (-L Basic Type): Optimized for Pulse Train (PT), Analog Voltage (speed/torque), and RS-485 Modbus communication. [1, 2]

Physical Specifications (Inches)

The E3 series features a compact "book-style" design to save space in electrical cabinets. [1, 2]

Dimension [1, 2, 3]	Metric (mm)	Imperial (Inches)
Width	90 mm	3.54 in
Height	225 mm	8.86 in
Depth	205.3 mm	8.08 in
Weight	2.8 kg	6.17 lbs
Note: Dimensions and weights may vary slightly by specific model revision.

Key Technical Specs

Rated Power: 3000 W (3.0 kW).
Input Voltage: 220V AC, 3-phase.
Continuous Output Current: 19.4 Arms.
Max Instantaneous Current: 53.03 Arms.
Safety Features: Includes overcurrent, overvoltage, and Safe Torque Off (STO) functions. [1, 2, 3]
