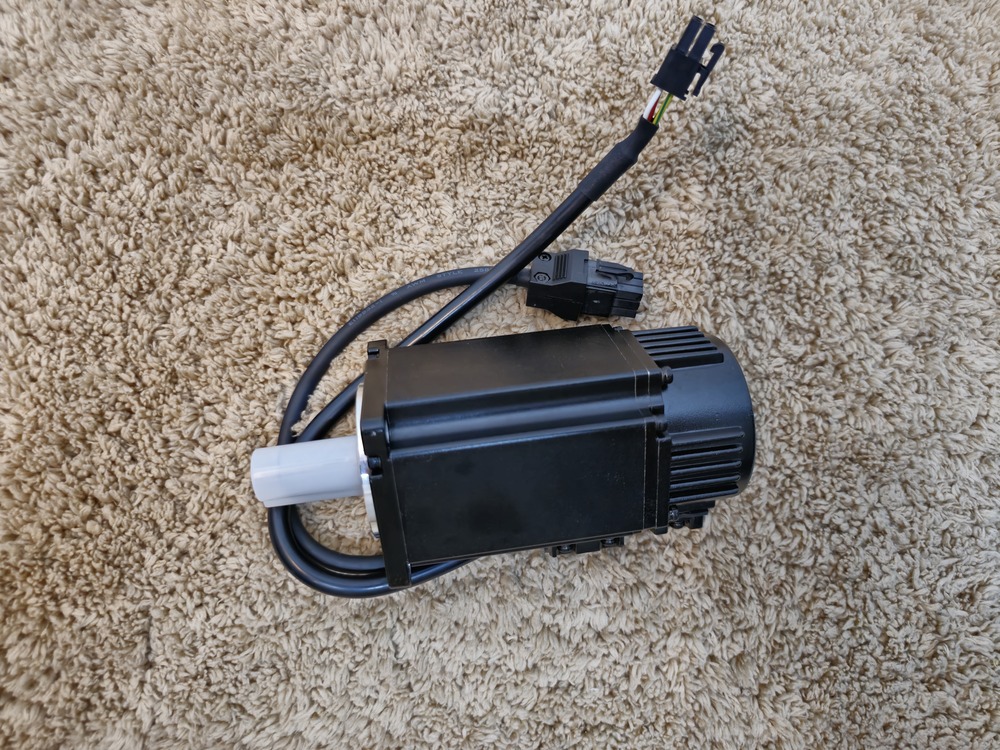

ECMA-KA1310SS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000

Name: ECMA-KA1310SS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
Brand: Corbital Enterprise
Price: 77400.0 INR
Availability: InStock

Price 77400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-KA1310SS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
9.5 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECMA-KA1310SS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-KA1310SS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000

The Delta ECMA-KA1310SS is a medium-inertia 1000W (1 kW) AC servo motor from the ASDA-A2 Series, specifically designed for applications that require balanced stability and high torque at medium speeds.

Core Specifications

Rated Output Power: 1.0 kW (1000W).
Rated Torque: 4.77 Nm (Peak torque up to 14.3 Nm).
Rated Speed: 2000 RPM (Maximum speed up to 3000 RPM).
Input Voltage: 400V AC.
Encoder Type: 17-bit Absolute encoder.
Brake: Included (Integrated electromagnetic brake).
Frame Size: 130 mm flange.

Dimensions & Weight

Weight: 20.94 lbs (9.5 kg).
Length: 7.20 inches (183 mm).
Width (Frame Size): 5.12 inches (130 mm).
Height (Frame Size): 5.12 inches (130 mm).
Shaft Diameter: 0.87 inches (22 mm).

Key Functions

High Stability: As a "Medium Inertia" motor (denoted by the K in the model name), it is less sensitive to load fluctuations compared to low-inertia models, making it ideal for driving heavy mechanical loads like ball screws or conveyor belts.
Holding Power: The integrated brake is used to hold the position of the motor shaft when the power is cut, which is a critical safety feature for vertical (Z-axis) movements to prevent the load from dropping.
Closed-Loop Precision: The 17-bit encoder provides 131,072 pulses per revolution, allowing for near-perfect accuracy in positioning tasks.
