Black E6B2-CWZ6C-1000 PPR - Omron Encoder

Price 9900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Black E6B2-CWZ6C-1000 PPR - Omron Encoder Specification

IP Rating
65

Components
Aluminum - ABS Plastic

Product Type
Encoder

Application
Industrial Machinerry

Function
Precision Indexing

Color
Black

Warranty
1 Year

Usage & Applications
Industrial Machinerry

Material
Aluminum - ABS Plastic

Black E6B2-CWZ6C-1000 PPR - Omron Encoder Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About Black E6B2-CWZ6C-1000 PPR - Omron Encoder

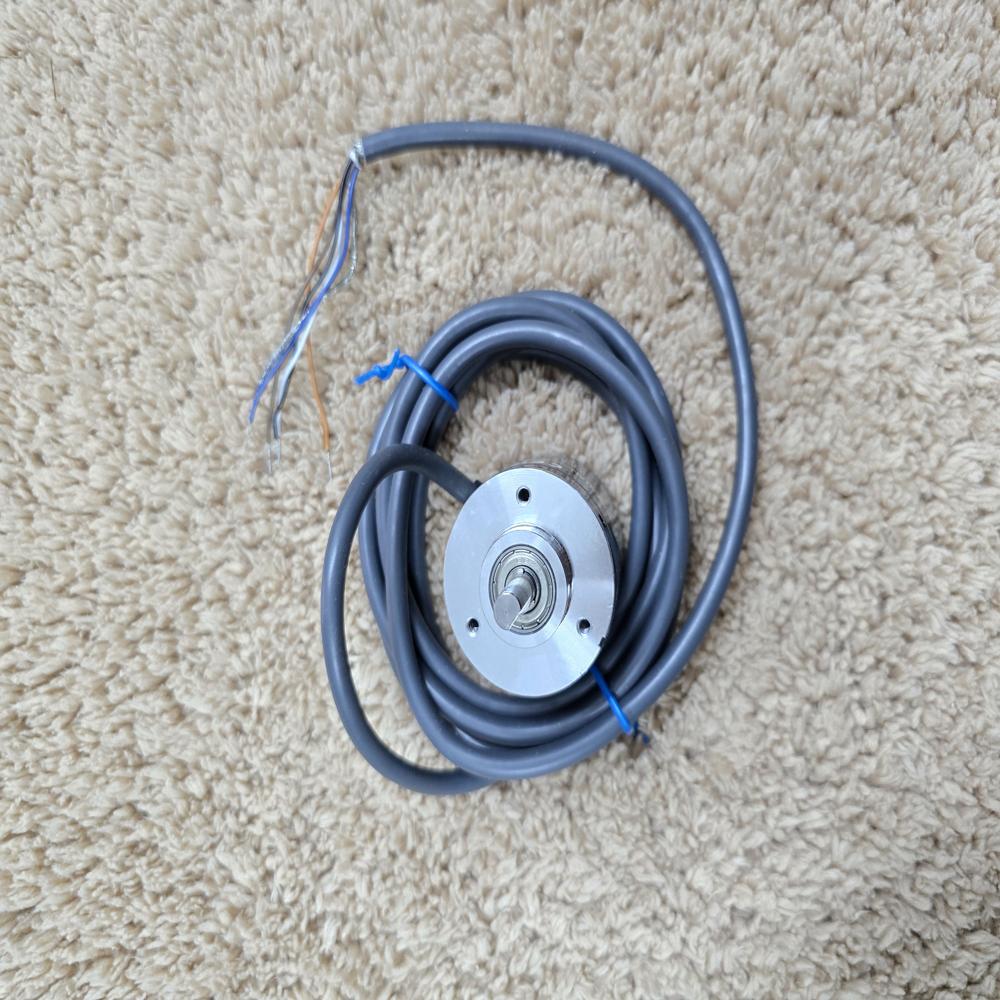

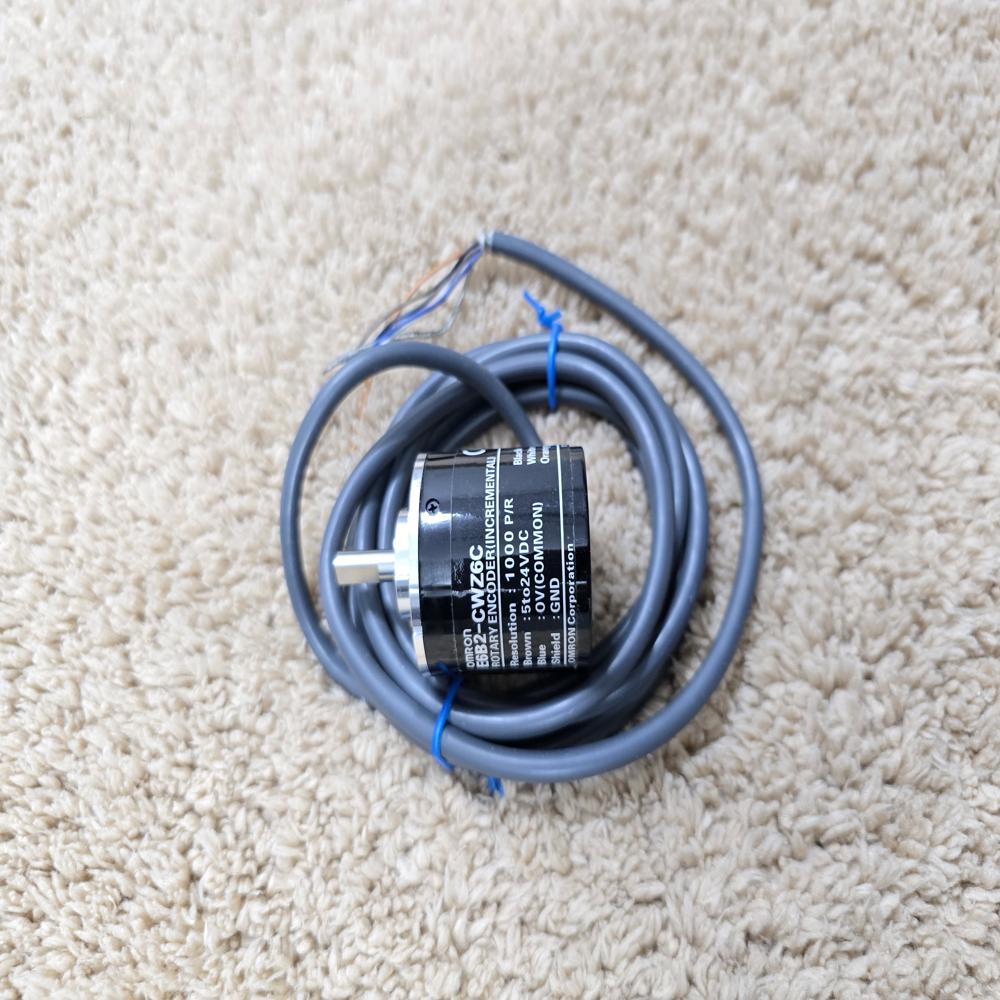

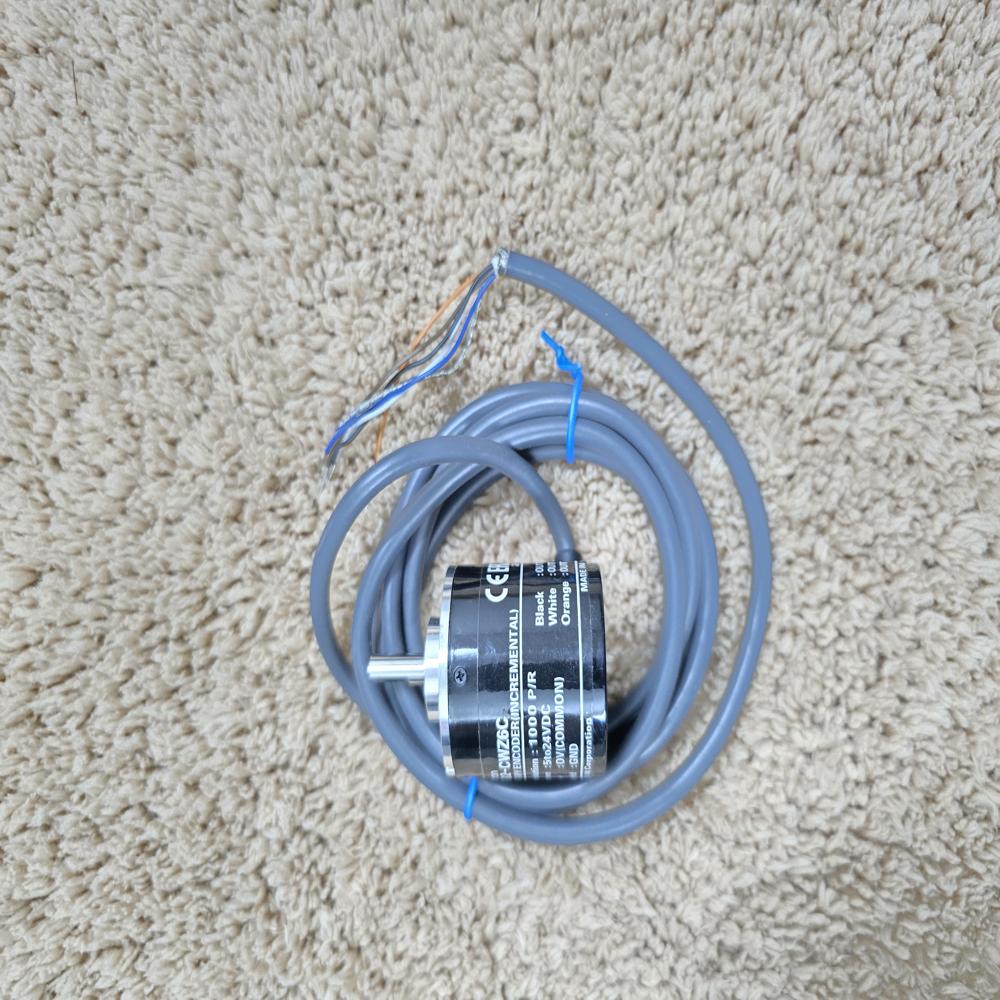

The Omron E6B2-CWZ6C-1000 PPR is a high-precision incremental rotary encoder that provides 1,000 pulses per revolution, making it ideal for applications requiring fine-tuned speed and position control. [1, 2, 3]

Dimensions and Weight

This model uses the same compact "40-mm-dia." housing as the rest of the E6B2-C series. [1, 2]

Dimension [1, 2, 3, 4, 5]	Metric (mm)	Imperial (inches)
Diameter (Width/Height)	40 mm	1.57 inches [2]
Housing Length (Depth)	39 mm	1.54 inches [2]
Shaft Diameter	6 mm	0.24 inches [2]
Shaft Length	15 mm	0.59 inches [2]
Overall Length (Body + Shaft)	54 mm	2.13 inches [2]
Weight	~200 g	0.44 lbs [3]

Core Specifications

Resolution: 1,000 Pulses Per Revolution (PPR) [3].
Output Type: NPN Open Collector (Phases A, B, and Z) [1].
Voltage Supply: 5 to 24 VDC [1].
Max Speed: 6,000 RPM.
Protection Rating: IP50 (Dust-protected) [2]. [1, 2, 3, 4, 5]

Function

At 1,000 PPR, each pulse represents 0.36 degrees of rotation. This higher resolution (compared to 360 or 600 PPR) allows for significantly better accuracy in:

Precision Indexing: Exact positioning for CNC and labeling equipment.
Steady Speed Control: Monitoring RPM with very low error margins.
Syncing Systems: Coordinating the movement of multiple conveyor lines.
