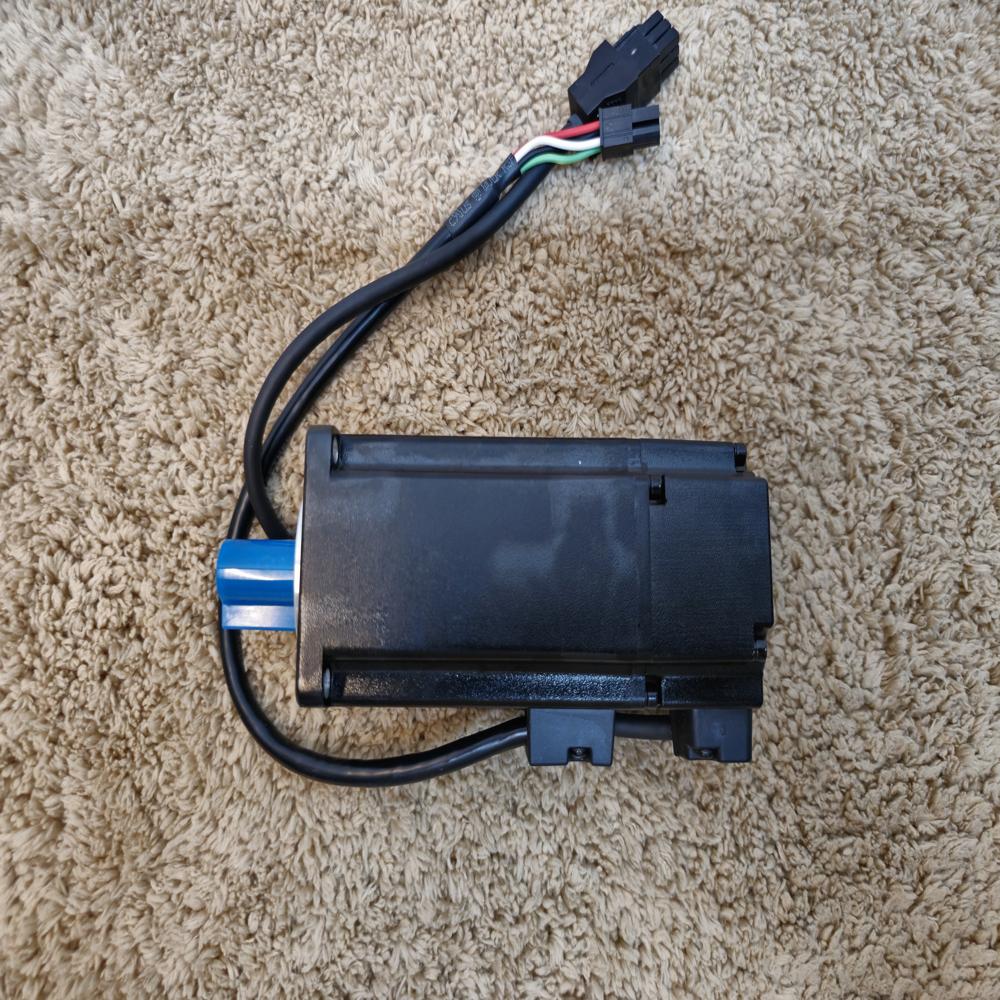

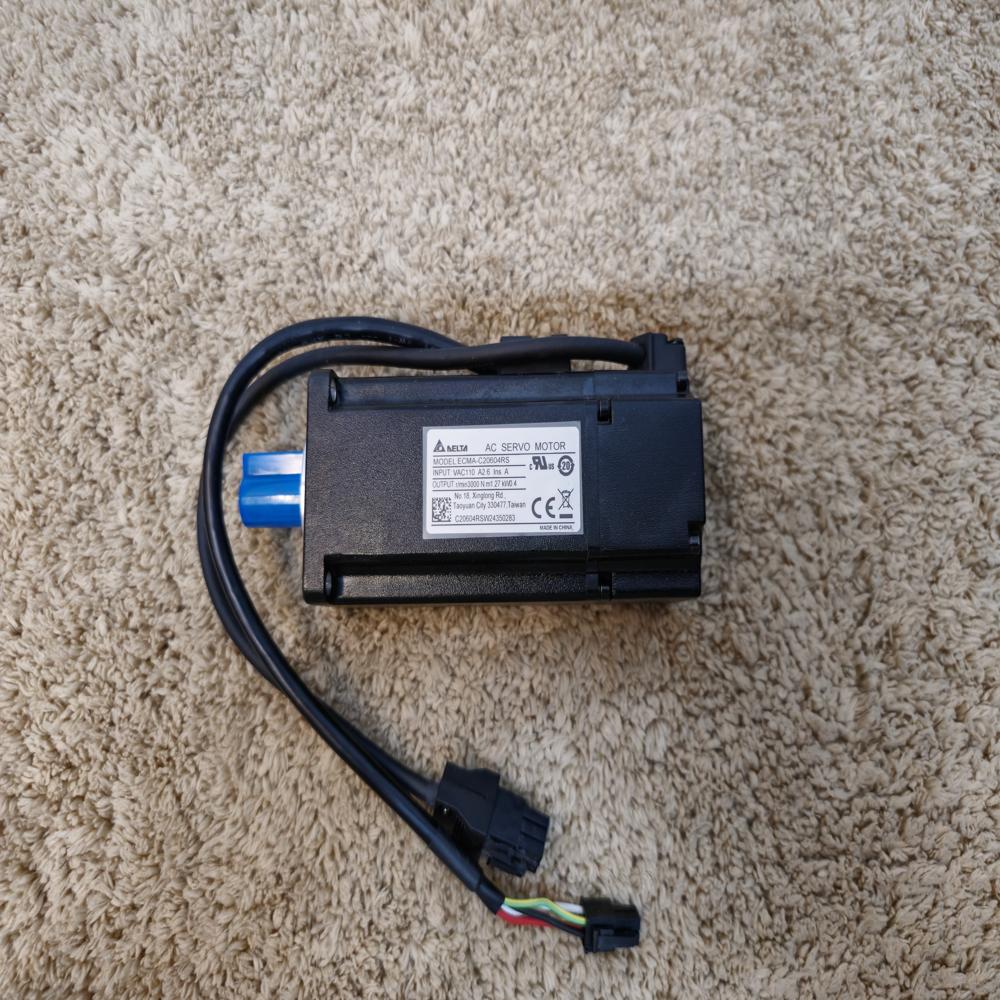

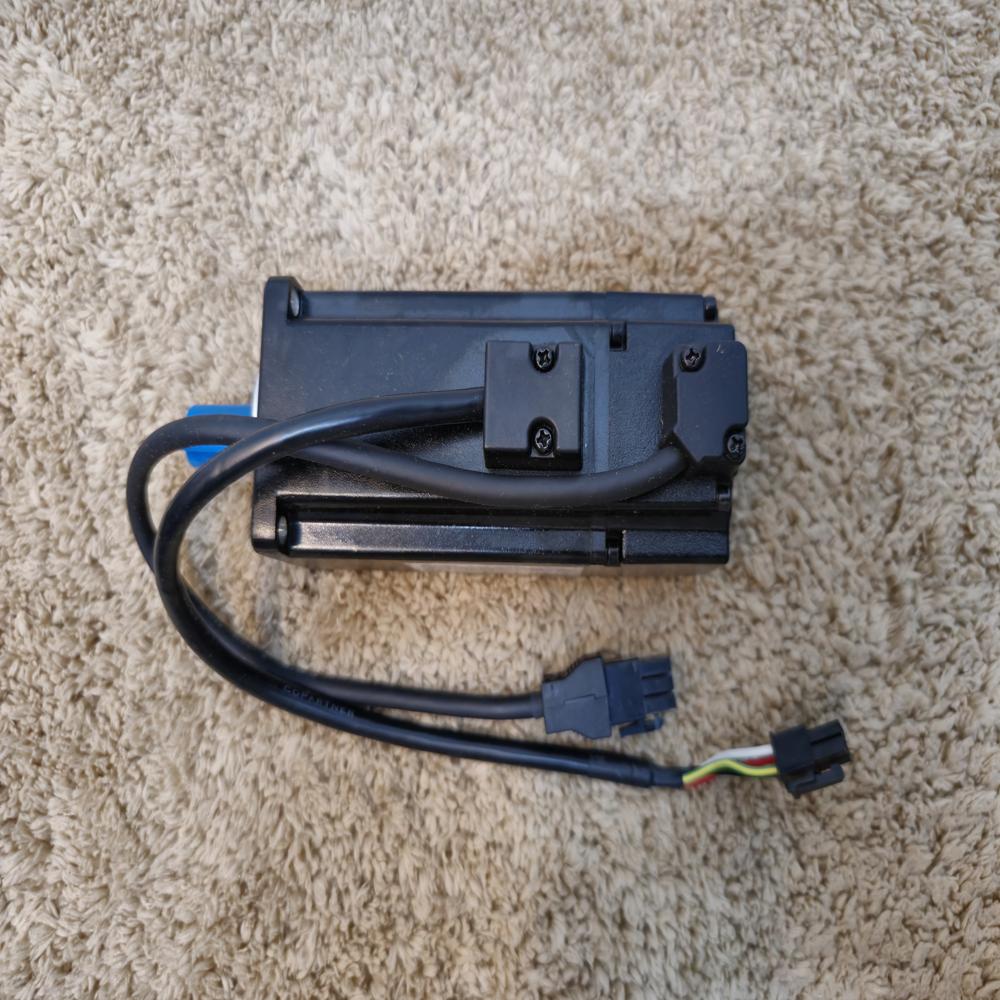

ECM-E2M-C10604RS0 400W Motor

Price 18500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECM-E2M-C10604RS0 400W Motor Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
1.60 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECM-E2M-C10604RS0 400W Motor Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECM-E2M-C10604RS0 400W Motor

The ECM-E2M-C10604RS0 (also identified as the ECMA-C10604RS) is a 400W AC servo motor from Delta's ASDA-A2 Series. It is a high-performance, low-inertia motor designed for precision motion control, featuring a higher-resolution encoder compared to the standard B2 series. [1, 2, 3]

Physical Dimensions (Inches)

Frame Size (Width x Height): 2.36" x 2.36" (60 mm x 60 mm).
Total Body Length: Approximately 6.57" (166.8 mm).
Shaft Length: 1.18" (30 mm).
Shaft Diameter: 0.55" (14 mm).
Weight: Approximately 2.87 lbs (1.30 kg) to 3.53 lbs (1.60 kg). [1, 2, 3, 4, 5]

Key Specifications

Rated Power Output: 400W (0.4 kW).
Rated Torque: 1.27 N-m, with a peak of 3.82 N-m.
Rated Speed: 3000 RPM (Max speed capable of 5000 RPM).
Encoder: High-precision 20-bit incremental encoder (1,280,000 pulses per revolution).
Protection: Rated IP65 (except for the connector) for dust and water resistance.
Shaft Details: Includes a keyway and oil seal, but has no internal brake (indicated by the "RS" suffix). [1, 2, 3, 4, 5, 6, 7, 8]

Function and Compatibility

Precision Control: The 20-bit encoder allows for extremely fine positioning, making it suitable for delicate electronic assembly and high-speed CNC machinery.
Drive Pairing: Typically paired with the ASD-A2-0421-M drive, but also compatible with some ASDA-B2 series drives for more cost-effective setups. [1, 2, 3]
