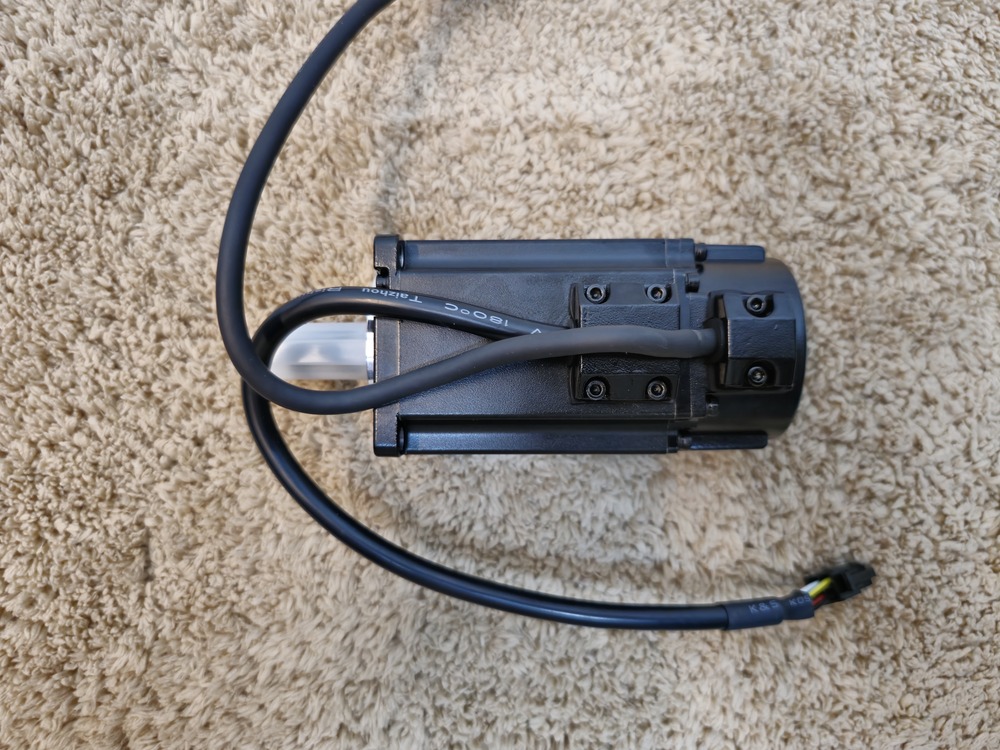

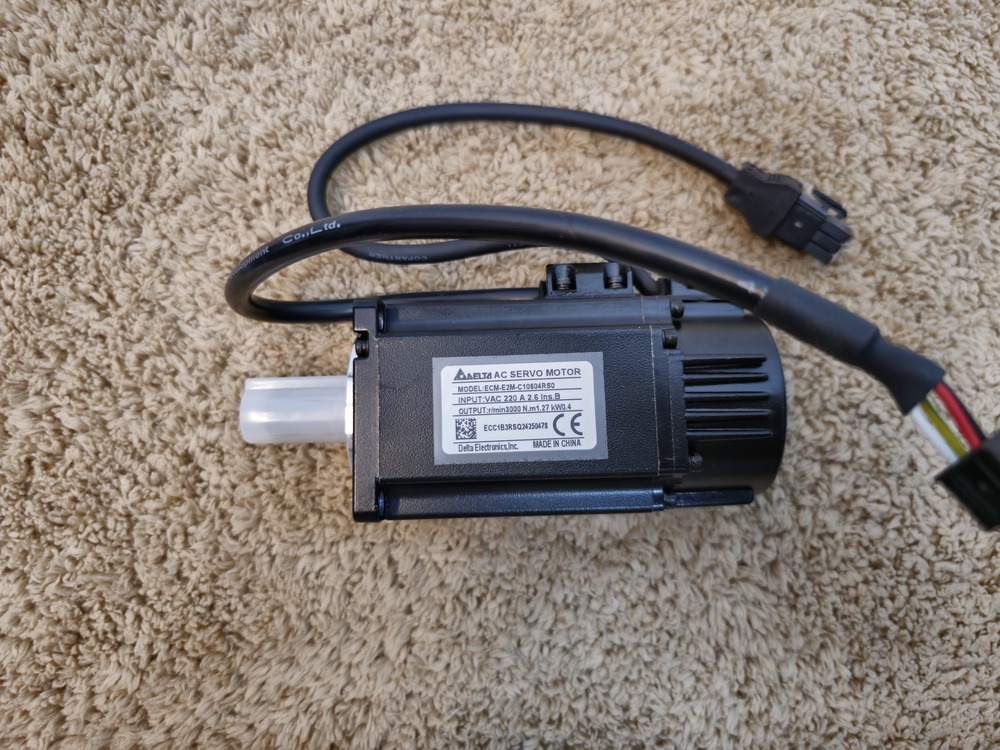

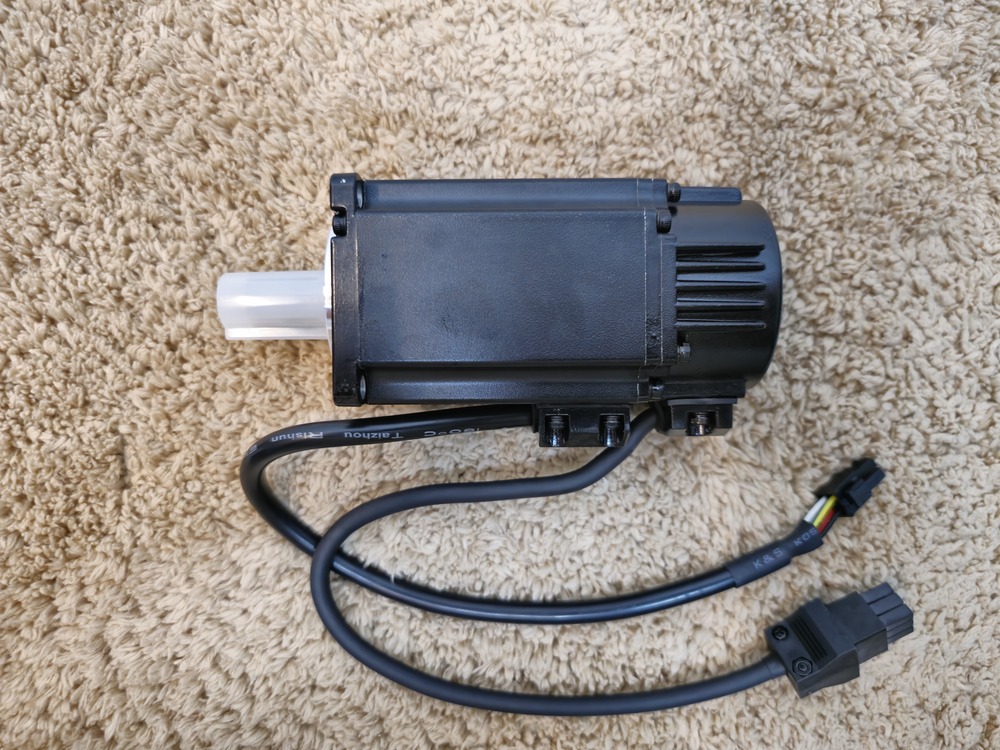

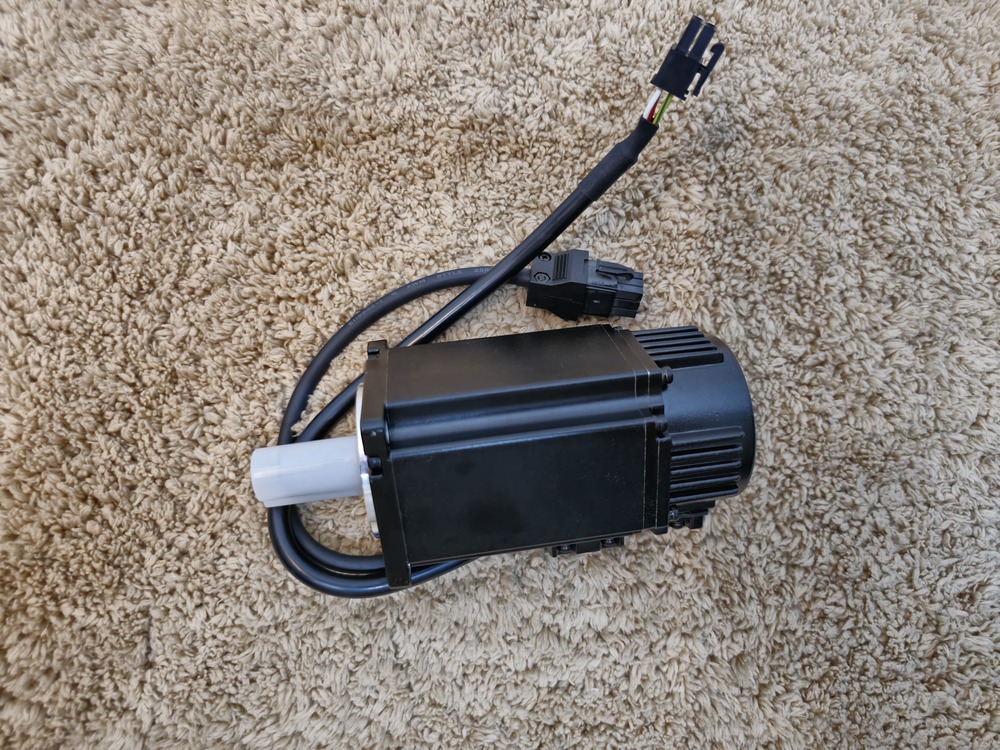

ECM-E3M-C20807SSE Delta Servo Motor + B 750W M , Torque Nm - 2.39 , RPM - 3000

About ECM-E3M-C20807SSE Delta Servo Motor + B 750W M , Torque Nm - 2.39 , RPM - 3000

• Rated Output Power: 750 W
• Rated Torque: 2.39 N-m (21.15 lb-in)
• Maximum (Peak) Torque: 7.16 N-m (63.37 lb-in)
• Rated Speed: 3000 RPM
• Maximum Speed: 6000 RPM
• Inertia Type: Medium Inertia (3.41 10 kgm) Note: Slightly higher than the non-brake version due to the brake disc.

• Brake Type: Electromagnetic Holding Brake (Power-off activated)
• Holding Torque: 2.39 N-m (Matches rated torque)
• Brake Power Consumption: Approximately 8.2 W
• Brake Release Time: < 80 ms
• Brake Engage Time: < 40 ms

• Rated Current: 5.1 A
• Max Current: 15.3 A
• Encoder: 24-bit Absolute/Incremental (16,777,216 pulses/rev)
• Protection Rating: IP67 (when used with waterproof connectors)

• Frame Size: 3.15" x 3.15" (80mm x 80mm)
• Body Length (L): 6.13" (155.8 mm) This is 1.6" longer than the RSE model.
• Shaft Diameter: 0.75" (19 mm)
• Shaft Length: 1.38" (35 mm)
• Net Weight: 6.39 lbs (2.9 kg)

• Mounting Pitch (PCD): 3.54" (90 mm)
• Mounting Holes: 4 x 0.26" (6.6 mm)
• Compatible Drive: ASD-E3-0721-L (or -M / -E variants)

• Static Holding: The internal brake is designed to lock the shaft in place when power is cut. It provides a holding torque of 2.39 N-m, perfectly matching the motor's rated torque to prevent movement.
• Vertical Axis Safety: This is the ideal motor for heavy Z-axis applications. It provides the torque needed to lift significant weight and the brake ensures the load stays put during power failures or emergency stops.
• High-Resolution Feedback: Like all E3 motors, it features a 24-bit encoder (16.7 million pulses/rev) for ultra-precise positioning and smooth motion even at low speeds.

• Rated Torque: 2.39 N-m (Peak: 7.16 N-m)
• Rated Speed: 3000 RPM (Max: 6000 RPM)
• Mounting (PCD): 90 mm (3.54 in) with 6.6 mm holes.
• Compatible Drive: ASD-E3-0721-L (400V/200V variants).
