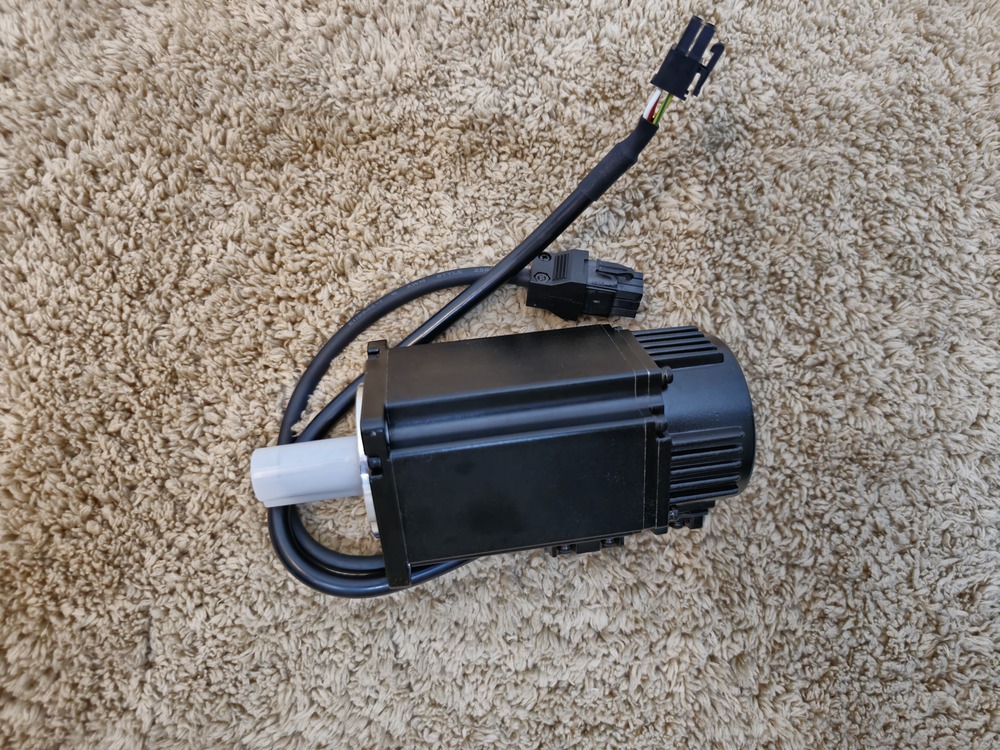

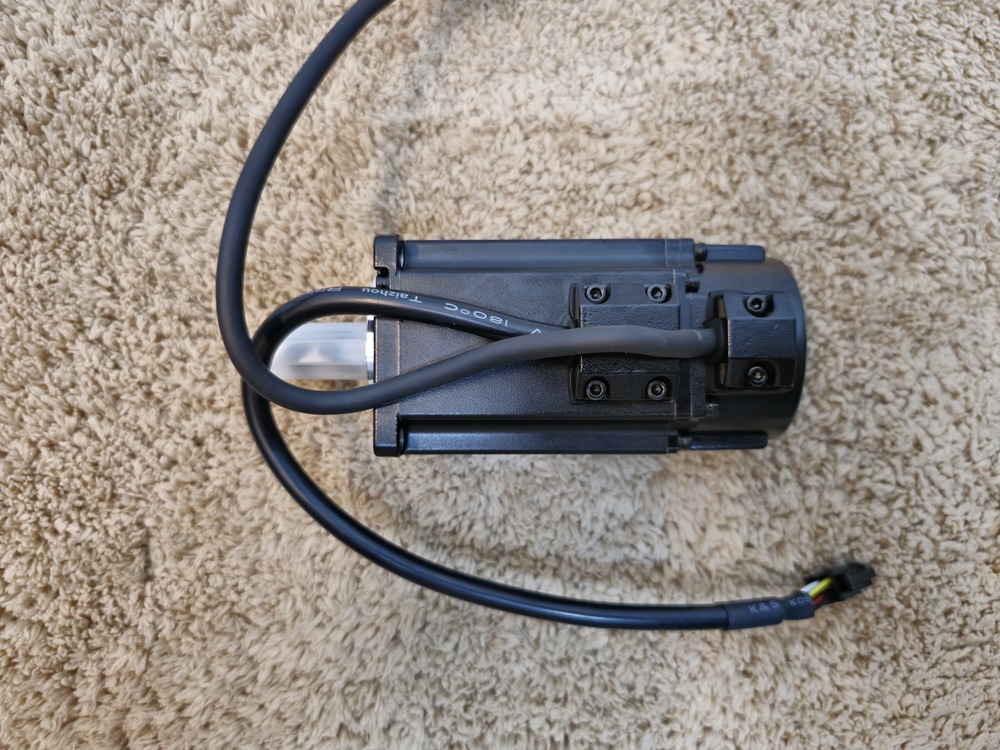

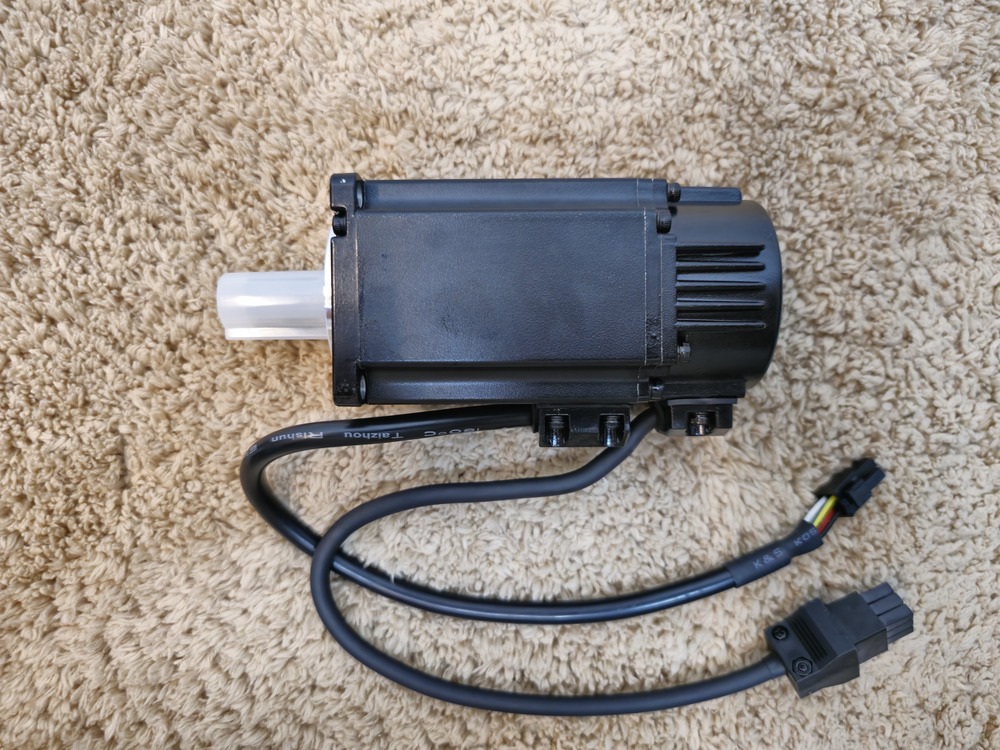

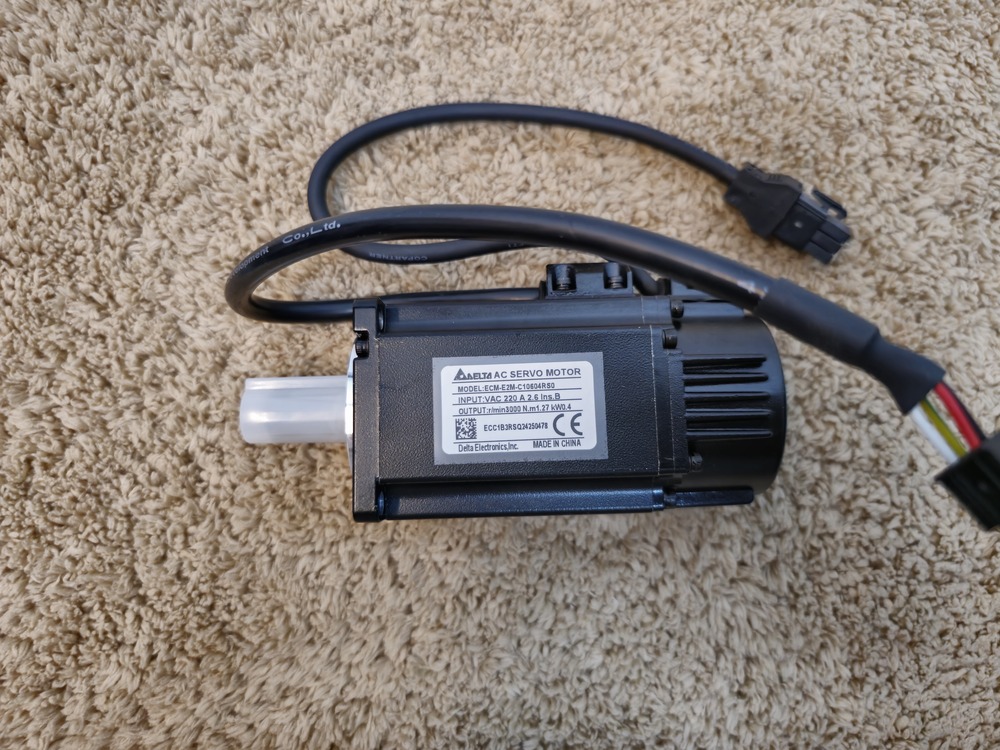

ECM-E3M-E21320SSE Delta Servo Motor + B 2000W M , Torque Nm - 9.55 , RPM - 2000

Name: ECM-E3M-E21320SSE Delta Servo Motor + B 2000W M , Torque Nm - 9.55 , RPM - 2000
Brand: Corbital Enterprise
Price: 70000.0 INR
Availability: InStock

Price 70000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECM-E3M-E21320SSE Delta Servo Motor + B 2000W M , Torque Nm - 9.55 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
10.1 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECM-E3M-E21320SSE Delta Servo Motor + B 2000W M , Torque Nm - 9.55 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECM-E3M-E21320SSE Delta Servo Motor + B 2000W M , Torque Nm - 9.55 , RPM - 2000

The ECM-E3M-E21320SSE is the 2000W (2.0kW) Medium Inertia version of Delta's ASDA-E3 series motors, featuring a built-in electromagnetic holding brake. It is designed to handle high-torque demands with the added safety of a physical locking mechanism. [1, 2]

Physical Dimensions & Weight

This motor utilizes a standard 130mm frame. The addition of the brake increases the length and weight compared to the standard model. [1, 2]

Dimension [1, 2, 4]	Metric (mm)	Imperial (Inches)
Width (Frame)	130 mm	5.12 in
Height (Frame)	130 mm	5.12 in
Body Length (L)	223 mm	8.78 in
Shaft Length (LR)	55 mm	2.17 in
Shaft Diameter (S)	22 mm	0.87 in
Total Weight	10.1 kg	22.27 lbs

Note: Dimensions are estimated based on standard E3 2kW frame increments. [1]

Key Functions

Static Holding: The internal 24VDC electromagnetic brake is specifically designed for holding the shaft in place when power is removed. It provides a holding torque equal to or greater than the motor's rated torque to prevent vertical (Z-axis) loads from slipping.
Massive Continuous Force: Delivering a constant 9.55 N-m of torque, it is functional for heavy-duty applications where significant "pushing" power is required.
High-Resolution Precision: Features a 24-bit resolution encoder, providing over 16.7 million pulses per revolution for ultra-smooth rotation and micron-level accuracy.
Stability for Heavy Loads: The medium inertia design acts as a mechanical buffer, preventing vibrations when coupled to heavy mechanical loads like massive ball screws or gantry systems. [1, 2, 4]

Technical Summary

Rated Torque: 9.55 N-m (Peak: 28.65 N-m).
Rated Speed: 2000 RPM (Max: 3000 RPM).
Voltage: 220V AC (3-Phase).
Protection: Rated IP65/IP67 for durability in dusty or oily environments.

The Delta ECM-E3M-E21320SSE functions as a high-torque, industrial-grade actuator designed for heavy mechanical loads, providing precise motion control with an integrated safety holding mechanism. [1, 2]

Core Operations

Static Holding (Safety): The "SSE" designation indicates a built-in electromagnetic holding brake. Its primary function is to lock the motor shaft when power is removed, preventing heavy vertical (Z-axis) loads from dropping due to gravity during an emergency stop or power failure.
Precision Positioning: Equipped with a 24-bit resolution encoder (delivering over 16.7 million pulses per revolution), the motor provides ultra-smooth motion and sub-micron positioning accuracy.
High Force Delivery: It provides a massive continuous rated torque of 9.55 N-m, with the ability to handle peak loads up to 28.6 N-m during rapid acceleration.
Medium Inertia Stability: The heavier internal rotor acts as a mechanical buffer. It is specifically designed to handle systems where the mechanical load is significantly heavier than the motor, reducing vibration and "jitter" common in lighter motors. [1, 2, 3, 4, 5]

Industrial Applications

This motor is the "heavy-lifter" for several specific industries: [1, 2]

Large CNC Machining: Driving heavy X, Y, or Z axes on large-format milling, stone cutting, or metal machining centers where high cutting forces are present.
Robotics & Material Handling: Powering primary joints of large industrial robotic arms or high-capacity "pick-and-place" systems.
Textile & Printing: Managing high-tension winding and unwinding processes where constant torque is critical for product quality.
Packaging Machinery: Operating heavy-duty palletizers, conveyors, and wrapping systems. [1, 2, 3]

Functional Summary

Feature [1, 2, 3]	Function / Advantage
2000W Power	High-capacity output for demanding mechanical tasks.
9.55 N-m Torque	Strong continuous force for moving heavy loads.
Response Bandwidth	2.5 kHz for ultra-fast reaction and correction.
Protection Rating	Typically IP67 for durability in dusty or wet environments.
