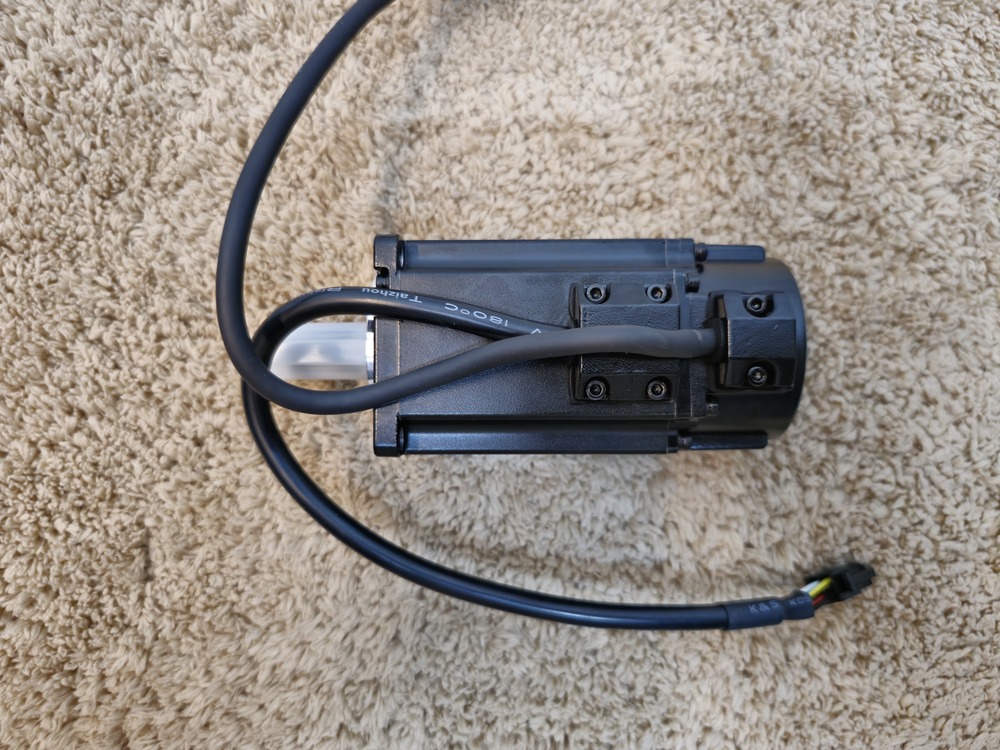

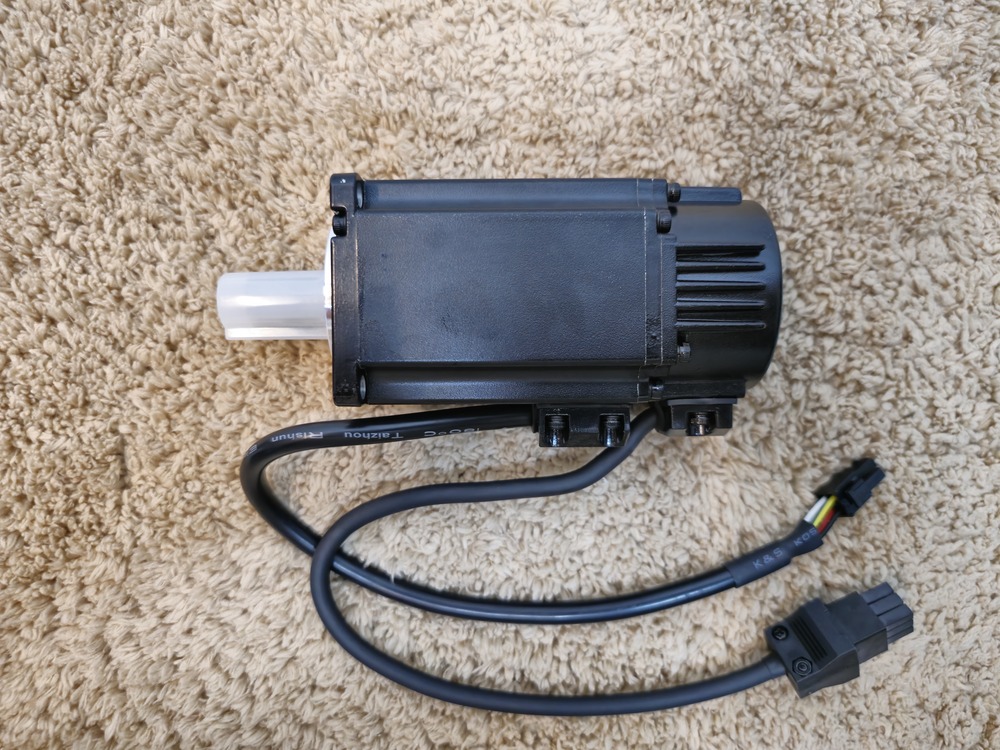

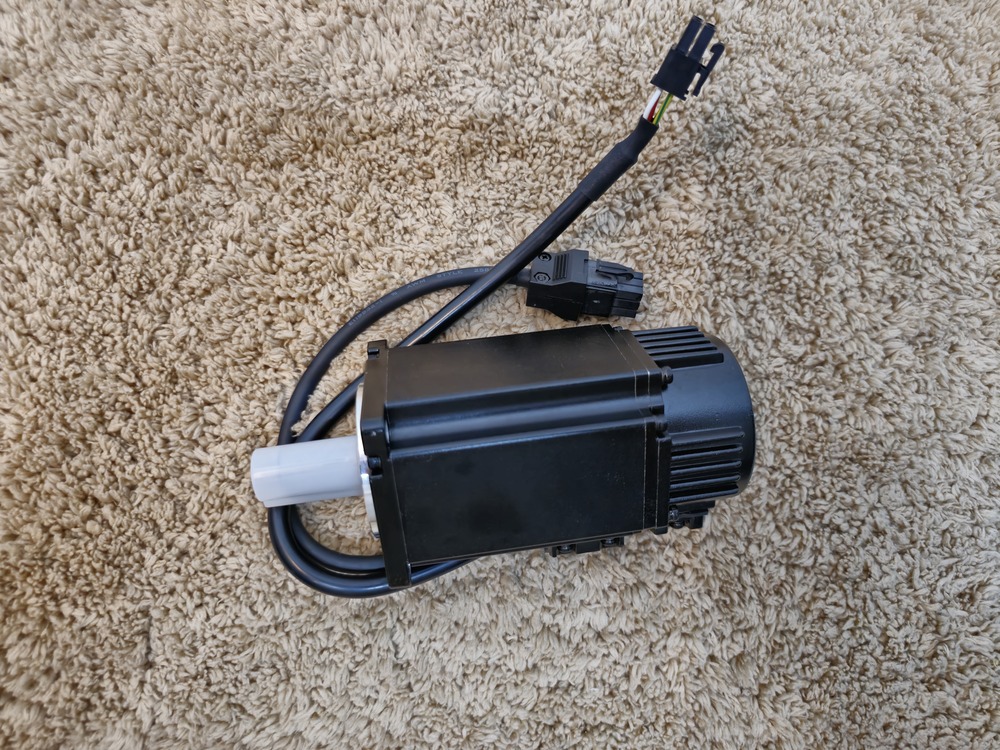

ECM-E3M-F21830RSE Delta Servo Motor 3000W M , Torque Nm - 19.1 , RPM - 1500

Name: ECM-E3M-F21830RSE Delta Servo Motor 3000W M , Torque Nm - 19.1 , RPM - 1500
Brand: Corbital Enterprise
Price: 75400.0 INR
Availability: InStock

Price 75400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECM-E3M-F21830RSE Delta Servo Motor 3000W M , Torque Nm - 19.1 , RPM - 1500 Specification

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
13.9 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECM-E3M-F21830RSE Delta Servo Motor 3000W M , Torque Nm - 19.1 , RPM - 1500 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECM-E3M-F21830RSE Delta Servo Motor 3000W M , Torque Nm - 19.1 , RPM - 1500

The Delta ECM-E3M-F21830RSE is a high-power 3.0kW (3000W) Medium Inertia servo motor from the ASDA-E3 series. Optimized for high-torque applications at a lower rated speed, it is a robust solution for heavy industrial automation. [1, 2, 3, 4, 5]

Physical Dimensions & Weight

This motor utilizes the large 180mm frame size, providing the necessary heat dissipation for its high output. [, 2]

Dimension [1, 2, 3, 4]	Metric (mm)	Imperial (Inches)
Width (Frame)	180 mm	7.09 in
Height (Frame)	180 mm	7.09 in
Body Length (L)	200235 mm*	7.879.25 in*
Shaft Diameter (S)	35 mm	1.38 in
Net Weight	13.9 kg	30.64 lbs

*Length varies slightly based on specific configuration options like oil seals; verify with the official Delta CAD models for precise clearance. [1, 2, 3, 4]

Key Performance Specifications

Rated Power: 3000 W (3.0 kW).
Rated Torque: 19.1 Nm (Continuous).
Peak Torque: 57.29 Nm (Max instantaneous force).
Rated Speed: 1500 RPM.
Maximum Speed: 3000 RPM.
Inertia Type: Medium Inertia.
Encoder: 22-bit high-resolution feedback. [, 2, 3, 4, 5]

Core Functions

Massive Torque Delivery: Provides nearly 20 Nm of constant torque, making it ideal for the most demanding mechanical tasks like large-scale CNC spindle control or heavy material handling.
High-Resolution Precision: Despite its massive power, its high-resolution encoder ensures smooth motion and sub-micron positioning accuracy.
Environmentally Robust: Features a fan-cooled design to maintain optimal performance in high-temperature industrial settings. [1, 2, 3, 4, 5]

Compatibility

This motor is typically paired with the ASD-E3-3023-L (or -M/-E) servo drive for optimal 3kW performance. [1, 2]

Core Operations

High-Force Delivery: Its primary function is providing 19.1 N-m of continuous torque, with an instantaneous peak capability of 57.29 N-m. This is essential for moving heavy mechanical components, such as large CNC spindles or industrial robotic joints.
Stable Torque at 1500 RPM: Unlike smaller models rated at 3000 RPM, this motor is optimized for a rated speed of 1500 RPM. This allows it to deliver higher torque directly to the load, often reducing the need for high-ratio gearboxes.
Inertia Buffering: The Medium Inertia rotor acts as a mechanical stabilizer. It functions as a buffer to prevent vibrations and "jitter" when the motor is attached to large mechanical systems (high load-to-motor inertia ratios), such as heavy gantry arms or large-format milling machines.
Closed-Loop Precision: Utilizing a 22-bit high-resolution encoder, the motor provides real-time feedback to the drive to ensure the shaft reaches its exact commanded position and corrects any errors instantaneously. [1, 3, 4]

Industrial Applications

This 3kW motor is typically used for heavy-duty industrial tasks: [1]

Large CNC Machines: Precise control of spindle motors and tool positioning on heavy-duty lathes or milling machines.
Industrial Robotics: Powering the primary axes of large articulated robotic arms.
Heavy Material Handling: Driving large-scale conveyor systems or automated storage and retrieval systems (ASRS).
Textile and Winding: Managing tension and high-speed operation in heavy-duty textile equipment or winding machines
