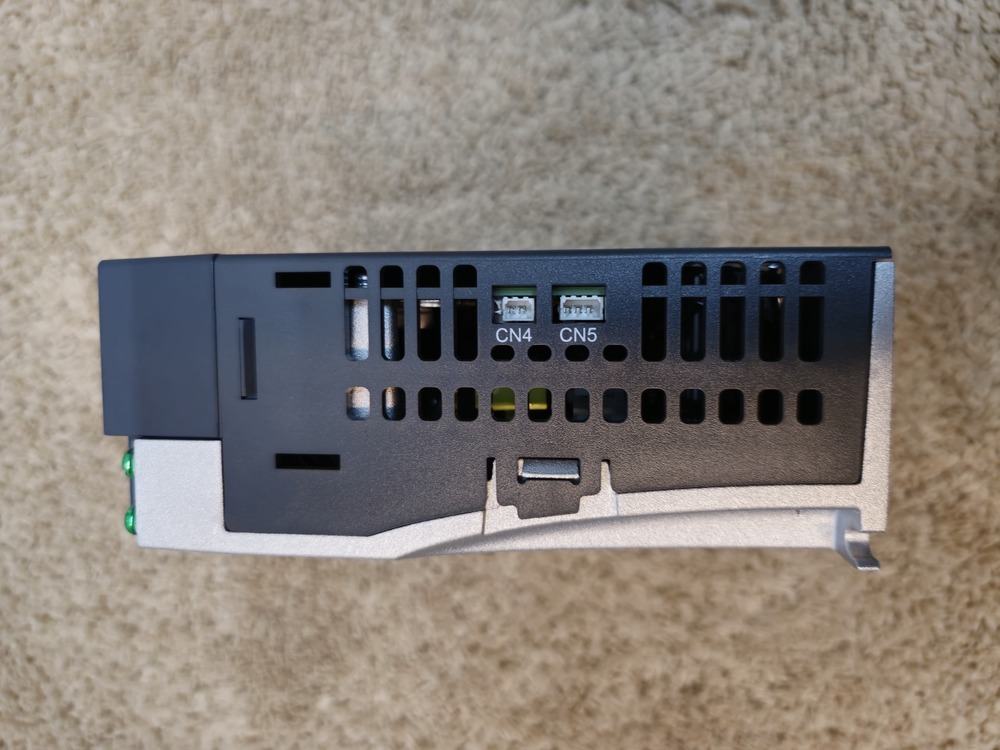

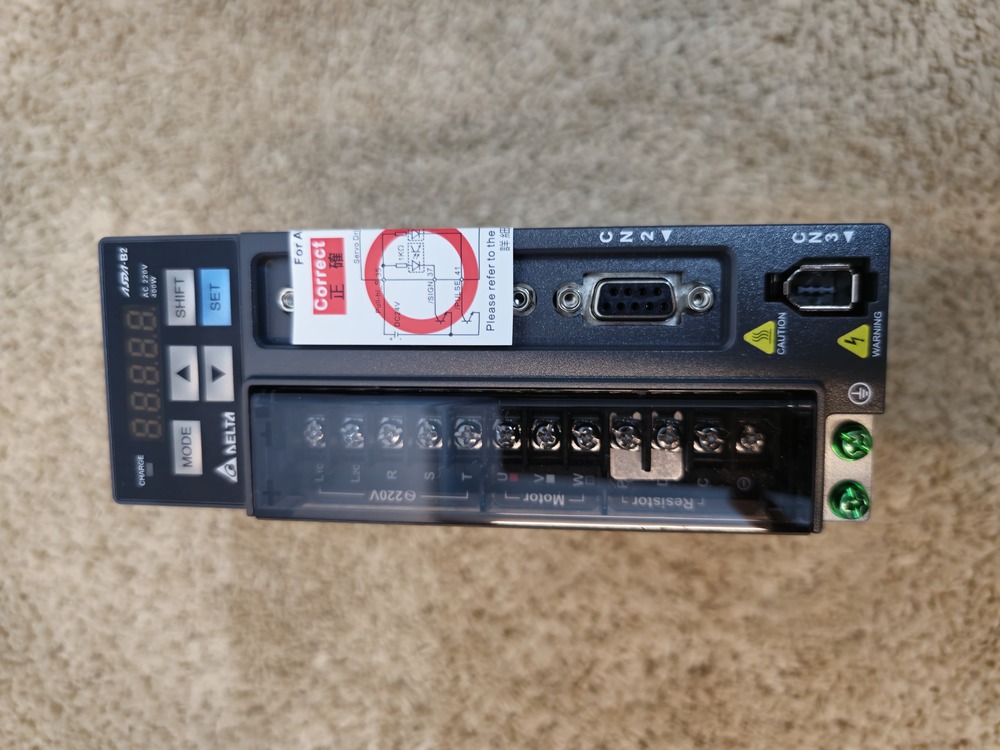

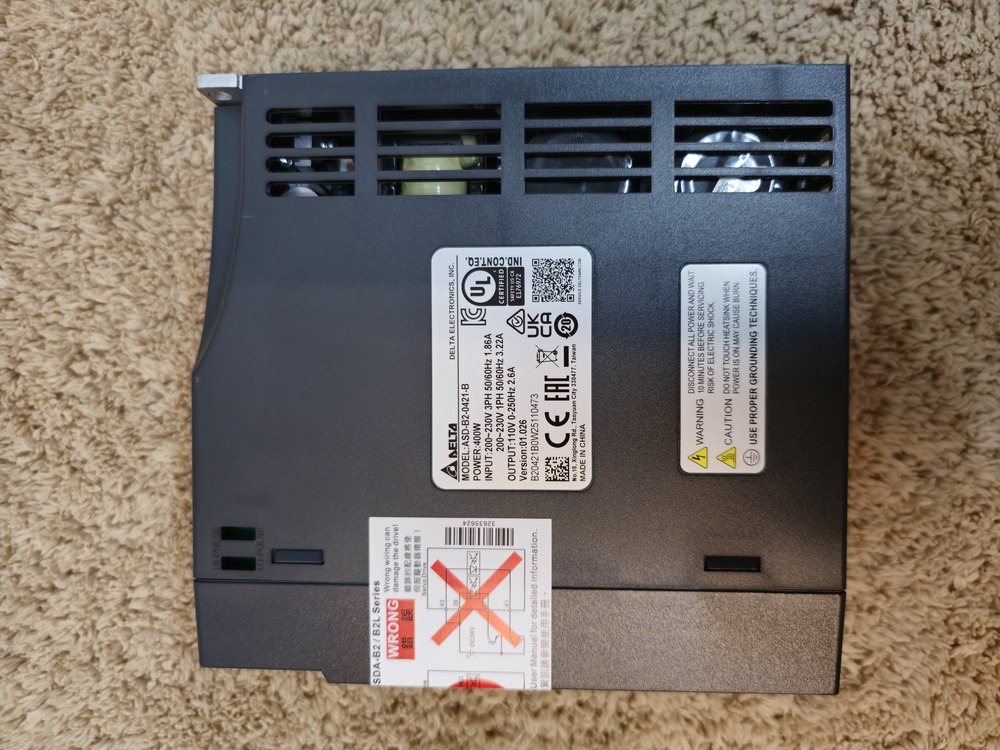

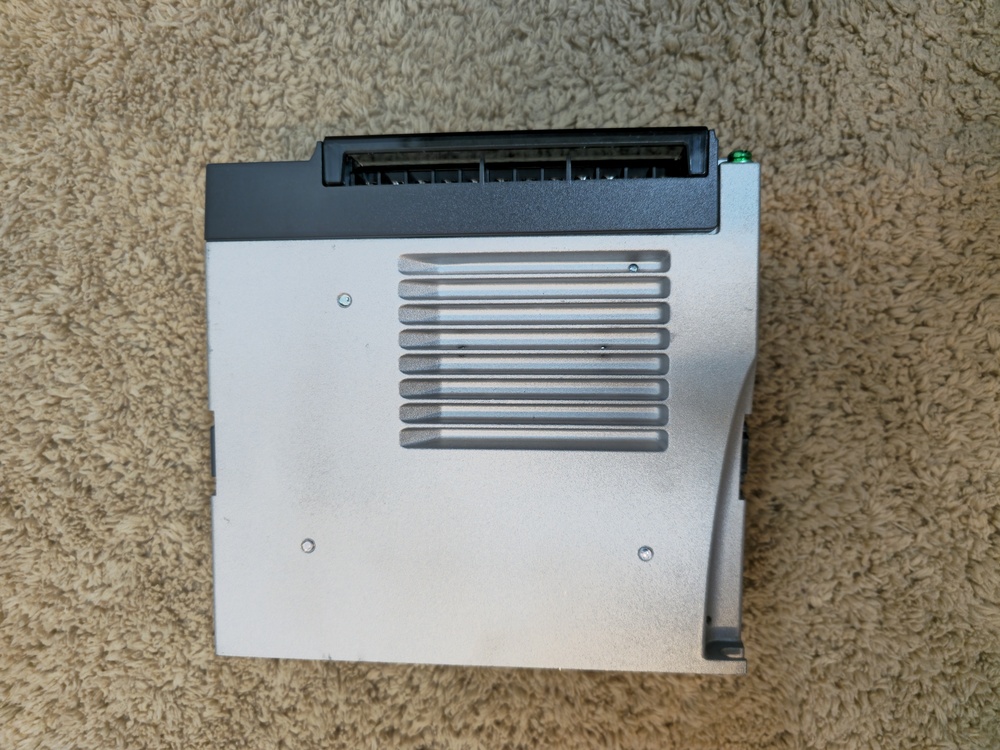

ASD-A2-5543-M Delta A2 Series Driver - 5000W

Name: ASD-A2-5543-M Delta A2 Series Driver - 5000W
Brand: Corbital Enterprise
Price: 95000.0 INR
Availability: InStock

Price 95000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-5543-M Delta A2 Series Driver - 5000W Specification

Sealed Type
Mechanical Seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
6 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-A2-5543-M Delta A2 Series Driver - 5000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-5543-M Delta A2 Series Driver - 5000W

The Delta ASD-A2-5543-M is a high-power 5.5kW (5000W+) servo drive designed for 400V 3-phase industrial systems. It is the core control unit for heavy-duty motors like the ECMA-FA1855S3. [1, 2, 3, 4]

Dimensions & Weight

Attribute [1, 2, 3]	Measurement (Inches)	Measurement (Metric)
Height	10.63 in	270 mm
Width	5.91 in	150 mm
Depth	14.17 in	360 mm
Net Weight	13.22 lbs	6 kg

Note: Shipping weights for this unit may reach up to 33 lbs (15 kg) including heavy-duty industrial packaging. [, 2, 3]

Core Specifications

Power Output: 5.5 kW (5500 W).
Input Voltage: 3-Phase 380V 480V AC.
Continuous Current: 22.37 Arms.
Max Instantaneous Current: 48.49 Arms.
Interfaces: CANopen, RS-485, RS-232, and USB.
Protection: IP20 rated with forced air cooling. [1, 2, 3, 4]

Key Functions

High-Torque Management: Specifically built to drive 5.5kW motors with a constant torque output and rapid response.
Advanced Motion (E-CAM & PR Mode): Features a built-in Electronic Cam (up to 720 points) and Internal Position Mode (64 paths), allowing for complex motion control without an external PLC.
Stability Control: Includes vibration suppression for long-arm systems (cranes/gantries) and auto-notch filters to eliminate mechanical resonance. [1, 3, 4]

The Delta ASD-A2-5543-M is a heavy-duty 5.5 kW (5500W) servo drive from the ASDA-A2 series, built to handle massive industrial loads with precision.

Electrical Specifications

Rated Power Output: 5.5 kW (5500 W)
Input Voltage: 3-Phase 380V to 480V AC, 10% (50/60 Hz)
Continuous Output Current: 22.37 Arms
Max Instantaneous Current: 48.49 Arms (approx. 220% of rated)
Regenerative Resistor: Built-in 40 \(\Omega \) / 100W resistor; supports external resistors for heavy-duty braking.
Control Method: SVPWM (Space Vector Pulse Width Modulation)

Motion & Control

Feedback Support: 20-bit incremental (1,280,000 p/rev) or 17-bit absolute encoders.
Response Frequency: Velocity response up to 1 kHz.
Motion Functions:
- E-CAM: Built-in Electronic Cam with 720 points for smooth synchronized movement.
- Pr Mode: Internal Position Mode with 64 defined paths.
Vibration Suppression: Automatic low-frequency vibration suppression and high-frequency resonance notch filters.

Mechanical & Environmental

Dimensions (H x W x D): 10.63 x 5.91 x 10.24 in (270 x 150 x 260 mm)
Net Weight: 13.22 lbs (6.0 kg)
IP Rating: IP20 (must be mounted in a protective panel)
Cooling: Forced air fan cooling.

Communication & I/O

Fieldbus: Dual CANopen ports (DS301/DS402).
Interface: RS-485 / RS-232 / USB.
Digital I/O: 8 programmable inputs and 5 programmable outputs via the 50-pin CN1 connector.
