ECMA-C10807RS Delta Servo Motor 750W L , Torque Nm - 2.39 , RPM - 3000

Name: ECMA-C10807RS Delta Servo Motor 750W L , Torque Nm - 2.39 , RPM - 3000
Brand: Corbital Enterprise
Price: 27400.0 INR
Availability: InStock

Price 27400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-C10807RS Delta Servo Motor 750W L , Torque Nm - 2.39 , RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
4 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECMA-C10807RS Delta Servo Motor 750W L , Torque Nm - 2.39 , RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-C10807RS Delta Servo Motor 750W L , Torque Nm - 2.39 , RPM - 3000

The ECMA-C10807RS is a 750W AC Servo Motor from Delta's ASDA-A2 series, designed for mid-range motion applications requiring higher torque and precision. [1, 2]

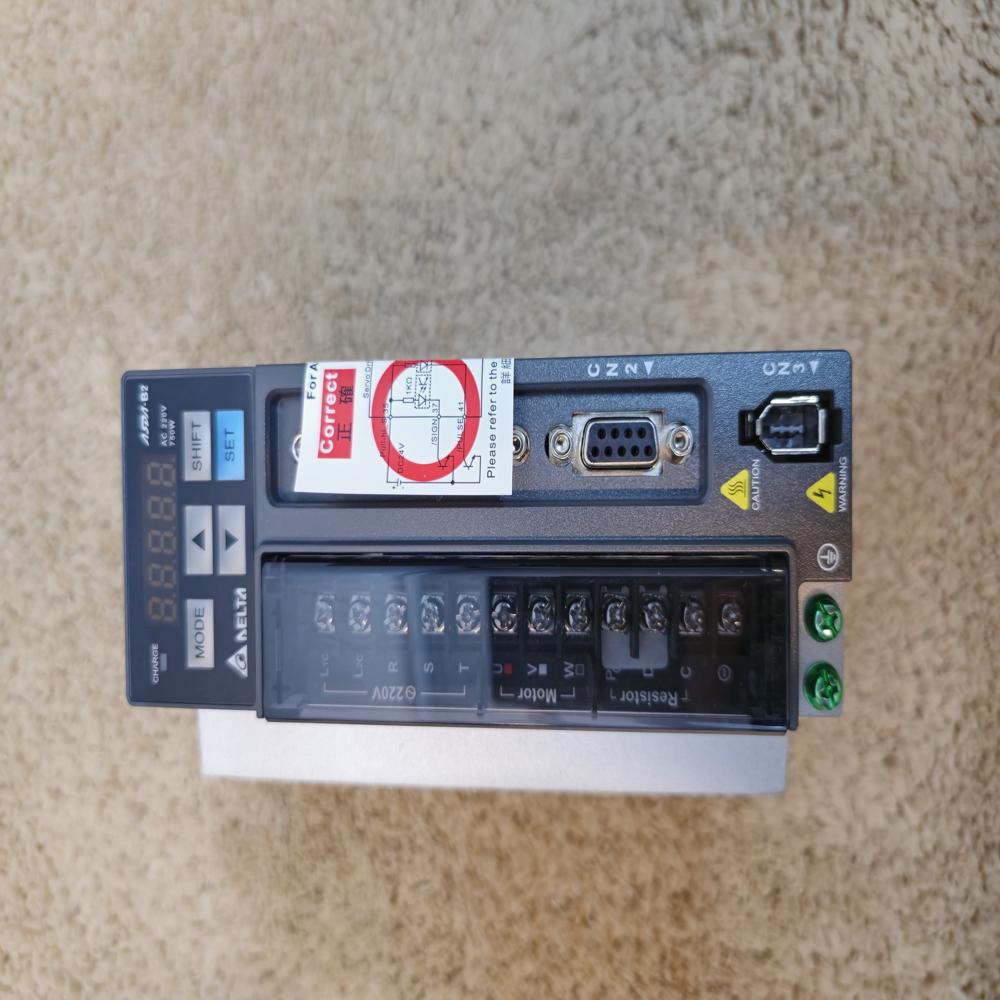

The ASD-A2-0721-U is a high-performance 750W AC Servo Drive from Delta's ASDA-A2 series, specifically designed for high-resolution positioning and advanced industrial motion control.

Technical Specifications

Rated Power Output: 750W (0.75 kW)
Input Voltage & Phase: 220V AC, Single-phase / 3-phase
Rated Output Current: 5.10 Arms
Frequency Response: 1 kHz
Encoder Support: 20-bit incremental (1,280,000 pulses/rev) or 17-bit absolute
Communication: RS-232, RS-485, and specialized digital interfaces for the "U" model [1, 2, 3, 4, 5, 6, 7, 8]

Dimensions & Weight (Inches)

This motor uses a larger 80 mm frame size compared to the 200W/400W models. [1, 2]

Dimension	Inches	Millimeters
Width	3.15"	80 mm
Height	3.15"	80 mm
Length (Body Only)	5.44"	138.3 mm
Total Length (with Shaft)	6.82"	173.3 mm
Shaft Diameter	0.748"	19 mm
Net Weight	6.61 lbs	3.0 kg

Note: The shipping weight is typically around 7.5 lbs (3.4 kg). [1, 2]

Function

The ECMA-C10807RS provides powerful, high-resolution motion control: [1, 2, 3]

Precision Actuation: Features a 20-bit incremental encoder providing 1,280,000 pulses per revolution for exceptional positioning accuracy.
Torque Performance: Delivers a steady rated torque of 2.39 Nm, with a peak instantaneous torque capacity of up to 7.16 Nm for demanding starts.
Dynamic Speed: Maintains a rated speed of 3,000 RPM (max 5,000 RPM), ideal for high-speed automated processes.
Harsh Environment Ready: Built with an IP65 rating and a pre-installed oil seal to resist dust and water ingress
