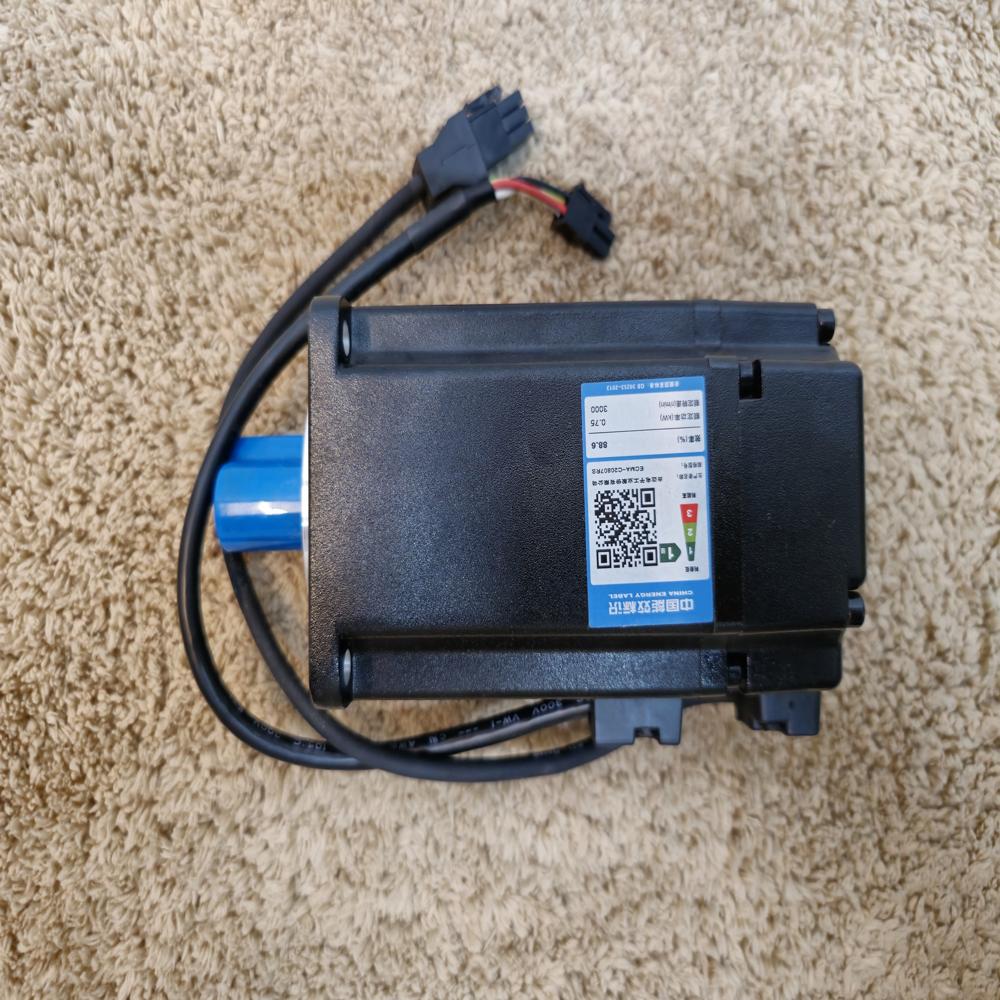

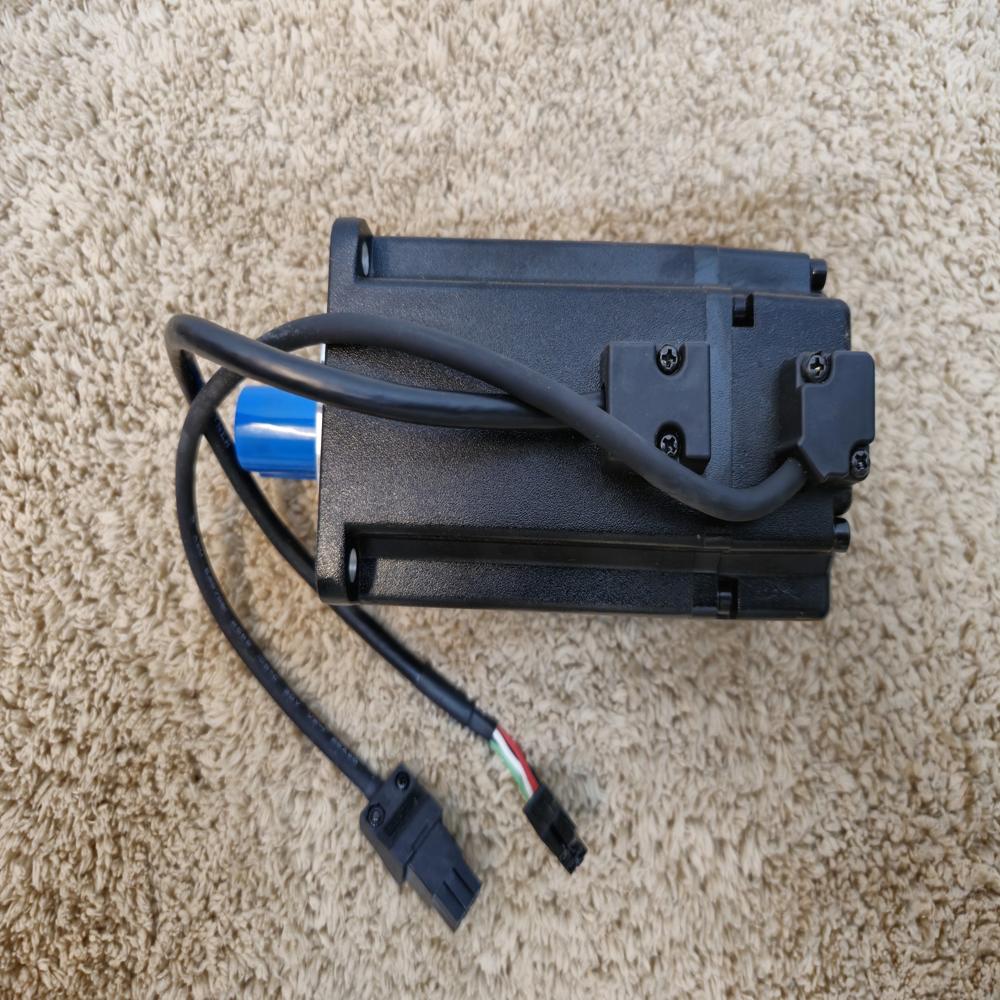

ECMA-K11315RS Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000

Name: ECMA-K11315RS Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000
Brand: Corbital Enterprise
Price: 45200.0 INR
Availability: InStock

Price 45200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-K11315RS Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Speed
2000 RPM

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
7.5 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECMA-K11315RS Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-K11315RS Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000

The Delta ECMA-K11315RS is a 1500W medium-inertia motor designed for high-stability motion control in 400V industrial environments. It functions as a powerful actuator that balances precision with the ability to handle mechanical "noise" and load fluctuations.

Core Functions

Load Stabilization (Medium Inertia): The primary function of the "K" series is to provide a higher rotor inertia. This acts as a mechanical buffer, preventing the motor from vibrating or overshooting when moving heavy or resonance-prone loads.
High-Resolution Feedback: Equipped with a 20-bit incremental encoder, it provides 1,280,000 pulses per revolution. This allows for extreme accuracy in positioning and ensures smooth, jitter-free rotation even at very low speeds.
Constant Torque Delivery: It delivers a steady 7.16 Nm of torque (peaking at 21.48 Nm). This allows it to "push" or "pull" heavy mechanical parts with more authority than a low-inertia motor at 2000 RPM.
Active Suppression: When paired with its drive, it utilizes Auto-Notch Filters and Vibration Suppression algorithms to automatically detect and cancel out mechanical resonance in real-time.

Typical Applications

CNC Lathes & Milling: Ideal for feed axes where cutting resistance varies.
Textile & Paper Machines: Used for maintaining precise tension in winding/unwinding.
Material Handling: Driving conveyor systems or pick-and-place robots that move varying weights.

Key Technical Note

No Brake (RS Series): This model does not include a holding brake. If you are using this on a vertical axis (where the load could fall when power is lost), you should use the SS version (ECMA-K11315SS) instead.

The Delta ECMA-K11315RS is a 1500W medium-inertia motor from the 400V class, designed to provide a balance of high torque and motion stability.

Dimensions & Weight

Attribute [1, 2, 3]	Measurement (Inches)	Measurement (Metric)
Total Length	7.30 in	185.5 mm
Height (Frame)	5.12 in	130 mm
Width (Frame)	5.12 in	130 mm
Shaft Diameter	0.866 in	22 mm
Shaft Length	1.772 in	45 mm
Net Weight	16.53 lbs	7.5 kg

Key Technical Specifications

Voltage: 400V VAC (3-Phase), suitable for heavy industrial power grids.
Performance: Delivers a rated torque of 7.16 Nm and a peak torque of 21.48 Nm at a rated speed of 2000 RPM.
Inertia: Medium Inertia (11.08 x 10 kgm), providing superior control for loads that are prone to mechanical resonance or vibration.
Encoder: High-resolution 20-bit incremental encoder (1,280,000 pulses/rev).
Protection: IP65 rated with an oil seal and keyway shaft.
Brake: This "RS" model does not include an electromagnetic brake. [1, 2, 3, 4, 5]
