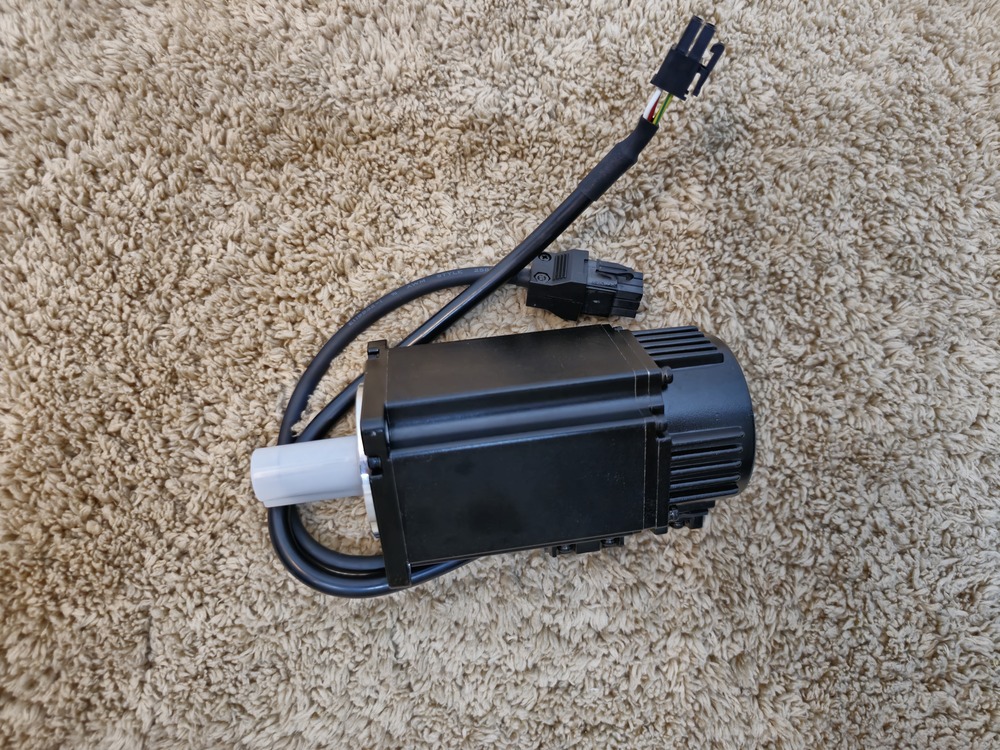

ECM-E3M-E21315RSE Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000

Name: ECM-E3M-E21315RSE Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000
Brand: Corbital Enterprise
Price: 43200.0 INR
Availability: InStock

Price 43200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECM-E3M-E21315RSE Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
7.5 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECM-E3M-E21315RSE Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECM-E3M-E21315RSE Delta Servo Motor 1500W M , Torque Nm - 7.16 , RPM - 2000

The Delta ECM-E3M-E21315RSE is a powerful 1500W (1.5kW) Medium Inertia servo motor from the advanced ASDA-E3 series. Like the 1kW model, it features a 130mm frame but offers significantly higher torque for demanding industrial automation. [1, 2]

Core Specifications

Rated Power: 1500W (1.5 kW)
Rated Torque: 7.16 N-m (Continuous)
Max (Peak) Torque: 21.48 N-m
Rated Speed: 2000 RPM
Maximum Speed: 3000 RPM
Encoder: 22-bit or 24-bit high-resolution feedback
Inertia Type: Medium Inertia [1, 2, 3, 4]

Physical Dimensions (Inches)

This motor utilizes a standard 130mm frame size common for 1kW2kW Delta motors. [1]

Dimension [1, 2, 3]	Metric (mm)	Imperial (Inches)
Width (Frame)	130 mm	5.12 in
Height (Frame)	130 mm	5.12 in
Body Length (L)	163 mm	6.42 in
Shaft Length (LR)	55 mm	2.17 in
Shaft Diameter (S)	22 mm	0.87 in

Note: The total body length can vary slightly depending on the specific oil seal or connector configuration. [1]

Key Functions

High Constant Torque: Delivers 7.16 N-m of torque, making it suitable for driving heavy machinery, large-format CNC axes, and industrial mixers.
Inertia Matching: The medium-inertia design functions as a mechanical stabilizer, effectively dampening vibrations when the motor is coupled to heavy loads (high load-to-motor inertia ratios).
Precise Motion: Despite its high power, it maintains micron-level positioning accuracy thanks to its high-resolution encoder system.
Protection: Rated IP65/IP67, providing robust protection against dust and water jets in industrial environments. [1, 2, 4]
