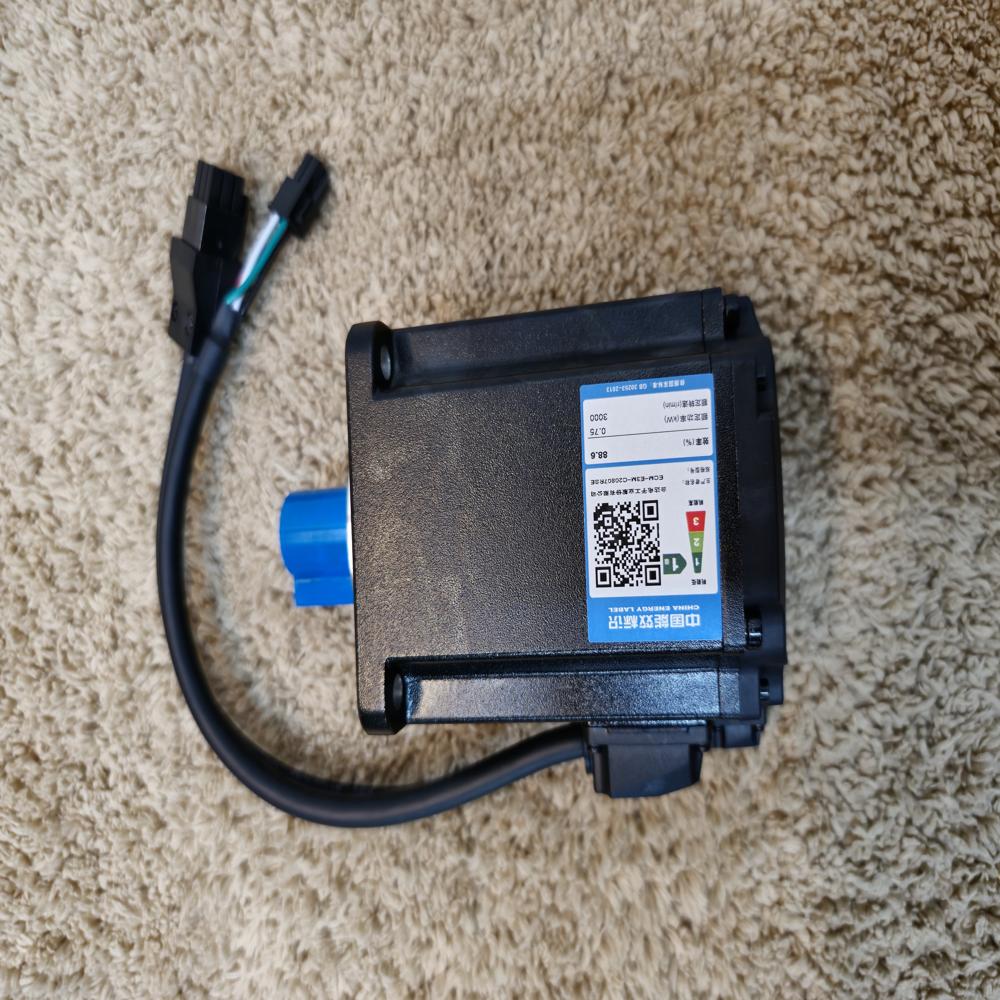

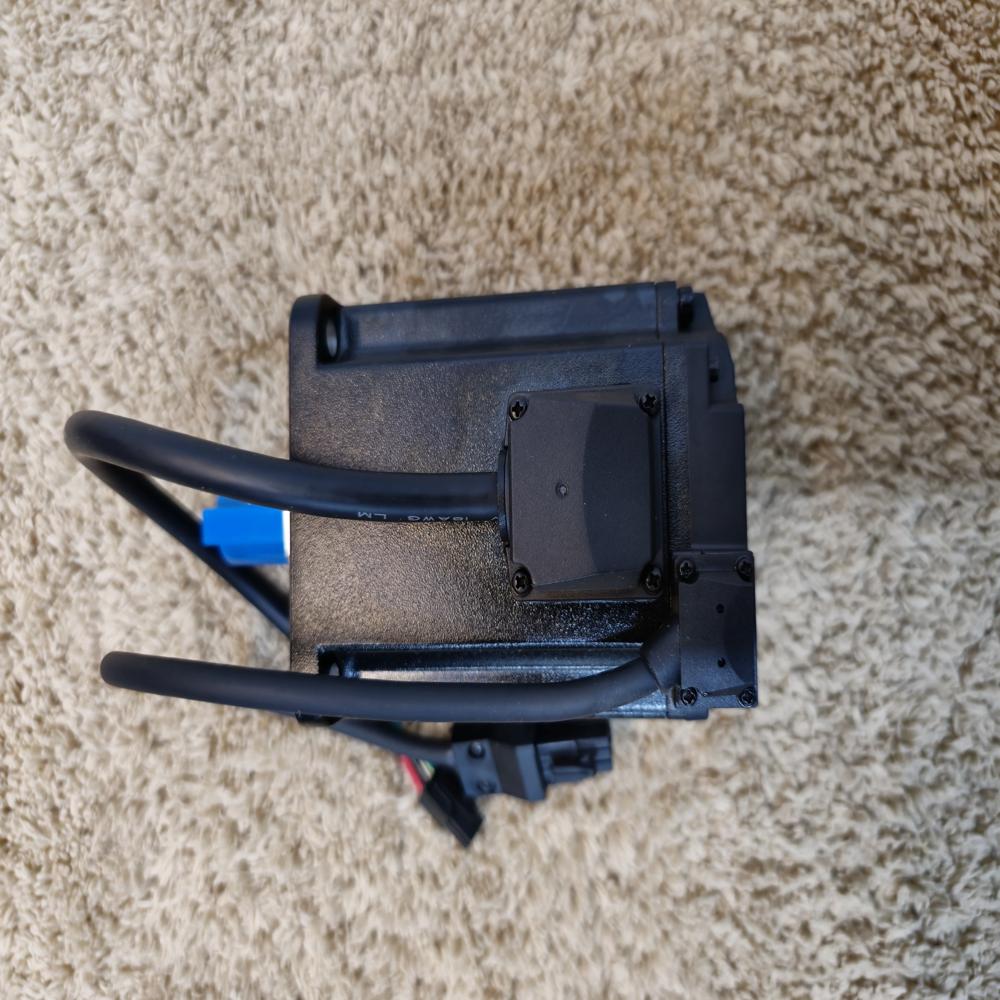

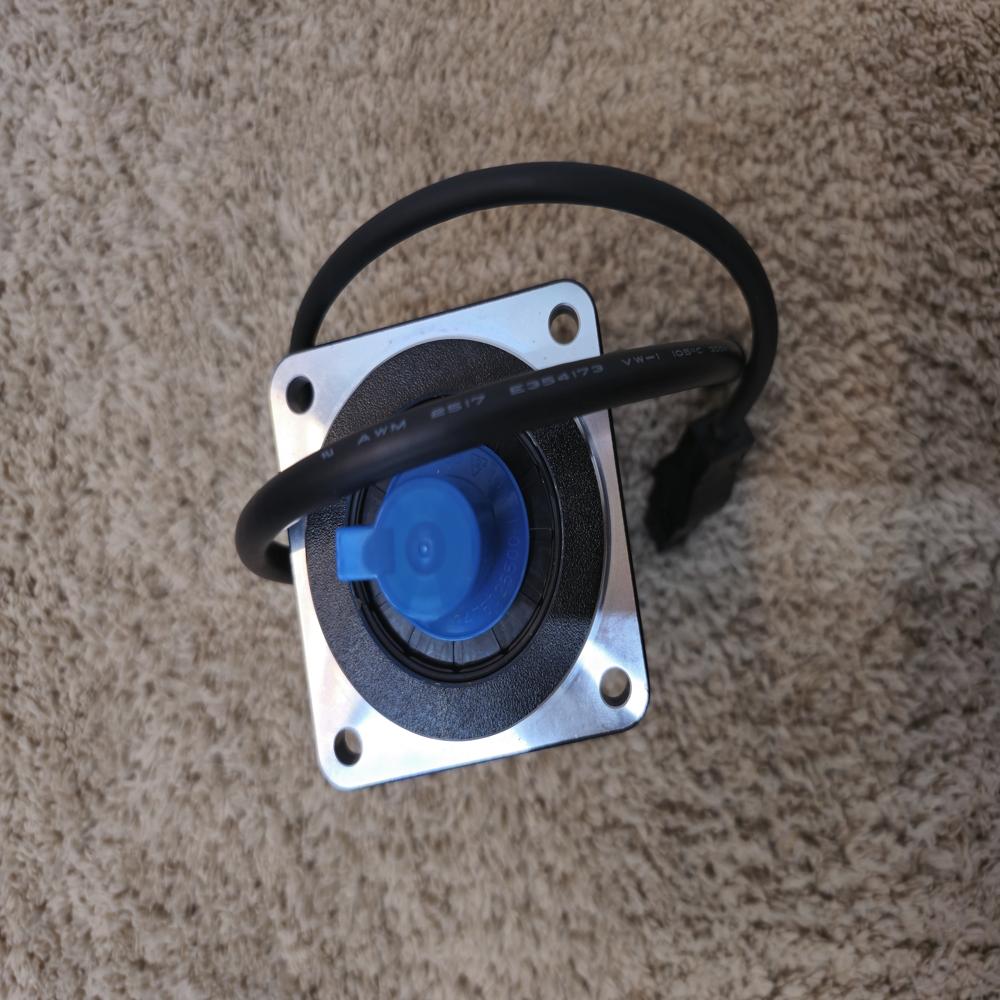

ECMA-C20604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000

Price 23400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-C20604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
1.58 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECMA-C20604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-C20604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000

The ECMA-C20604RS is a 400W low-inertia AC servo motor from the Delta Electronics ASDA-B2 Series. It is a direct upgrade from the 100W model, offering significantly higher torque for medium-load industrial applications while maintaining a compact footprint. [1, 2, 3, 4]

Key Specifications

Rated Power Output: 400W (0.4 kW).
Rated Torque: 1.27 N-m (179.9 oz-in).
Max Torque: 3.82 N-m (541 oz-in).
Rated Speed: 3000 RPM (Max speed up to 5000 RPM).
Encoder: 17-bit incremental rotary optical encoder (160,000 ppr).
Shaft Details: 14mm diameter with a keyway and oil seal, no internal brake (indicated by "RS"). [1, 2, 3, 4, 5]

Key Specifications

Rated Power Output: 400W (0.4 kW).
Rated Torque: 1.27 N-m (179.9 oz-in).
Max Torque: 3.82 N-m (541 oz-in).
Rated Speed: 3000 RPM (Max speed up to 5000 RPM).
Encoder: 17-bit incremental rotary optical encoder (160,000 ppr).
Shaft Details: 14mm diameter with a keyway and oil seal, no internal brake (indicated by "RS"). [1, 2, 3, 4, 5]

Function and Application

The motor functions as a high-precision actuator for automation systems requiring rapid acceleration and deceleration.

Dynamic Response: Designed for low inertia to allow for extremely fast start-stop cycles.
Closed-Loop Precision: Works with the ASD-B2-0421-B drive to provide sub-millisecond settling times.
Common Uses: Ideal for CNC machining centers, high-speed packaging, and pick-and-place robotics. [1, 2, 3]
