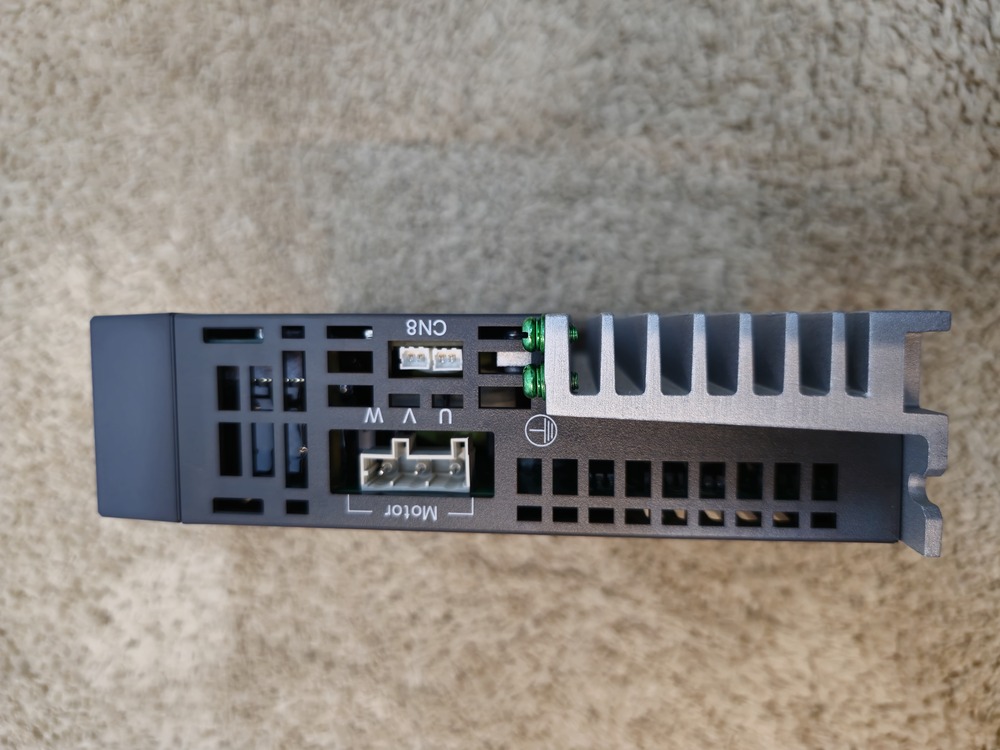

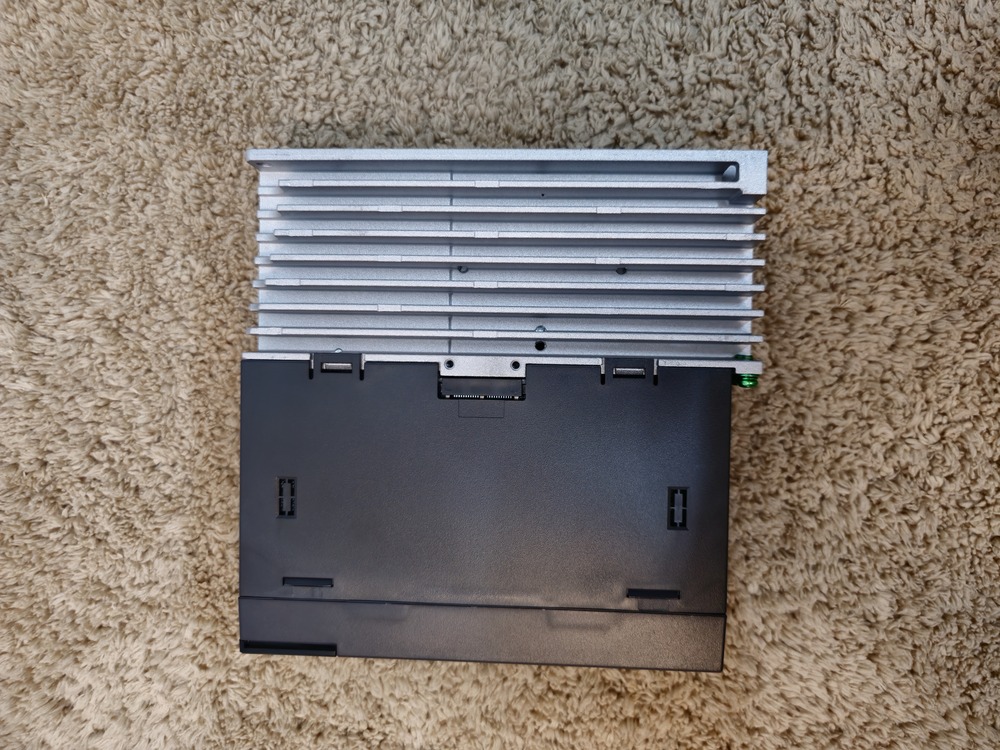

ASD-B2-0421-B Delta B2 Series Driver - 400W

Name: ASD-B2-0421-B Delta B2 Series Driver - 400W
Brand: Corbital Enterprise
Price: 21400.0 INR
Availability: InStock

Price 21400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-B2-0421-B Delta B2 Series Driver - 400W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
1.5 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-B2-0421-B Delta B2 Series Driver - 400W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-B2-0421-B Delta B2 Series Driver - 400W

The ASD-B2-0421-B is the corresponding 400W servo drive for your motor. It is a high-performance, cost-effective controller from the Delta ASDA-B2 series specifically designed for precise general-purpose industrial applications. [1, 2]

Key Specifications

Rated Power Output: 400W (0.4 kW).
Input Power: Supports both single-phase (200230V AC) and three-phase (170255V AC) at 50/60 Hz.
Current Rating: Delivers a continuous output current of 2.6 Arms and an instant maximum of 7.8 Arms.
Encoder Support: Optimized for both 17-bit (160,000 p/rev) and 20-bit incremental encoders for superior positioning accuracy.
Response Frequency: High bandwidth up to 550 Hz, allowing for a settling time of less than 1ms. [1, 2, 3, 4, 5, 6, 7]

Primary Functions

Versatile Control Modes: Features built-in Position (external pulse), Speed, and Torque control modes (analog or internal parameters).
Vibration Suppression: Includes three notch filters to automatically manage mechanical resonance, ensuring smooth operation.
Easy Configuration: Communicates via RS-232/RS-485 (MODBUS) and is compatible with Delta's ASDA-Soft software for quick parameter tuning and diagnostics.
Built-in Protection: Robust safety features protect against overcurrent, overvoltage, overheating, and short circuits. [, 2, 3, 4]

Physical Dimensions & Weight

Dimensions: Approximately 6.7" (H) x 2.8" (W) x 6.0" (D) (170 mm x 72 mm x 153 mm).
Weight: Between 2.36 lbs (1.07 kg) and 3.31 lbs (1.5 kg). [1, 2, 3]
