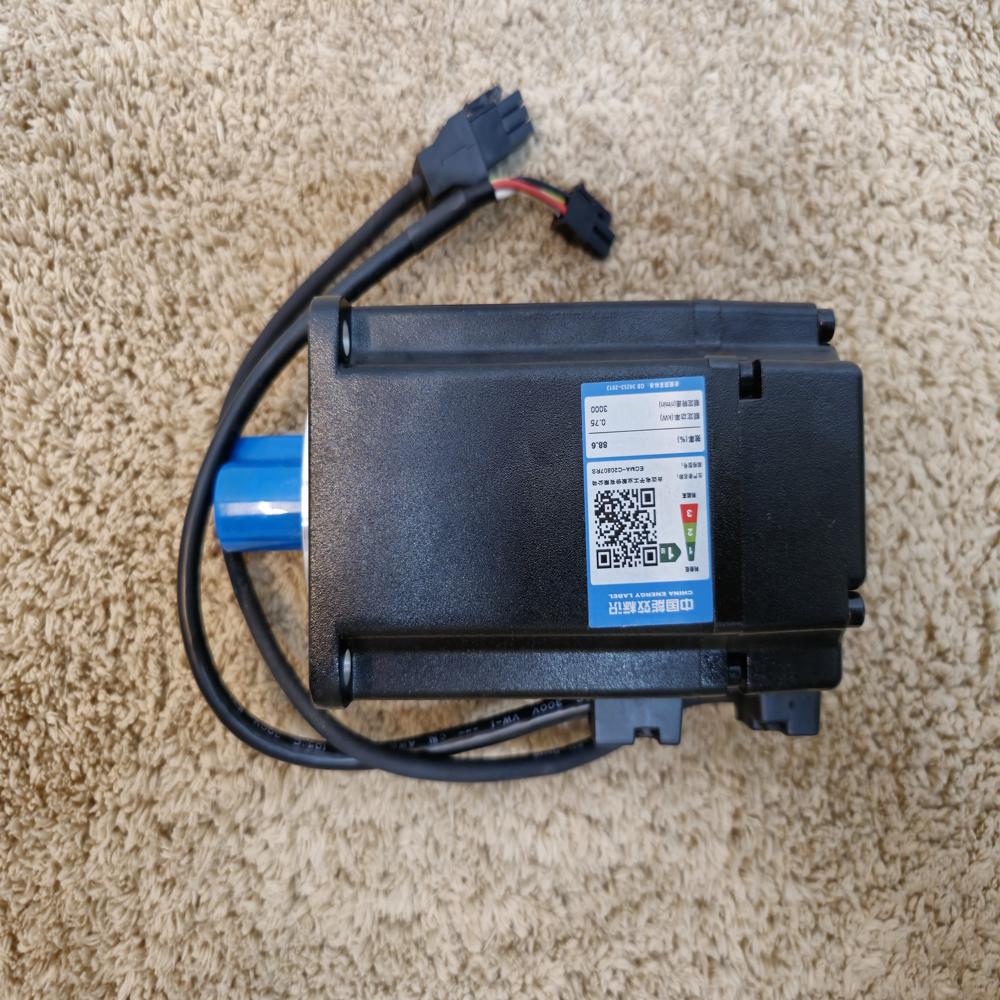

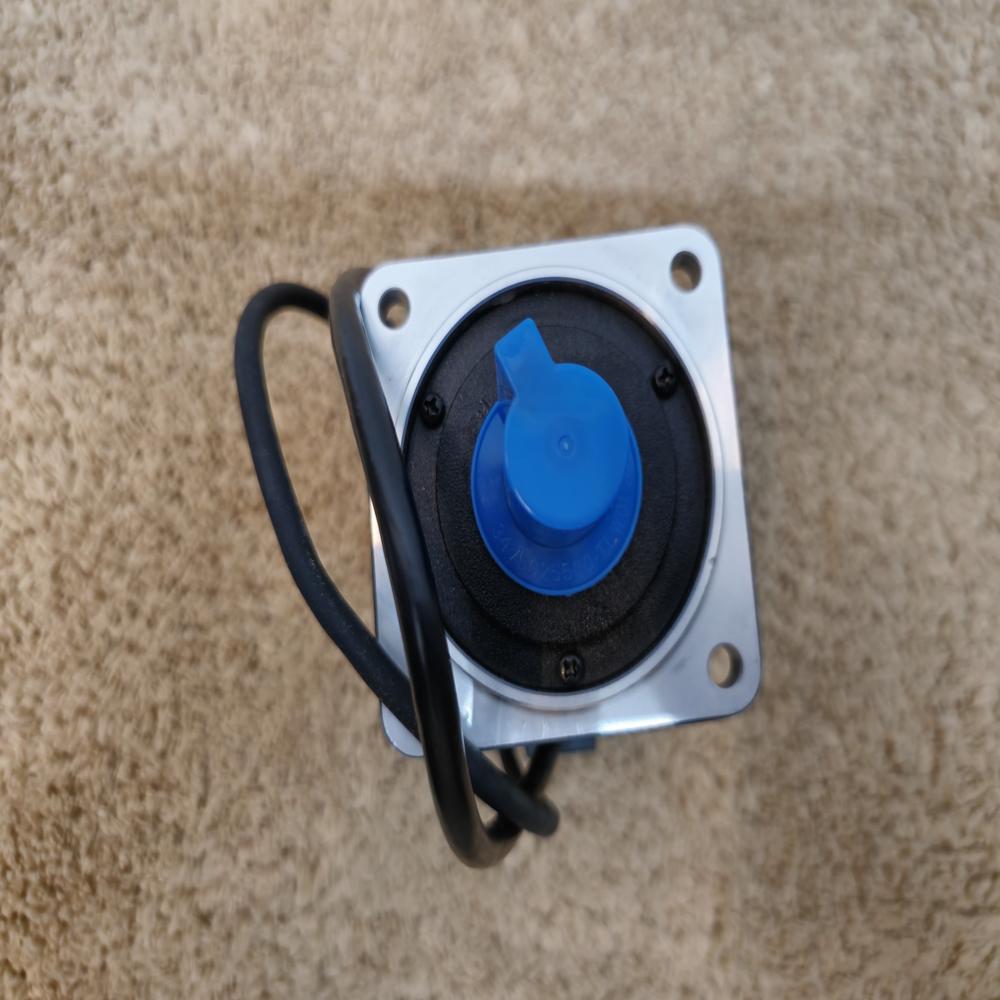

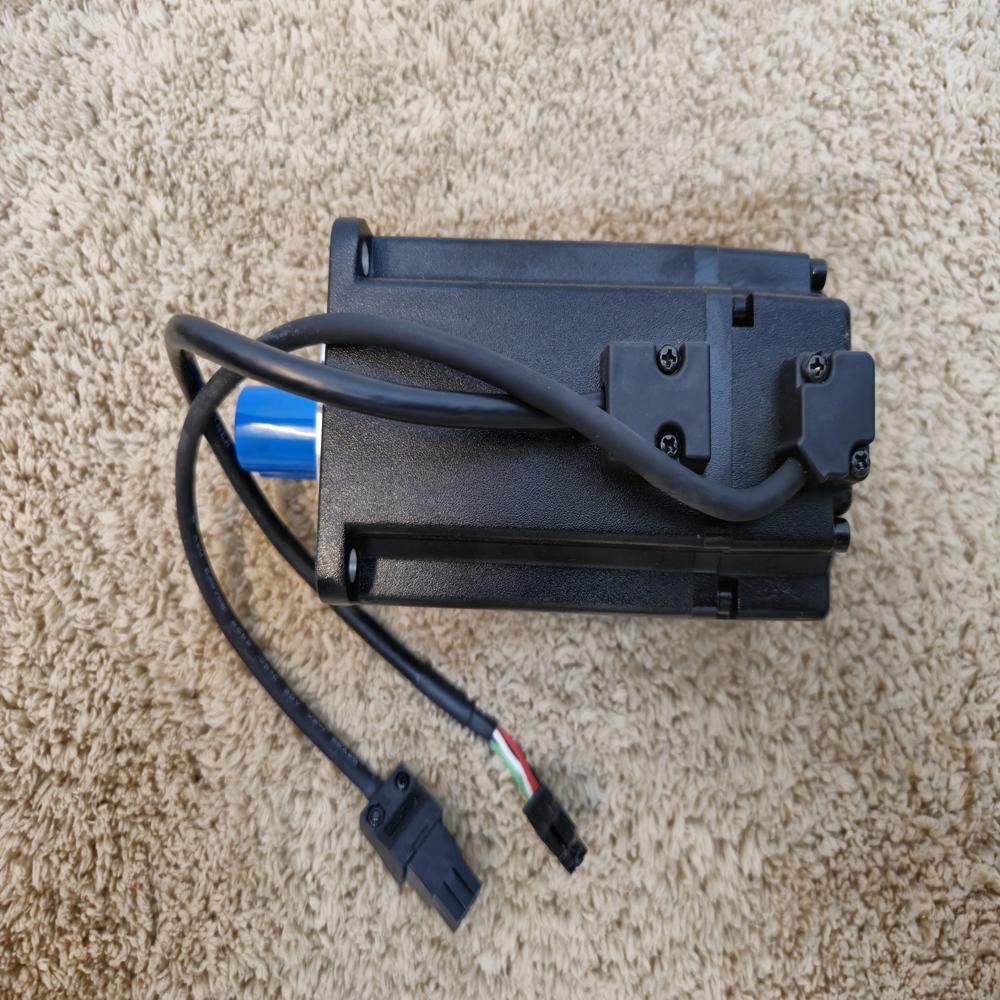

ECMA-J11010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000

Price 32400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-J11010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
5.5 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECMA-J11010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-J11010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000

The Delta ECMA-J11010RS is a high-precision 1000W AC servo motor from the ASDA-A2 series, primarily functioning as an actuator for delicate industrial processes that require stable rotation at low speeds and high-frequency responsiveness. [1, 2]

Core Functions

High-Resolution Feedback: Equipped with a 20-bit incremental encoder (1,280,000 pulses/revolution), it provides extreme positioning accuracy for complex automation tasks.
Motion Stability: Designed for high-speed responsiveness with a 1.0 kHz velocity frequency response and a settling time below 1ms.
Vibration & Resonance Suppression: Features built-in automatic low-frequency vibration suppression (ideal for crane or gantry control) and high-frequency resonance suppression via dual auto-notch filters.
Specialized Motion Control: Optimized for applications like rotary cutters, flying shears, and synchronized motion using its built-in Electronic Cam (E-CAM) functionality. [1, 4, 5]

Key Technical Notes

Voltage: Unlike the "C" series (220V), this "J" series model is designed for 400V VAC input, making it suitable for standard industrial three-phase power systems.
Brake: The "RS" suffix indicates this unit is without a brake.
Full Closed-Loop Control: It can interface with external linear scales or encoders to compensate for mechanical backlash and ensure edge-to-edge precision. [1, 2, 4, 5]

The physical specifications for the Delta ECMA-J11010RS (1000W model without brake) are as follows:

Dimensions & Weight

Attribute [1, 3]	Measurement (Inches)	Measurement (Metric)
Total Length	~6.57 in	167 mm
Height (Frame)	3.94 in	100 mm
Width (Frame)	3.94 in	100 mm
Shaft Diameter	0.866 in	22 mm
Shaft Length	1.772 in	45 mm
Net Weight	12.13 lbs	5.5 kg

Key Technical Notes

Frame Size: This motor typically uses a 100 mm square frame, though some documentation lists it as 110 mm.
Brake Status: The "RS" suffix confirms this model is without a brake. For the version with a brake, look for the ECMA-J11010SS model.
Voltage: Unlike the standard 220V CA series, the "J" series often denotes a 400V VAC rating.
Encoder: Equipped with a high-precision 20-bit incremental encoder providing 1,280,000 pulses per revolution.
