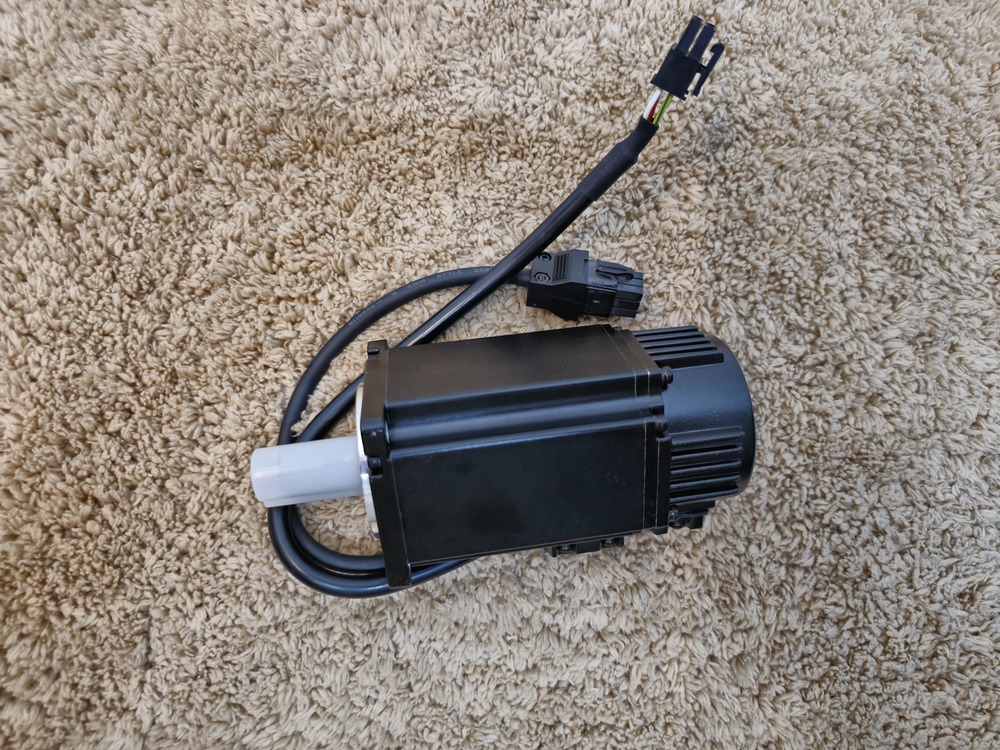

ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000

ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000

Price 48000.0 INR/ Number

MOQ : 1 Number

ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000 Specification

  • Sealed Type
  • Packing seal
  • Product Type
  • Servo Motor
  • Speed
  • 2000 RPM
  • Usage & Applications
  • Industrial Machinerry
  • Color
  • Black and Silver
  • Weight
  • 7 Kilograms (kg)
  • Phase
  • Three Phase
  • Warranty
  • 1 Year
  • Material
  • Aluminum


ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000 Trade Information

  • Minimum Order Quantity
  • 1 Number
  • Delivery Time
  • 24 Hours


About ECMA-KA1310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000


The Delta ECMA-KA1310RS is a high-stability, 400V 1kW absolute-type servo motor from the ASDA-A2 series. It is specifically engineered for precision industrial tasks that require constant torque and position retention. [1, 2]
Electrical & Performance Specifications
  • Rated Power Output: 1.0 kW (1000 W)
  • Rated Torque: 4.77 Nm
  • Maximum Peak Torque: 14.32 Nm
  • Rated Speed: 2000 RPM
  • Maximum Speed: 3000 RPM
  • Input Voltage: 400 VAC (3-Phase; supports 380V480V)
  • Rated Current: ~3.52 A [1, 2, 3, 4, 5, 6, 7, 8]
Mechanical & Feedback
  • Frame Size: 130 mm square
  • Inertia Class: Medium Inertia (approx. 8.41 x 10 kgm)
  • Encoder Type: 17-bit Absolute encoder (Single-turn: 17-bit; Multi-turn: 16-bit)
  • Shaft Type: Keyway with Oil Seal and screw hole
  • Brake: This model is without a brake (RS suffix)
  • Protection Rating: IP65 (Dust-tight and water-jet resistant)

The Delta ECMA-KA1310RS is a high-stability, 1000W absolute-type servo motor. It belongs to the 400V class and is designed for applications where steady torque and position memory are critical.
Dimensions & Weight
Attribute Measurement (Inches) Measurement (Metric)
Total Length ~6.57 in 167 mm
Height (Frame) 5.12 in 130 mm
Width (Frame) 5.12 in 130 mm
Shaft Diameter 0.866 in 22 mm
Shaft Length 1.772 in 45 mm
Net Weight ~15.43 lbs 7.0 kg
Key Technical Notes
  • Medium Inertia stability: As a "KA" series motor, it features Medium Inertia. This provides a mechanical dampening effect, making it much more stable than low-inertia motors when moving heavy or unbalanced loads.
  • Absolute Encoder: Equipped with a 17-bit absolute encoder. It remembers its exact position even after a power failure, so you don't need to "home" the machine at the start of every shift.
  • High Torque at 2000 RPM: It provides a constant 4.77 Nm of torque. Because it is rated at 2000 RPM (rather than 3000), it is built for "pushing" and "lifting" power rather than raw speed.
  • No Brake (RS Series): This model does not have an electromagnetic brake. It features a shaft with a keyway and oil seal for better protection in industrial environments.
  • Voltage: Built for 400V industrial power grids.
