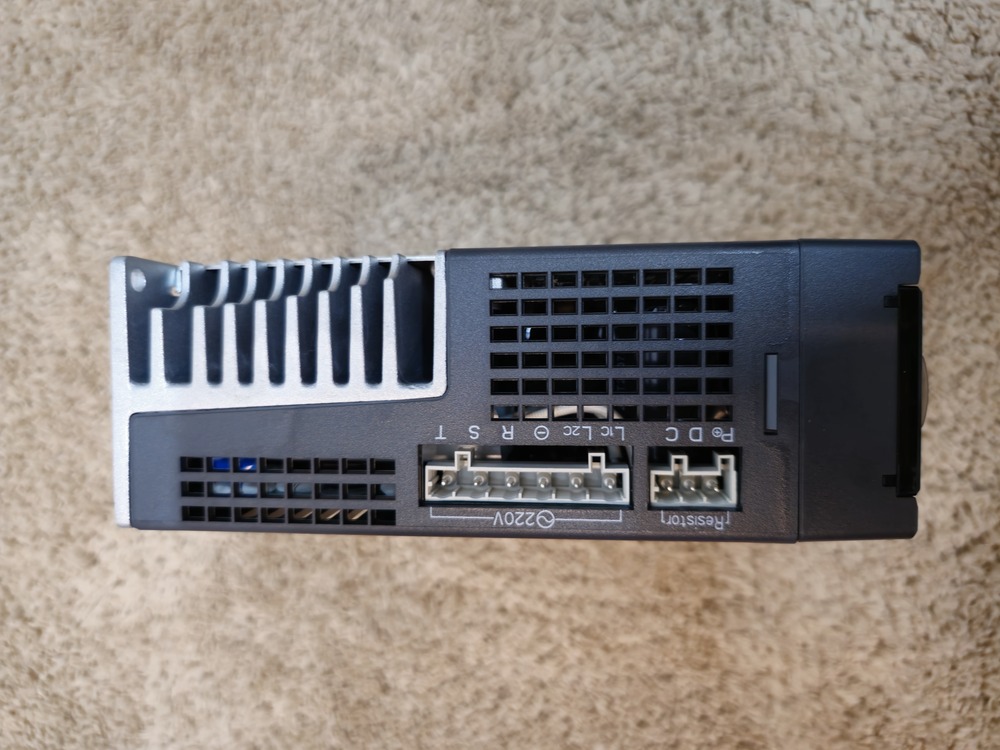

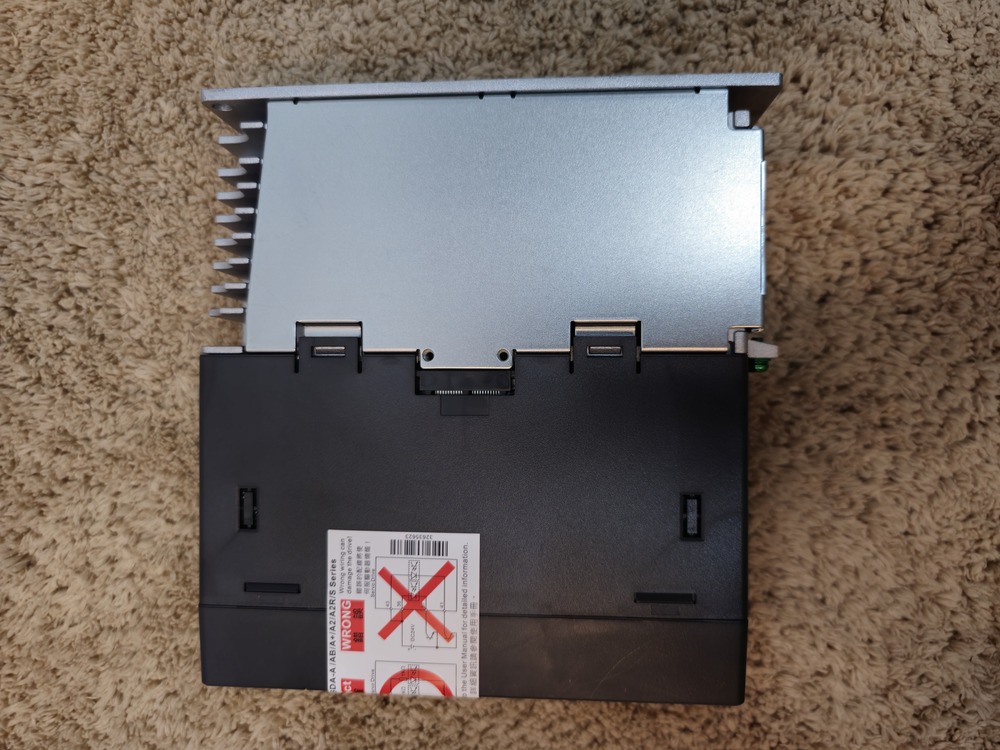

ASD-A2-3043-M Delta A2 Series Driver - 3000W

Name: ASD-A2-3043-M Delta A2 Series Driver - 3000W
Brand: Corbital Enterprise
Price: 78000.0 INR
Availability: InStock

Price 78000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-3043-M Delta A2 Series Driver - 3000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
2.89 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A2-3043-M Delta A2 Series Driver - 3000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-3043-M Delta A2 Series Driver - 3000W

The Delta ASD-A2-3043-M is a high-performance 400V digital servo drive designed for precision motion control. It is the core controller for 3.0 kW motors like the ECMA-J11330R4.

Electrical Specifications

Power Output: 3.0 kW (3000 W).
Input Voltage: 3-Phase 380V to 480V AC (50/60 Hz).
Continuous Current: 9.49 Arms.
Max Instantaneous Current: 24.58 Arms.
Control Method: SVPWM (Space Vector Pulse Width Modulation) Control.
Frequency Response: Velocity response frequency of 1 kHz.

Feedback & Motion Control

Encoder Support: 20-bit incremental (1,280,000 p/rev) or 17-bit absolute encoders.
Control Modes: Position, Speed, and Torque (can be switched via communication or digital I/O).
E-CAM: Built-in Electronic Cam functionality (up to 720 points).
Vibration Suppression: Automatic filters for low-frequency vibration and high-frequency resonance.

Mechanical & Environmental

Dimensions: 188 mm (H) x 95 mm (W) x 184 mm (D).
Weight: 2.89 kg (6.37 lbs).

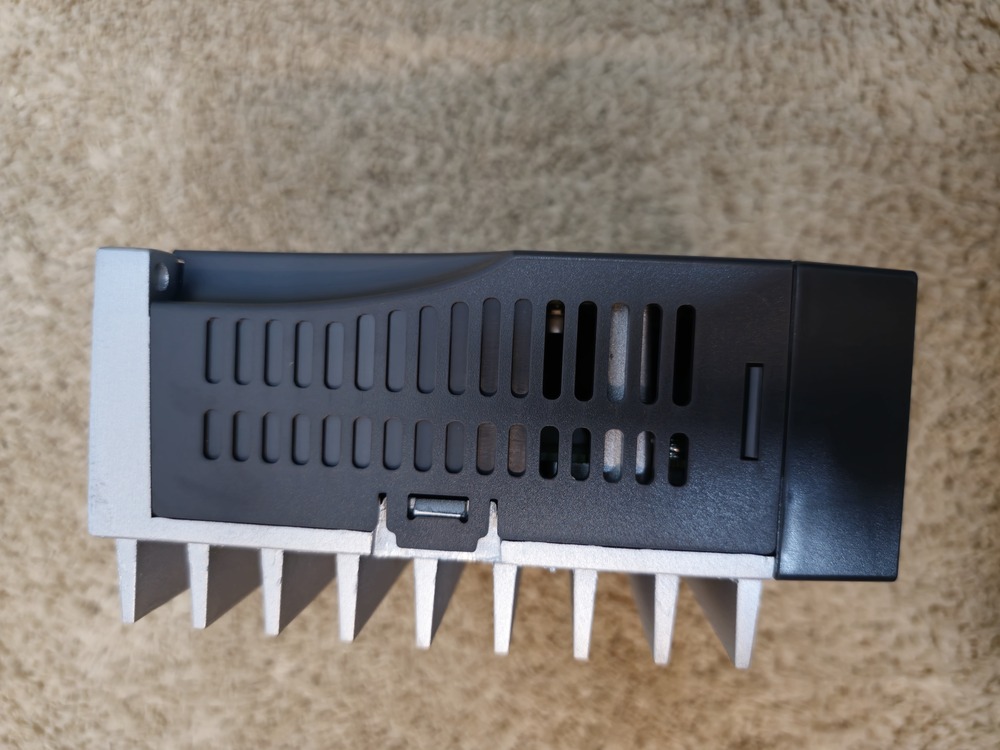

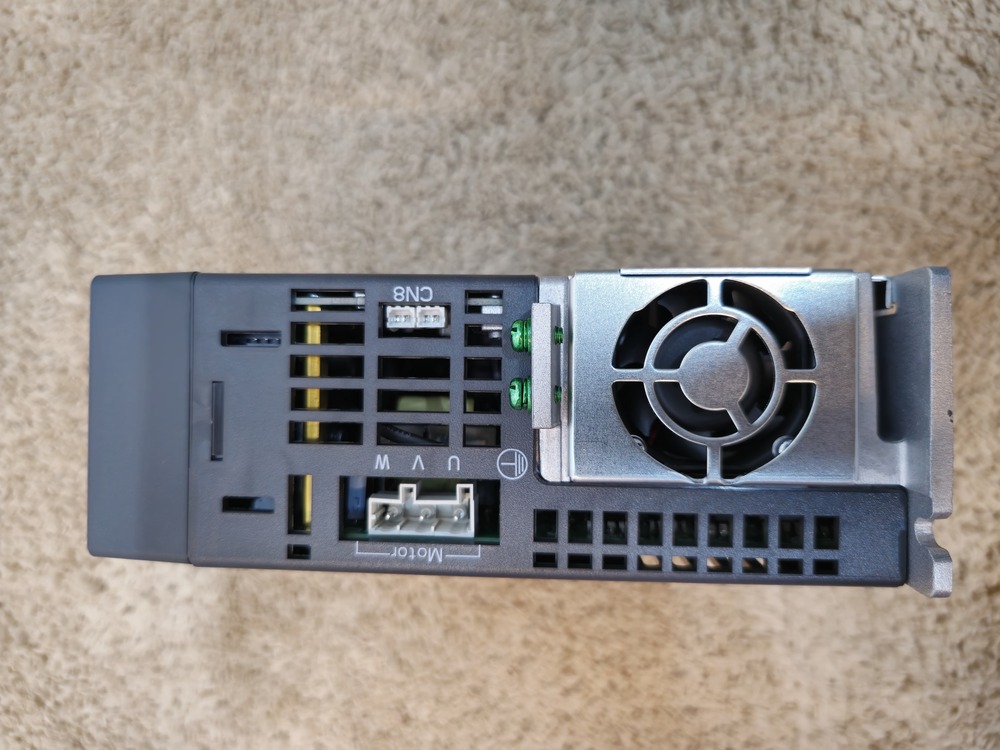

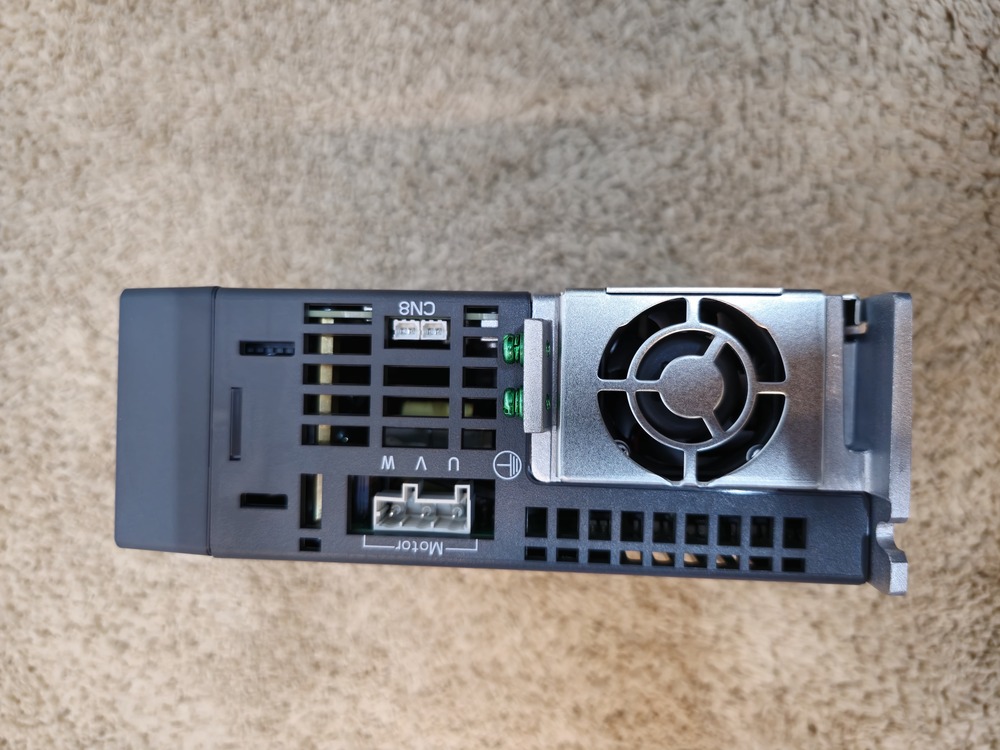

Cooling: Built-in fan cooling.
Operating Temp: 0C to 55C (32F to 131F).
IP Rating: IP20 (must be mounted in a protective panel).

Communication Interfaces

CANopen: Dual ports for high-speed network control (DS301/DS402).
Serial: RS-485 / RS-232 / USB (for ASDA-Soft configuration).
I/O: 50-pin CN1 connector for pulse/direction and analog inputs.

The Delta ASD-A2-3043-M is a 3000W (3kW) high-performance AC servo drive designed for 400V 3-phase industrial systems. It is the "brain" commonly paired with motors like the ECMA-J11330R4. [1, 2, 3]

Dimensions & Weight

Attribute	Measurement (Metric)	Measurement (Inches)
Height	188 mm	7.40 in
Width	95 mm	3.74 in
Depth	184 mm	7.24 in
Net Weight	2.89 kg	6.37 lbs

Core Specifications

Voltage: 400V AC (3-Phase 380V 480V).
Continuous Output Current: 9.49 Arms.
Instantaneous Max Current: 24.58 Arms.
Feedback Support: 20-bit incremental and 17-bit absolute encoders.
Interfaces: Dual CANopen ports (supporting DS301/DS402), RS-485, and RS-232.
Operating Temp: 0C to 55C (32F to 131F). [1, 2, 3, 4, 5]

Functionality

This drive manages high-precision position, speed, and torque. Key features include: [1, 2]

Built-in Electronic Cam (E-CAM): 720-point internal cam for smooth, synchronized mechanical motion.
Superior Vibration Suppression: Automatic filters to minimize low-frequency vibration at machine edges and suppress high-frequency mechanical resonance.
Full Closed-Loop Control: Direct interface for external linear scales or encoders to eliminate mechanical backlash errors. [1, 2, 3, 4, 5]
