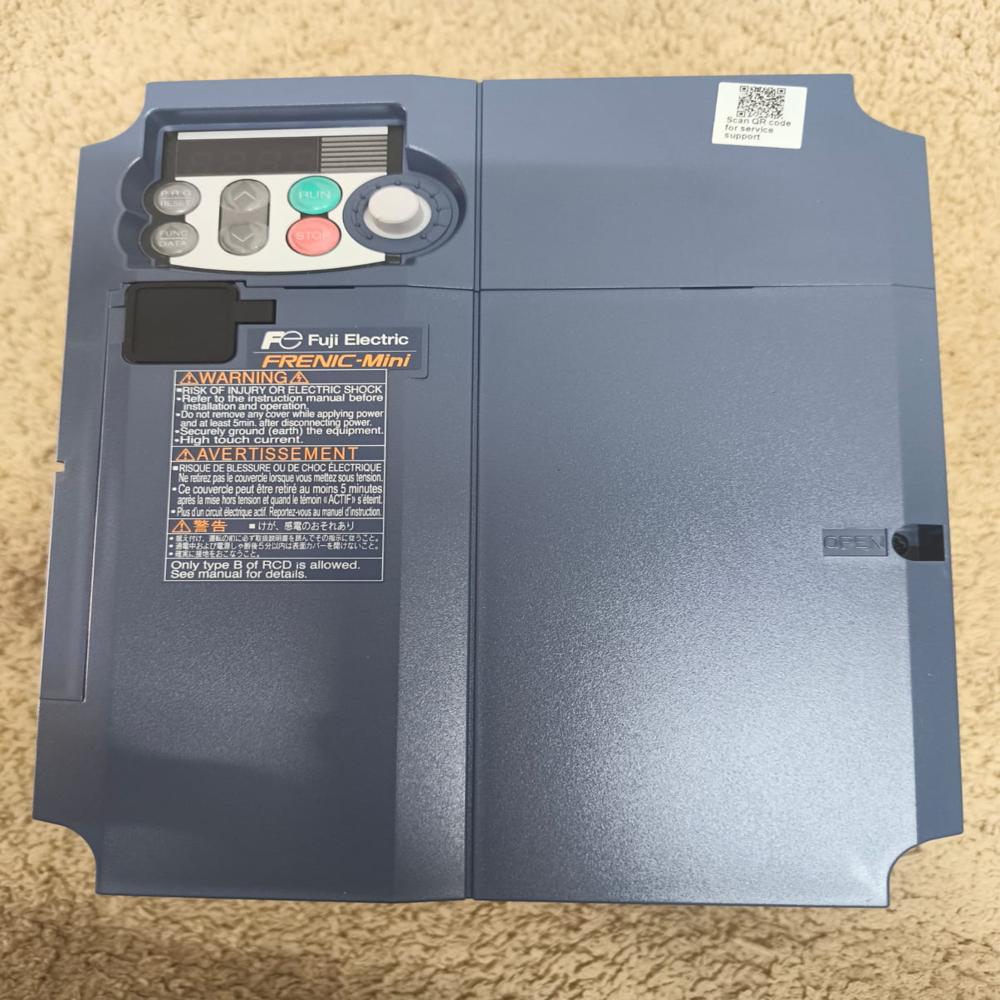

FRN0085E2S-4GB - Fuji ACE 30 KW 40 hp 440V

Price 45100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FRN0085E2S-4GB - Fuji ACE 30 KW 40 hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FRN0085E2S-4GB - Fuji ACE 30 KW 40 hp 440V

FRN0085E2S-4GB

The

Fuji Electric FRN0085E2S-4GB

is a high-performance variable frequency drive (VFD) from the FRENIC-Ace (E2) series. Rated for up to 60 HP, this versatile drive is built for complex industrial tasks, offering precise motor control and advanced safety features.

Manufacturer:	Fuji Electric
Series:	Frenic Ace
Model:	FRN0085E2S-4E
Application:	pumps / fans / general purpose
Capacity, kW:	30 / 37 / 37 / 45
Current, :	60 / 75 / 75 / 85
Main power supply, V:	380-480
Phase:	3
Output frequency, Hz:	25-500
Enclosure:	IP00
Overload capacity, % per 1 min.:	150 / 120 / 150 / 120
Acceleration time, sec:	0-6000
Deceleration time, sec:	0-6000
EMC filter:	-
Braking unit:	optional
Analog input:	1
Digital input:	5
Analog output:	2
Digital output:	2 - transistor
Relay output:	1
RS485 (Modbus RTU):	+
Starting torque:	150%
PID:	PID-Regulation
V/f control mode:	-
Vector control with feedback:	+
Sensorless vector control:	+
Operation temperature, :	-10.....+40
Storage temperature, :	-25.....+65
Dimensions (W x H x D), mm:	326,2550261
Weight, kg:	25

Key Technical Specifications

The drive uses multiple duty ratings, allowing it to be used for different motor capacities and load types:

Rating Type	Motor Capacity	Rated Current	Overload Capacity
Normal Duty (ND)	45 kW (60 HP)	85.0 Amps	120% for 1 min
High Normal Duty (HND)	37 kW (50 HP)	75.0 Amps	120% for 1 min
High Heavy Duty (HHD)	30 kW (40 HP)	60.0 Amps	150% (1m) / 200% (0.5s)

Input Voltage: 3-Phase 380V to 480V AC (+10% / -15%).
Max Output Frequency: Up to 500 Hz.
Efficiency: Approximately 98%.

Dimensions & Weight (Inches)

This 60 HP drive uses a substantial chassis to manage the heat generated by large motor loads.

Measurement	Metric	Imperial (Inches/Lbs)
Width	326.2 mm	12.9 in
Height	550 mm	21.65 in
Depth (Length)	261 mm	10.28 in
Weight	25 kg	55.0 lbs

The Fuji Electric FRN0085E2S-4GB (FRENIC-Ace) is a high-power, intelligent drive designed for motors up to 45kW (60 HP). As part of the "Ace" series, it acts as both a motor controller and a mini-PLC, making it capable of managing complex industrial systems without extra hardware.

Primary Control Functions

Customizable Logic (Built-in PLC): This is the drive's most powerful feature. It contains a built-in logic controller (up to 200 steps) that allows you to program machine sequences, timers, and counters. You can automate your 60 HP system without needing an external PLC.
Triple/Quadruple Ratings: A single drive unit can be programmed to handle different motor sizes based on the load type:
- Normal Duty (ND): Optimized for centrifugal loads like fans and pumps, allowing for a 60 HP motor at 85.0A.
- High Heavy Duty (HHD): Optimized for high-friction starts like mixers or crushers, providing 200% overload protection for a 40 HP motor at 60.0A.
Safe Torque Off (STO): A hardware-based safety function (SIL3/PLe) that physically disables the motor's power path. It allows you to maintain the machine safely without needing large, expensive external magnetic contactors.

Operational Capabilities

Universal Motor Support: It controls standard Induction Motors as well as high-efficiency Permanent Magnet (PM) Synchronous Motors, helping your plant meet modern energy-saving and carbon-reduction goals.
Precision Vector Control: Maintains steady speed and maximum torque even at extremely low speeds or during sudden load spikes. This is critical for 60 HP applications like heavy-duty conveyors or industrial extruders.
High-Speed Output: Capable of reaching up to 500 Hz, which is required for high-speed industrial spindles and specialized machining.
Dynamic PID Control: Includes built-in PID for maintaining constant pressure, flow, or temperature, featuring "anti-windup" logic to prevent system surges during startup.

Safety & Maintenance

Removable Control Terminals: The wiring terminal block is completely detachable. If a drive needs replacing, you can just unplug the block and plug it into the new unitno re-wiring required, which saves hours of downtime.
Predictive Life Diagnostics: It monitors the "health" of its own cooling fans and internal capacitors. It will trigger a warning when these parts reach 90% of their life, allowing you to schedule maintenance before a failure occurs.
Dual RS-485 Ports: Features two communication ports as standard, so you can connect a Touchscreen (HMI) and a PC for programming simultaneously.

Connectivity

Standard Modbus RTU & CANopen: Built-in for easy factory networking.
Expandable: The Ace can accept optional cards for Profibus, DeviceNet, Ethernet/IP, and Profinet, allowing it to fit into any modern 4.0 industrial network.
