Send InquiryGD20-004G-4 - INVT VFD 3.7 kW / 5HP 415V
Price 10700.0 INR/ Number
MOQ : 1 Number
GD20-004G-4 - INVT VFD 3.7 kW / 5HP 415V Specification
- Mounting Type
- DIN-rail mounting
- IP Rating
- 20
- Feature
- Budget Listings
- Humidity %
- 5% to 95%
- Power Rating
- 220V (-15%) to 240V (+10%)
- Product Type
- VFD
- Application
- Industrial Machinery
- Color
- Black
- Usage & Applications
- Industrial Machinery
- Rated Voltage
- 220V (-15%) to 240V (+10%) Volt (V)
- Weight
- 3.1 Kilograms (kg)
- Warranty
- 1 Year
- Input Voltage
- 220V (-15%) to 240V (+10%) Volt (V)
- Phase
- 3 Phase
- Rated Current
- 220V (-15%) to 240V (+10%) Volt (v)
- Material
- Plastic
- Features
- Local Supplier Quotes
GD20-004G-4 - INVT VFD 3.7 kW / 5HP 415V Trade Information
- Minimum Order Quantity
- 1 Number
- Delivery Time
- 24 Hours

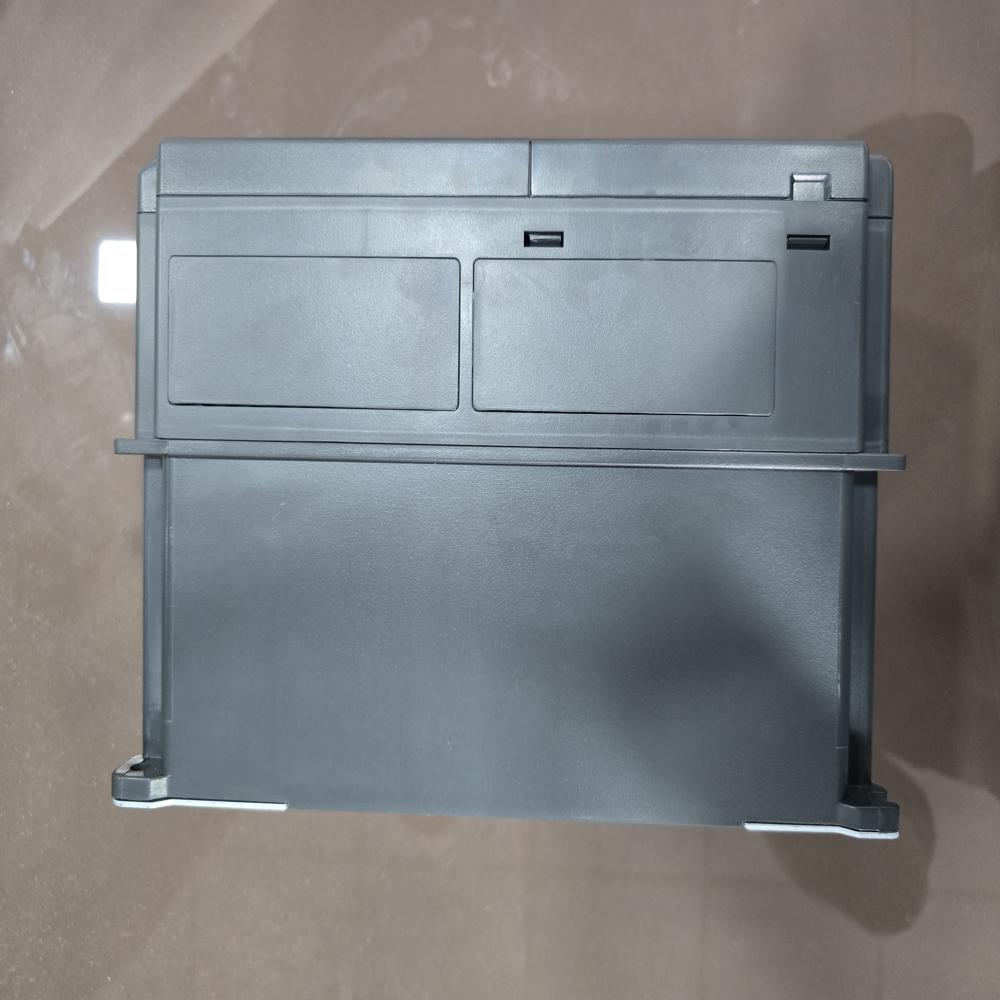

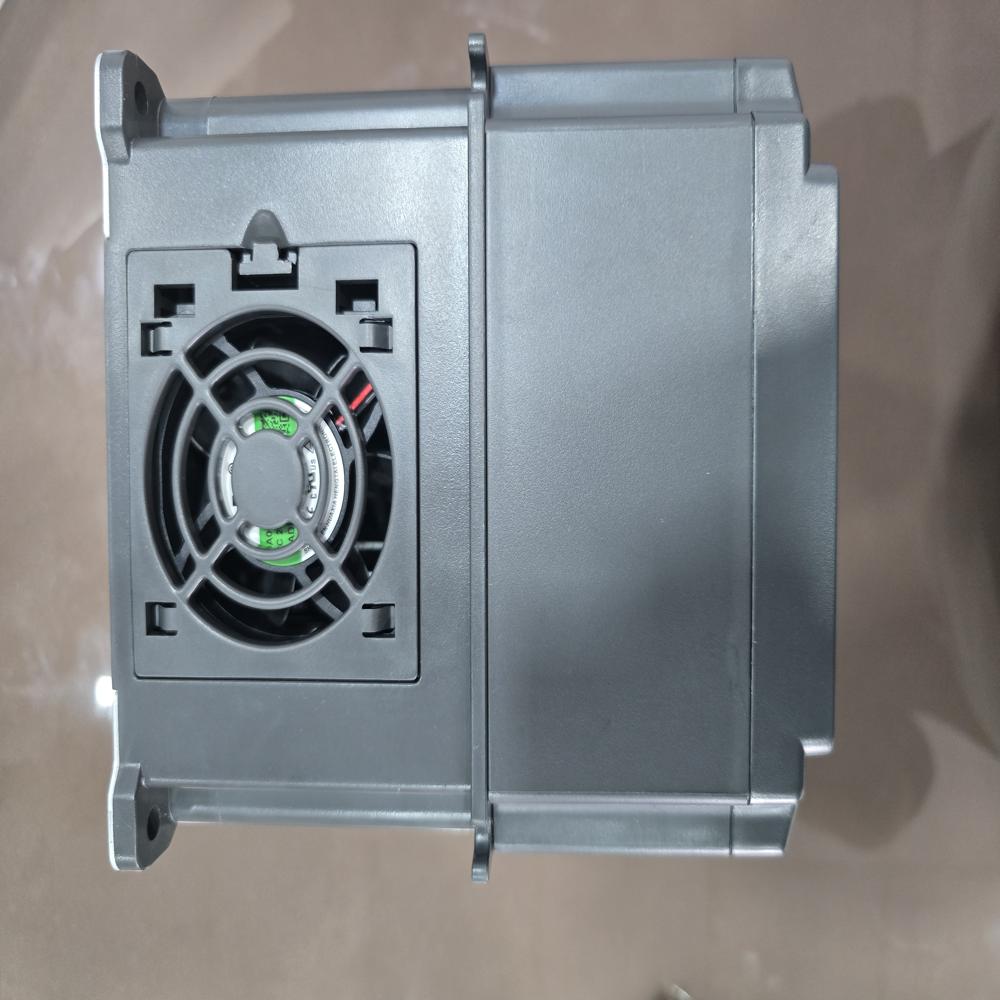

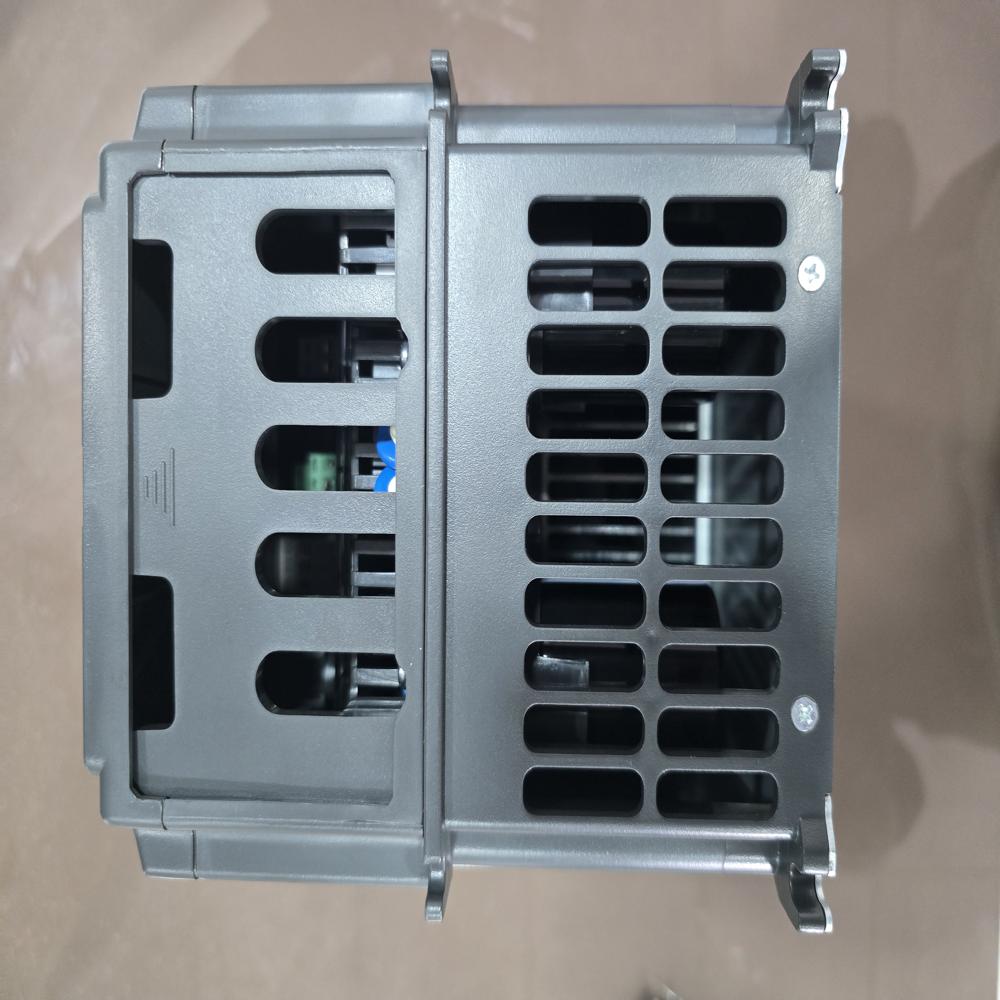

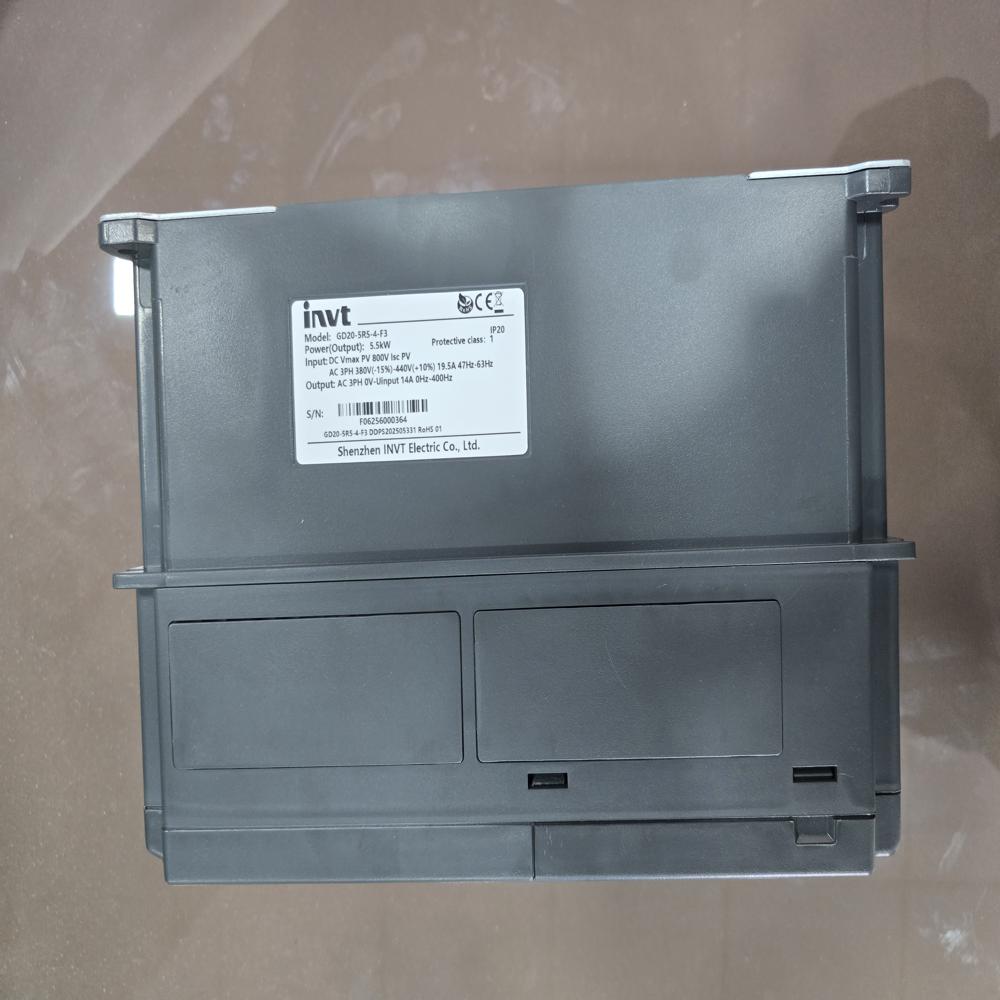

About GD20-004G-4 - INVT VFD 3.7 kW / 5HP 415V
The INVT GD20-004G-4 is a 4.0 kW (5 HP) general-purpose Variable Frequency Drive from the Goodrive20 series, designed for industrial 3-phase 380V440V AC power. It is a high-performance vector control drive that balances a compact footprint with robust industrial features.
| Brand | INVT |
| Model Name/Number | GD20-004G-4 |
| Motor Power | 4KW/5HP |
| Input Voltage | 440V |
| Input Phase | 3 - Phase |
| Running Environment Temperature | -10-50C |
Physical Dimensions (Inches)
This model uses the Frame C chassis, which is larger than the 3 HP models to accommodate higher current and cooling needs.
- Height: 10.08 inches (256 mm)
- Width: 5.75 inches (146 mm)
- Depth (Length): 6.57 inches (167 mm)
- Weight: Approximately 6.8 lbs (3.1 kg)
Key Technical Specifications
- Power Rating: 4.0 kW / 5.0 HP.
- Input Voltage: 3-phase 380V440V AC.
- Output Current: 9.5 Amps.
- Control Modes: Sensorless Vector Control (SVC) and V/f Control.
- Overload Capacity: 150% for 60 seconds; 180% for 10 seconds.
