GD20-022G-4-F3 - INVT VFD 22 kW / 30HP 415V

Name: GD20-022G-4-F3 - INVT VFD 22 kW / 30HP 415V
Brand: Corbital Enterprise
Price: 32000.0 INR
Availability: InStock

Price 32000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD20-022G-4-F3 - INVT VFD 22 kW / 30HP 415V Specification

Humidity %
5% to 95%

IP Rating
20

Mounting Type
DIN-rail mounting

Feature
Built-in MPPT

Product Type
VFD

Power Rating
220V (-15%) to 240V (+10%)

Application
Industrial Machinery

Color
Black

Usage & Applications
Industrial Machinery

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Weight
8 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Material
Plastic

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

Features
Dry-run protection to safeguard

GD20-022G-4-F3 - INVT VFD 22 kW / 30HP 415V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

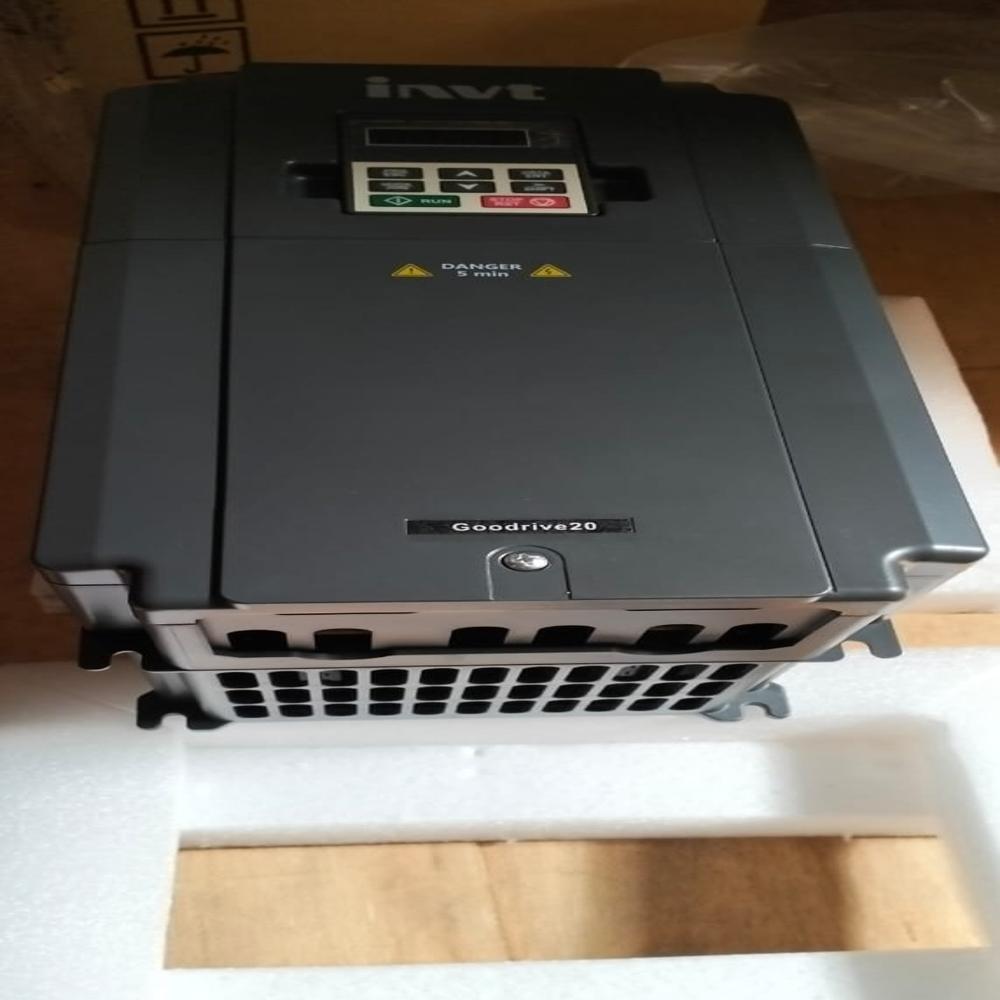

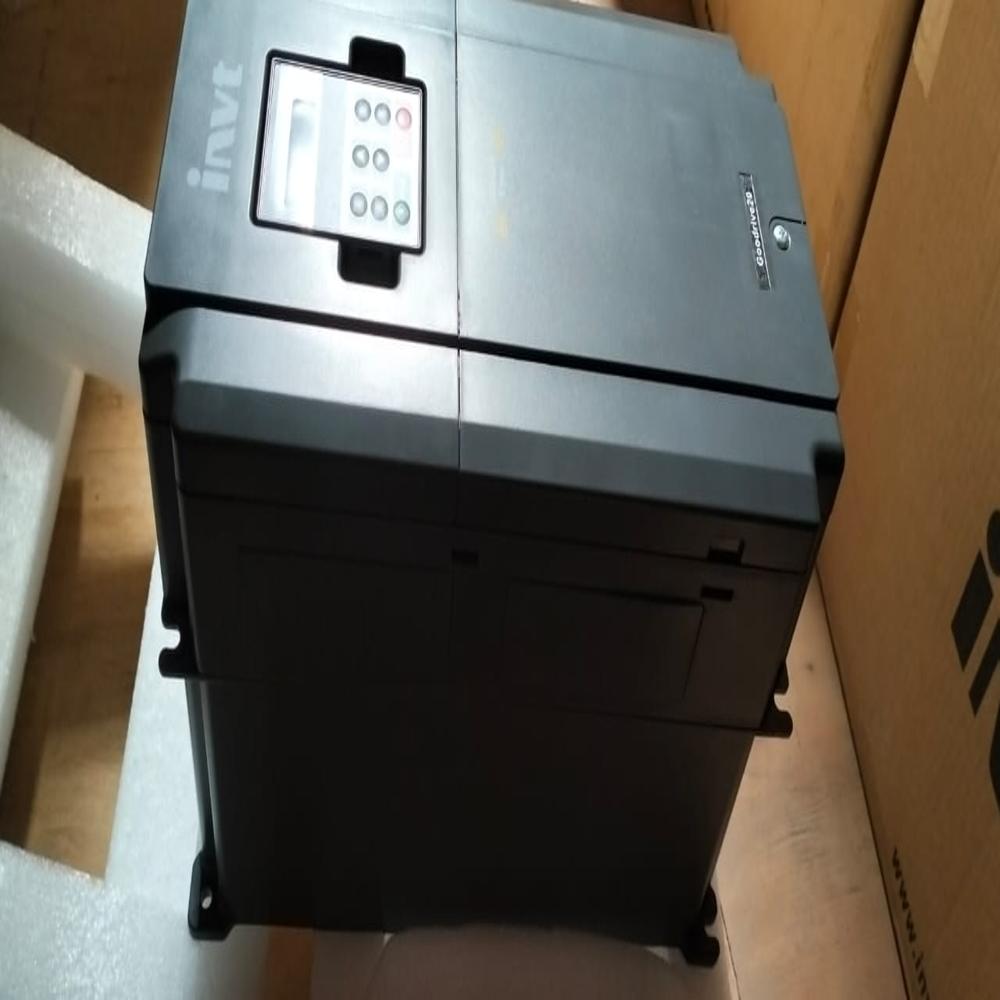

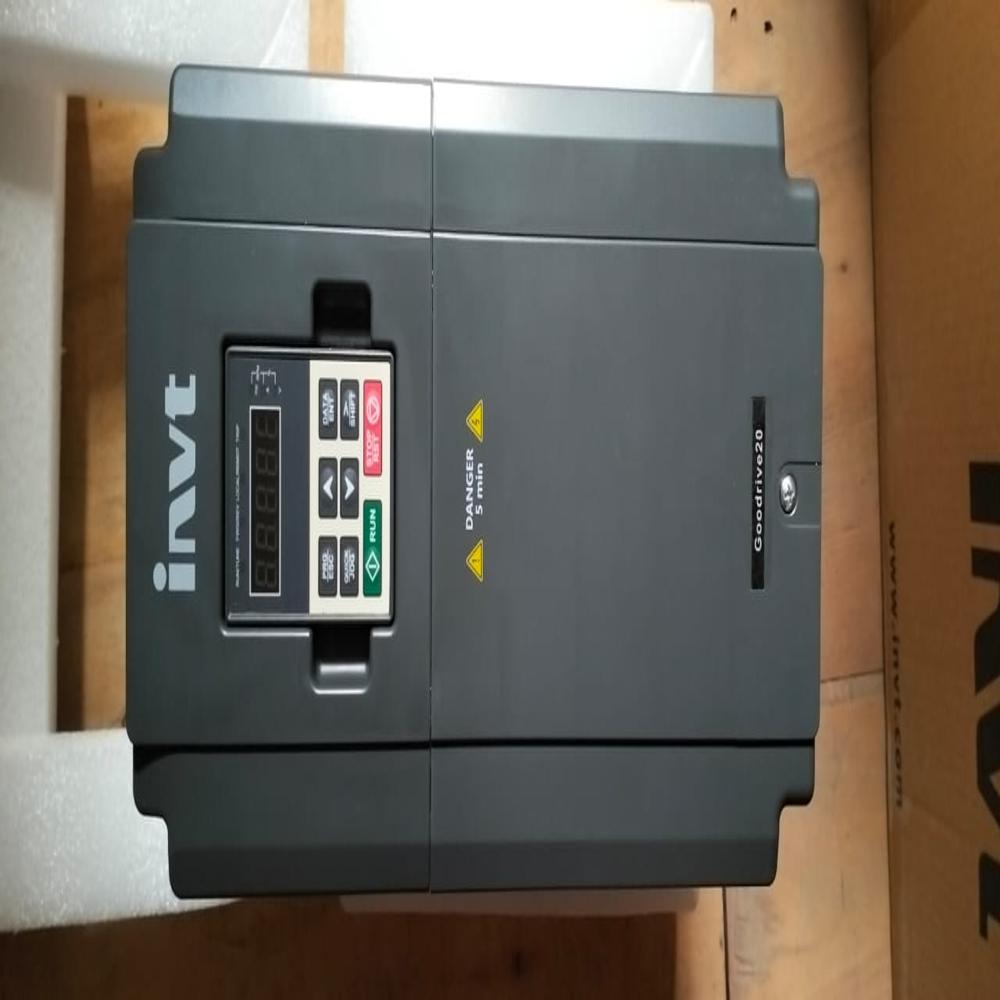

About GD20-022G-4-F3 - INVT VFD 22 kW / 30HP 415V

The

INVT GD20-022G-4-F3

is a 22 kW (30 HP) Variable Frequency Drive (VFD) from the Goodrive20 series. The "-F3" suffix indicates it is a solar-optimized model, specifically designed for water pumping systems using solar power.

Voltage	415V
Brand	INVT
Phase	3 Phase
Phases	Three phase
Running Environment Temperature	-1050 DegreeC Above 40 DegreeC, derate 1% for every additional 1 DegreeC

Physical Dimensions & Weight

This 30 HP model features a significantly larger and more robust chassis compared to lower-power units in the series.

Height: 13.41 inches (340.6 mm)
Width: 7.87 inches (200 mm)
Depth: 7.26 inches (184.3 mm)
Weight: Approximately 17.6 lbs (8.0 kg).

Technical Specifications

Power Rating: 22 kW / 30 HP.
Input Current: 51 A.
Output Current: 45 A.
Voltage Support: Standard 3-phase 380V440V AC; supports high-voltage DC input for solar arrays.
Control Modes: Features Sensorless Vector Control (SVC) and V/F control, delivering 150% torque at 0.5 Hz.
Key Solar Functions: Built-in MPPT (Maximum Power Point Tracking), automatic start

Hardware & Safety

C3 Filter Integration: Comes with a built-in C3 EMC filter to reduce electromagnetic interference with other electronics.
Safe Torque Off (STO): Provides a high-level safety function to prevent accidental motor startups during maintenance.
Reliable Cooling: Equipped with a high-efficiency pluggable cooling fan designed for easy cleaning and replacement in dusty environments.
Modbus Communication: Includes an RS485 port for remote monitoring of pump status and performance data via PLC or IoT devices.
