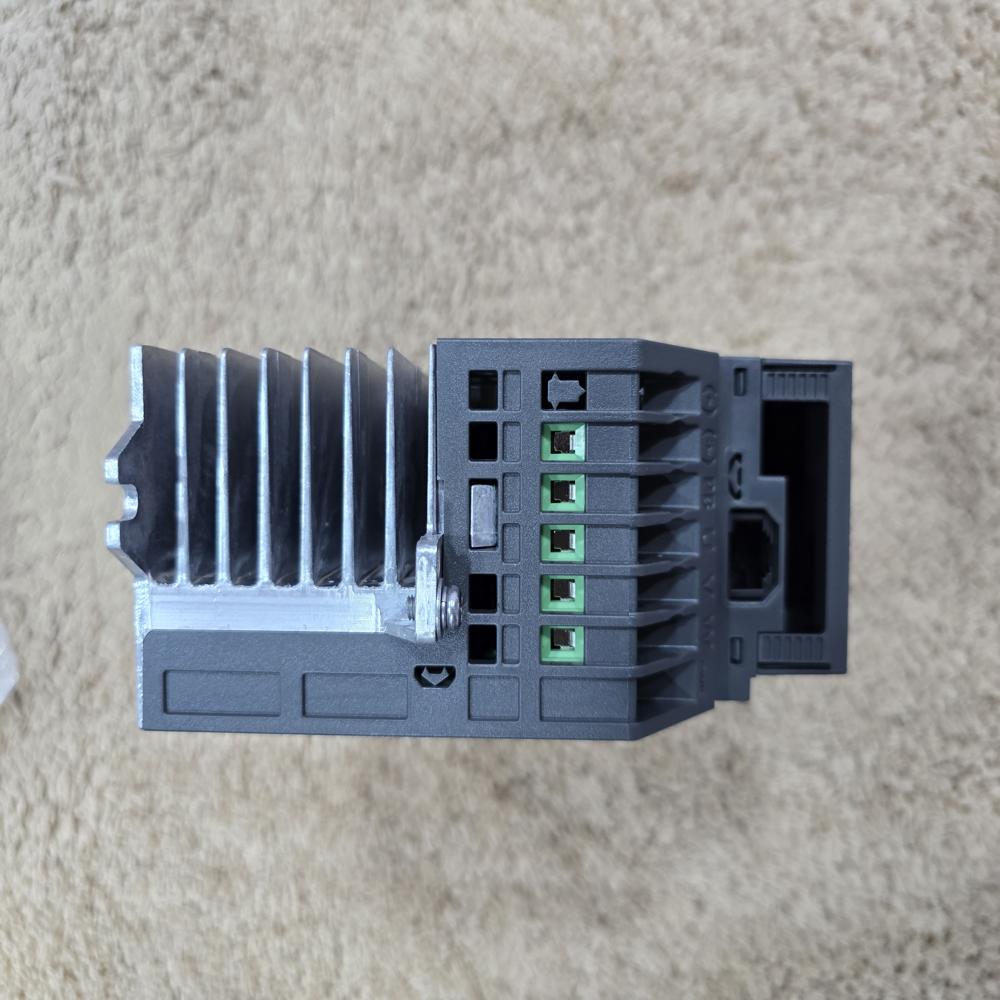

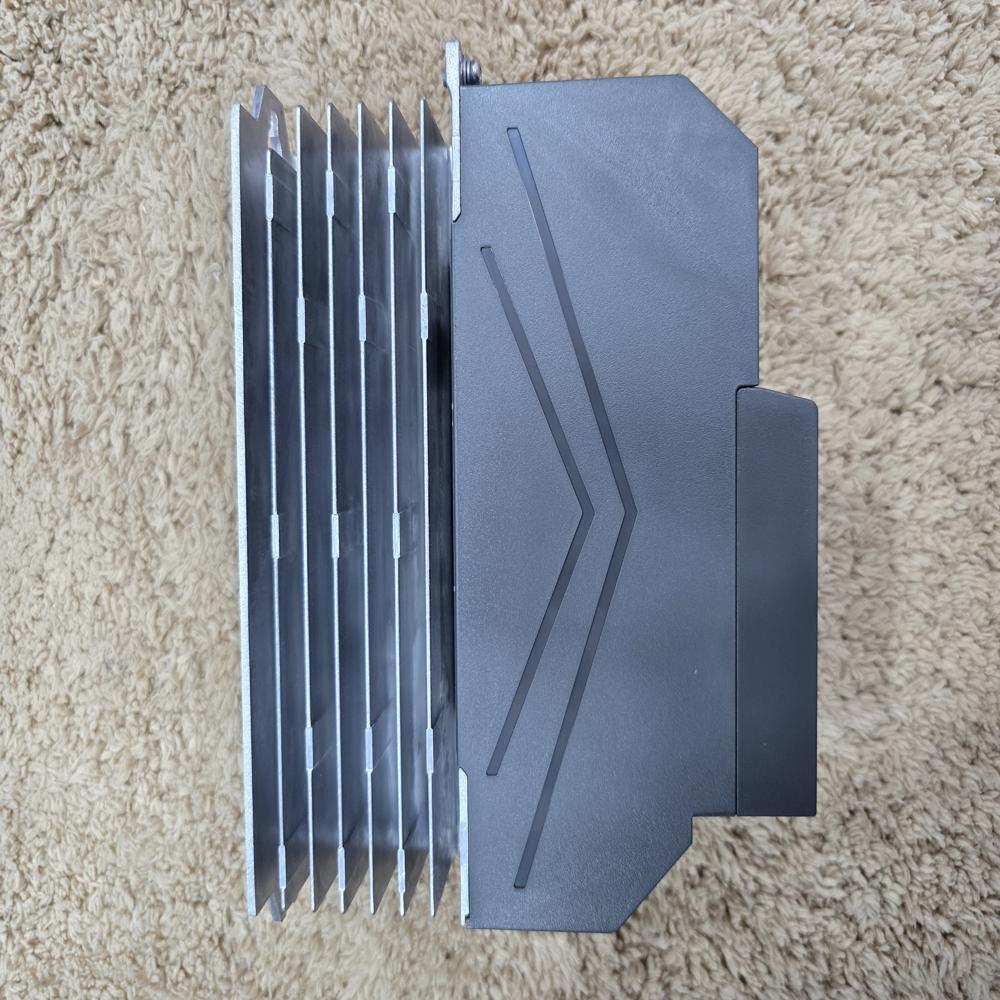

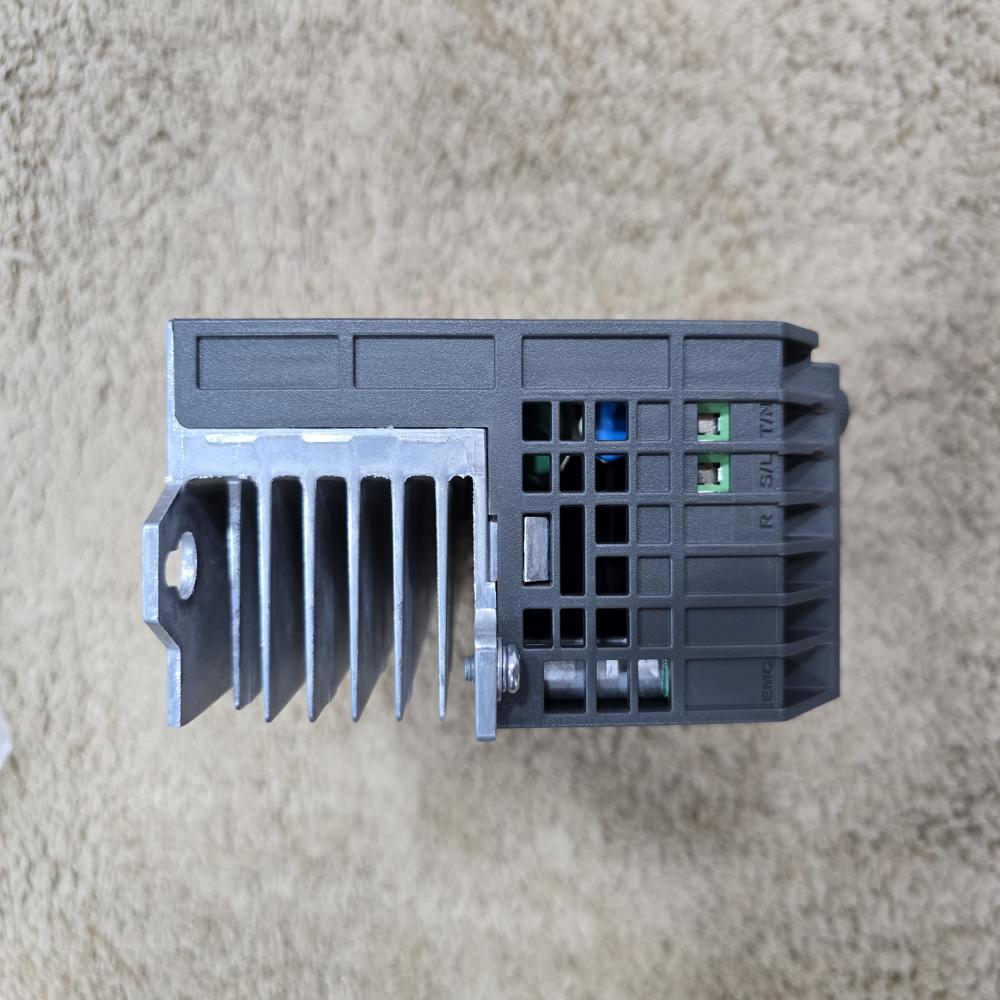

GD20-0R4G-S2 - INVT VFD 0.4 kW / 0.5HP 230V

Name: GD20-0R4G-S2 - INVT VFD 0.4 kW / 0.5HP 230V
Brand: Corbital Enterprise
Price: 5400.0 INR
Availability: InStock

Price 5400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD20-0R4G-S2 - INVT VFD 0.4 kW / 0.5HP 230V Specification

Humidity %
5% to 95%

Mounting Type
DIN-rail mounting

IP Rating
20

Feature
Sensorless Vector Control

Power Rating
220V (-15%) to 240V (+10%)

Product Type
VFD

Application
Industrial Machinery

Color
Black

Usage & Applications
Industrial Machinery

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Weight
900 Grams (g)

Warranty
1 Year

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Phase
1 Phase

Features
Deceleration DC Braking

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

Material
Plastic

GD20-0R4G-S2 - INVT VFD 0.4 kW / 0.5HP 230V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD20-0R4G-S2 - INVT VFD 0.4 kW / 0.5HP 230V

The

INVT GD20-0R4G-S2

is a 0.4 kW (0.5 HP) Variable Frequency Drive (VFD) from the Goodrive20 series. It is a mini general-purpose vector control inverter designed for applications requiring high-performance motor control in a compact footprint.

Manufacturer:	INVT
Series:	GD20-EU
Model:	GD20-0R4G-S2-EU
Application:	general purpose
Capacity, kW:	0.4
Current, :	2.5
Main power supply, V:	200-240
Phase:	1
Output frequency, Hz:	0-400
Enclosure:	IP20
Overload capacity, % per 1 min.:	150
Acceleration time, sec:	0-3600
Deceleration time, sec:	0-3600
EMC filter:	optional
Analog input:	1+1
Digital input:	4+1
Analog output:	1
Digital output:	1
Relay output:	1
RS485 (Modbus RTU):	RS485 (Modbus RTU)
Starting torque:	0.5 Hz / 150% (SVC)
PID:	PID control
V/f control mode:	+
Sensorless vector control:	+
Operation temperature, :	-10.....+50
Dimensions (W x H x D), mm:
