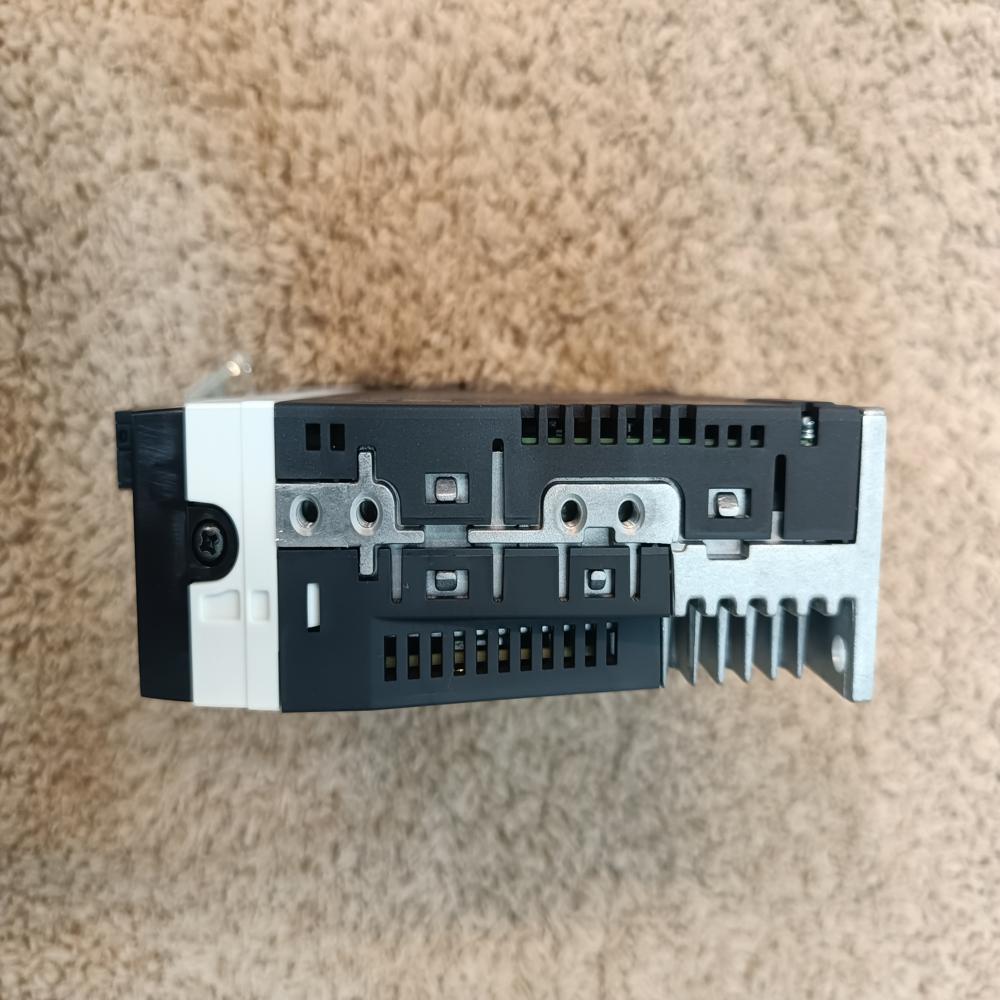

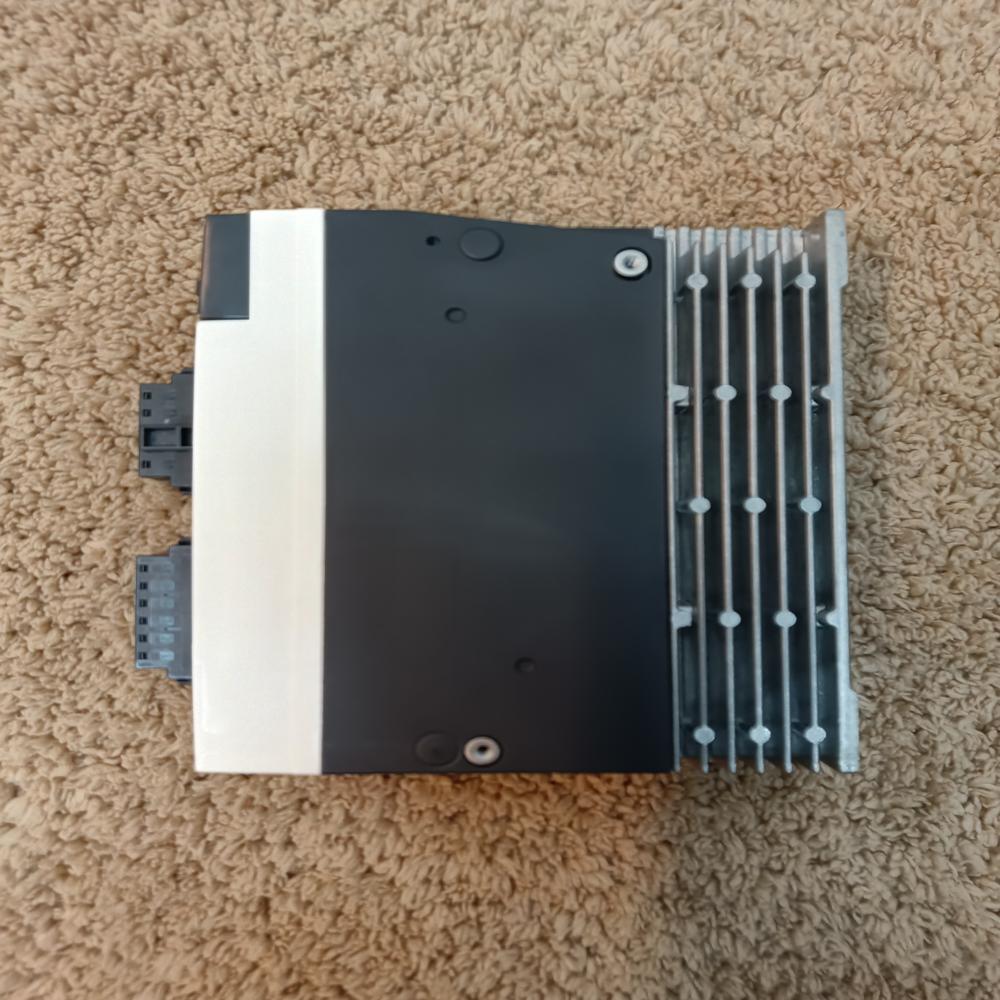

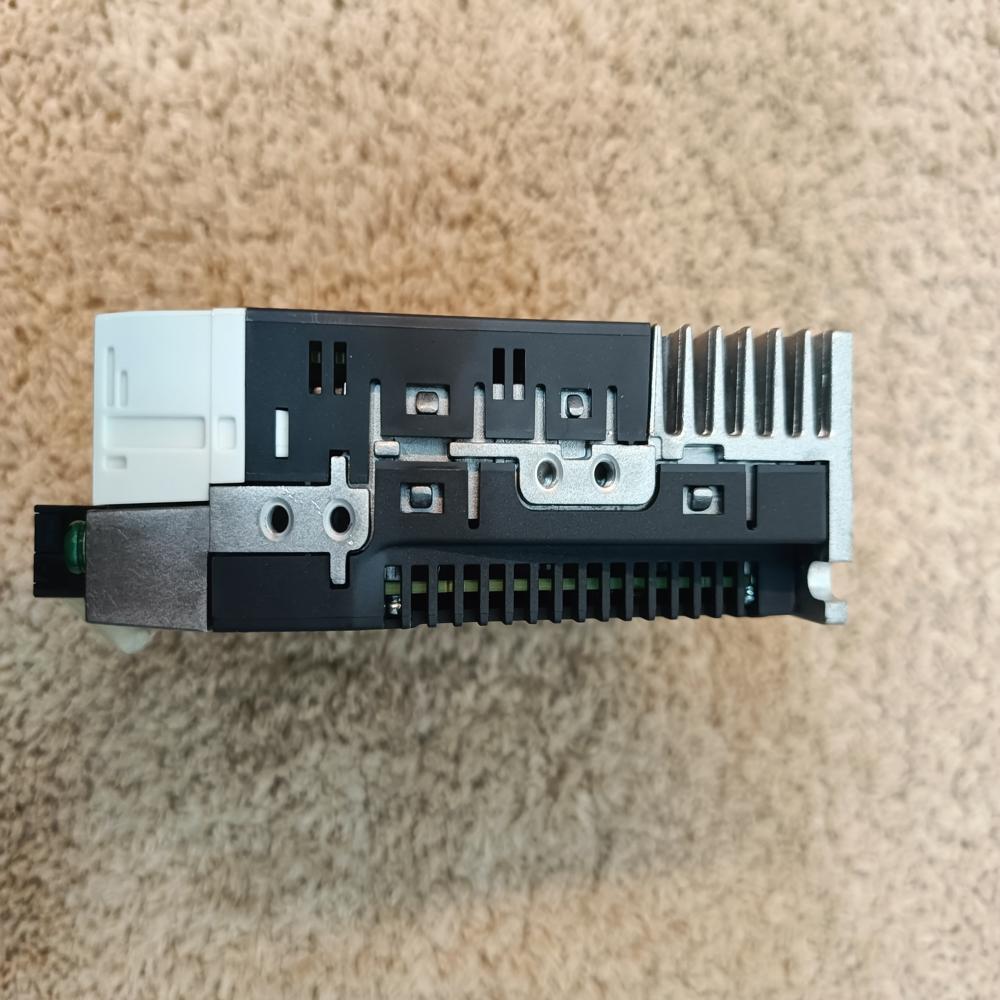

MADLN05SG - A6SG Panasonic A6 100W Driver

About MADLN05SG - A6SG Panasonic A6 100W Driver

• Series: MINAS A6 (A6SG type)
•

• Rated Power: 100 W
•

• Supply Voltage: 200240V AC (single/3-phase)
•

• Control Type: Pulse train (position control mainly)
•

• Communication: RS232 / RS485 / Modbus + USB
•

• Frame: A-frame (compact)
•


• Dimensions (INCH)

  • Width: 1.57 inch
  • Height: 5.91 inch
  • Depth (Length): 5.12 inch

  (From 40 150 130 mm standard A6 frame)

•


•


• Key Features

• 3.2 kHz high-speed response (very fast positioning)
• Position control + internal velocity mode
• 23-bit encoder support (high precision)
• 10 inputs / 6 outputs configurable I/O
• Compact size (~0.8 kg)
•


• Important Difference (A6SG vs A6SF)

• A6SG (MADLN05SG)
  Pulse + RS485/Modbus
  Mainly position control
  No advanced multifunction flexibility

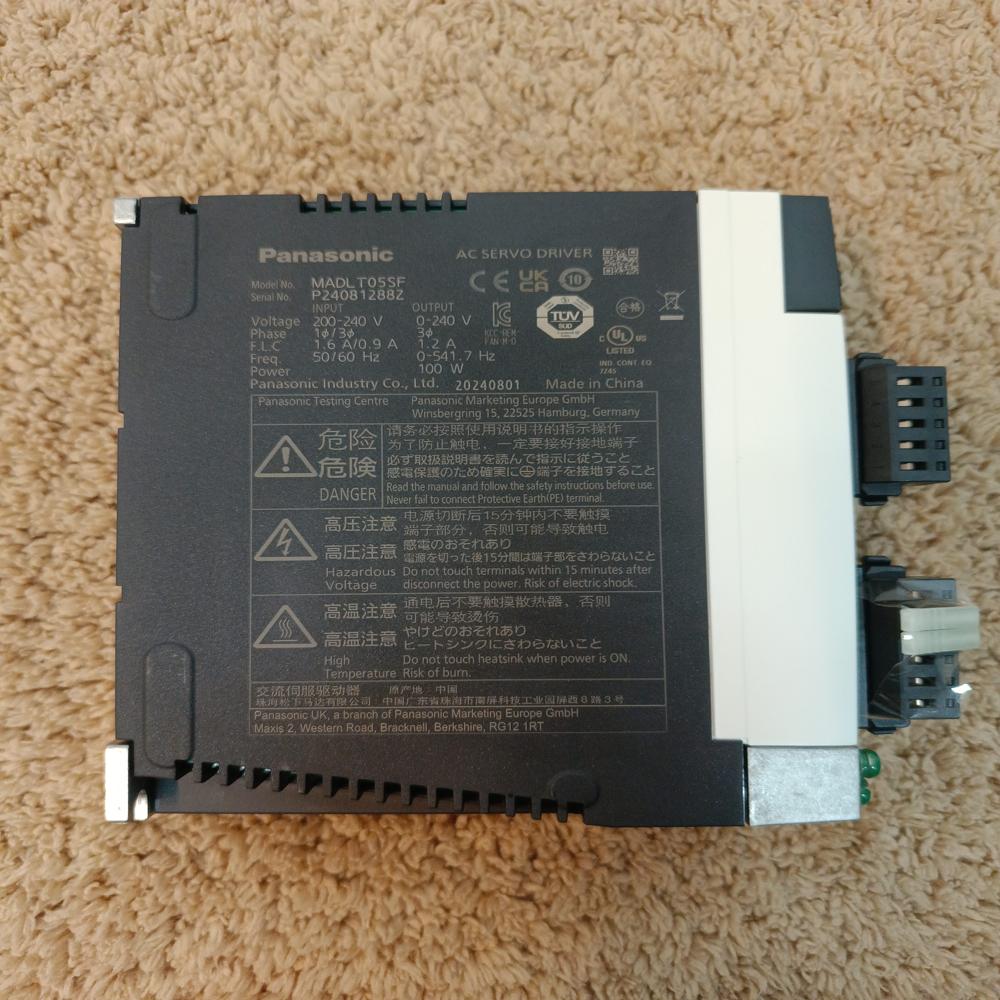

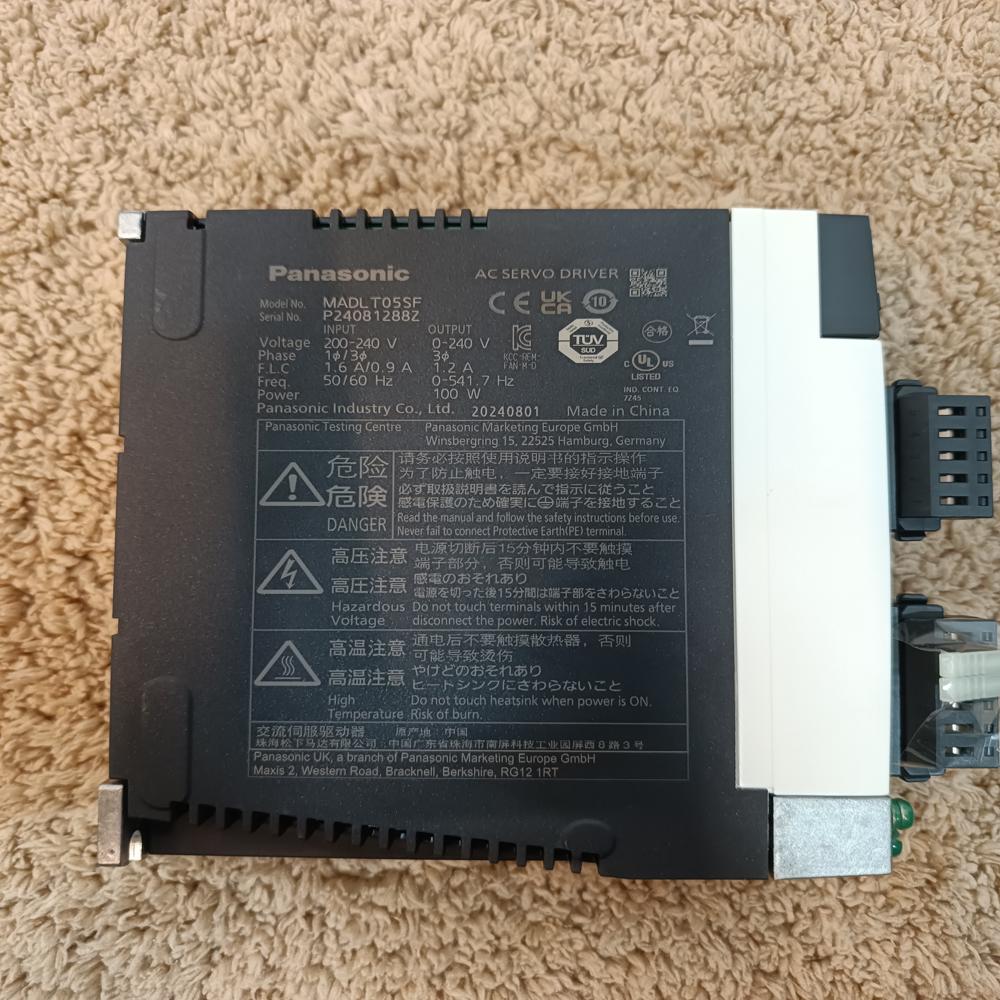

• A6SF (MADLT05SF)
  Full modes (position + speed + torque + closed loop)
  More flexible applications
•


• In short:

  • MADLN05SG = simpler, communication-based positioning driver
  • MADLT05SF = more flexible, multifunction driver
