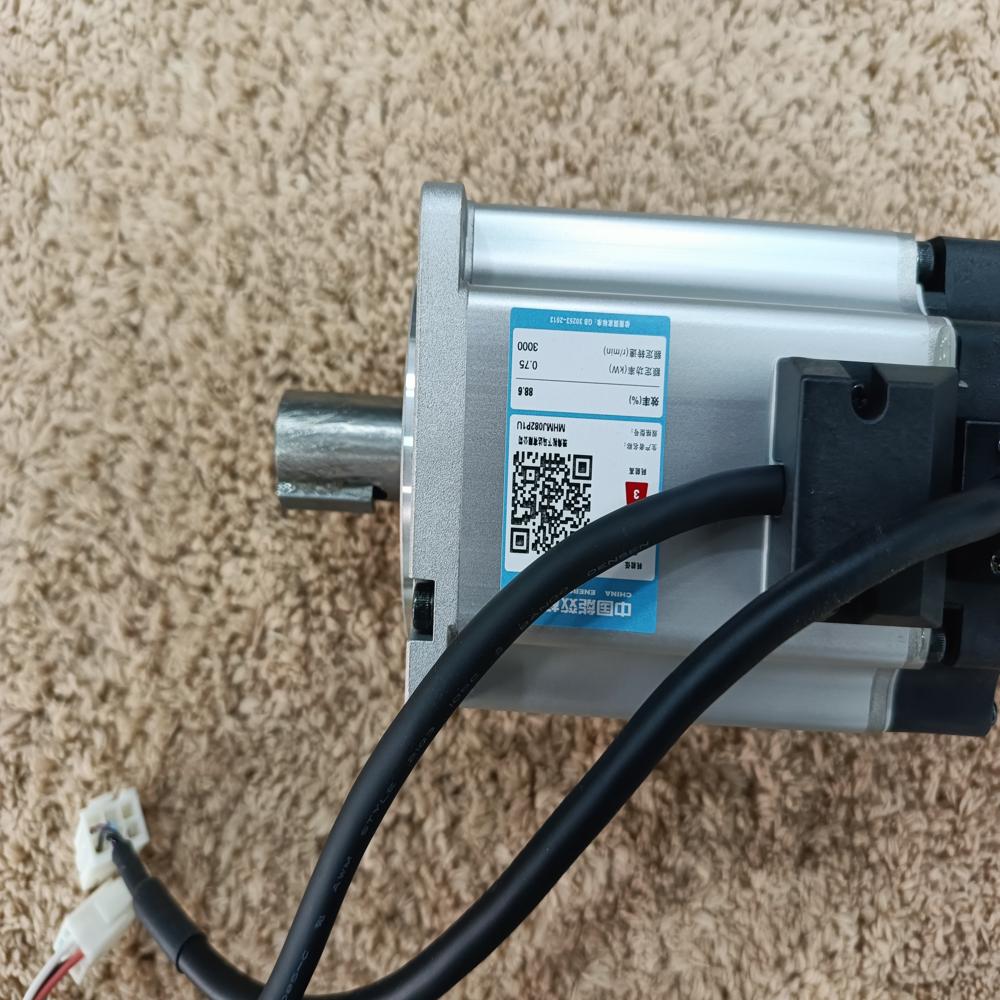

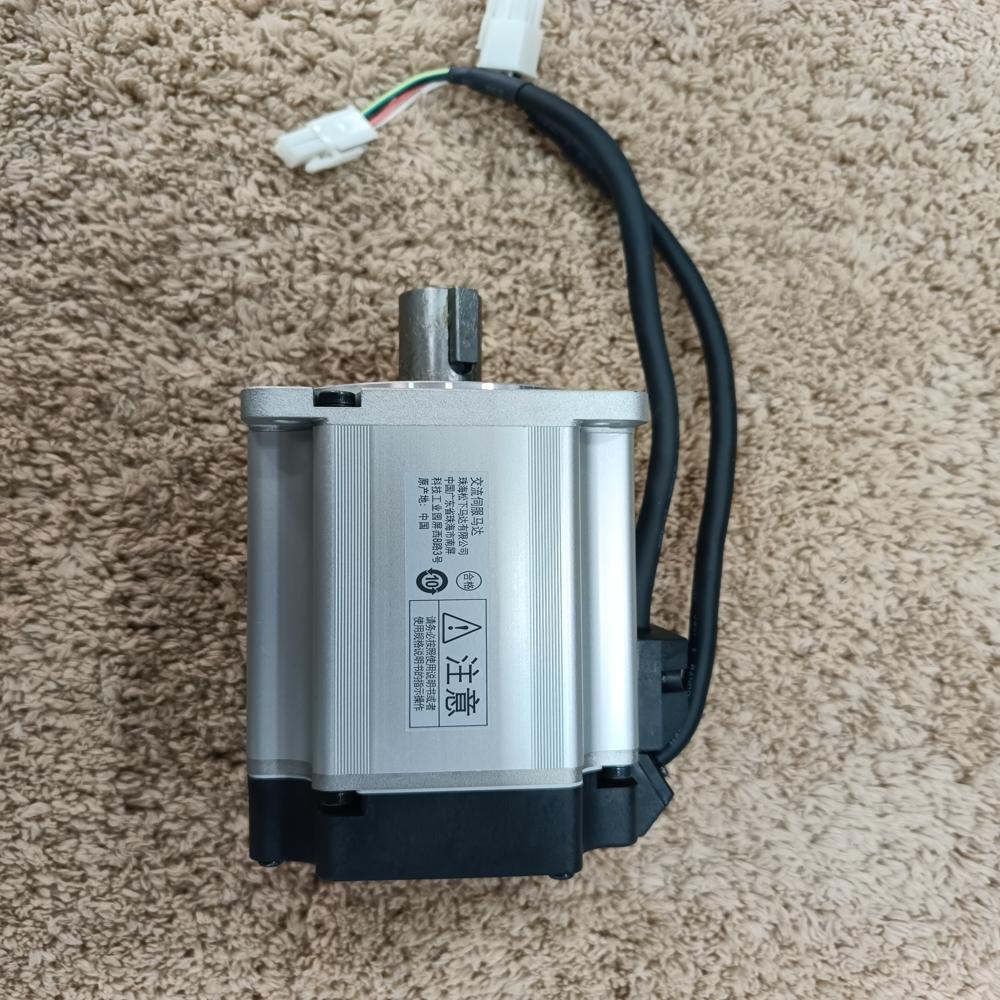

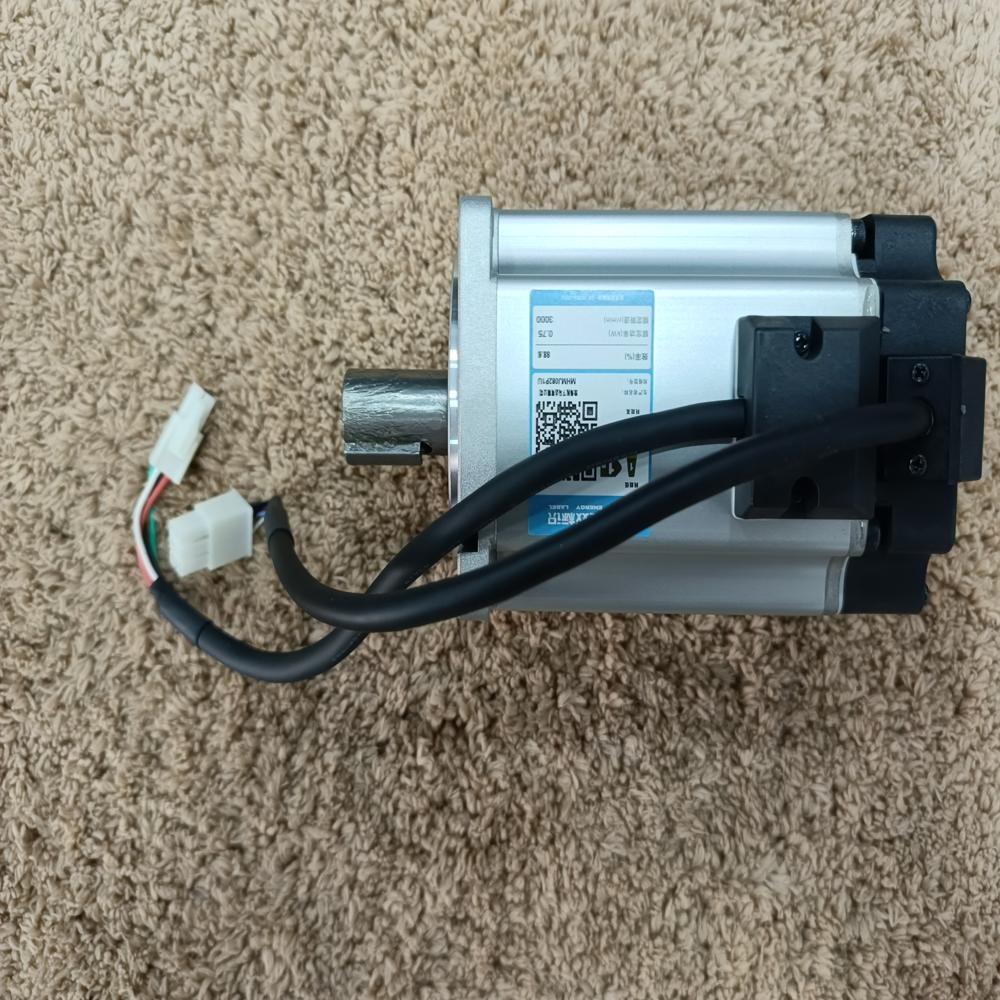

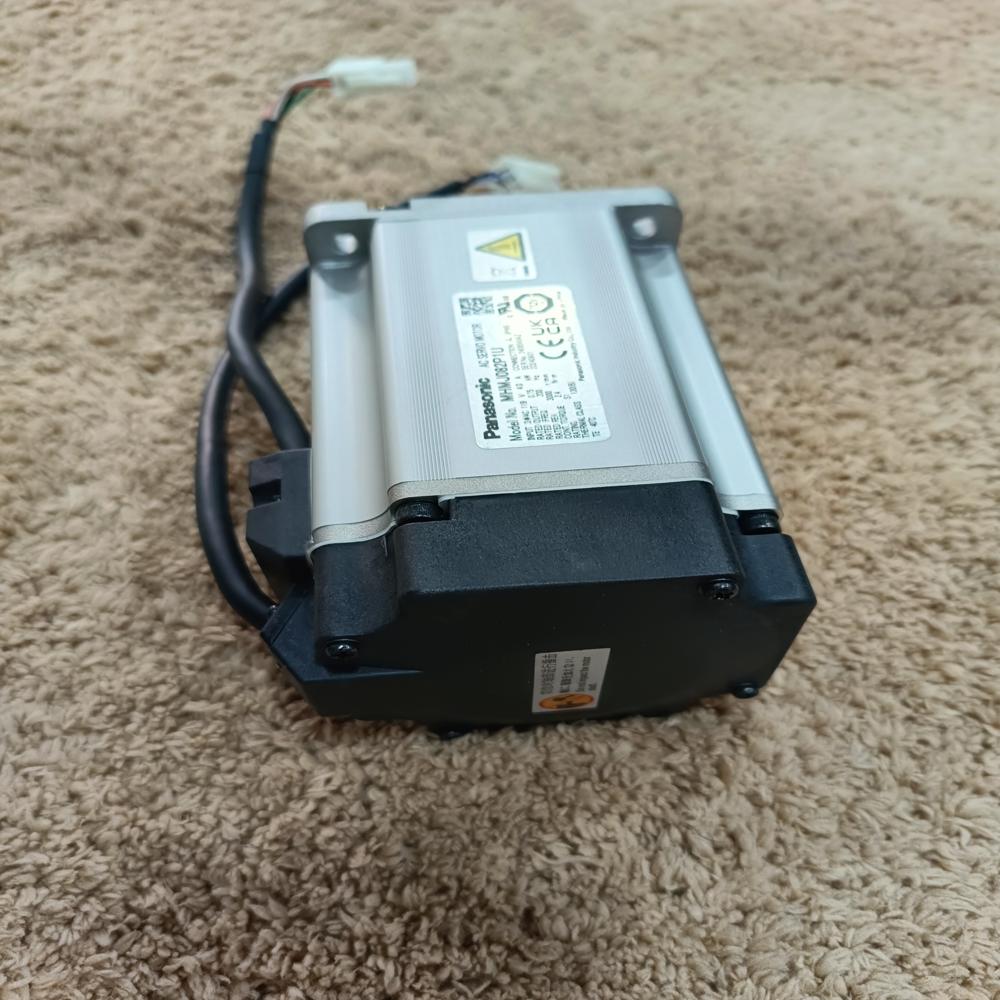

About MSMF082L1U2M Panasonic A6 750W Motor , Torque Nm - 2.39, RPM - 3000

Panasonic MINAS A6 Servo Motor

MSMF082L1U2M (750W)

This is a 750W low-inertia servo motor from Panasonics A6 seriesbasically a bigger, more powerful version of your 400W models.

Key Specifications (Verified)

• Rated Power: 750 W
• Rated Torque: 2.39 Nm
• Peak Torque: 7.16 Nm
• Rated Speed: 3000 rpm
• Max Speed: 6000 rpm
• Voltage: 200 V AC
• Rated Current: ~4.1 A

Mechanical Details

• Frame Size (Flange): 80 mm 80 mm
  3.15 in 3.15 in
• Shaft Type: Keyway (industrial standard)
• Protection: IP65 (dust + oil resistant)

Weight

• Mass: 2.3 kg
  5.07 lb

Performance

• Encoder: 23-bit absolute (8.3 million counts/rev)
• Rotor inertia: 0.96 10 kgm
• Recommended inertia ratio: 20 load

Functional Meaning

• Provides 2.39 Nm continuously at 3000 rpm
• Can deliver high burst torque (7.16 Nm) for acceleration
• Designed for:
  • CNC machines
  • Robotics
  • High-speed automation
  • Packaging / indexing systems

Simple Comparison (vs 400W motor)

So this motor gives ~2 torque with higher load capacity
