About MBDLT25SF - A6SF Panasonic A6 400W Driver

Panasonic Servo Driver

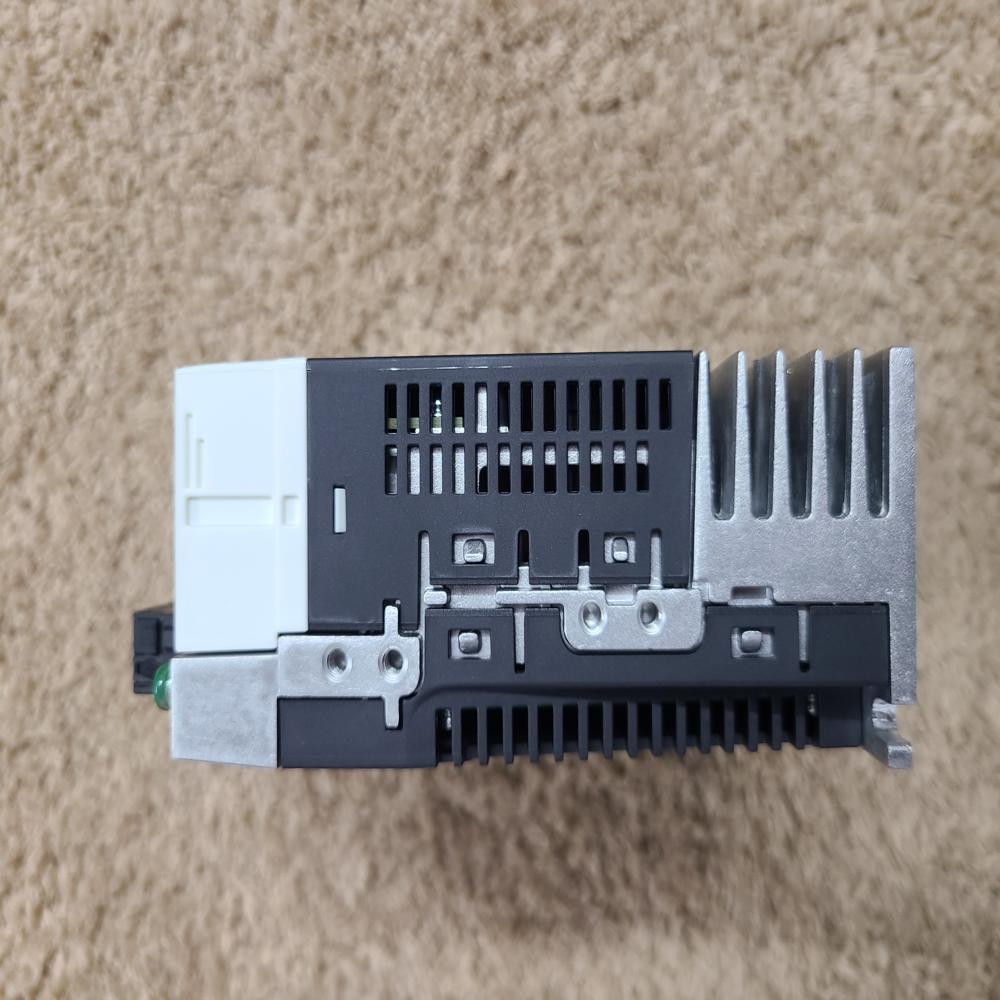

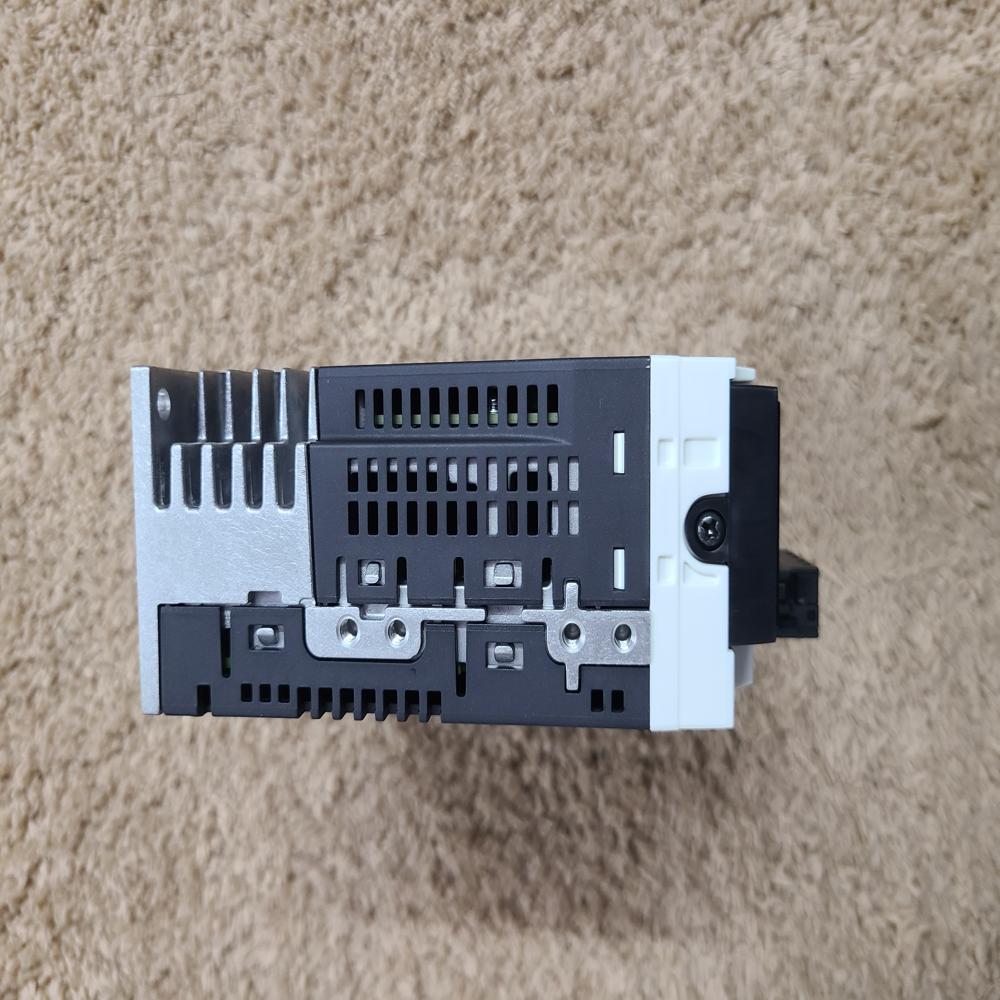

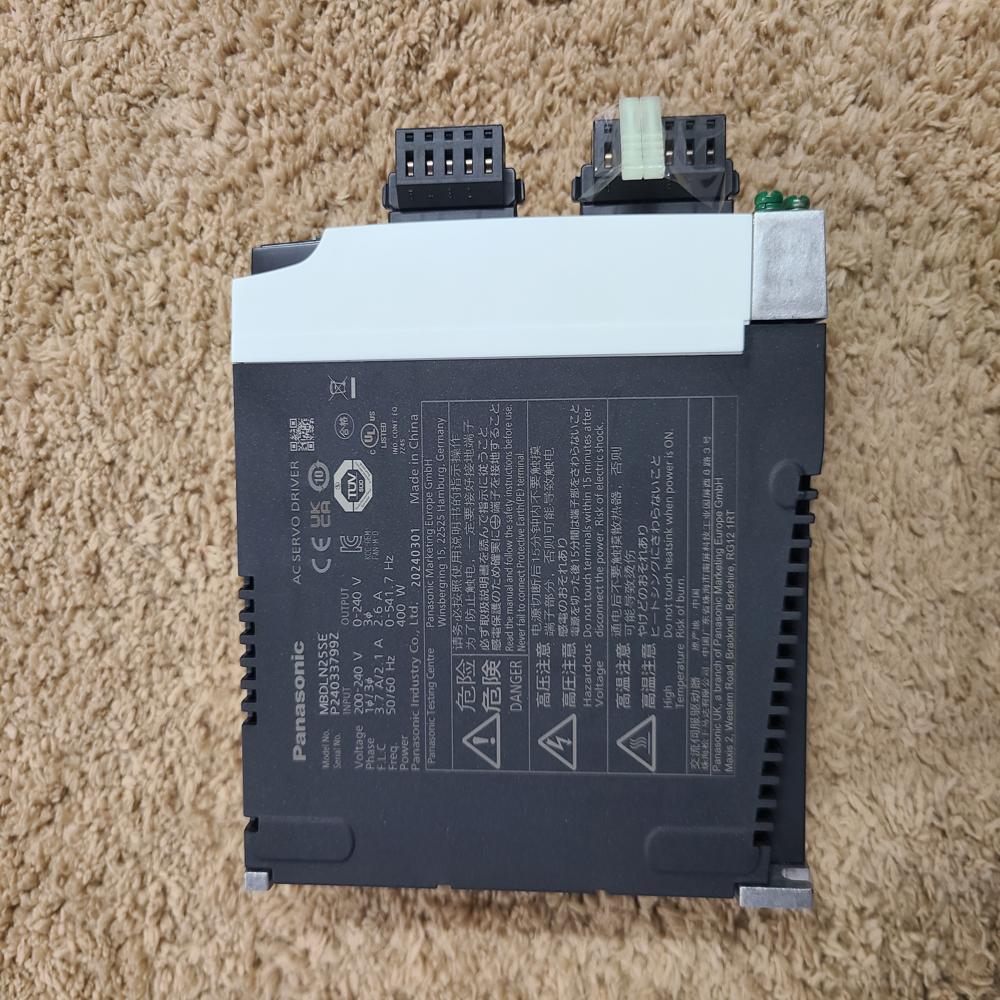

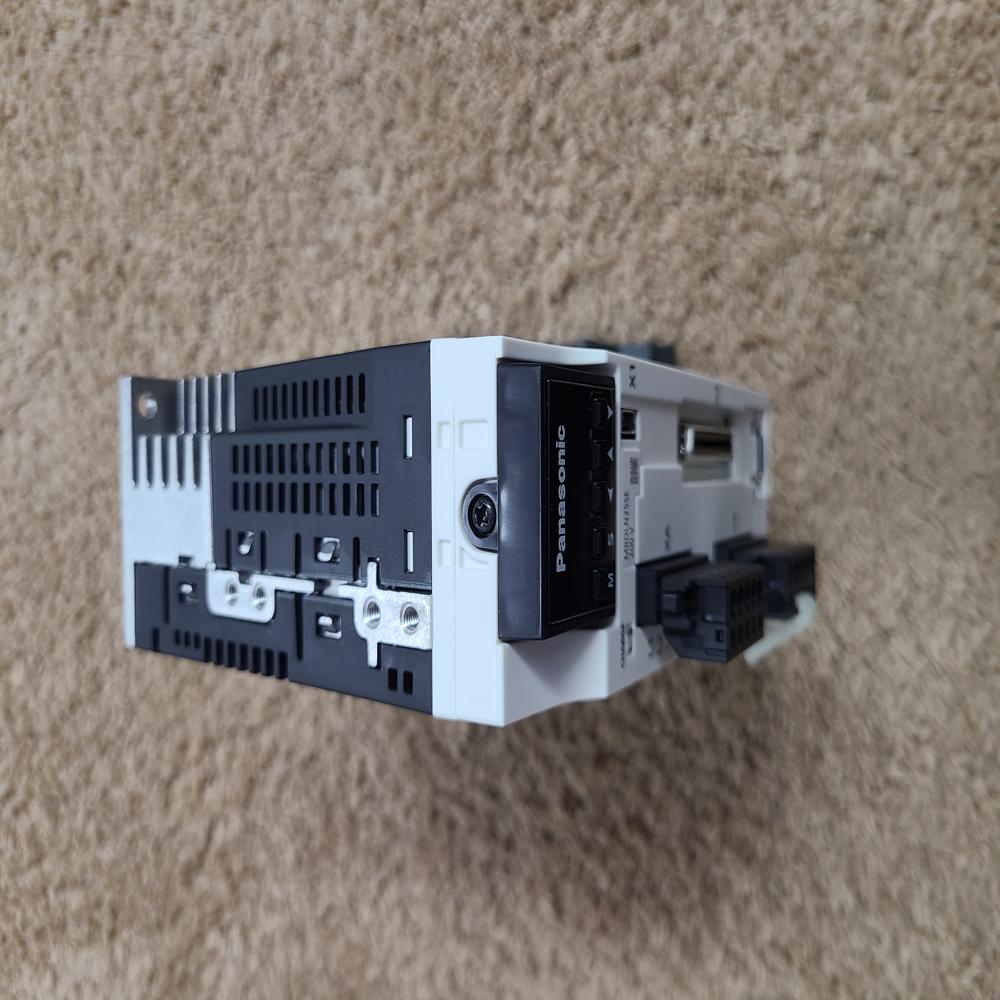

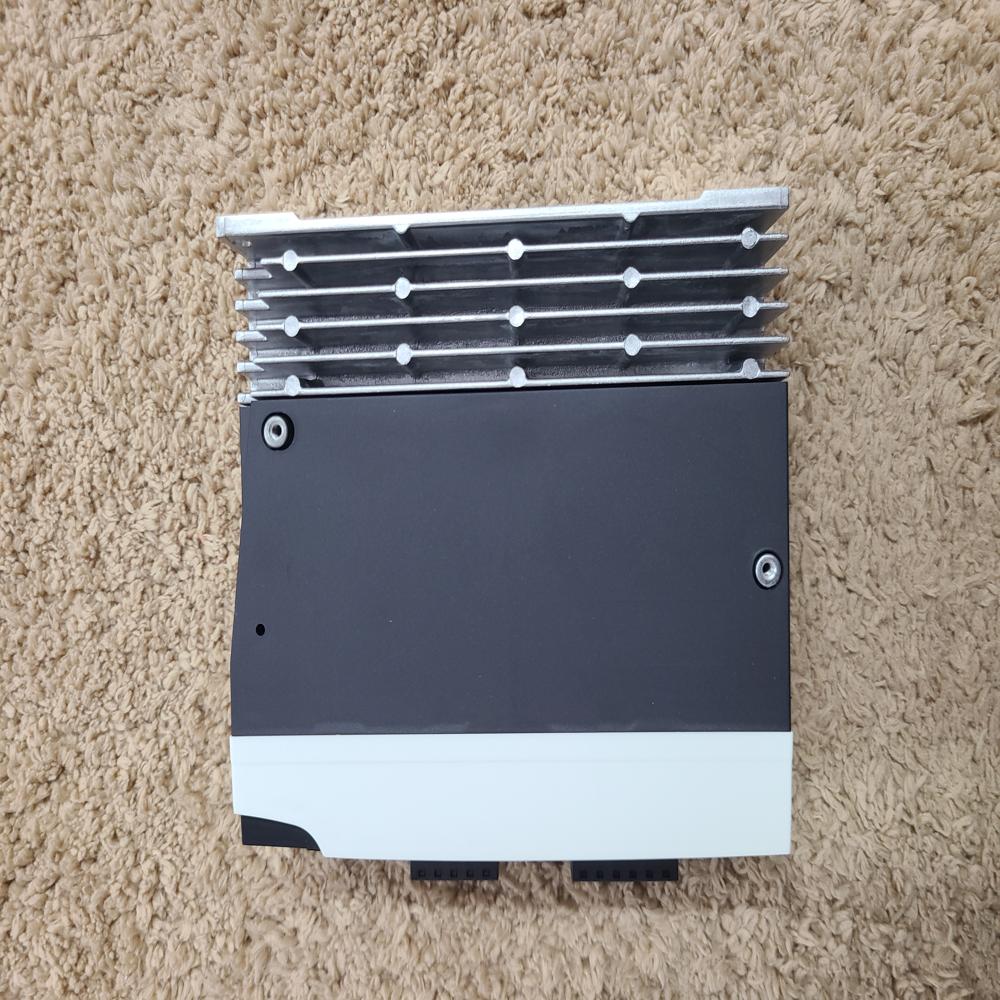

MBDLT25SF (MINAS A6SF 400W Servo Driver)

The MBDLT25SF is the servo drive (amplifier) used to control Panasonic A6 400W servo motors like:

• MHMF042L1V2M
• MQMF042L1V2M
• MSMF042 series motors

Basic Specifications

• Model: MBDLT25SF
• Series: MINAS A6SF
• Rated Output: 400 W motor compatible
• Supply Voltage: 200 V AC (single / 3-phase)
• Control Modes:
  • Position control
  • Speed control
  • Torque control
  • Full closed-loop control

Performance

• Frequency response: 3.2 kHz (very fast servo response)
• Encoder support: 23-bit absolute encoder (8.3 million pulses/rev)
• Control interface types:
  • Pulse / direction input
  • Analog input
  • Full closed-loop feedback
• Communication:
  • RS232
  • RS485
  • Modbus RTU

Safety & Features

• Built-in Safety Torque Off (STO) function
• Auto tuning (real-time gain adjustment)
• Smooth motion filtering (vibration reduction)
• Compact design for panel mounting

Physical Size (Drive)

• Height: ~150 mm
• Width: ~55 mm
• Depth: ~130 mm
• Weight: ~1.0 kg

What it actually does (Function)

This is the brain/controller of the servo system:

It:

• Receives commands from PLC/CNC (pulse or analog)
• Reads motor encoder feedback
• Controls voltage/current to motor phases
• Corrects position in real time (closed-loop control)

Simple Explanation

Motor = muscle
Driver (MBDLT25SF) = brain + power amplifier

Without this driver, the 400W servo motor cannot run or hold position properly.

Typical Applications

• CNC machines
• Robotic arms
• Packaging machines
• Pick & place systems
• Automation axes
