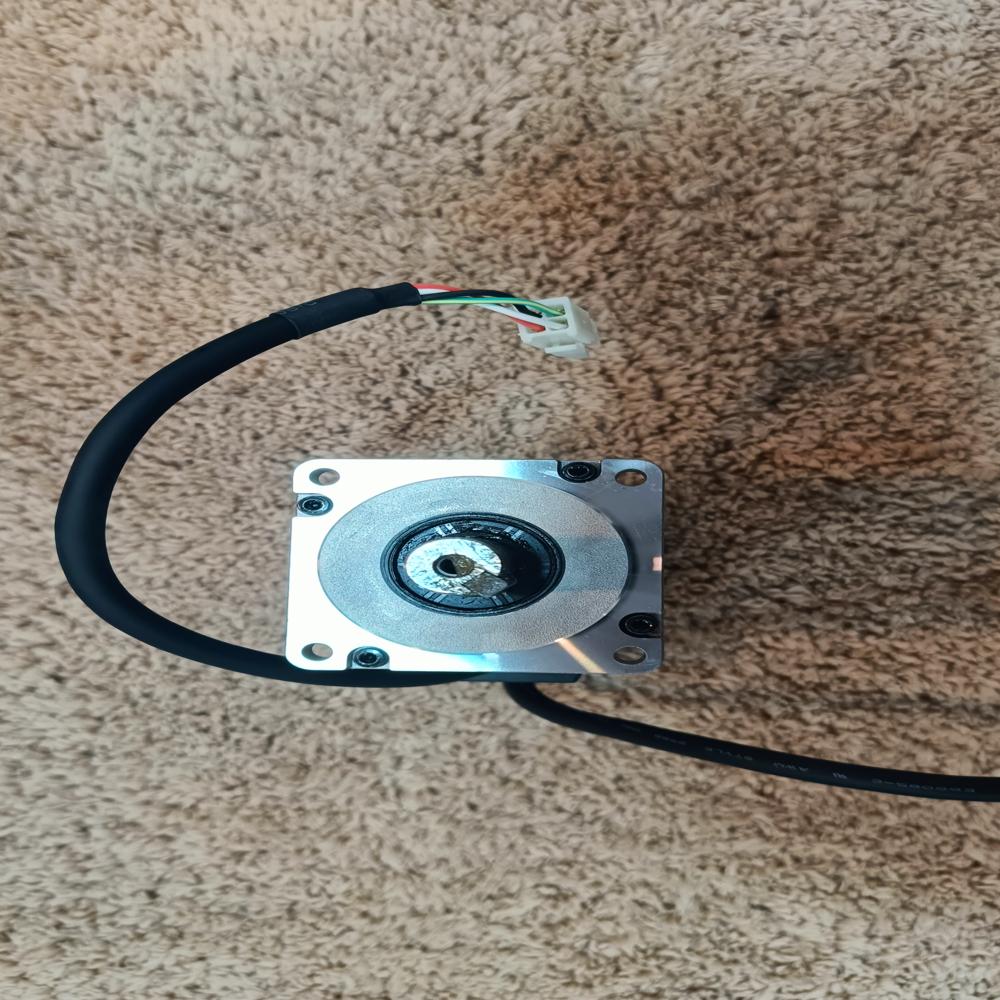

MHMD022G1U - Panasonic A5 Servo Motor

Name: MHMD022G1U - Panasonic A5 Servo Motor
Brand: Corbital Enterprise
Price: 13000.0 INR
Availability: InStock

Price 13000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MHMD022G1U - Panasonic A5 Servo Motor Specification

Torque
0.64 N-m

Rated Voltage
200V 240V Volt (V)

Voltage
200V 240V Volt (v)

Product Type
Servo Motor

Usage & Applications
Industrial Material

Color
Black and Silver

Weight
0.96 Kilograms (kg)

Phase
3 Phase

Warranty
1 Year

Material
Aluminum

Rated Current
200V 240V Volt (v)

Mounting Type
Flange Mount

IP Rating
Ip21

MHMD022G1U - Panasonic A5 Servo Motor Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About MHMD022G1U - Panasonic A5 Servo Motor

The

Panasonic MHMD022G1U

is a high-inertia AC servo motor from the MINAS A5 series. This series is well-regarded for its high-speed response and precision in industrial automation.

MHMD022G1U Panasonic A5 Sereis 200W Motort AC Servo Motor - Panasonic (A5 series - MHM) - Supply voltage 200Vac - Rated power 200W / 0.2kW - Rotational speed (Rated) 3000rpm

Key Technical Specifications

Power Output: 200 Watts (0.2 kW).
Rated Speed: 3,000 RPM.
Rated Torque: 0.64 Nm (approx. 90.6 oz-in).
Input Voltage: 200V AC (Single or Three Phase).
Encoder: 20-bit incremental encoder for high-resolution positioning.
Protection Rating: IP65 (dust-tight and protected against water jets), making it suitable for demanding environments.

Physical Dimensions

Dimension	Measurement (Metric)	Measurement (Approx. Inches)
Flange Size	60 mm sq.	2.36 in sq.
Shaft Diameter	11 mm	0.43 in
Motor Length	8090 mm	3.153.54 in
Weight	0.961.1 kg	2.12.4 lbs

Core Functions & Applications

High Inertia Design: Better suited for applications with fluctuating loads or large mechanical components, as the motor's own inertia helps maintain stability.
Precision Control: Used in Robotics, food processing, and packaging machines where exact movement is critical.
Built-in Features: Typically includes an oil seal and lead-wire type connections, though it is often supplied without a holding brake.

The

Panasonic MHMD022G1U

is a high-inertia AC servo motor from the MINAS A5 family, designed to provide high-precision motion control for industrial machinery. Its primary function is to convert electrical signals into precise mechanical movement (position, speed, and torque) with real-time feedback.

Primary Motion Functions

High-Inertia Control: Unlike "low-inertia" motors that are for lightning-fast starts, this "high-inertia" model is better at maintaining stability when driving heavy or unbalanced loads, such as large mechanical arms or conveyors.
High-Resolution Feedback: It utilizes a 20-bit incremental encoder, providing a resolution of 1,048,576 pulses per revolution. This allows the motor to achieve sub-micron positioning accuracy, making it ideal for tasks like chip mounting or semiconductor inspection.
Dynamic Performance: The motor supports a rated speed of 3,000 RPM (max 5,000 RPM) and provides a rated torque of 0.64 Nm (max momentary peak of 1.91 Nm).

Intelligence & System Functions

Vibration Suppression: When paired with a MINAS A5 driver, it uses adaptive notch filters and damping filters to automatically detect and eliminate mechanical resonance, ensuring smooth operation even in less rigid machinery.
Real-time Auto-tuning: The system can automatically adjust its own "gain" settings to match the load it is carrying, which significantly reduces setup time for new equipment.
Two Degree of Freedom (2DOF) Control: This advanced logic allows the motor to separate its "approach" (how it starts) from its "settling" (how it stops), leading to faster cycle times and improved productivity in robotics.

Protection & Durability Functions

Environmental Sealing (IP65): The motor is dust-tight and resistant to low-pressure water jets, allowing it to function reliably in harsh factory floors, textile plants, or food processing lines.
Safety Isolation: It supports Safe Torque Off (STO) when used with appropriate drivers, providing a hardware-based circuit that instantly cuts motor power during an emergency without the need for traditional magnetic contactors.
Thermal Management: Features built-in overheating protection and uses class F insulation to prevent winding failure during continuous, high-load operations.

Precision and Performance

Engineered for precision, this Panasonic A5 servo motor delivers consistent torque of 0.64 N-m, ensuring accurate motion control in industrial applications. Its robust three-phase design allows for stable operation even in demanding settings, supporting efficient production processes.

Durable and Versatile Design

Constructed from lightweight but sturdy aluminum, this servo motor features a protective IP21 rating and a compact 0.96 kg body. Its flange mounting type makes installation easy, accommodating various industrial systems without extensive modifications.

FAQ's of MHMD022G1U - Panasonic A5 Servo Motor:

Q: How is the Panasonic MHMD022G1U servo motor typically installed?

A: This servo motor employs a flange mounting type, making it easy to securely attach to compatible equipment in industrial automation systems, thereby simplifying the installation process.

Q: What benefits does the MHMD022G1U offer for industrial material handling?

A: With a rated torque of 0.64 N-m and a three-phase power supply, the MHMD022G1U provides precise motion control, enhancing productivity and reliability in material handling and automation tasks.

Q: Where can the MHMD022G1U servo motor be applied?

A: This servo motor is suitable for a variety of industrial settings, including automated assembly lines, robotic arms, and other applications where precise torque and dependable performance are required.

Q: What process is required to ensure optimal performance of the MHMD022G1U?

A: To optimize performance, ensure the servo motor is installed securely using the flange mount, operated within the rated voltage (200V-240V), and protected from water or dust exposure in accordance with its IP21 rating.

Q: How does the warranty support buyers of the MHMD022G1U servo motor?

A: The MHMD022G1U comes with a one-year warranty, providing assurance against manufacturing defects and allowing users to confidently deploy the motor in critical industrial applications.

Q: What materials are used in the construction of this servo motor?

A: The primary material used is aluminum, contributing to the servo motor's lightweight structure (0.96 kg) and resistance to corrosion in industrial environments.
