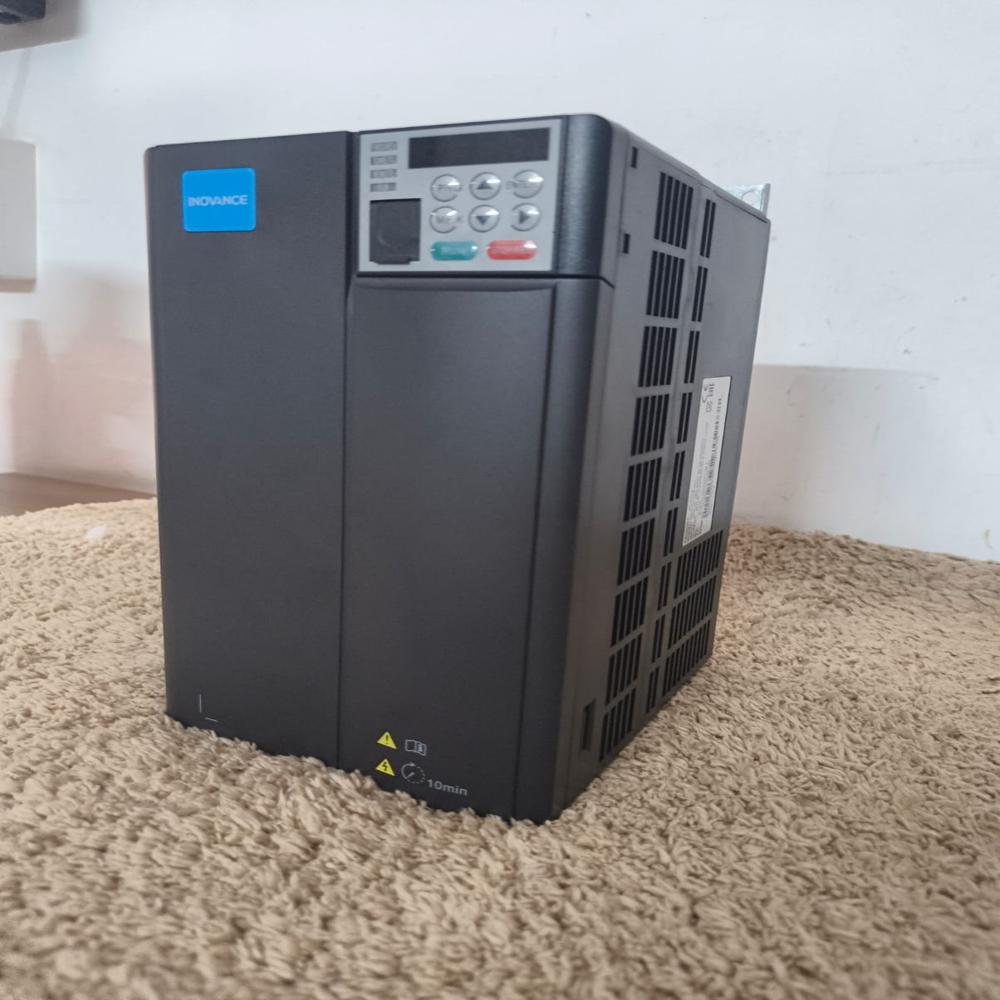

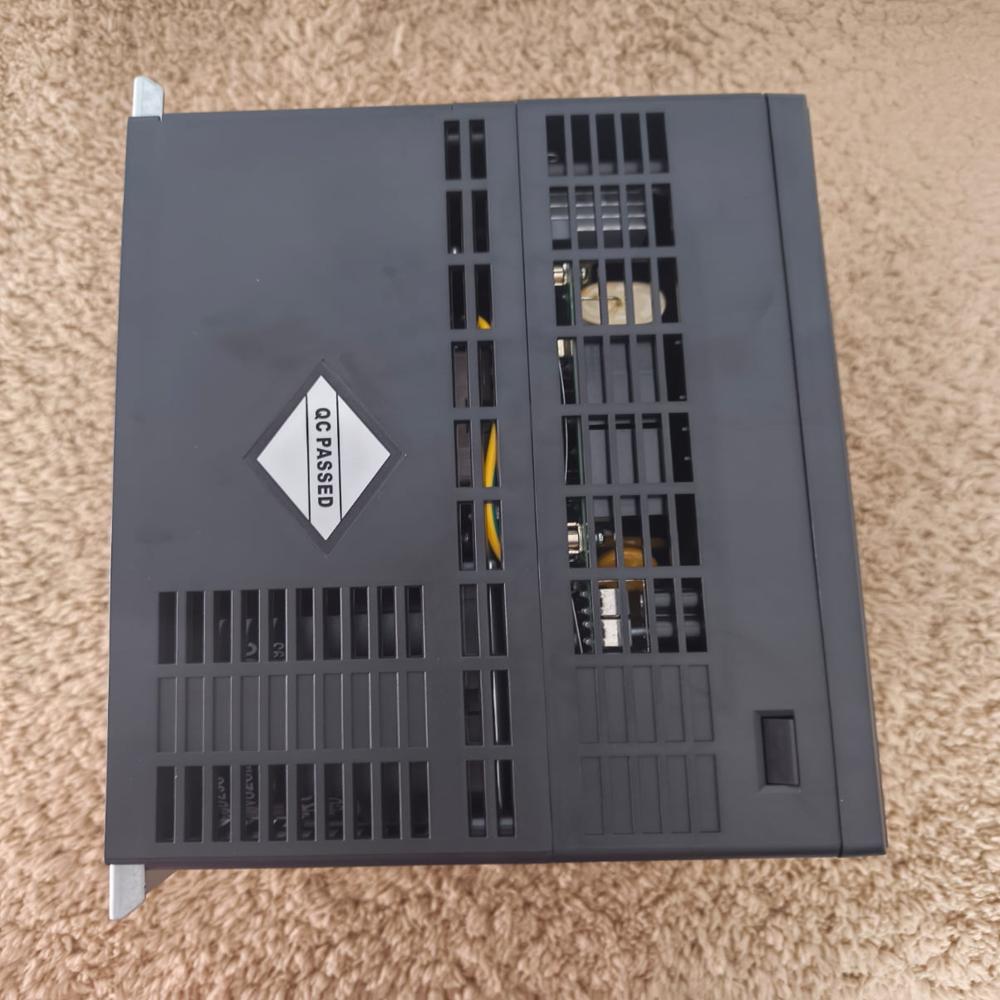

MD200T2.2B - 3 hp - MD200 - 3 Phase - Inovance Ac Drive

Name: MD200T2.2B - 3 hp - MD200 - 3 Phase - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 9800.0 INR
Availability: InStock

Price 9800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD200T2.2B - 3 hp - MD200 - 3 Phase - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
1.1 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD200T2.2B - 3 hp - MD200 - 3 Phase - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD200T2.2B - 3 hp - MD200 - 3 Phase - Inovance Ac Drive

The Inovance MD200T2.2B is the 3 HP (2.2 kW) variant of the 3-phase MD200 series. It offers higher current capacity while maintaining the same ultra-compact "book-style" design as the lower-power models in the range.

Dimensions & Weight

This model fits the same physical footprint as the 0.5 HP to 2 HP 3-phase units, making it easy to swap or upgrade within a panel.

Specification	Metric Value	Inch Value (Approx.)
Height	180 mm	7.09 in
Width	75 mm	2.95 in
Depth	145 mm	5.71 in
Weight	1.1 kg	2.43 lbs

Key Technical Data

Rated Power: 2.2 kW (3 HP).
Input Voltage: 3-Phase 380 V to 480 VAC.
Rated Output Current: 5.5 A.
Braking: Includes a built-in braking unit (the "B" designation) for high-inertia loads.
Overload Capacity: 150% of rated current for 60 seconds.

Core Functions

Control Modes: Sensorless Vector Control (SVC) for precision and V/F control for general use.
Starting Torque: 150% at 3 Hz (SVC).
Protection: Built-in Category C3 EMC filter and conformal-coated PCBs to resist industrial contaminants.
Communications: Modbus-RTU as standard.

Typical Applications

Because of its 5.5 A output, this 3 HP model is ideal for:
