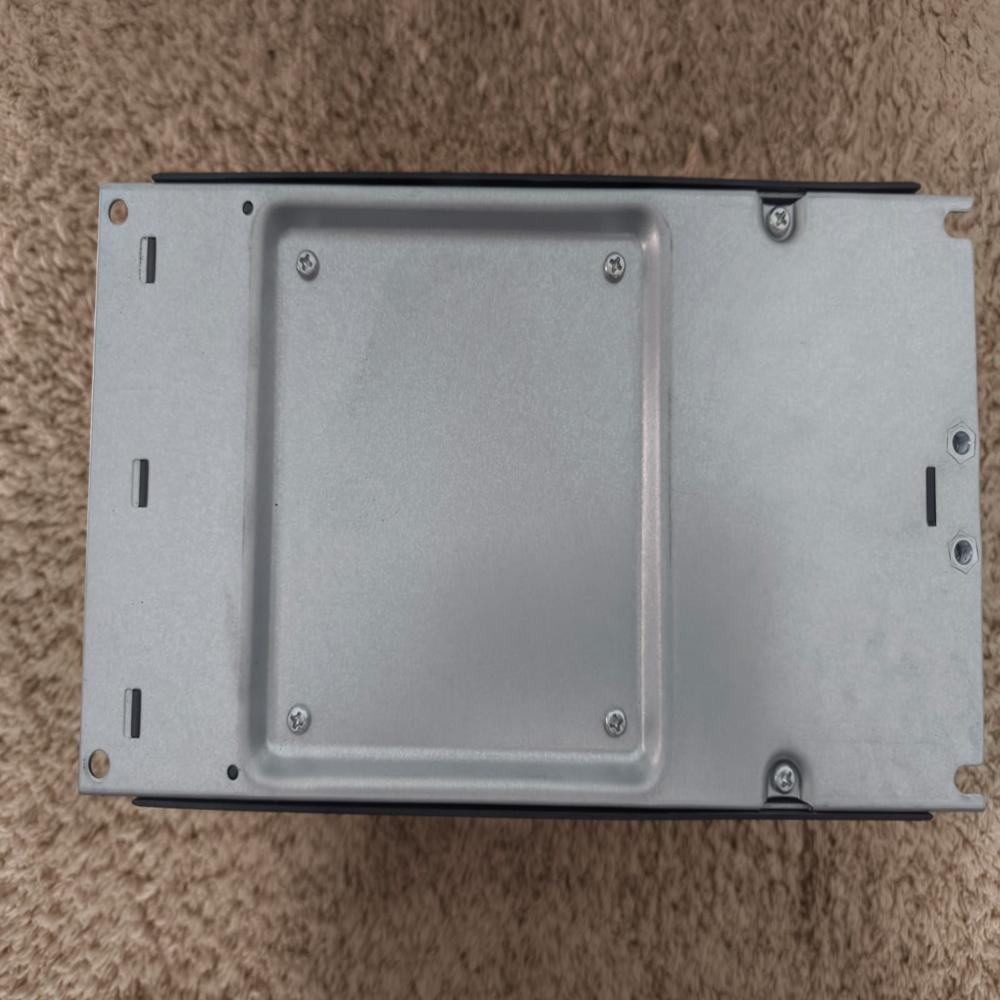

MD310T11B - 15HP - MD310 - 3 Phase - Inovance Ac Drive

Name: MD310T11B - 15HP - MD310 - 3 Phase - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 26400.0 INR
Availability: InStock

Price 26400.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD310T11B - 15HP - MD310 - 3 Phase - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
3.4 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD310T11B - 15HP - MD310 - 3 Phase - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD310T11B - 15HP - MD310 - 3 Phase - Inovance Ac Drive

The Inovance MD310T11B is a heavy-duty 15 HP (11 kW) 3-phase AC drive. This model uses the Frame Size 4 chassis, which is the largest in the compact MD310 range, providing robust current handling for demanding industrial motors. [1, 2, 3, 4]

Dimensions & Weight

As a Frame Size 4 unit, it has a larger footprint to accommodate the internal components required for 15 HP loads Inovance Flyer.

Specification [1]	Metric Value	Inch Value (Approx.)
Height (H1)	298 mm	11.73 in
Width (W)	180 mm	7.09 in
Depth (D)	176 mm	6.93 in
Weight	3.4 kg	7.50 lbs

Key Technical Specifications

Rated Power: 11 kW (15 HP).
Rated Output Current: 25.0 A IndustryBuying.
Rated Input Current: 26.0 A.
Input Voltage: 3-Phase 380 V to 480 VAC.
Braking: Includes a built-in dynamic braking unit (chopper) as standard. [1, 2, 3, 4, 5]

Functional Capabilities

High Precision: Uses Sensorless Vector Control (SVC) to deliver 150% starting torque at 0.25 Hz Inovance MD310 Brochure.
Industrial Durability: Features 3C3 and 3S2 conformal coating for resistance to humidity and corrosive gases.
Advanced Control: Offers PID control, simple PLC functions, and supports up to 16 multi-step speeds.
Connectivity: Standard Modbus-RTU and CANlink communication, with optional expansion cards for other industrial protocols. [1, 2, 3, 4, 5]
